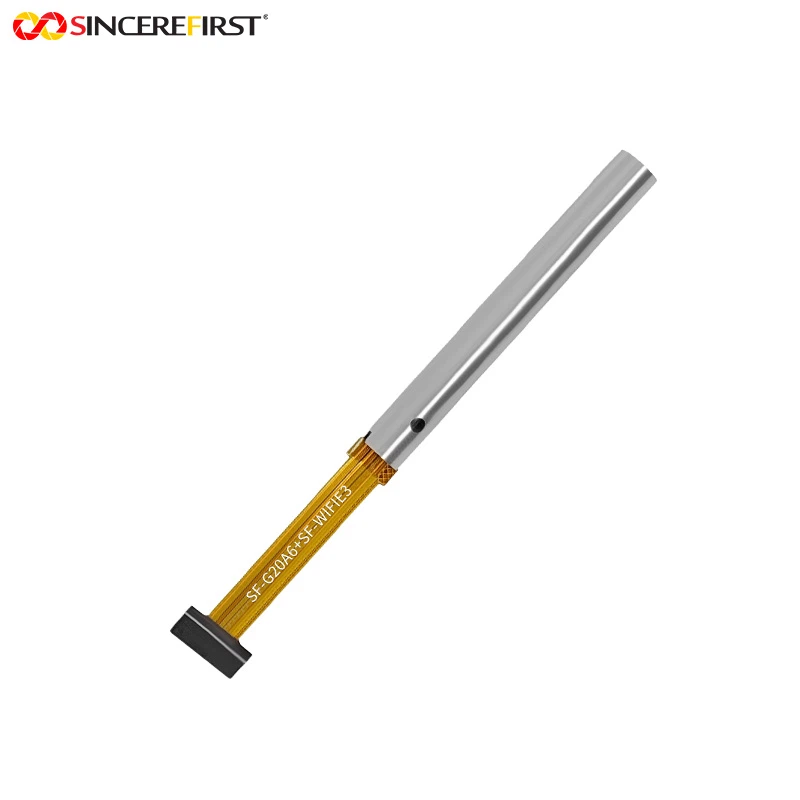

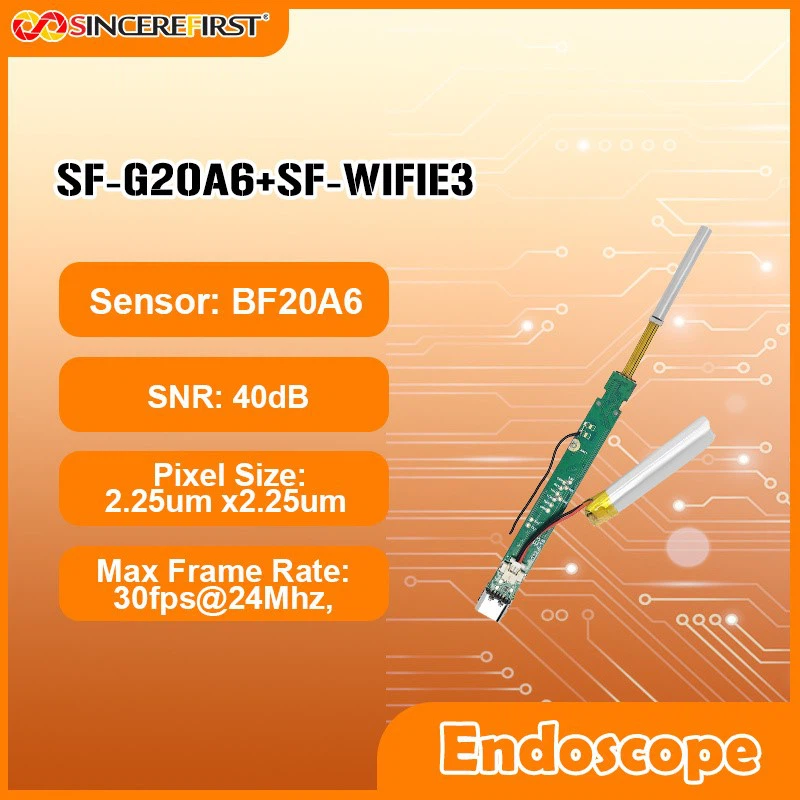

BF20A6 Sensor Mini WIFI Inspection Endoscope Camera Module

Guangzhou Sincere Information Technology Ltd. is one of the most professional bf20a6 sensor mini wifi inspection endoscope camera module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.



Introduction:

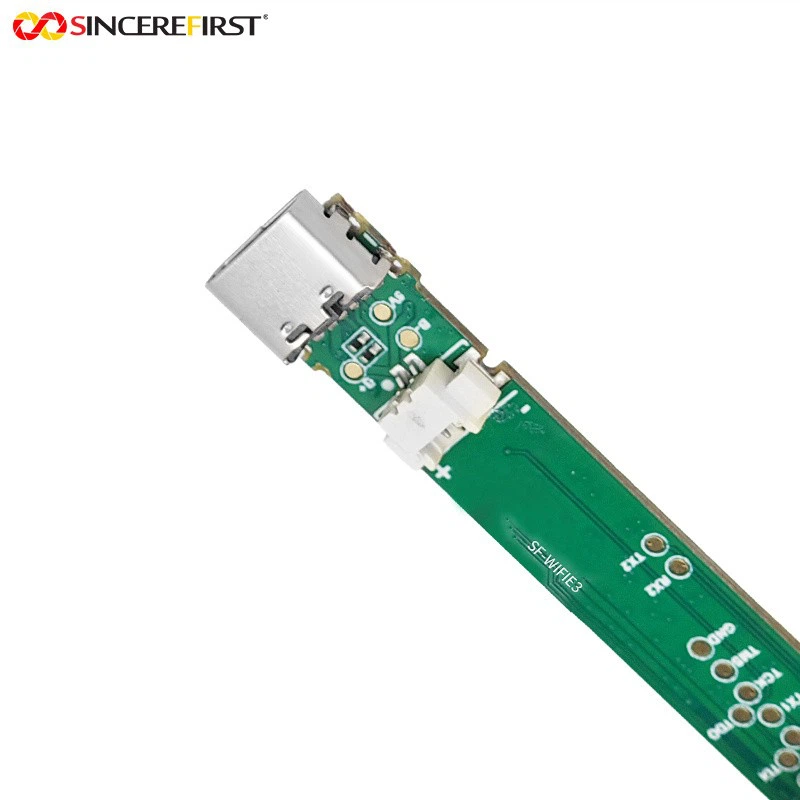

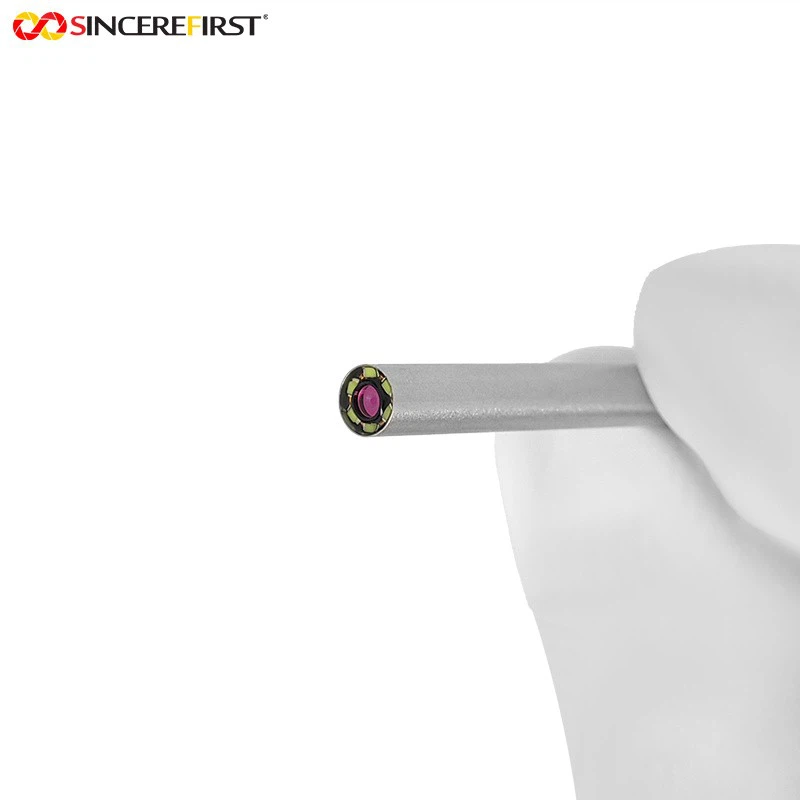

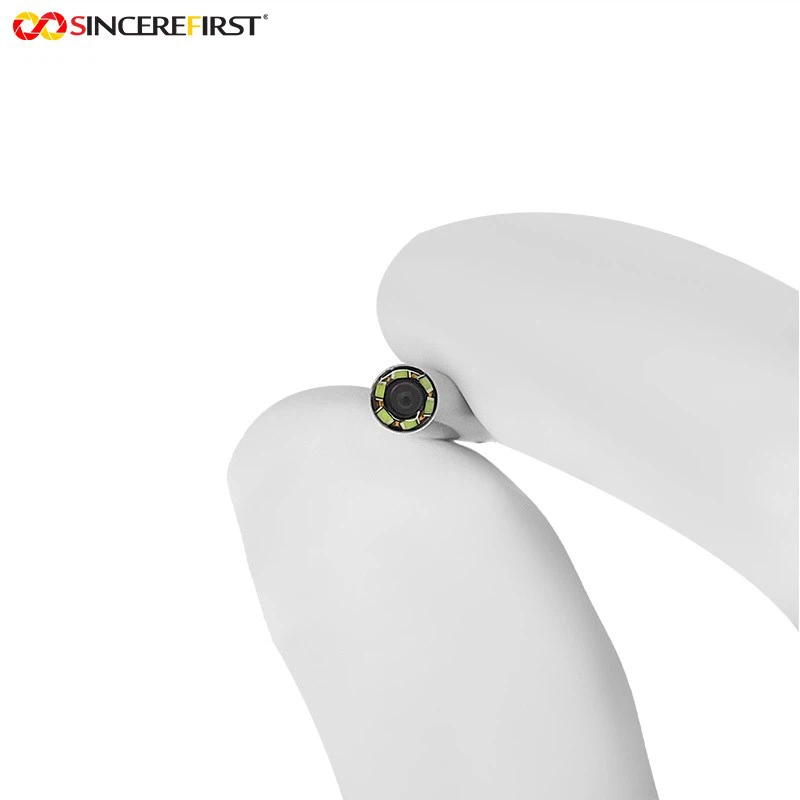

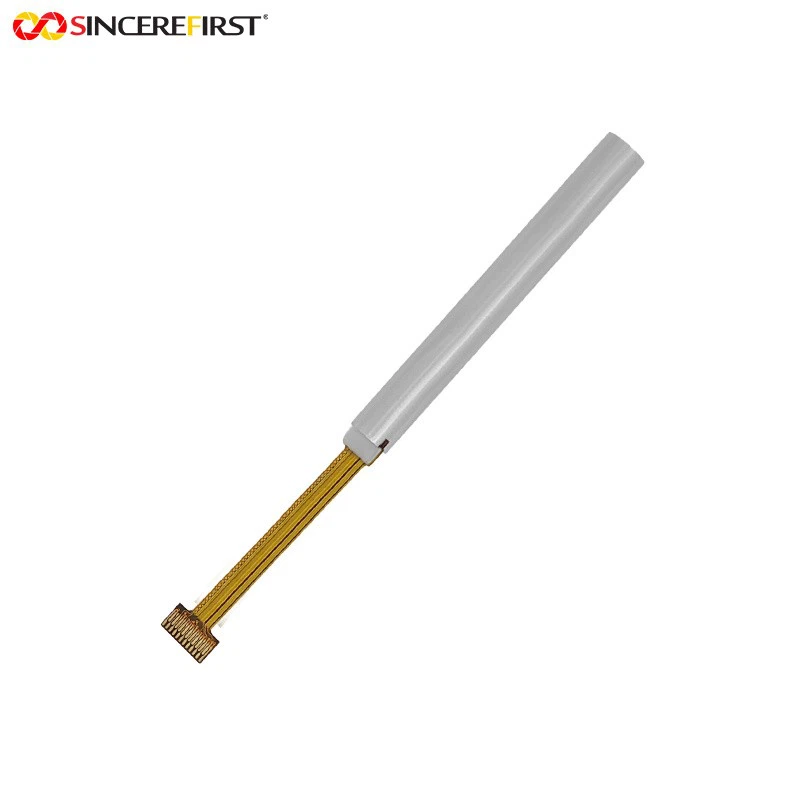

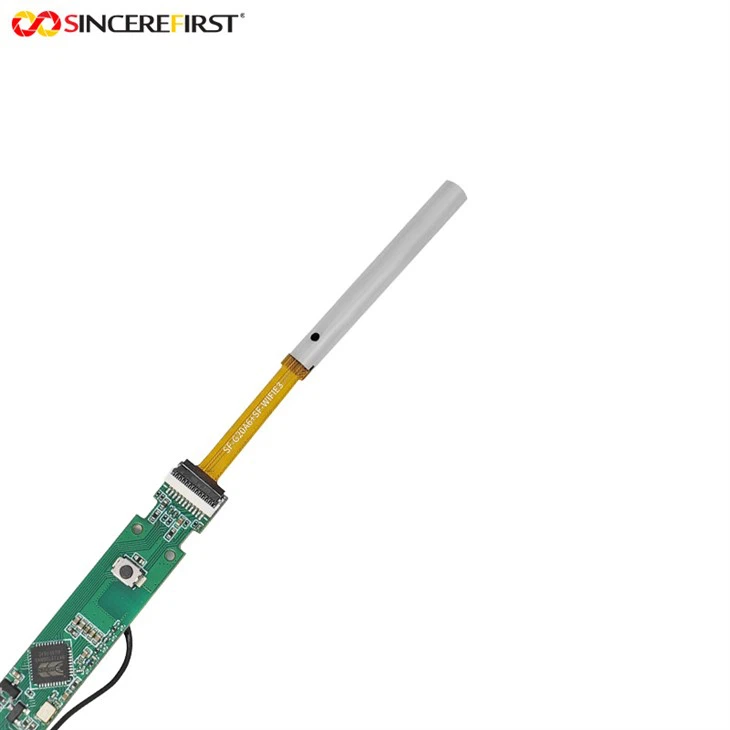

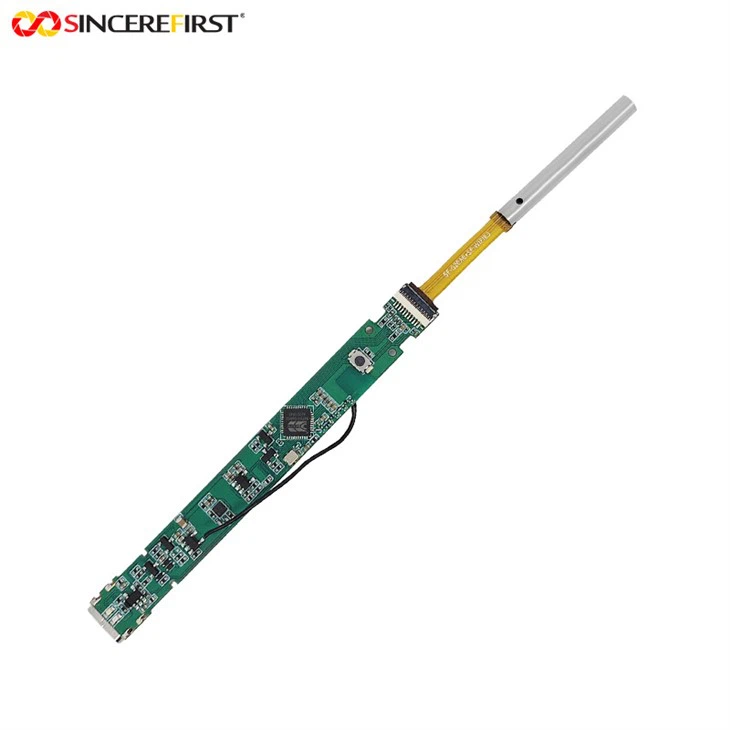

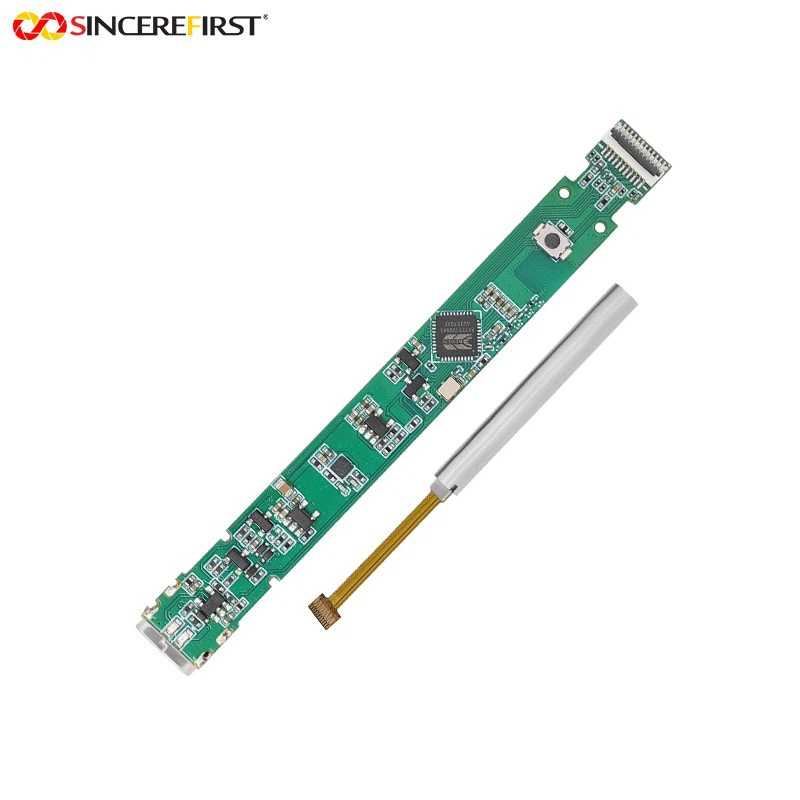

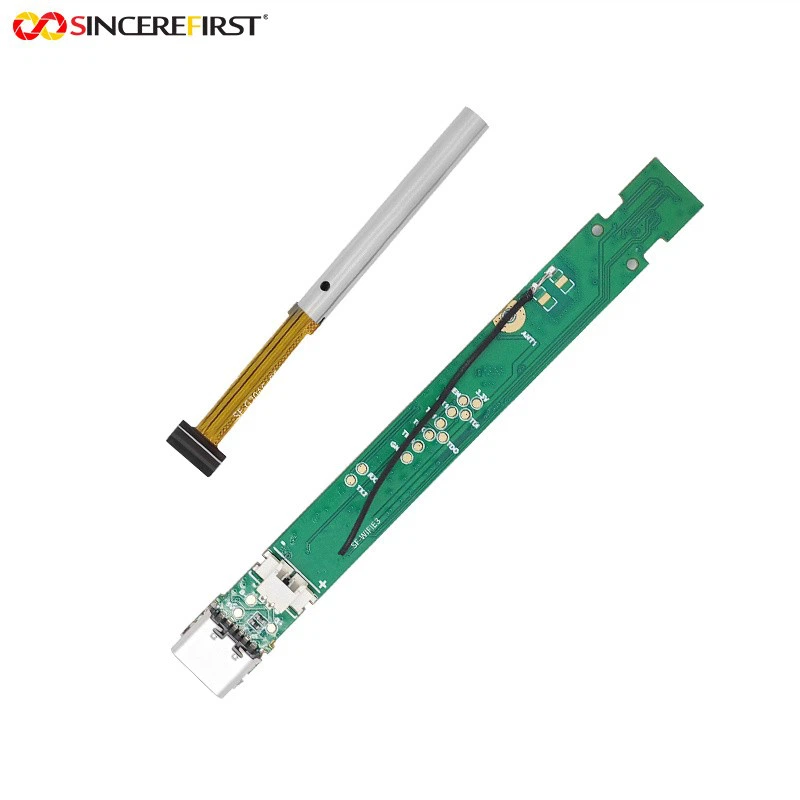

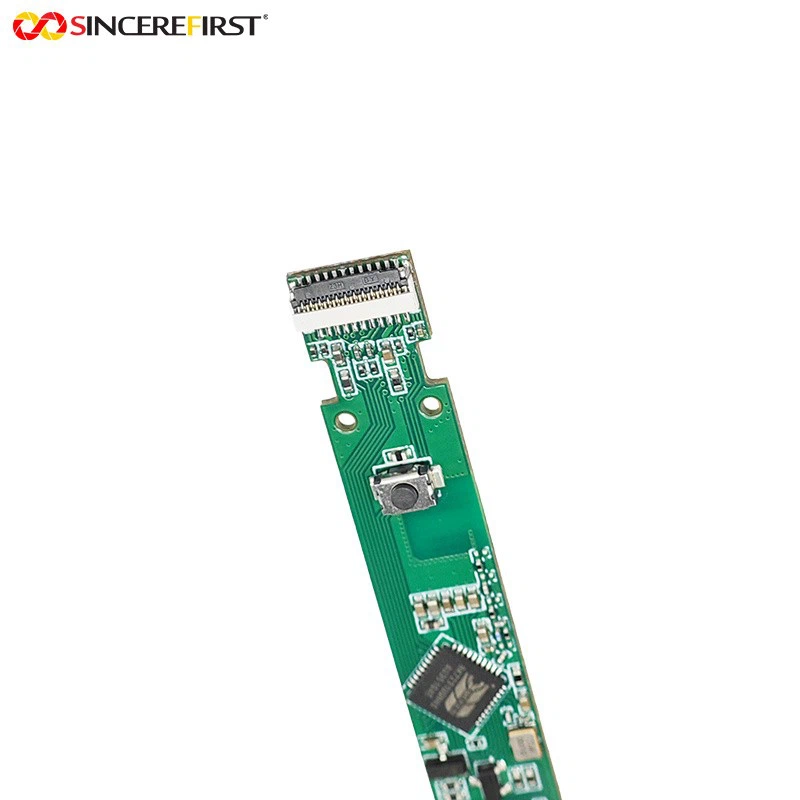

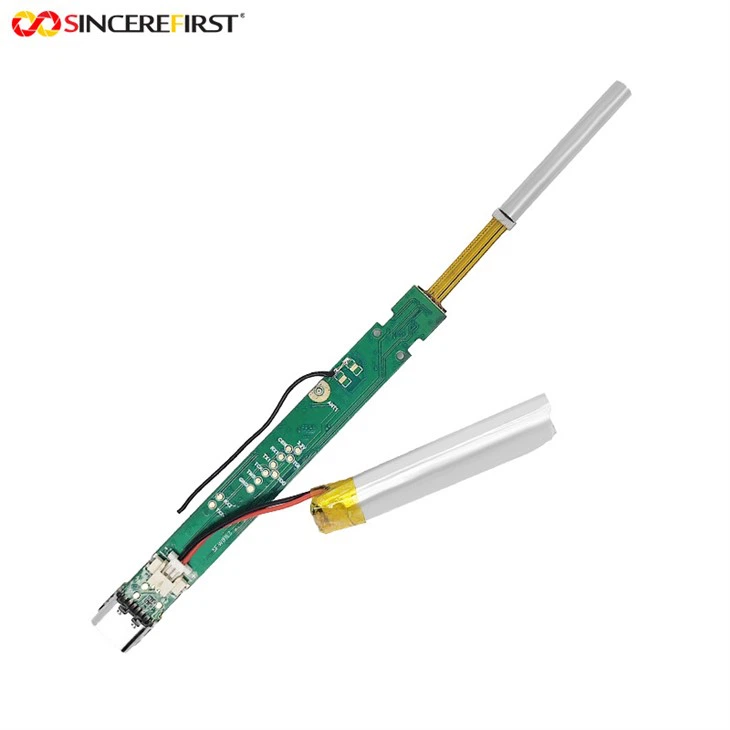

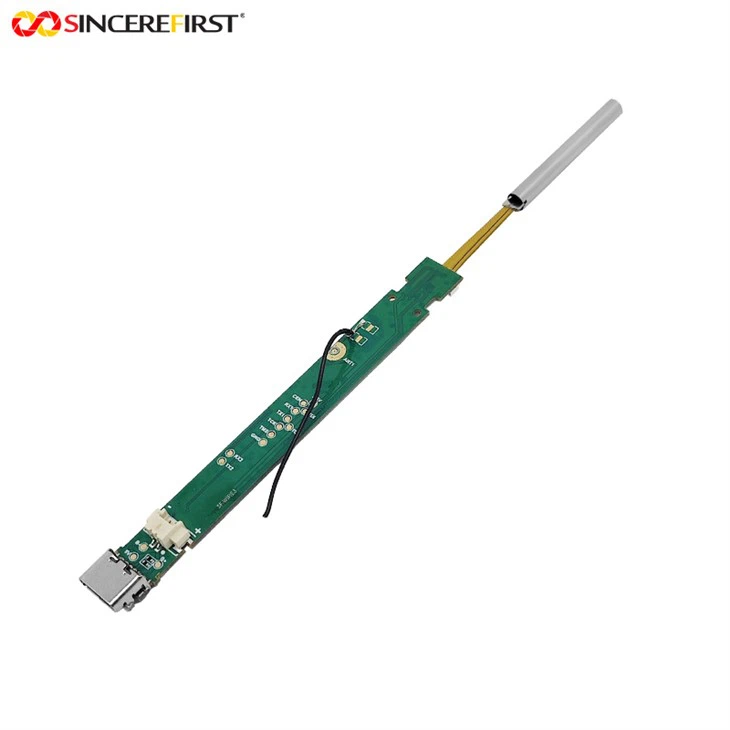

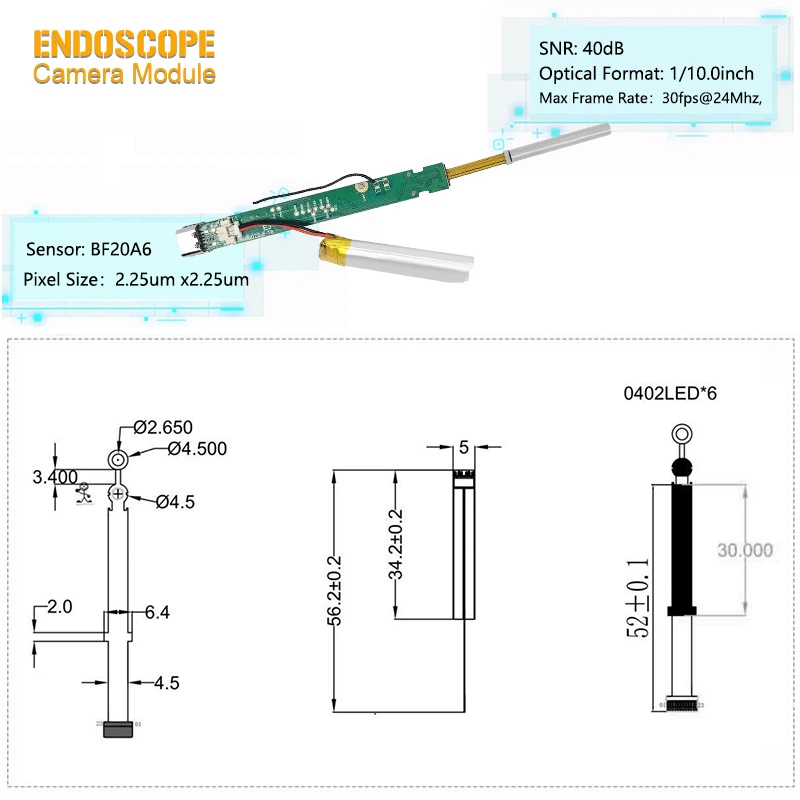

This new mini WiFi inspection endoscope camera module with shell features an ultra-small size of 4.5mm diameter, high-quality digital sensor BF20A6, and provides clear output. The powerful wireless module provides a stable Wi-Fi connection. Users can watch videos on iPhone, iPad, Android devices, and PC, as well as capture images (JPG) and record 720p HD videos (AVI) using the bundled app.

The BF20A6 is a 1/10-inch VGA CMOS Image Sensor which includes CMOS image sensor (CIS)and ISP. It is fabricated with the world's most advanced CIS process to realize ultra-low dark noise, high sensitivity, high dynamic range and very low power imaging system. The sensor consists of a 640x480 pixel array which has an optical format of 1/10 inch for VGA lt has integrated noise canceling CDS circuits, analog global gain and separated R/GB gain controller,automatic black level compensation and on-chip 10-bit ADC.The on-chip ISP provides a very smooth AE and accurate AWB control. It provides various data formats, such as Bayer RGB,YCbCr 4:2:2. It has a commonly used two-wire serial interface for host to control the operation of the whole sensor.

The product is capable of operating at up to 30 frames per second at 12MHz master clock in VGA mode, with complete user control over image quality and data format. All required image processing functions are also programmable through the two-wire serial bus.



Features

•Standard optical fommat of 1/10 inch for VGA

•30 frames/secVGAmode.

•Ultra-low dark noise athigh temperature.

•Ultra-Low power consumption

•≤70 mW@30fps VGA

•≤180 uA@power down

•Output formats:YUV422/Raw/OnlyY

•Power supply:1.8/2.8Vfor1/O,2.8V for VDD3ANVDD3D

•Horizontal /Vertical mirror

•Auto black level control.

•Image processing function:Gamma Correction,Bad Pixel Correction,Color Interpolation,Low Pass Filter, Color Space Conversion,Color Correction,Edge Enhancement, Auto exposure, Auto White Balance,Color Saturation,Contrast,Skin Detection,and Data Fommat Conversion. Exposure control, Gain control, Test pattem, lmage size control, Lens shading, Gamma and so on.

•Package:CSP.
