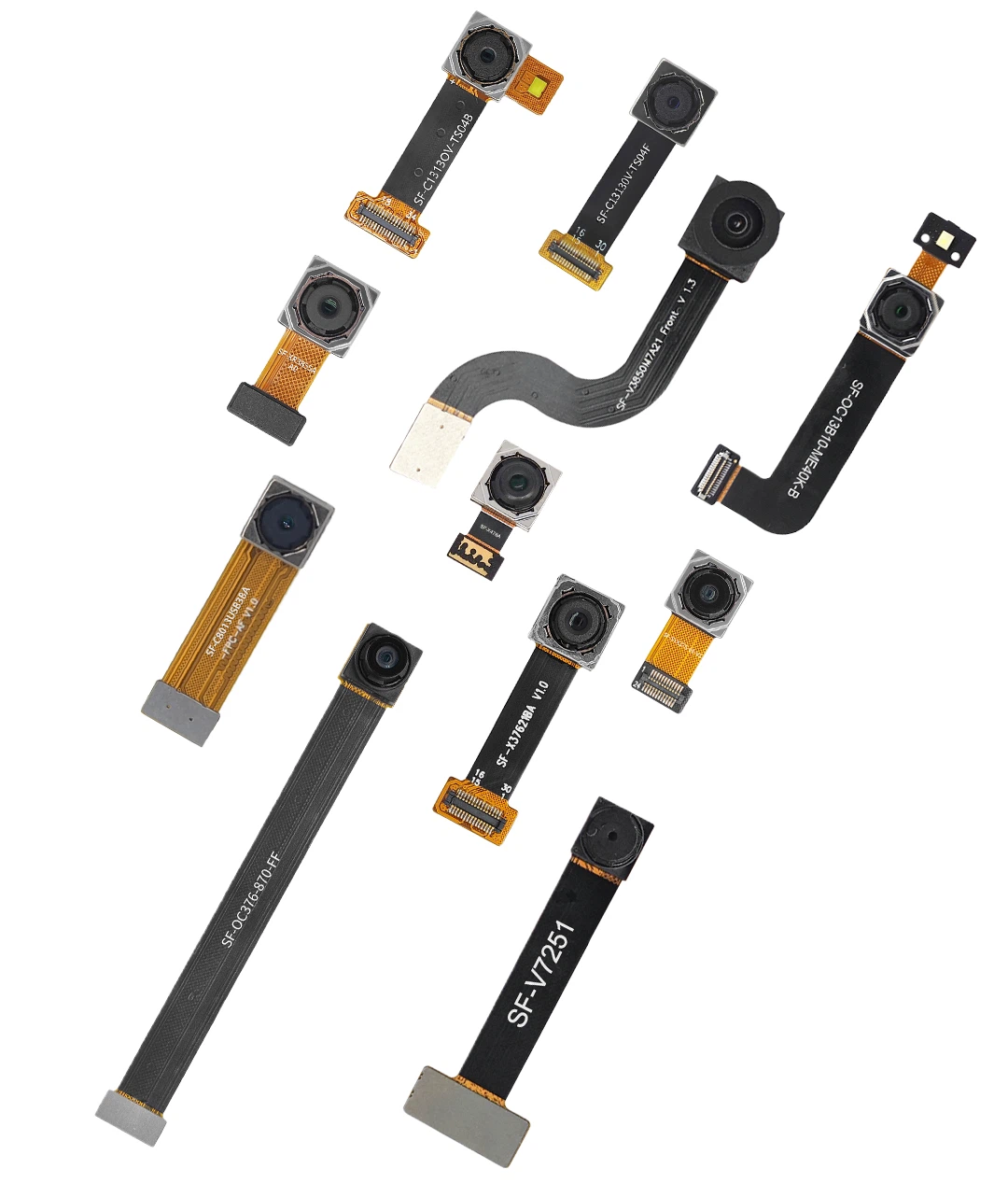

Cmos Camera Module
Your Professional Camera Module Manufacturer
Guangzhou Sincere Information Technology Ltd. is a professional and high-tech leading company in integrated optical device manufacturer and optical imaging system solution provider since 1992's foundation. We specialize in the production of various camera modules to help you create highly customized camera module solutions, including 0.1mp to 200mp MIPI camera modules and USB camera modules as well as endoscope camera modules with a diameter of 0.9mm~10mm.
Quality Assurance
All our camera modules must be inspected by professional QC, and the products are inspected in strict accordance with national standards before shipment. And the entire process is strictly implemented in accordance with the ISO9001 quality system.
01
Advanced Equipment
Professional AA (Active Alignment) equipment manufacturing, COB 100 level dust-free workshop.
02
Professional Technical Team
We have been manufacturing camera modules for over 30 years. And we have top professional R&D talents, management talents and sales elites with rich experience.
03
Good Service
We provide 1-year replacement and 10-year warranty services. Additionally, we can provide training on how to use the camera module.
04
Reasonable Price
We offer competitive price to achieve win-win.
05
The CMOS camera module is a miniature imaging device that integrates optical components and electronic processing systems. It is a key component for achieving image or video capture functions in modern electronic devices. At its core, it uses a CMOS image sensor as the photosensitive element, and converts the light signal gathered by the lens into an analog electrical signal through a photodiode, supporting 4K@60FPS high-speed video and ultra-clear HDR picture shooting. It is small in size and low in power consumption, and is a camera module widely used in fields such as smart phones, smart wearable devices, surveillance cameras, robot vision, industrial inspection equipment and unmanned aerial vehicle gimbals. In short, CMOS camera modules are micro-systems that convert optical signals into high-quality digital images, and their technological iterations are continuously evolving towards intelligent and highly reliable imaging technology.
Advantages Of CMOS Camera Module
Low cost of mass production
Made using standard semiconductor processes, compatible with mainstream wafer production lines, significantly lower cost of mass production than CCD.
High integration
Integrate the image sensor, analog-to-digital converter, and control circuits onto a single chip, significantly reducing the size of the camera module.
Ultra-low power design
With only the required circuit units activated, the typical operating power is as low as 1.2W, which can extend battery life when used on mobile devices.
Parallel signal reading
Supports output of high frame rate images such as 4K@60fps, which can meet both high-speed continuous shooting and video requirements simultaneously.
Multimodal imaging capability
Supports RGB-IR dual-band fusion, maintains imaging continuity when switching between day and night environments, suitable for all-weather and complex low-light scene shooting.
Multi-functional Integration
Autofocus and high-speed shooting with VCM motor and improved global shutter.
Types of CMOS Camera Module

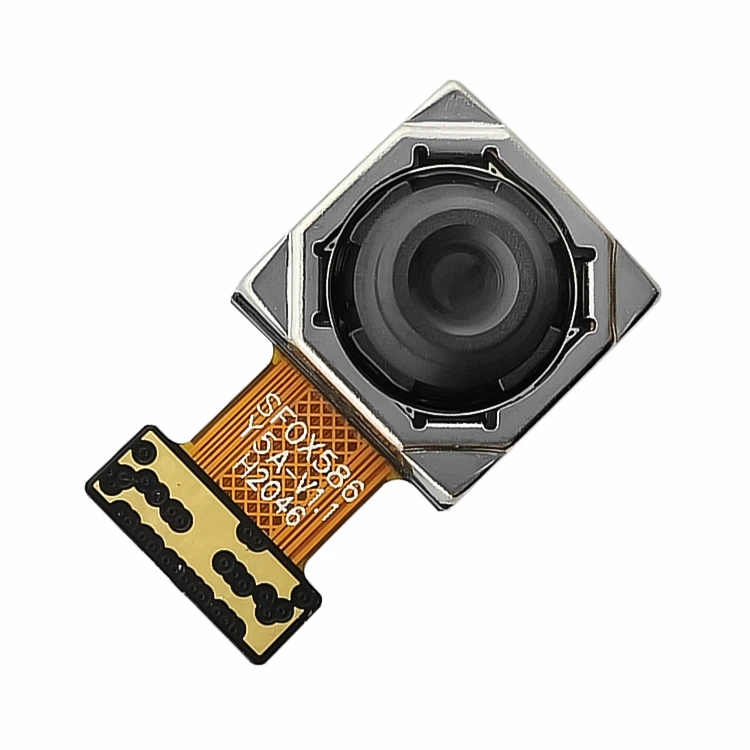

Auto Focus CMOS Camera Module
Integrated with VCM motor drive technology, it achieves fast and precise autofocus, suitable for dynamic scene shooting. The ISP algorithm can be combined to optimize the focusing accuracy and response speed, and improve the image clarity.

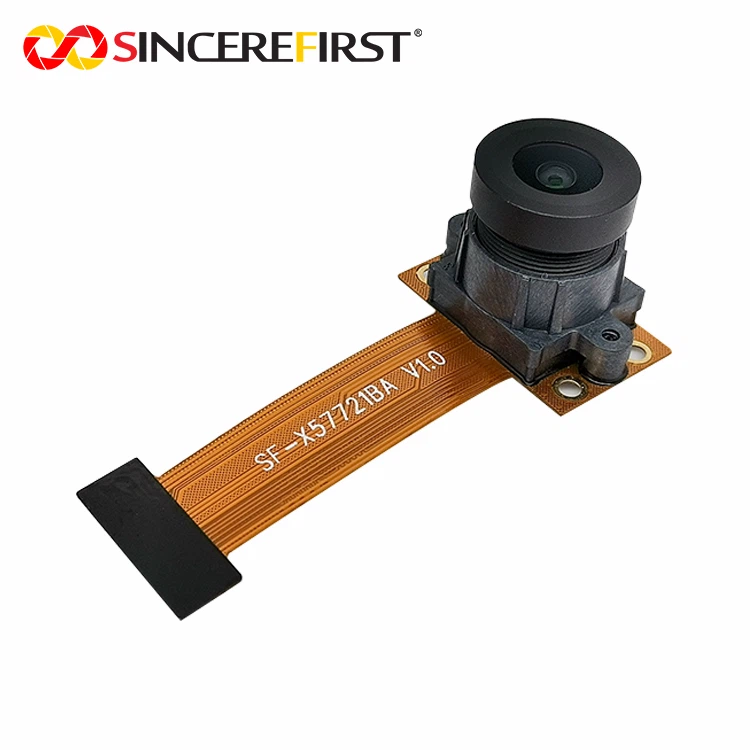

High Frame Rate CMOS Camera Module
Supports high frame rate output such as 4K@60FPS or 1080P@120FPS to meet the requirements of high-speed motion and video capture. Parallel signal reading technology is adopted to reduce latency and achieve smooth video streaming transmission.

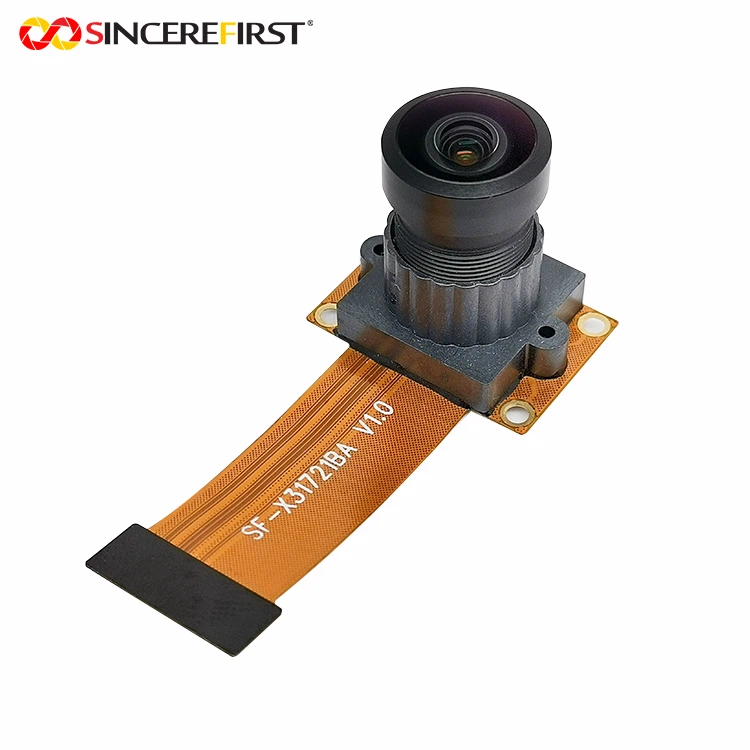

4K Ultra HD CMOS Camera Module
It offers 4K ultra-high-definition resolution with an effective pixel count of up to 11 million and has excellent detail capture capabilities.
High-performance CMOS sensors such as OV OS12D40 are used to ensure accurate color reproduction and adaptability to low-light environments. Supports multiple frame rate modes such as 4K@30FPS or 2.7K@60FPS to enhance versatility and application flexibility.

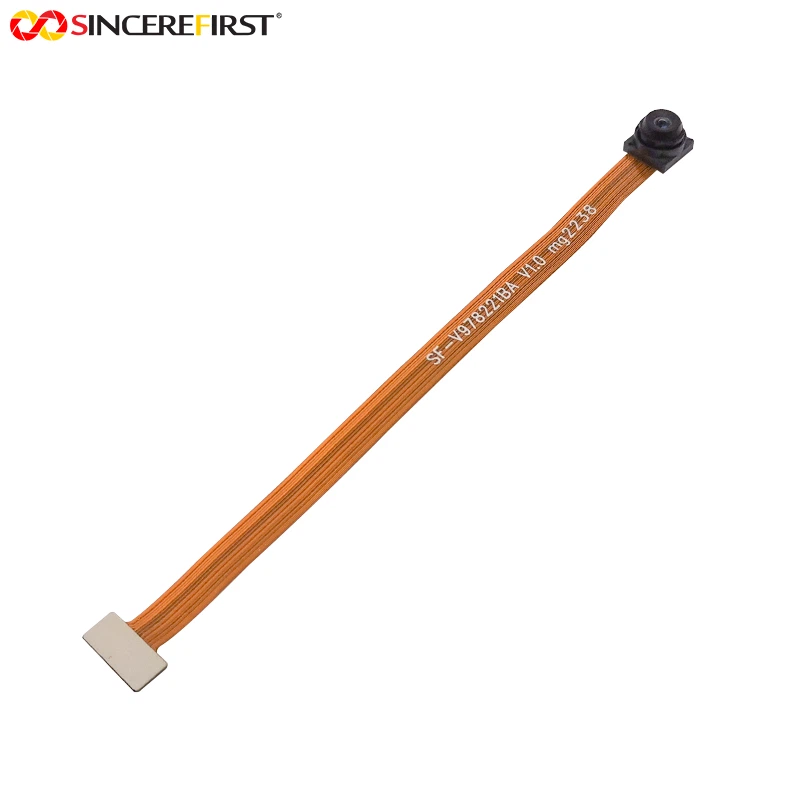

Global Shutter CMOS Camera Module
It adopts global shutter technology to eliminate motion blur and is suitable for imaging high-speed moving objects. Supports high frame rate real-time viewing, such as 22 frames per second at full resolution, and is equipped with a USB3.0 interface for fast data transfer.

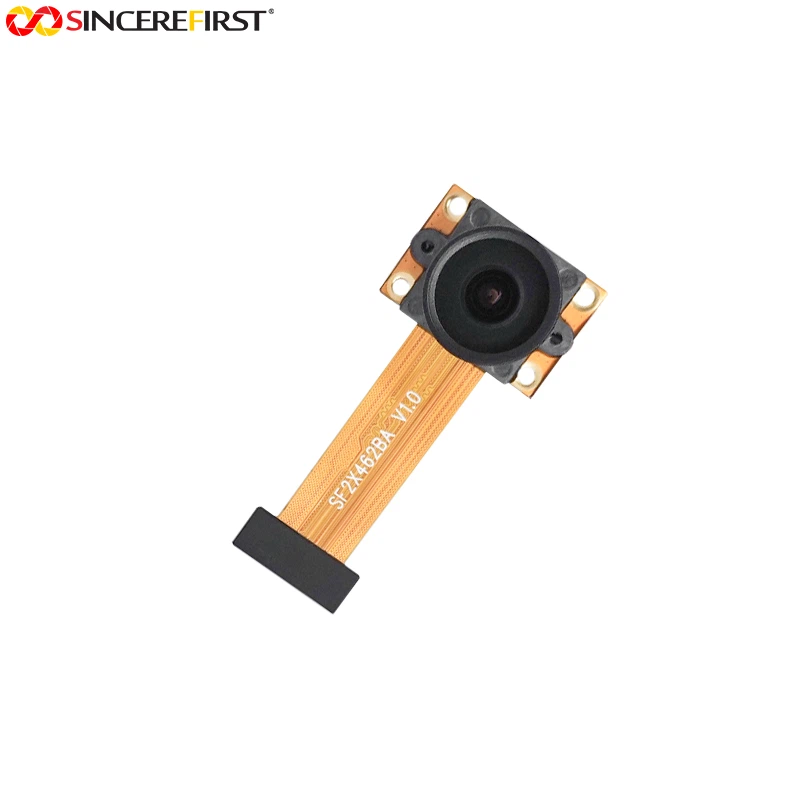

HDR CMOS Camera Module
High dynamic range imaging is achieved by combining ISP algorithms, including automatic exposure and color correction, to enhance light and dark details and scene adaptability. Support high-quality shooting in complex lighting environments, such as switching between day and night scenes. It can also be combined with noise reduction and sharpening processing to optimize the authenticity and accuracy of the image.

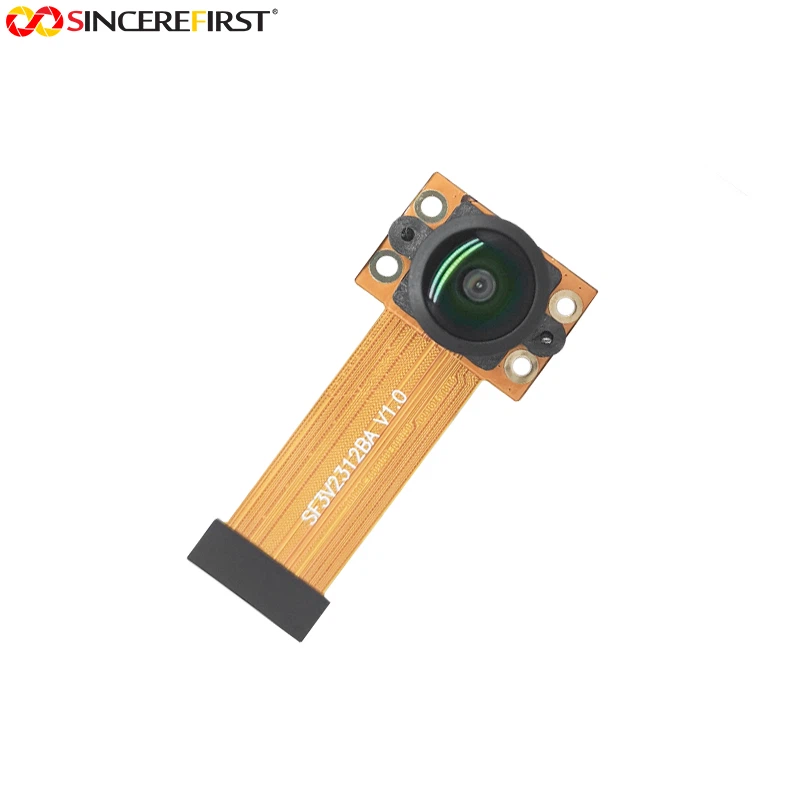

Monochrome Image CMOS Camera Module
Integrating MONO chips and sharpening noise reduction algorithms, the sensor parameters are optimized to enhance light sensitivity and resolution, ensuring image clarity and reducing noise.
Application of CMOS Camera Module
AI Robot Vacuum Cleaner
During the dynamic cleaning process, the VCM motor can quickly adjust the focal length in real time, identify the outline of obstacles and avoid them, and intelligently plan the cleaning path in real time.
High-Speed Aerial Drone
When flying at high speed, 1080P@120FPS high speed video capture, precisely capture the motion trajectory of each frame.
Security Surveillance Camera
It can output 4K@30FPS ultra-high definition picture, accurately reproduce the details of the image in low light conditions, ensuring the ultra-high definition of the surveillance picture.

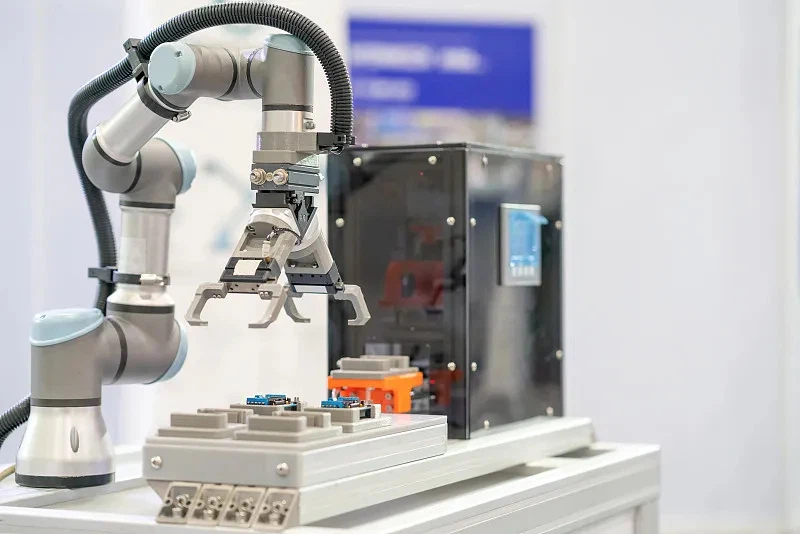

Robotic Arm Vision Positioning System
By using global shutter technology, the positioning accuracy of parts on high-speed assembly lines can be identified, ensuring the assembly yield rate of products.
AI Transport Ball Machine
Combined with HDR technology, the exposure parameters are automatically optimized in the alternating strong and weak light scenes at the tunnel entrance and exit to ensure the all-weather license plate recognition rate.

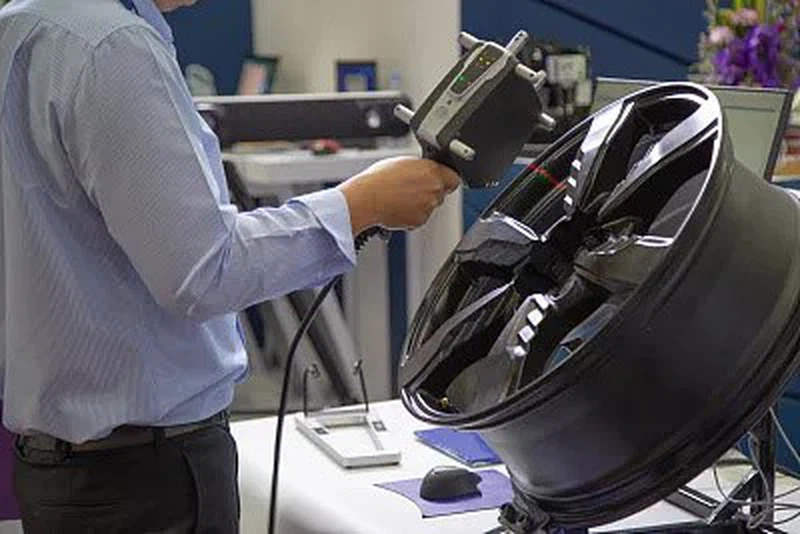

3D Scanner
Non-contact three-dimensional digitalization is carried out by using optical imaging technology. By projecting structured gratings and capturing the surface deformation images of objects, high-precision three-dimensional models are generated through multi-angle shooting and splicing.
Process of CMOS Camera Module
Module Design and Material Procurement
Optical Design: Select glass/plastic lens combination, calculate focal length, field of view, optimize distortion and dispersion.
Sensor Selection: Select CMOS sensor type based on specifications, determine pixel size, readout speed and HDR support.
ISP Integration: Design an image signal processor (ISP) that integrates noise reduction, auto focus (AF), and auto exposure (AE) algorithms.
Circuit Design: Design FPC softboard circuit to match the electrical interface between the sensor and the controller chip.
Raw Material Preparation: Procure core materials such as lenses, CMOS sensors, VCM voice coil motors, IR filters, and FPCS.
SMT Assembly (PCBA Process)
1.PCB Printing and Solder Paste Application
Print solder paste on the PCB pads.
2. Component Installation
Use an SMT placement machine to precisely install tiny components such as sensors, resistors and capacitors onto the PCB.
3. Reflow Soldering
The high-temperature reflow soldering furnace melts the solder paste and fixes the components.
4. AOI Inspection (Automatic Optical Inspection)
Check the welding quality to avoid problems such as miswelding and short circuits.
Module Assembly
Lens Assembly: Align the lens (fixed focal length or autofocus) with the sensor to ensure optical center matching. High-precision calibration is carried out using the AA (Active Alignment) device, and the air gap is adjusted and sealed to prevent dust.
Sensor Packaging: The sensor is bound to the PCB substrate using the COB (Chip on Board) or CSP (Chip Scale Package) process.
Module Integration: Assemble the lens, VCM motor, IR filter and sensor in sequence, and fix the components (such as UV glue curing) through the dispensing process.
Weld the FPC connector to complete the electrical signal path.
Environmental Control: The entire operation is carried out in a dust-free workshop (with Class 1000 or below), and the temperature, humidity and electrostatic discharge protection (ESD) are controlled.
Testing and quality control phase
Optical Test: Resolution (MTF measurement), distortion, color reproduction accuracy (24 color card calibration).
Electrical Performance Testing: Signal integrity, power consumption, frame rate stability and signal-to-noise ratio (SNR).
Environmental Reliability: high and low temperature cycling (-40 ° C to 85 ° C), vibration and shock, aging life tests.
Packaging and Shipment
1. Anti-static packaging to prevent damage during transportation.
2. Provide the Datasheet and driver code (such as Linux drivers).
Components of CMOS Camera Module
Lens: The lens is responsible for converging external light and accurately focusing it onto the image sensor. The common lens structure adopts a combination of multiple lenses. In terms of material, it may use a mixture of glass and plastic or an all-glass design to meet the optical requirements in different scenarios.
CMOS sensor: The main function of a CMOS image sensor is to convert optical signals into electrical signals. High-resolution sensors can capture more details, while large pixel sizes help enhance the light-sensing ability in low-light environments.
Image Signal Processor (ISP) : The ISP is responsible for performing operations such as noise reduction, color correction, automatic exposure, and white balance on the raw data output by the sensor. It also supports advanced functions such as HDR synthesis and multi-frame noise reduction. The ISP can be an independent chip or integrated into the main control SoC.
Filter: A filter is used in a module to filter out excess light. The IR Cut Filter is used to block infrared light, while the CFA covers the surface of the sensor. The performance of these filter elements directly affects the color accuracy and signal-to-noise ratio of the image.
Focusing and anti-shake system: Voice coil motors (VCM) and piezoelectric clicks can achieve the auto-focusing function. The optical image stabilization (OIS) system can enhance the stability of imaging.
Circuit and structural components: FPC or PCB carries sensors, ISPs and other electronic components.
Housing and bracket: It offers mechanical protection and also features a heat dissipation design to ensure the stability of the module during long-term operation. Some modules will also integrate temperature sensors to monitor the working status.
Interface: It is used for communication with the main chip or other devices. Common interfaces include MIPI interface, IP interface and USB interface. The selection of interface needs to be determined based on the bandwidth requirements and power consumption limitations of the application scenario.
Auxiliary components: Including infrared fill light and ambient light sensor. The infrared fill light provides additional illumination in low-light conditions, while the ambient light sensor is used to automatically adjust the exposure parameters.
How To Cooperate With Us?
Demand Analysis
Communicate requirements with customers
Design Scheme
Design solutions that meet customer needs
Establish Cooperation
Provide camera module drawings and establish cooperation
Make Samples
Camera module proofing according to the design plan
Camera Module Test
Send out samples, and customers will test
Mass Production
After the samples pass the customer's test, mass production begins
Certifications
RoHS, REACH, ISO, CE, FCC
FAQ
Q: What is compact camera module?
A: Compact camera modules are widely used in electronic devices such as mobile phones and tablet computers. In order to reduce both the size and number of elements required the optical design will typically incorporate several highly aspheric surfaces.
Q: What are the different types of camera modules?
A: Divided by the position, there are 2 types of camera modules: a front camera module and a rear camera module.
Q: What are the differences between CMOS camera modules and CCD camera modules?
A: The core difference between CMOS and CCD camera modules lies in that CCD transfers charges line by line through global exposure, resulting in high imaging quality but high power consumption and slow speed, making it suitable for professional photography. Each pixel of CMOS independently processes signals, featuring low power consumption, high speed and low cost. It is widely used in mobile phones and security systems. In recent years, its image quality has approached that of CCD. Under technological iteration, CMOS is gradually replacing CCD to become the mainstream.
Q: How to choose a CMOS camera module?
A: When choosing a CMOS camera module, attention should be paid to the sensor size, pixel type, frame rate, interface type, and whether it integrates an ISP. At the same time, a comprehensive consideration should be made in combination with the power consumption budget and application scenarios.
Q: Is the cost of customizing cmos camera modules high?
A: The cost of customizing CMOS camera modules varies greatly due to different demands. The core cost depends on sensor performance, customized functions such as HDR/ infrared, packaging grade and purchase volume. Mass production can significantly reduce the unit price. SincereFirst can provide a one-stop CMOS camera module solution and also supports customization.
Q: What are the advantages of CMOS cameras?
A: Small size ; Youdaoplaceholder0 has significantly lower power consumption than conventional CCD sensors ; Youdaoplaceholder0 Low cost ; Youdaoplaceholder0 High integration; With excellent low-light performance of and fast response capability of , combined with intelligent algorithms, full-color night vision, high frame rate recording and wide dynamic range imaging can be achieved.
Q: Which devices typically use CMOS cameras?
A: CMOS cameras are widely used in fields such as smart phones, security monitoring systems, medical endoscopes, drone gimbals, in-vehicle ADAS, industrial inspection equipment, and consumer-grade digital cameras. Their low power consumption, high integration, and cost advantages make them the mainstream choice for modern imaging devices.
Q: What is a sensor module?
A: Sensor module is a device developed to detect the presence of an insert in overmolding injection process. The device is easy to apply and allows for a setting of the reading distance from the parting line. The sensor module is available with an embedded magnet.
Q: What are the importance components of camera module?
A: Among the main components of the camera module, the most important is the image sensor, because the sensor is the most important for image quality. The Sensor converts the light transmitted from the lens into an electrical signal, which is then converted to a digital signal by an internal DA.
parting line. The sensor module is available with an embedded magnet.
Q: What are the importance components of camera module?
A: Among the main components of the camera module, the most important is the image sensor, because the sensor is the most important for image quality. The Sensor converts the light transmitted from the lens into an electrical signal, which is then converted to a digital signal by an internal DA.
