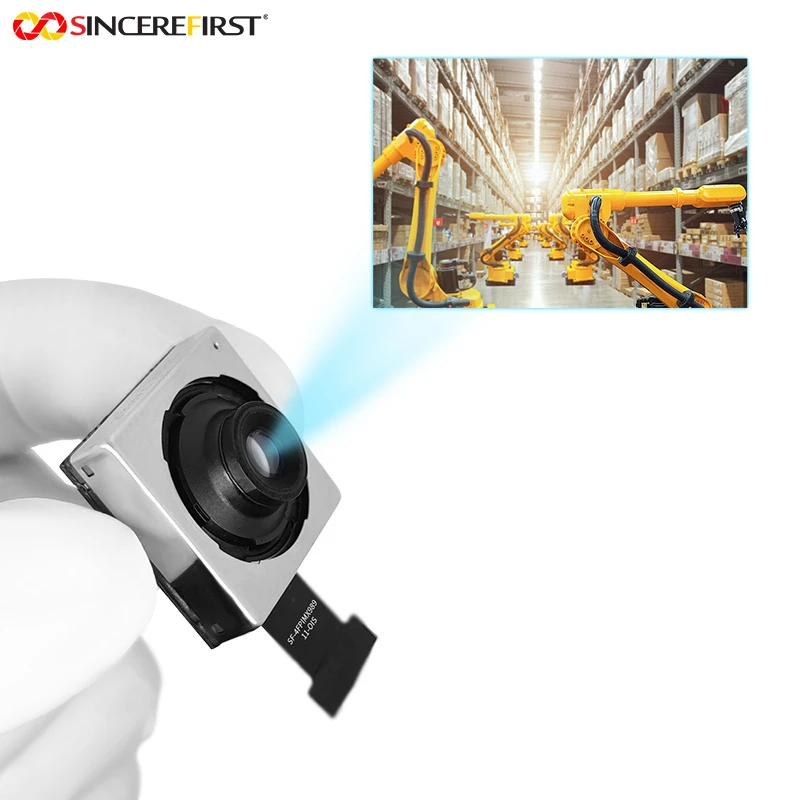

Sony IMX989 Large Cmos Inage Sensor Compact Camera Module

Guangzhou Sincere Information Technology Ltd. is one of the most professional sony imx989 large cmos inage sensor compact camera module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.



Introduction:

High pixel SONY IMX989 Large CMOS image sensor compact camera module is a 50 megapixel CMOS active pixel stacked image sensor, 1 inch large sensor, which is currently unique in mobile phone cameras. It adopts square pixel array, realizes high speed image capture through parallel A/D conversion circuit, and realizes high sensitivity and low noise image through backlight imaging pixel structure. This is the best camera image sensor smartphone from SONY imx, capable of taking bright, sharp photos in low-light environments. It also supports 4K video shooting and has been tuned to MTK9300 and Qualcomm gn2 platforms.



Features

•Pixel specification: The pixel size of IMX989 is 1.60 micron (H)× 1.60 micron (V), the effective pixel number is 8256(H)×6208(V) about 51.25 million pixels, the active pixel number is 8192(H)×6144(V) about 50.33 million pixels ‌.

‌•Technical features: The backlight stacked CMOS sensor supports quadbayer coded color filter arrangement, and has the functions of high frame rate (960fps@4x2 merging adjacent pixels), high signal-to-noise ratio (SNR), phase detection autofocus (PDAF), dual sensor synchronous operation ‌.

‌•Power supply voltage: IMX989 uses four power supply voltages, including analog 2.9V/1.8V, digital 1.1V and I/O interface 1.8V/1.2V, to achieve low power consumption ‌.

‌‌•Output format: Support RAW 8/10/12/14 format output, with QBC reconstruction Mosaic function, support 2-line serial communication (support I2C "fast mode", "fast mode Plus" and I3C).

SINCEREFIRST camera module manufacturing enterprise integrates design, development, manufacturing and sales. We can supply ready made 0.3mp to 108mp FPC & USB camera module and diameter 0.9mm~8.0mm endoscope camera module. Our products are widely used in various fields, such as AIoT equipment, smart home, smart medical, intelligent transportation, automatic driving, intelligent security, Intelligent warehousing, scanning, robot, UAV, medical endoscope, industrial endoscope, computer, intelligent terminals etc.

If you are looking for camera module or camera sensor manufacturers and suppliers, please feel free to contact us for camera module price and more detailed introduction. SINCEREFIRST is a leading high-tech company specializing in integrated optical device manufacturers and optical imaging system solution providers. There are different types of camera modules and camera sensors for sale, and they also support customization to meet all your needs and solve your problems.
