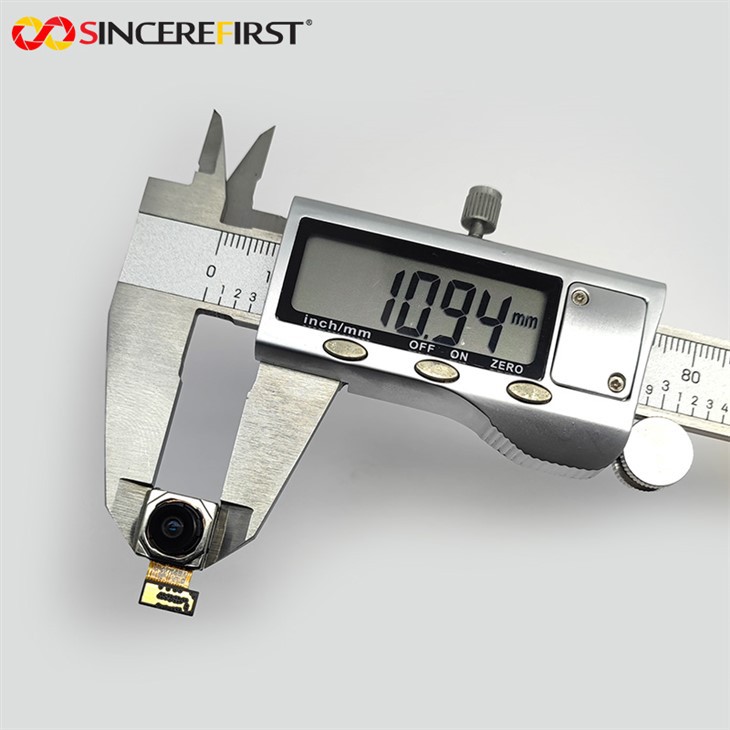

SF4V708BA-RP-FPC (14)
SF4V708BA-RP-FPC (16)
SF4V708BA-RP-FPC (17)

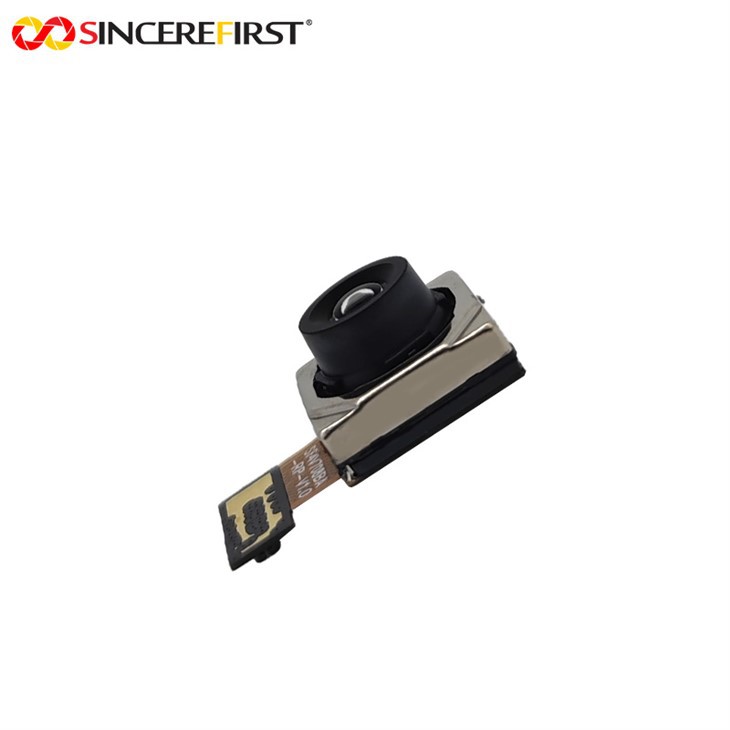

SF4V708BA-RP-FPC (18)
SF4V708BA-RP-FPC (19)
12MP Sony IMX708 Sensor Auto Focus Raspberry Pi MIPI Camera Module
Guangzhou Sincere Information Technology Ltd. is one of the most professional 12MP Sony IMX708 Sensor Auto Focus Raspberry Pi MIPI Camera Module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.
This model is a 12MP Raspberry Pi MIPI camera module designed for embedded projects that need high-resolution image capture, wide-angle viewing and autofocus capability. Built around the Sony IMX708 CMOS sensor, it supports 4608 × 2592 resolution, 1/2.43-inch optical format, 1.4μm pixel size, VCM autofocus, D120° × H103.5° × V67.5° wide-angle lens and 8 / 10 / 14-bit RAW output. This model is suitable as the main IMX708 option for Raspberry Pi projects that require flexible focus behavior and broad scene coverage.
Features:
• Sony IMX708 12MP Sensor
Uses the IMX708 platform for high-resolution Raspberry Pi MIPI imaging and development projects.
• VCM Autofocus Lens
Supports autofocus behavior for applications where object distance or scene depth may change.
• D120° Wide-Angle Coverage
Provides broad scene capture for robotics, terminals, embedded vision and wide-angle observation devices.
• 8 / 10 / 14-Bit RAW Output
Offers flexible RAW output depth for image processing, development and system-level image tuning.
• Raspberry Pi MIPI Integration
Designed for Raspberry Pi camera projects using MIPI interface and compact FPC module structure.
• Optional PCB Adapter or Fixed Focus Version
PCB adapter and Fixed Focus lens version can be selected according to the final integration path.
Application of MIPI Camera Module
• Raspberry Pi AI Vision Development
Suitable for Raspberry Pi projects requiring high-resolution wide-angle imaging and autofocus capability.
• Robotics and Smart Devices
Works for robots and smart products where scene coverage and focus flexibility both matter.
• Embedded Visual Recognition
Can be evaluated for recognition systems that need 12MP detail and variable-distance focusing.
• Prototype-to-Production Camera Projects
Suitable for product teams using Raspberry Pi development before moving toward customized OEM integration.
Product Details:
|
Product Name |
12MP Wide-Angle AF Raspberry Pi MIPI Camera Module |
|
Sensor |
Sony IMX708 CMOS Sensor |
|
Pixel |
12MP |
|
Resolution |
4608x2592 |
|
Sensor Size |
1/2.43 Inch |
|
Output Format |
8 / 10 / 14-bit RAW |
|
EFL |
2.75mm |
|
Focus Range |
10cm ~ Infinity |
|
F.NO |
2.2 |
|
FOV |
D120°*H103.5°*H67.5° |
|
Focus Type |
VCM Auto Focus |
|
TV Distortion |
＜-11.6% |
|
Lens Type |
Wide-Angle Lens |
|
Interface |
MIPI CSI |
Customization Options
AF and Fixed Focus Configuration
The AF version is suitable for variable-distance imaging, while the Fixed Focus version fits stable working distance.
Optional PCB Adapter Integration
A PCB adapter can be selected for projects that need easier mounting, connection or development evaluation.
Wide-Angle FOV Matching
The D120° optical setup can be matched to target coverage, product structure and application distance.
FPC Routing Adaptation
FPC routing, connector location and module layout can be evaluated according to the final device architecture.
Raspberry Pi Platform Fit
Compatibility can be evaluated according to the target Raspberry Pi platform, software environment and imaging workflow.
FAQ
Q: What is the main positioning of this IMX708 AF version?
A: It is the main 12MP wide-angle autofocus option for Raspberry Pi MIPI camera projects.
Q: Does this version include a PCB adapter as standard?
A: No. This AF version is normally positioned as an FPC camera module without PCB adapter as standard.
Q: Can I choose a PCB adapter?
A: Yes. A PCB adapter can be selected according to project integration requirements.
Q: Can I choose a Fixed Focus version?
A: Yes. A Fixed Focus lens version can be selected for stable-distance applications.
Q: What is the resolution?
A: It supports 12MP resolution, 4608 × 2592.
Q: What is the lens angle?
A: The lens angle is D120° × H103.5° × V67.5°.
Q: What RAW output does it support?
A: It supports 8 / 10 / 14-bit RAW output.
Q: What information should I provide for evaluation?
A: Please provide Raspberry Pi platform, focus requirement, FOV, PCB adapter need, mechanical structure and quantity.
