Raspberry PI Camera Module

Raspberry PI Camera Module

The OmniVision OV5647 CMOS sensor is a high-performance with low-voltage, low noisem low crosstalk.It provides 2592x1944 video output using OmniBSI technology. It provides multi-resolution raw images via serial camera control bus or mipi interface, support for output formats 8-/10-bit raw RGB data. It can do 1080P, 30fps and 720P, 60fps.
Send Inquiry
Product Introduction

Guangzhou Sincere Information Technology Ltd. is one of the most professional raspberry pi camera module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.

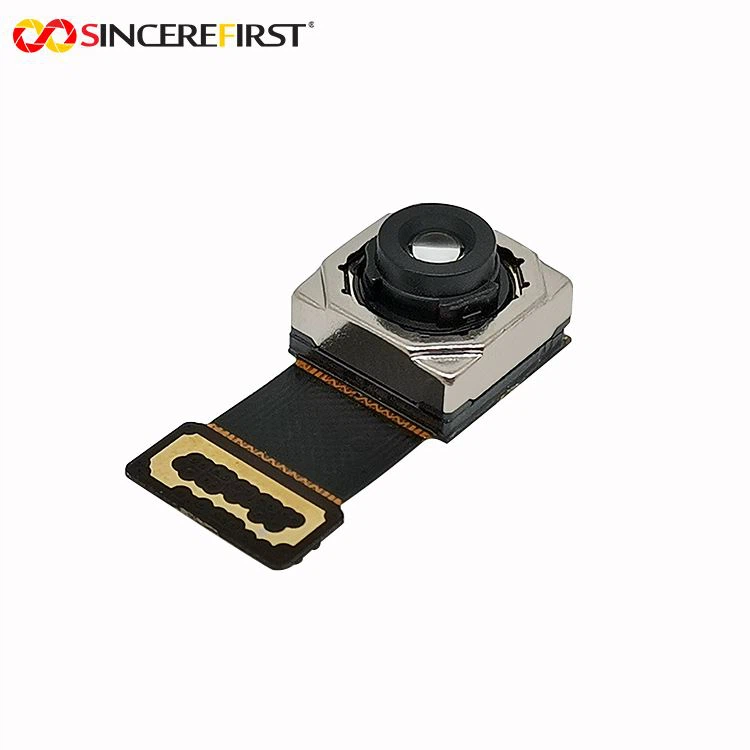

raspberry pi camera module: SF-AOV5647-DX7707B


The OmniVision OV5647 CMOS sensor is a high-performance with low-voltage, low noisem low crosstalk.It provides 2592x1944 video output using OmniBSI technology. It provides multi-resolution raw images via serial camera control bus or mipi interface, support for output formats 8-/10-bit raw RGB data. It can do 1080P, 30fps and 720P, 60fps.


Raspberry pi camera module is 5 megapixels with mipi interface with 24 pinout. It has a special curved FPC board shape design. The head size is 8.5*8.5mm with auto focus and the standard focusing range of 10cm-infinity. raspberry pi camera module matchs diagonal field of view 60 degrees with focal length of 3.75mm lens, this lens can be changed as your request. raspberry pi camera module with BTB male connector OK-14M024-04. OEM customization is also welcome, and you can also specify module shape size, connector model, pinout details, image orientation, angle of lens and focusing range. Since the OV5647 sensor supports the Raspberry Pi board, many people like this raspberry pi camera module. Although the raspberry pi camera module comes from the older OV5647 sensor, there are not many original sensors on the market, but Sincere has been manufacturing camera module for over 20 years in China, which has strong supply chain sources to ensure that 100% original A-level sensors are used to make raspberry pi camera module. And we can provide 1-year replacement, 10-year warranty service.


ODM/OEM CUSTOMIZED DESIGN IS WELCOME!

Best Quality Assurance

1 year Replacement!

10 years warranty!

We only provide theoriginal new items, 100% make sure the best quality!

All products have been checked and packaged in good condition before dispatch!
