Guangzhou Sincere Information Technology Ltd. is one of the most professional sony imx7008 cmos sensor 4k night vision raspberry pi 3 mipi camera module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.

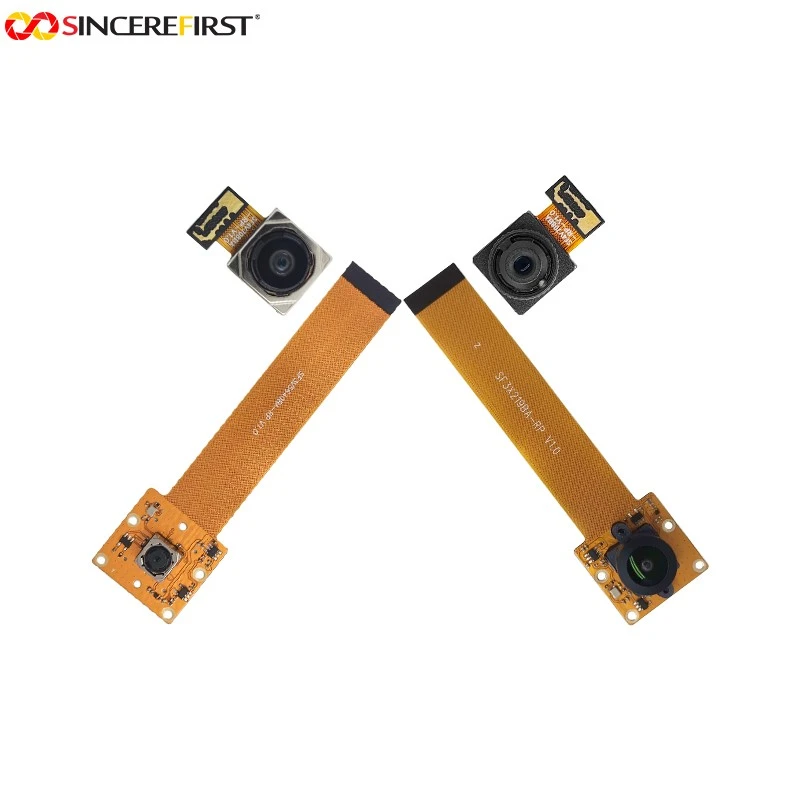

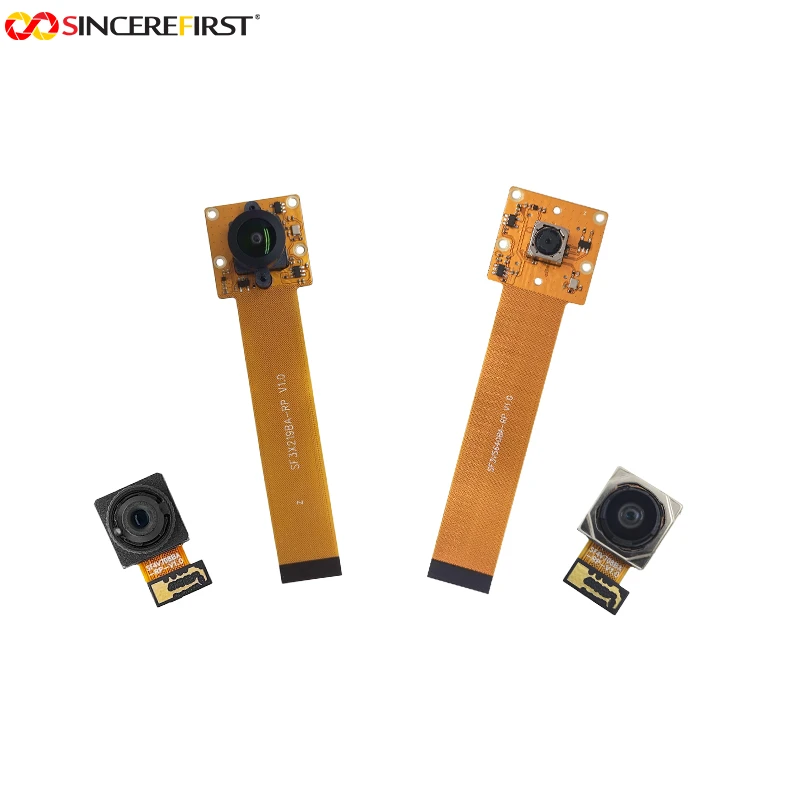

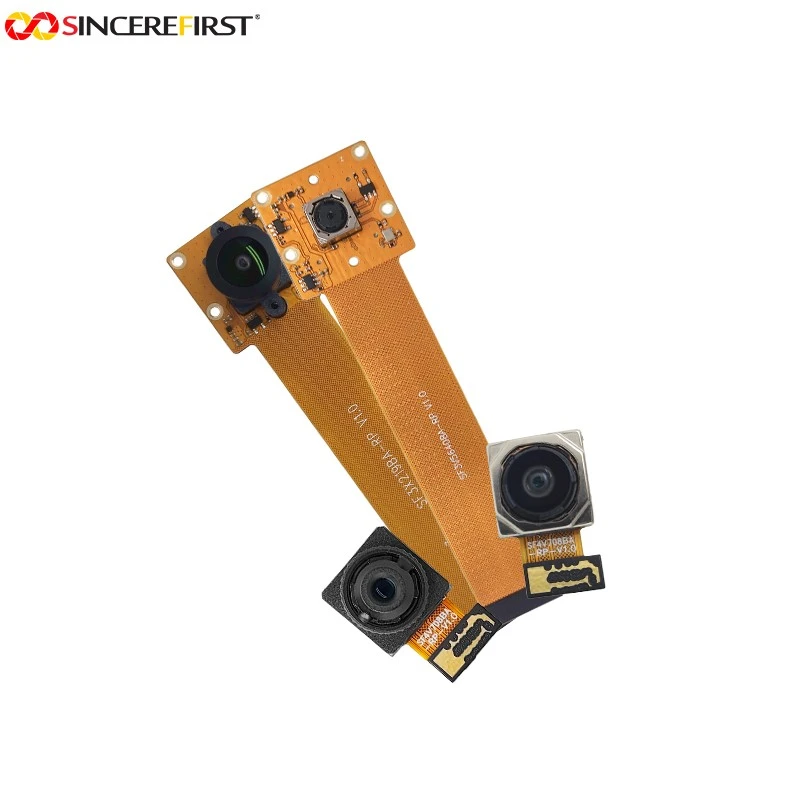

This model is a 12MP Raspberry Pi MIPI camera module designed for embedded vision projects that need IMX708 image quality, wide-angle capture and a simpler direct connection path. Built with the Sony IMX708 CMOS sensor, it supports 4608 × 2592 resolution, 1/2.43-inch sensor size, 1.4μm × 1.4μm pixel size, RAW8 / RAW10 / RAW14 output and a D120° × H103.5° × V67.5° wide-angle lens. Compared with IMX708 versions that use optional or standard PCB adapter structures, this model uses a long FPC design for direct Raspberry Pi kit connection, making it suitable for projects that want a more direct integration route with VCM autofocus capability.
Features
• Sony IMX708 12MP Imaging
Provides 4608 × 2592 high-resolution image capture for Raspberry Pi embedded vision projects.
• Fixed Focus Wide-Angle Lens
Suitable for stable-distance applications that do not need autofocus movement or control.
• D120° Wide Scene Coverage
Supports broad visual coverage for robotics, terminals, embedded observation and AI vision systems.
• Long FPC Direct Connection Design
Enables direct Raspberry Pi kit connection without using an adapter PCB structure.
• RAW8 / RAW10 / RAW14 Output
Supports multiple RAW output depths for development, testing and image processing workflows.
• Simple Focus Structure for Stable Projects
A practical option when the camera-to-object distance is controlled or fixed in the final device.
Application of MIPI Camera Module
• Raspberry Pi Wide-Angle Vision Projects
Suitable for Raspberry Pi systems requiring 12MP wide-angle image capture with stable focus distance.
• Robotics and Embedded Observation
Works for robots and embedded products that need broad scene coverage without autofocus control.
• Smart Terminal Visual Capture
Can support devices that require a direct FPC path and compact IMX708 camera integration.
• Development and OEM Evaluation
Suitable for teams evaluating IMX708 wide-angle imaging before moving to customized production.
Product Details
|
Product Name |
12MP Raspberry Pi 3 MIPI Camera Module |
|
Sensor |
Sony IMX708 CMOS Sensor |
|
Pixel |
12MP |
|
Resolution |
4608x2592 |
|
Sensor Size |
1/2.43 Inch |
|
Output Format |
8/10/14-bit RAW |
|
EFL |
2.75mm |
|
Focus Range |
10cm ~ Infinity |
|
F.NO |
2.2 |
|
FOV |
D120° × H103.5° × V67.5° |
|
Focus Type |
Fixed Focus |
|
TV Distortion |
＜11.6% |
|
Structure |
Long FPC design for direct Raspberry Pi kit connection |
|
Interface |
MIPI CSI |
Customization Options
Fixed Focus and AF Version Selection
The Fixed Focus version fits stable-distance projects, while the AF version can be selected for variable-distance imaging.
Long FPC Routing Adaptation
FPC path, bending direction and connector-side placement can be evaluated for Raspberry Pi kit and enclosure design.
Wide-Angle Application Matching
The D120° field of view can be matched to scene coverage, camera position and target distance.
Raspberry Pi Host Compatibility Evaluation
Host-side behavior can be checked according to Raspberry Pi platform, software environment and image output needs.
Mechanical Structure Assessment
Module placement, lens height and FPC exit direction can be assessed according to housing constraints.
FAQ
Q: What is SF6X708RPFBC V1.0 FF designed for?
A: It is designed for Raspberry Pi projects that need IMX708 12MP wide-angle imaging with Fixed Focus structure.
Q: What is the difference between AF and FF versions?
A: The AF version supports VCM autofocus, while the FF version uses Fixed Focus for stable-distance applications.
Q: Does this model require an adapter PCB?
A: No. It uses a long FPC design for direct Raspberry Pi kit connection.
Q: What sensor does it use?
A: It uses a Sony IMX708 CMOS sensor.
Q: What resolution does it support?
A: It supports 12MP resolution, 4608 × 2592.
Q: What is the lens angle?
A: The lens angle is D120° × H103.5° × V67.5°.
Q: When should I choose this FF version?
A: Choose this version when the working distance is stable and autofocus is not required.
Q: What should I provide for evaluation?
A: Please provide Raspberry Pi platform, working distance, FOV, FPC routing space, connector requirement and housing layout.
