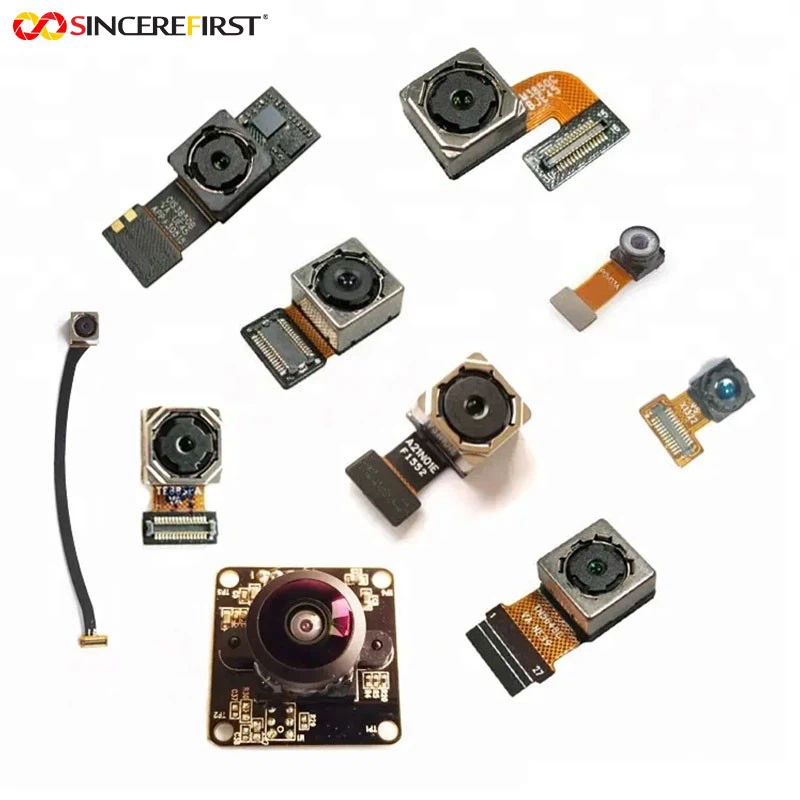

OEM Sony IMX 363 Sensor OIS Camera Module

Guangzhou Sincere Information Technology Ltd. is one of the most professional oem sony imx 363 sensor ois camera module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.



Introduction:

This is the Sony IMX363 sensor OEM OIS camera module, which is a 7.05mm diagonal (1/2.55 type) 12-megapixel CMOS active pixel type stacked image sensor with a square pixel array. It uses Exmor RS™ technology to achieve high-speed image capture through column-parallel A/D conversion circuits, and high sensitivity and low-noise images (compared to traditional CMOS image sensors) through a back-illuminated imaging pixel structure. It adopts R, G, and B pigment primary color mosaic filters.

Each pixel is divided into left and right sub-pixels and can be driven independently or simultaneously. High dynamic range still images and movies can be achieved by introducing spatial multiplexing exposure technology. It is equipped with an electronic shutter with variable integration time. It operates with four power supply voltages: analog 2.8 V and 1.8V, digital 1.05 V and 1.8V for input/output interfaces, and achieves low power consumption.



Features

•Back-illuminated and stacked CMOS image sensor Exmor RS

•Single Frame High Dynamic Range(HDR) with equivalent full pixels.

•High signal to noise ratio (SNR).

•Various output frame rate from Full resolution @30fps to WVGA @480fps

•Output video format of RAW10.

•Pixel binning readout and V sub-sampling function.

•Independent flipping and mirroring.

•CSI-2 serial data output (MIPI 2lane/4lane selectable, Max. 2.15Gbps/lane)

•2-wire serial communication (Supports 12C"Fast-mode" and "Fast-mode Plus").

•Two PLLs for independent clock generation for pixel control and data output interface.

•Dynamic Defect Pixel Correction.

•Zero shutter lag.

•29K bit of OTP ROM for users.

•Dual PD(Photo Diode)

•Phase difference pixel data output for Phase Detection Auto Focus(PDAF)

SINCEREFIRST camera module manufacturing enterprise integrates design, development, manufacturing and sales. We can supply ready made 0.3mp to 108mp FPC & USB camera module and diameter 0.9mm~8.0mm endoscope camera module. Our products are widely used in various fields, such as AIoT equipment, smart home, smart medical, intelligent transportation, automatic driving, intelligent security, Intelligent warehousing, scanning, robot, UAV, medical endoscope, industrial endoscope, computer, intelligent terminals etc.

If you are looking for camera module or camera sensor manufacturers and suppliers, please feel free to contact us for camera module price and more detailed introduction. SINCEREFIRST is a leading high-tech company specializing in integrated optical device manufacturers and optical imaging system solution providers. There are different types of camera modules and camera sensors for sale, and they also support customization to meet all your needs and solve your problems.
