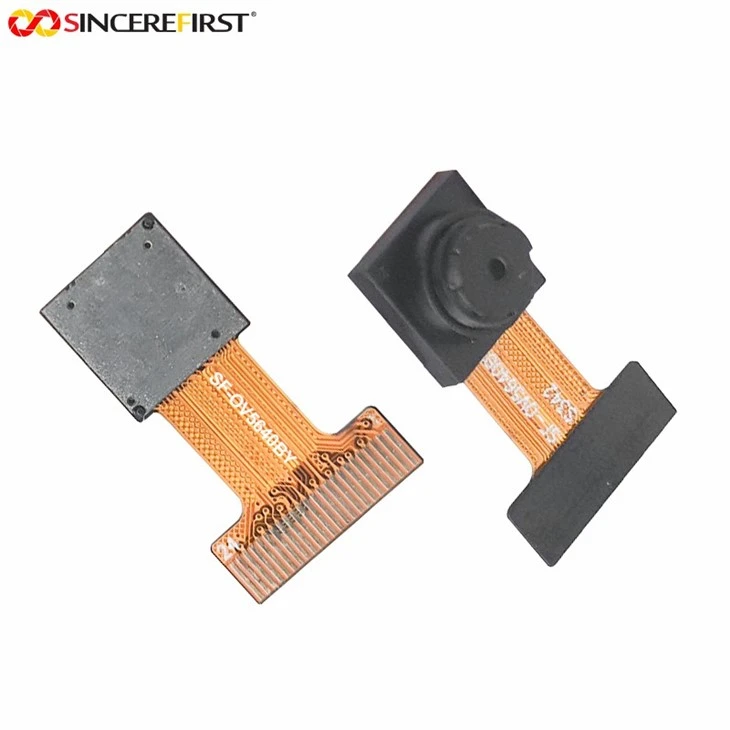

OV5640 CMOS Camera Module
Guangzhou Sincere Information Technology Ltd. is one of the most professional ov5640 cmos camera module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.
The host processor should be checked before selecting a camera module. The OV5640 CMOS Camera Module is built around a 24-pin DVP interface, so its suitability depends on whether the customer's platform can receive parallel image data without additional interface conversion.
A DVP module is a practical choice when the processor already has a compatible parallel camera port. If the host only supports MIPI CSI-2, this product should not be selected simply because it uses the OV5640 sensor. A bridge board or a different MIPI module would be required.
The connector pin count alone does not guarantee compatibility. Signal definition, operating voltage, pixel clock, synchronization signals, output format and software support must also match the host platform. These items should be reviewed from the customer's schematic rather than confirmed only from a product photograph.
Product Details:
|
Product Name |
OV5640 CMOS Camera Module |
|
Resolution |
5MP 2592*1944 |
|
Interface |
24pin DVP |
|
Output Format |
YUV |
|
Test Connector |
FH12-24S-0.5SH |
SincereFirst can adjust the FPC, connector and pin definition for a compatible DVP project. Please provide the processor model, camera-interface schematic, required output format, connector orientation and FPC dimensions. The electrical definition and module drawing can then be checked before prototype production.
