8MP OmniVision OV8856 CMOS Sensor Mini FPC Camera Module

Guangzhou Sincere Information Technology Ltd. is one of the most professional 8mp omnivision ov8856 cmos sensor mini fpc camera module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.



Introduction:

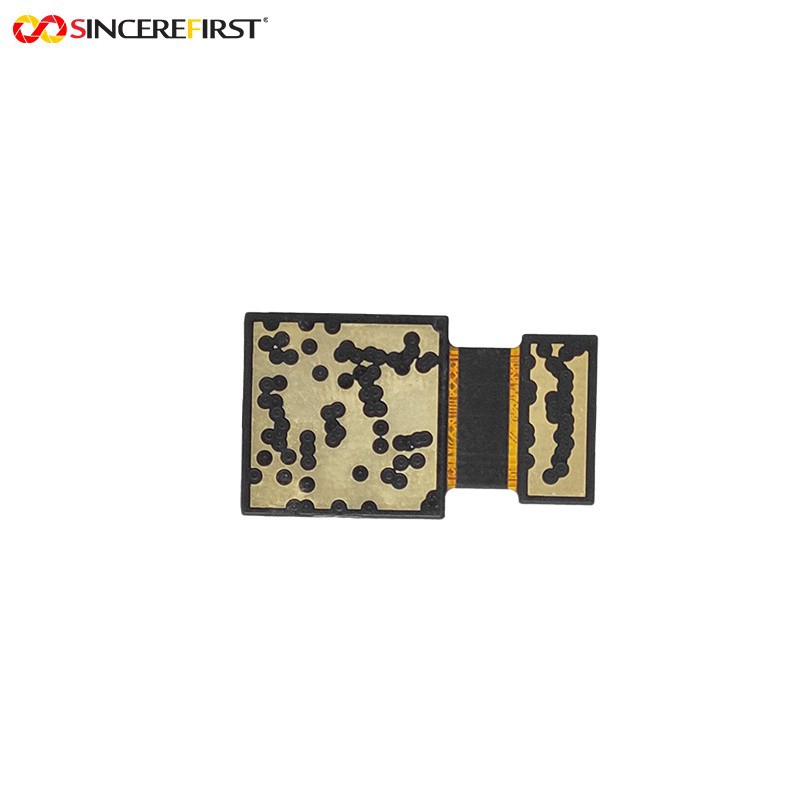

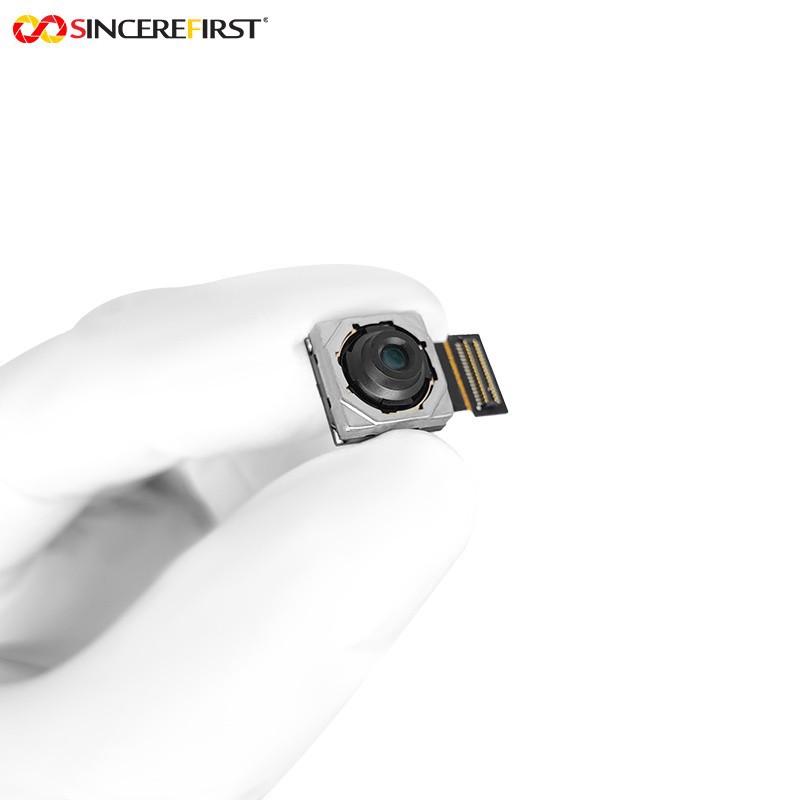

This 8MP OmniVision OV8856 CMOS sensor mini FPC camera module features a 1/4-inch sensor size combined with a 2.78mm focal length lens and F2.0 large aperture, delivering excellent imaging quality. Its particularly outstanding 77° wide diagonal field of view and less than -1% ultra-low TV distortion ensure edge-to-edge image integrity, making it ideal for wide-angle scenarios. With a depth of field ranging from 20cm to 0.6m and 40cm focus height, the module incorporates a 4P lens structure and a 0.21mm blue glass substrate IR filter to effectively suppress infrared interference. The compact module measures just 6.5mm×6.5mm×2.71mm, making it exceptionally suitable for smartphones, tablets, and other mobile devices, as well as security surveillance and smart home applications demanding both minimal footprint and high imaging performance.



Features

• High-Definition Imaging: Equipped with the Omnivision OV8856 CMOS sensor and 8MP pixels, it provides 1080P clear and detailed images.

• Low-Light Shooting: The combination of a 1/4-inch sensor size and an F2.0 large aperture enhances the shooting effect in low-light environments.

• Wide Field Of View: The 2.78mm short focal length lens combined with a 77° wide-angle optical design can cover a large area of scenes.

• Precise Image Restoration: TV distortion < -1%, 0.21mm blue glass IR filter combined with 4P lens structure design, maintaining image accuracy and enhancing overall imaging quality.
• Micro Volume: 6.5mm×6.5mm×2.71mm, ultra-compact size, precise FPC packaging technology, widely compatible with various smart devices.
• High-Speed Transmission: It adopts a high-bandwidth MIPI interface connection for low-latency and rapid transmission of clear images.

• Wearable Action Camera‌: Users can record high-definition sports footage with 77° wide-angle coverage, while the compact 6.5mm³ size minimizes device bulkiness on helmets or gear.
• Industrial PCB Inspection‌: 8MP resolution captures microscopic solder joint defects, aided by blue glass IR filter to eliminate circuit board glare interference.
• Endoscopic Surgery Tool‌: F2.0 large aperture provides clear tissue imaging in low-light body cavities, with MIPI interface enabling real-time 1080P/30fps video transmission.
• Smart Classroom Recorder‌: Fixed 40cm focal length accurately projects whiteboard content for remote learning, while dynamic exposure maintains clarity under classroom lighting changes.
• Agricultural Drone Monitor‌: Auto-focus from 20cm to infinity tracks crop growth status across fields, and <-1% distortion ensures accurate pest identification.

SINCEREFIRST camera module manufacturing enterprise integrates design, development, manufacturing and sales. We can supply ready made 0.1mp to 200mp FPC & USB camera module and diameter 0.9mm~10mm endoscope camera module. Our products are widely used in various fields, such as AIoT equipment, smart home, smart medical, intSSelligent transportation, automatic driving, intelligent security, Intelligent warehousing, scanning, robot, UAV, medical endoscope, industrial endoscope, computer, intelligent terminals etc.

If you are looking for camera module or camera sensor manufacturers and suppliers, please feel free to contact us for camera module price and more detailed introduction. SINCEREFIRST is a leading high-tech company specializing in integrated optical device manufacturers and optical imaging system solution providers. There are different types of camera modules and camera sensors for sale, and they also support customization to meet all your needs and solve your problems.
