Best WIFI Endoscope Module Camera Chip BF2013



Introduction:

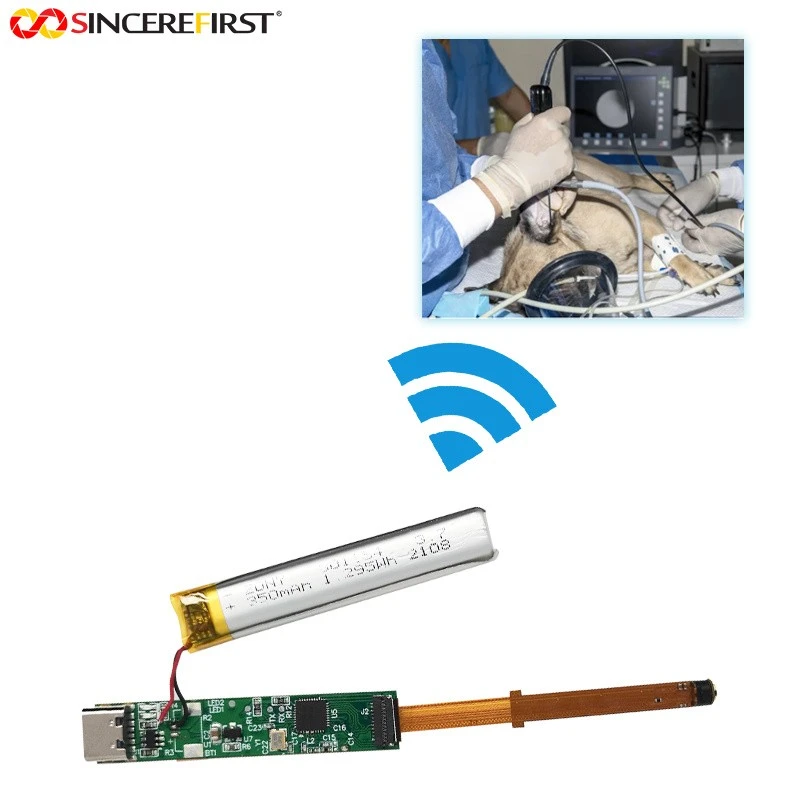

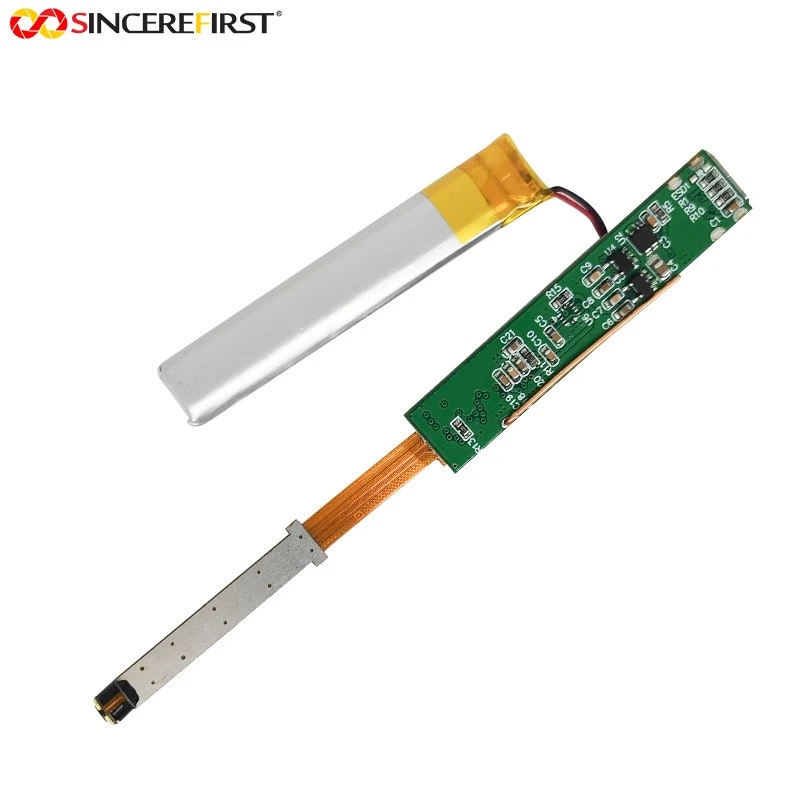

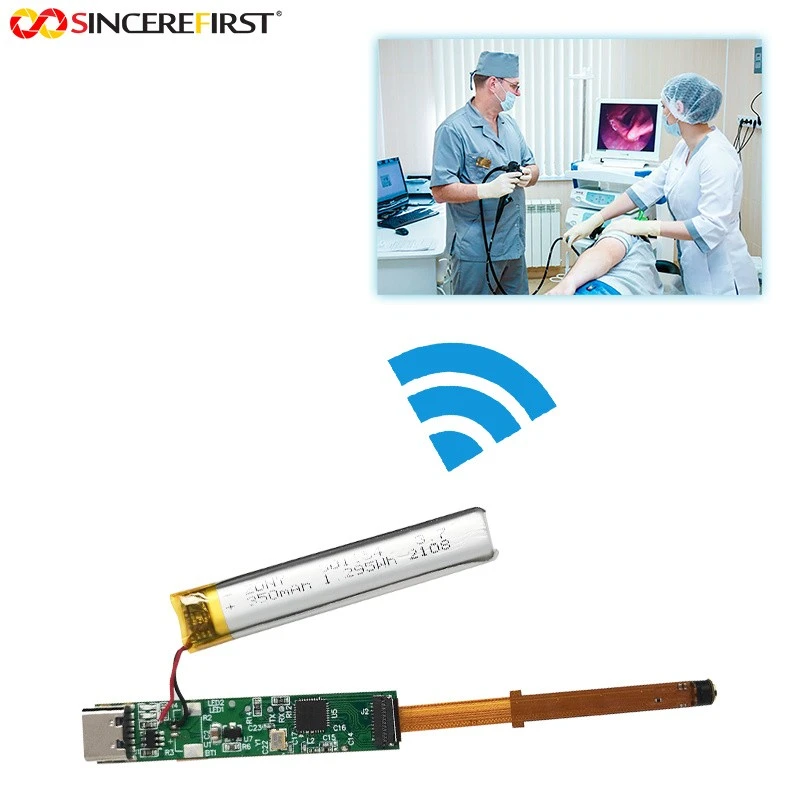

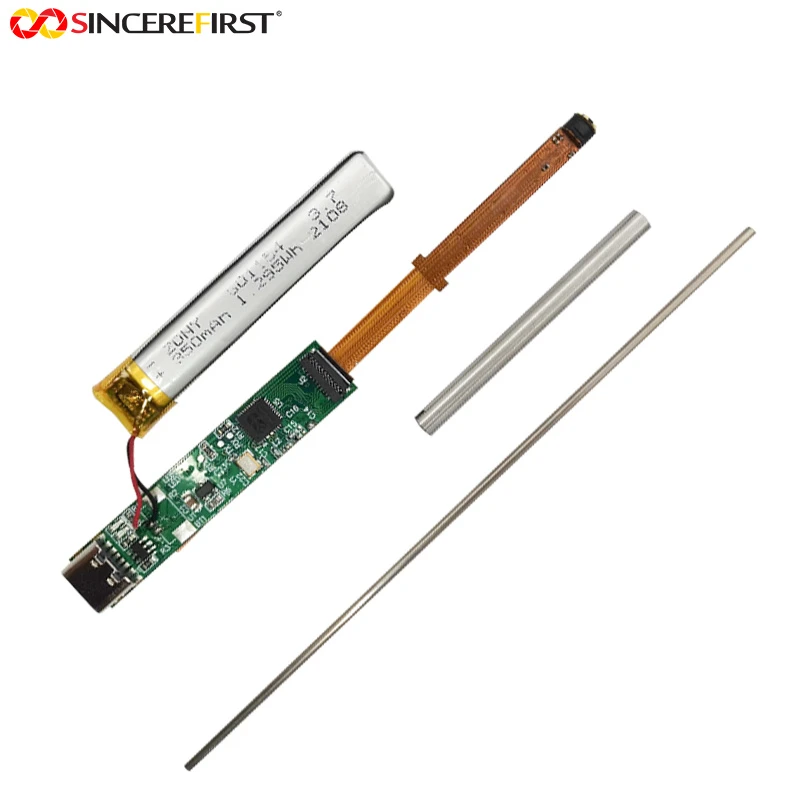

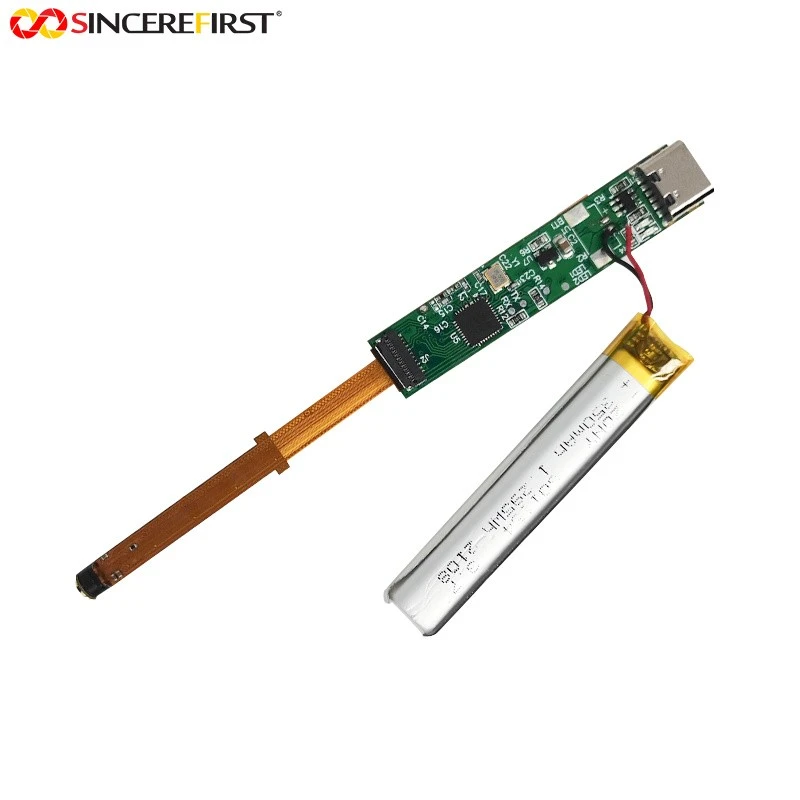

This is the best BF2013 Chip WiFi Endoscope Camera Module, adopting an innovative wireless Separate architecture design, consisting of three parts: a 3.5mm diameter lens, a DSP processing board, and a WiFi transmission board. The endoscope module is equipped with the BYD Semiconductor BF2013 CMOS image sensor, with a sensor size of 1/10 inch and support for 0.3MP effective pixels, capable of stably outputting clear images with a resolution of 640*480 (VGA) @30fps. Adopting a bare module design, the lens has a diameter of only 3.5mm, facilitating flexible operation in narrow spaces. Meanwhile, the lens integrates 6 0402 high-brightness LED fill lights to provide uniform illumination, meeting the shooting needs in low-light environments. The focusing range of the module lens is 20-60mm, the diagonal field of view (FOV) is 88°, and the maximum image circle is 4.8mm. The module uses a 24Pin DVP parallel interface to achieve high-speed and stable Separate connection between the lens and the DSP board. After the image data is processed by the DSP board, it can either be transmitted wired through the Type-C interface at USB2.0 speed (compatible with UVC protocol) or wirelessly via the supporting WiFi board. The WiFi transmission rate can reach 150Mbps, supporting the 802.11b/g/n standard, with an effective transmission distance of about 20 meters in an open environment. This solution is specially designed for endoscopic inspection equipment that requires flexible connection methods, and is suitable for applications in medical, industrial, security and other fields. The module is manufactured using SMT (Surface Mount Technology) and AA (Active Alignment) processes, has passed RoHS, CE, FCC, and REACH international certifications, supports customization requirements, and comes with a 10-year warranty.



Features

• DVP Parallel Interface Architecture: The 24Pin DVP interface enables a Separate connection between the lens module and the DSP board, providing stronger anti-interference capability and data stability, especially suitable for complex electromagnetic scenarios in industrial environments.
• Dual-Mode Flexible Output: Simultaneously supports both USB Type-C wired and WiFi wireless dual channels. Users can freely switch based on the field environment without changing hardware, significantly improving equipment applicability.
• Ultra-Slim Diameter & High Integration Design: The 3.5mm lens diameter integrates 6 pcs of 0402 type LED lights, ensuring illumination intensity while achieving an extremely small insertion size for easy access into confined spaces for inspection.
• Stable Wireless Transmission: The WiFi board supports a high speed of 150Mbps, with a transmission distance of up to 20 meters in open space. Combined with full protocol compatibility for 802.11b/g/n, it adapts to various router environments.
• Plug-and-Play: USB mode supports the UVC protocol for driver-free installation, seamlessly connecting to Windows, Android, and Linux systems. WiFi mode comes with a dedicated APP, supporting real-time viewing, photo capture, and video recording on iOS/Android mobile terminals.
• Adapts to Diverse Needs: Supports adjusting parameters, interfaces, or appearance design based on specific customer application scenarios, flexibly adapting to personalized needs in different fields such as industrial inspection, medical devices, and automotive repair.

1. Medical Diagnostic Equipment: Otoscopes, electronic oral/vaginal/rectal cameras, laryngoscopes, bronchoscopes, cystoscopes, etc., used for ear canal examination, oral lesion observation, vocal cord diagnosis, and more.
2. Industrial Non-Destructive Testing: Engine cylinder endoscopes, aviation blade inspection scopes, pipeline flaw detectors, suitable for automotive repair, aerospace equipment maintenance, petrochemical pipeline inspection.
3. Precision Instrument Repair: Printed circuit board (PCB) inspection devices, watch movement observation scopes, precision machinery fault diagnostic instruments, enabling visual inspection in confined spaces.
4. Security & Surveillance Reconnaissance: Covert pipeline inspection robots, ventilation system inspection equipment, used for public security checks, customs anti-smuggling, and probing in concealed locations.
5. Scientific Research & Teaching Tools: Biological microscope digital adapters, laboratory animal in vivo observation instruments, supporting scientific data collection and medical teaching demonstrations.
