12.5mm Autofocus Dimmable 12MP CMOS Sensor Endoscope Camera Module

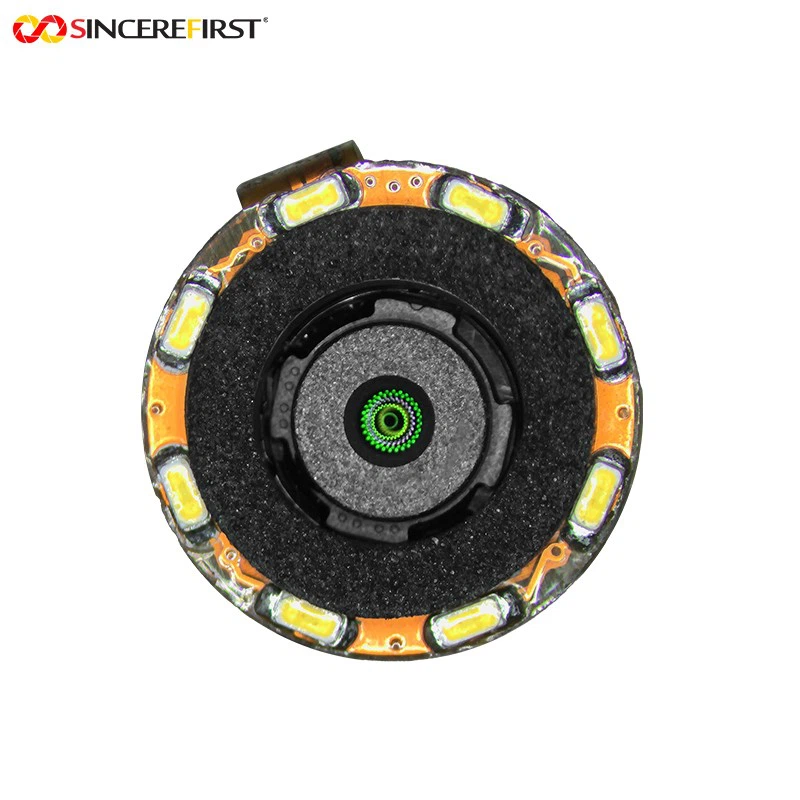

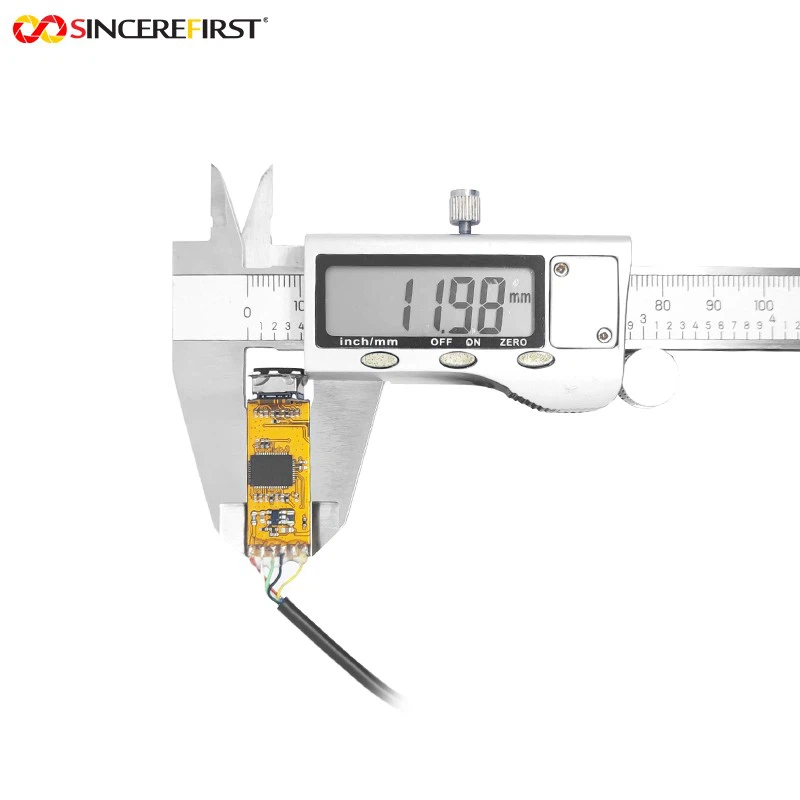

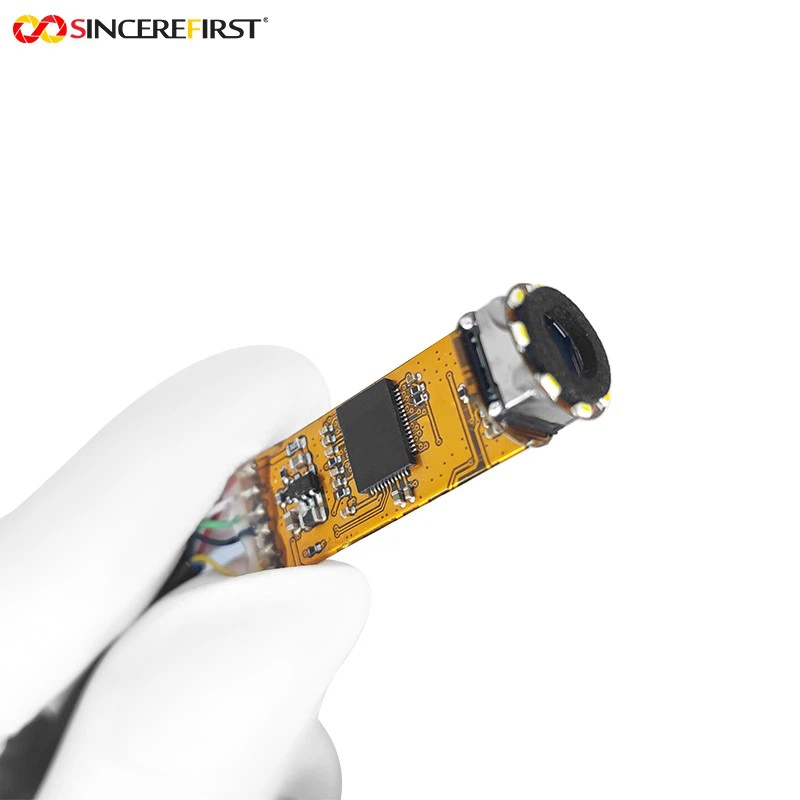

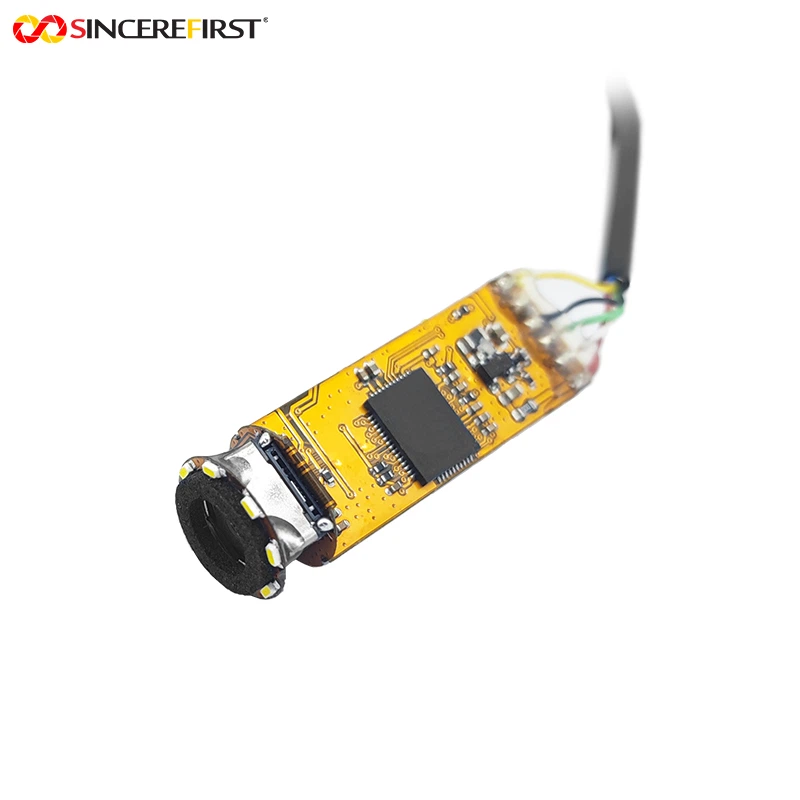

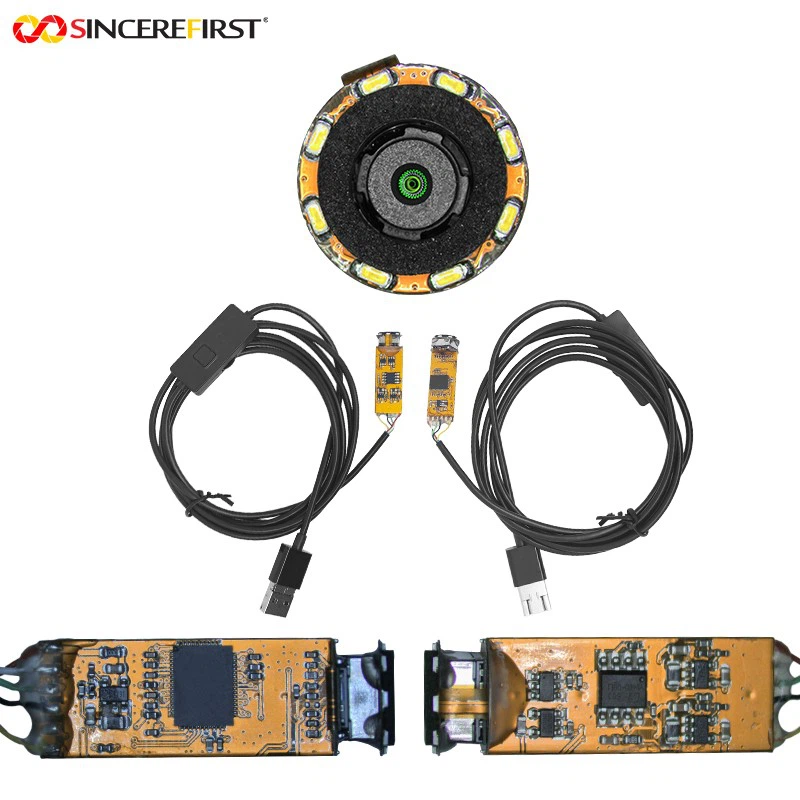

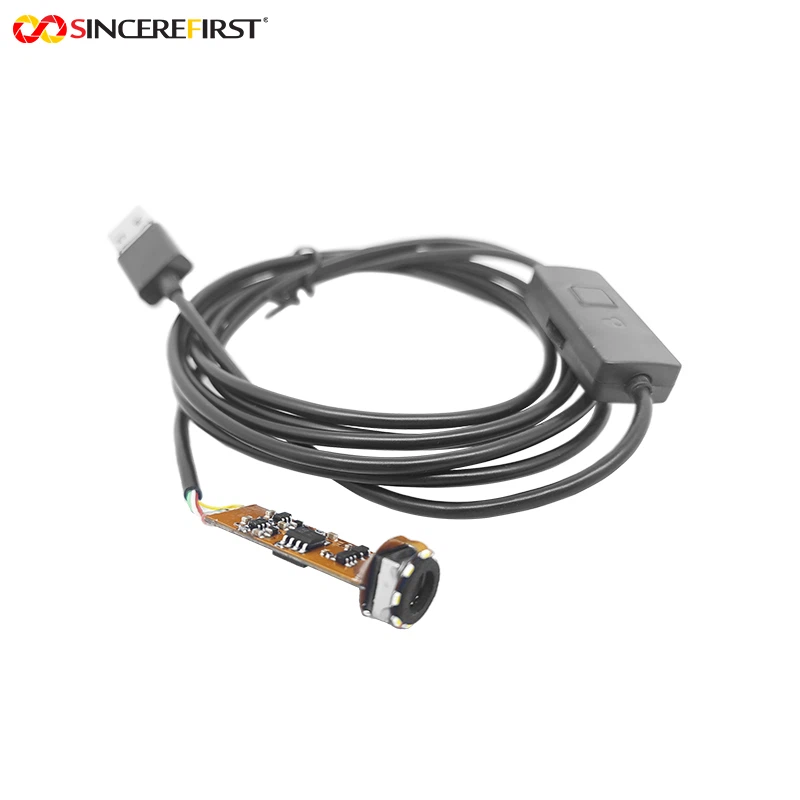

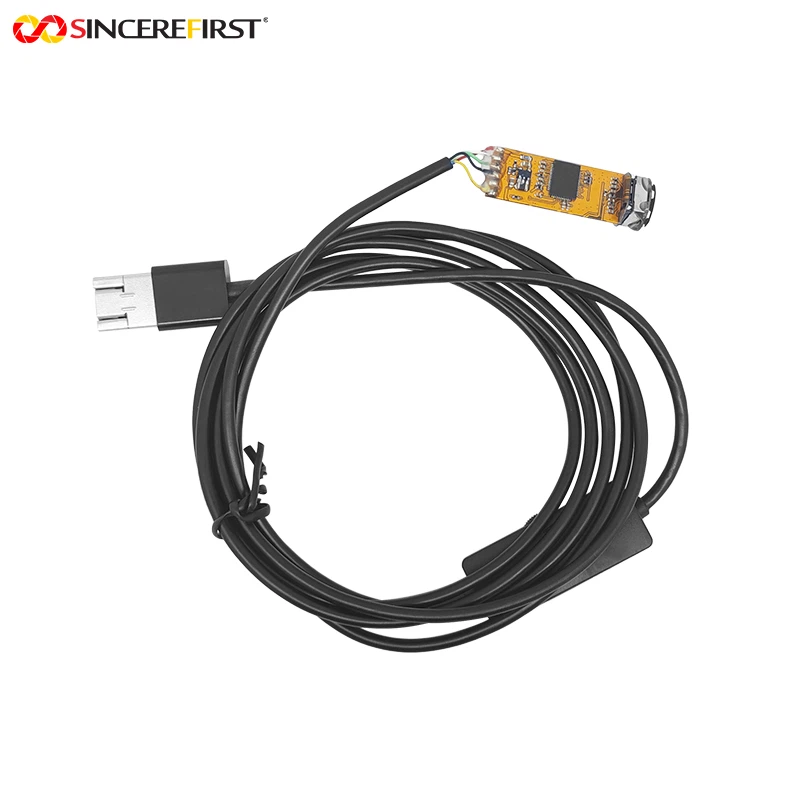

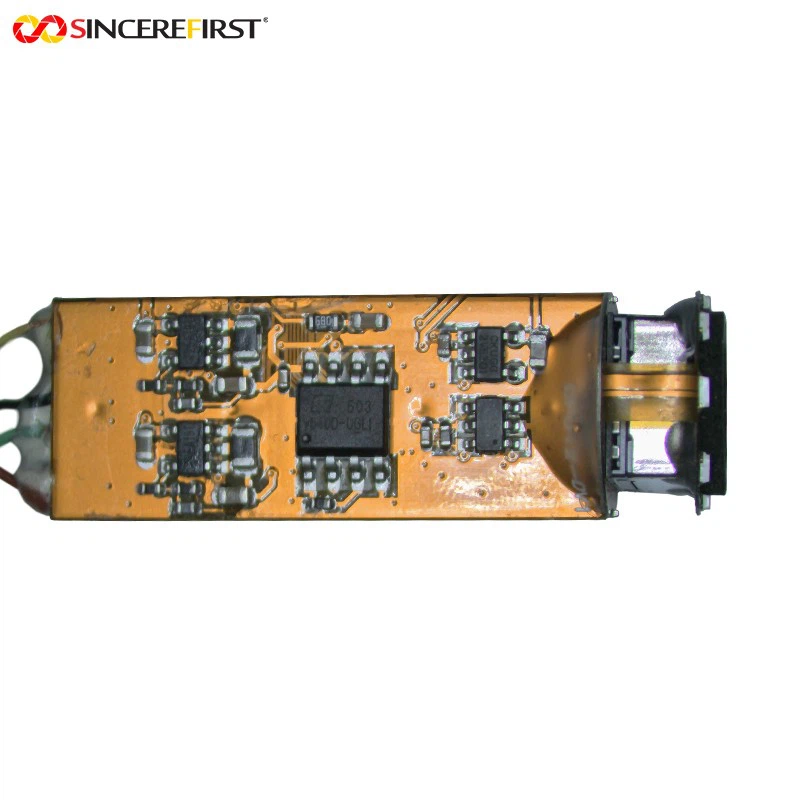

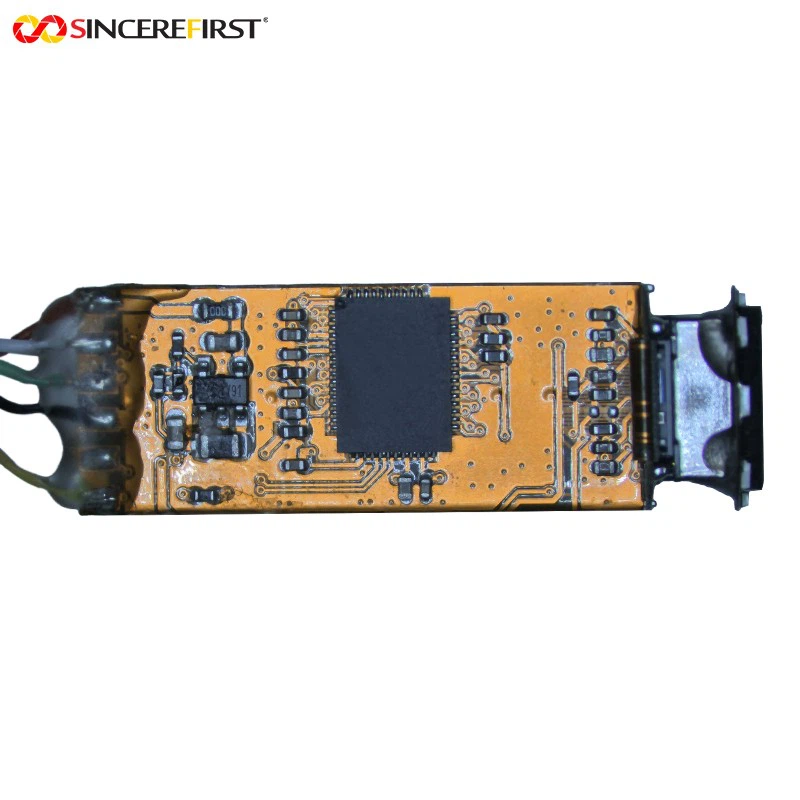

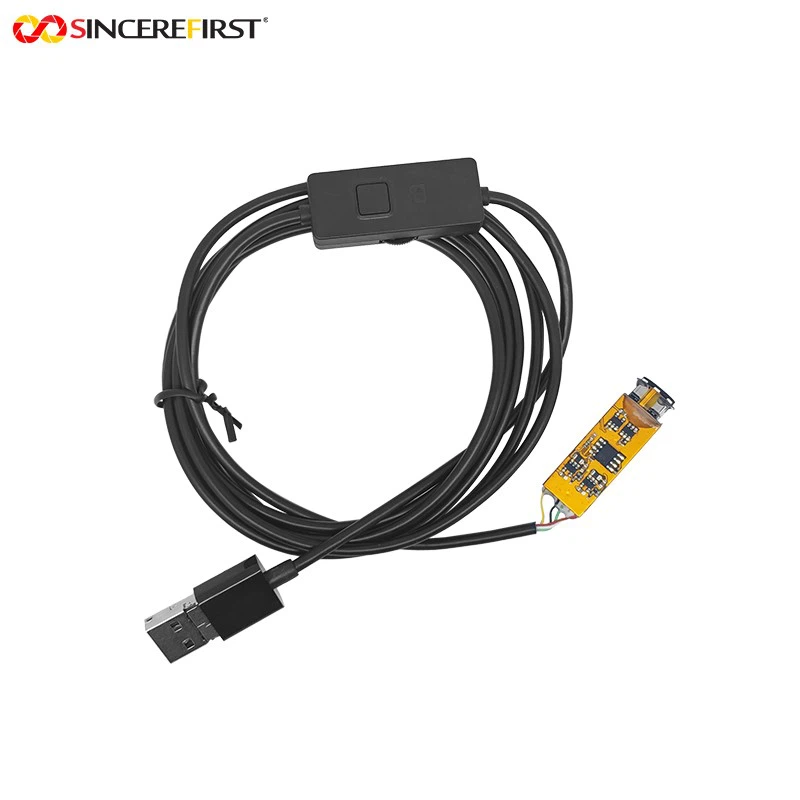

This 12.5mm Autofocus Dimmable 12MP CMOS Sensor Endoscope Camera Module,specifically designed for high-precision visual inspection. Featuring a compact cylindrical structure with a diameter of 12.5mm, it incorporates a 1/3.06-inch 12MP CMOS sensor and integrates a high-precision autofocus system. This enables continuous clear imaging from a minimum focus distance of 3.5cm to infinity. The product offers two professional configurations: the standard 12.5mm bare board version is suitable for space-constrained embedded integration; the IP67-rated stainless steel protective housing version further increases the front-end diameter to 14mm, providing waterproof properties. It adapts to harsh industrial environments such as dampness and dust, as well as medical sterilization processes. The optical system features an F2.2 large aperture and an 80.9° wide-angle lens, delivering a broad, clear field of view even within narrow cavities. Paired with 8 independently dimmable white LEDs, illumination brightness can be flexibly adjusted to match inspection environments, effectively preventing glare, overexposure, or insufficient lighting to ensure true-to-life image detail reproduction. The output interface employs a plug-and-play USB 2.0 UVC protocol, compatible with Windows, Linux, and Android systems without requiring additional drivers. This enables rapid integration with various medical endoscopes, industrial pipeline inspection devices, precision assembly inspection systems, and scientific observation equipment. Built on high-precision optical calibration and reliable encapsulation technology, the unit optimally integrates sensors, focus motors, illumination, and structural components within a compact footprint. It balances imaging quality, environmental adaptability, and integration convenience, making it ideal for specialized fields demanding clarity, reliability, and integration-such as minimally invasive medical imaging, precision industrial endoscopy, pipeline defect detection, electronic assembly quality control, and scientific microscopic observation.
