Guangzhou Sincere Information Technology Ltd. is one of the most professional compact separated omnivision ochfa10 cmos wide angle endoscope camera module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.
Introduction
This is a compact separated USB endoscope camera module designed for projects that need ultra-small optical size, wide-angle coverage, and practical USB-based integration. Built around the OmniVision OCHFA10 CMOS sensor, it delivers 700x700 image output through USB 2.0 and supports YUV and MJPEG formats. With a 1.5mm lens diameter and a wide-angle direction of D105° / H86° / V86°, it is a practical choice for narrow-space imaging, compact inspection devices, and other embedded endoscope applications.
Features
• OmniVision OCHFA10 CMOS Sensor
Uses the OCHFA10 CMOS sensor for compact endoscope imaging projects that need stable image output in a very small camera-head format.
• 700x700 Image Output
Provides 700x700 image output through USB 2.0 for compact endoscope devices that prioritize size and integration over higher-resolution imaging.

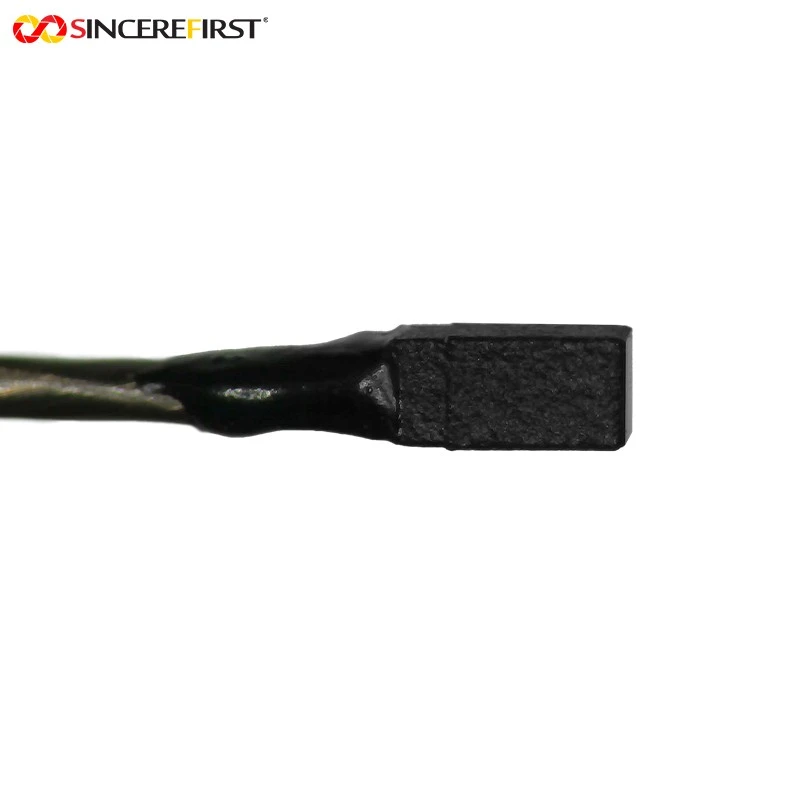

• 1.5mm Lens Diameter
The 1.5mm lens diameter makes this module suitable for products that need an ultra-small optical head in tight or narrow internal spaces.
• Wide-Angle Optical Direction
With D105° / H86° / V86° coverage, the module helps capture a broader scene in close-range inspection environments.
• Separated USB Endoscope Design
The separated structure makes it easier to integrate the camera head into compact devices while keeping USB output on the control side.
• USB 2.0 UVC with YUV & MJPEG
Supports USB 2.0 UVC output with YUV and MJPEG formats for straightforward integration into compatible host systems.
Application of Endoscope Camera Module
• Ultra-Compact Endoscope Devices: This module is suitable for endoscope products that need a very small camera head and broad close-range visual coverage.
• Narrow-Space Inspection Tools: It is a practical fit for products used in tight or hard-to-reach spaces where camera diameter is a key limitation.
• Portable USB Endoscope Systems: USB 2.0 output makes it easier to use in compact endoscope systems that need direct connection to compatible host devices.
• Embedded Visual Examination Devices: The separated design also supports OEM products that need more flexibility in camera-head placement and system integration.

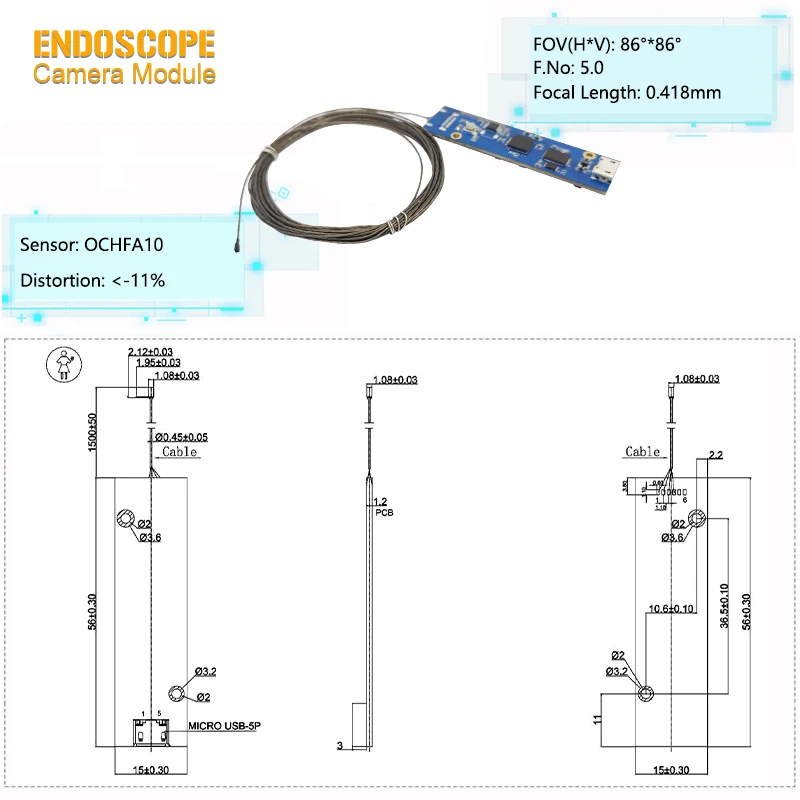

Product Details
|
Product Name |
1.5mm Separated Endoscope Camera Module |
|
Sensor Size |
OmniVision OCHFA10 CMOS Sensor |
|
Pixel |
700x700 |
|
Pixel Size |
1.008μmx1.008μm |
|
Sensor Size |
1/17.5 Inch |
|
View Angle |
D105°*H86°*V86° |
|
F.NO |
5.0 |
|
EFL |
0.418mm |
|
Focusing Range |
5~50mm |
|
Output Format |
YUV/MJPEG |
|
Interface |
USB2.0, UVC |
Customization Options
Lens Type and Viewing Angle
Lens type and FOV direction can be reviewed for projects that need a different viewing range from the current wide-angle setup.
Separated Structure Review
The separated module direction can be evaluated according to the final device structure, cable path, and camera-head placement requirement.
Interface and Output Direction
Output direction and project-level connection requirements can be reviewed according to the final host system.
USB SDK and Testing Support
For most USB-based modules, SDK support and dedicated test software can usually be provided for development and evaluation.
FAQ
Q: What is SF-C50USB-D1.5 designed for?
A: It is designed for ultra-compact endoscope and inspection products that need a very small camera head and wide-angle visual coverage.
Q: Does this module use USB output?
A: Yes. It supports USB 2.0 UVC output with YUV and MJPEG formats.
Q: Is this module suitable for narrow spaces?
A: Yes. Its 1.5mm lens diameter makes it suitable for tighter internal or hard-to-reach viewing environments.
Q: Is this a separated endoscope camera design?
A: Yes. It uses a separated design to support more flexible integration in compact endoscope products.
Q: Can the lens direction be customized?
A: Yes. Lens type and viewing angle can be reviewed according to the final application.
Q: Do you provide SDK or testing support?
A: For most USB-based modules, SDK support and dedicated test software can usually be provided.
