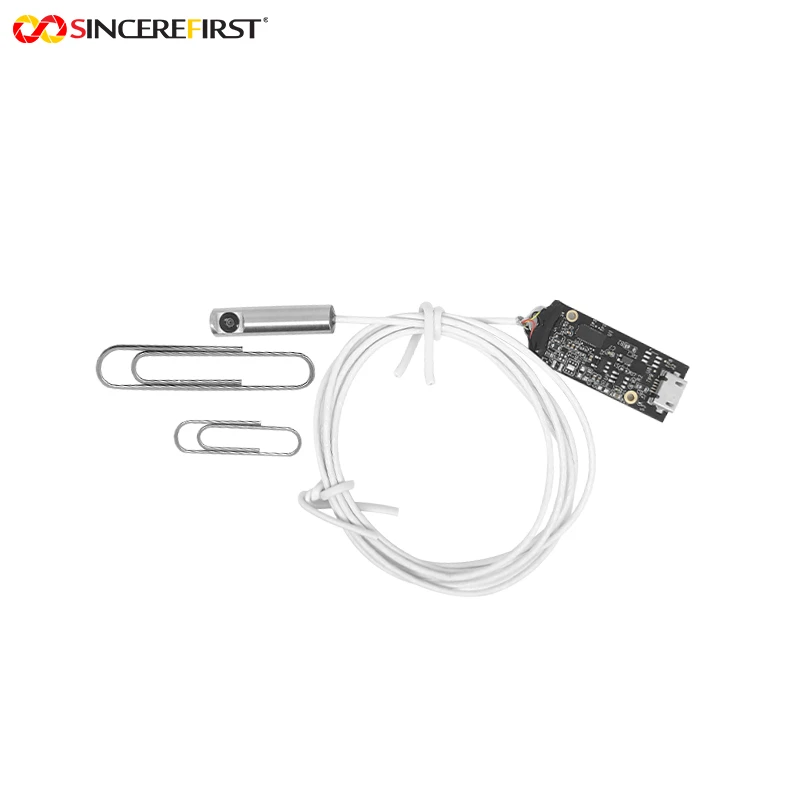

HD Waterproof OV9734 Image Sensor Side View USB Endoscope Camera Module
SF-C1019USB-D6.0-SV-PRO-L200 V1.0 (L25 D140) (7)

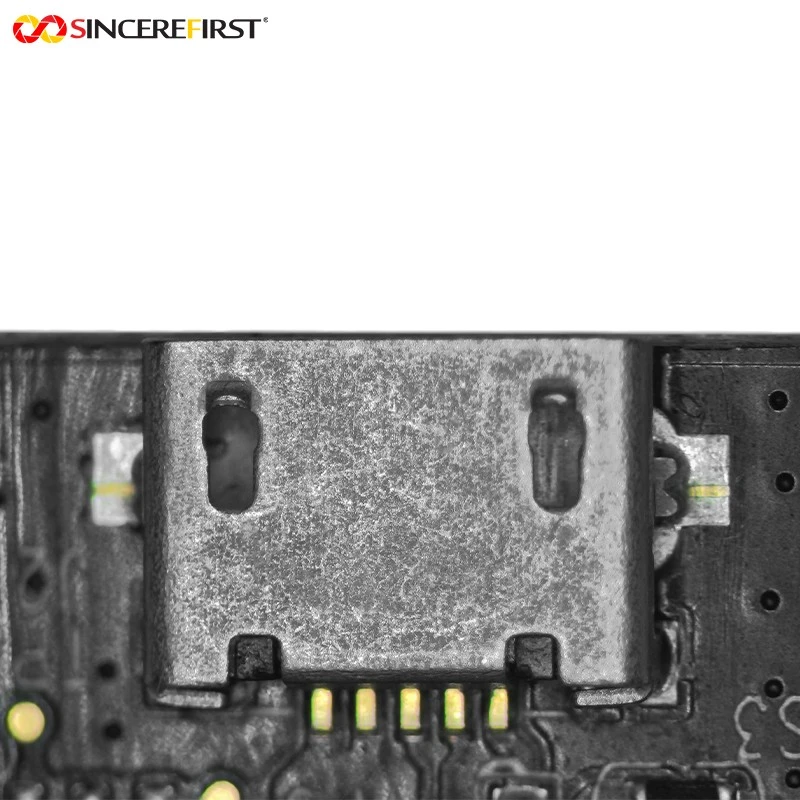

SF-C1019USB-D6.0-SV-PRO-L200 V1.0 (L25 D140) (8)

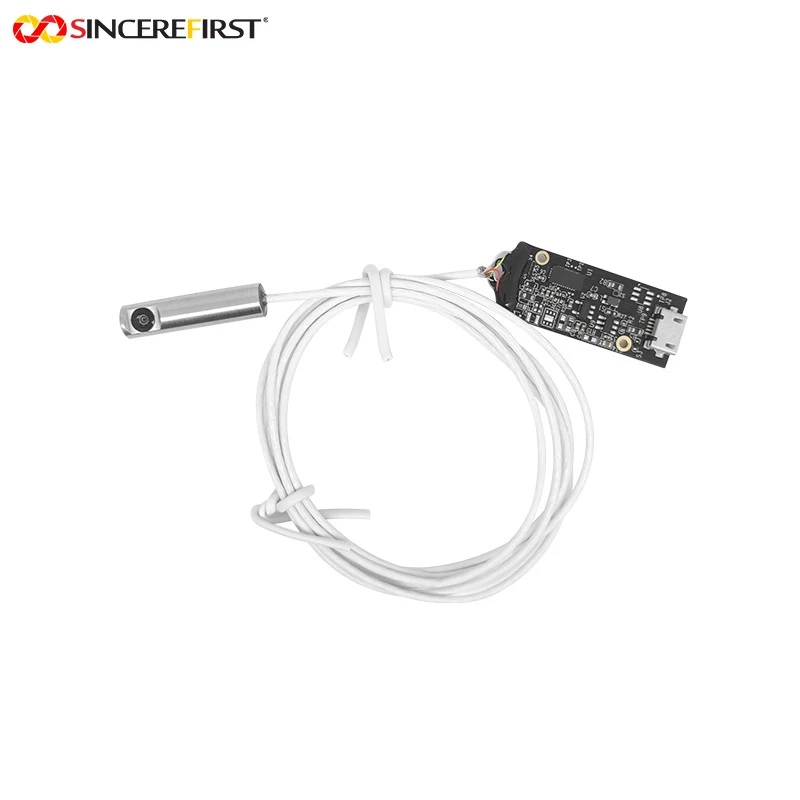

SF-C1019USB-D6.0-SV-PRO-L200 V1.0 (L25 D140) (9)

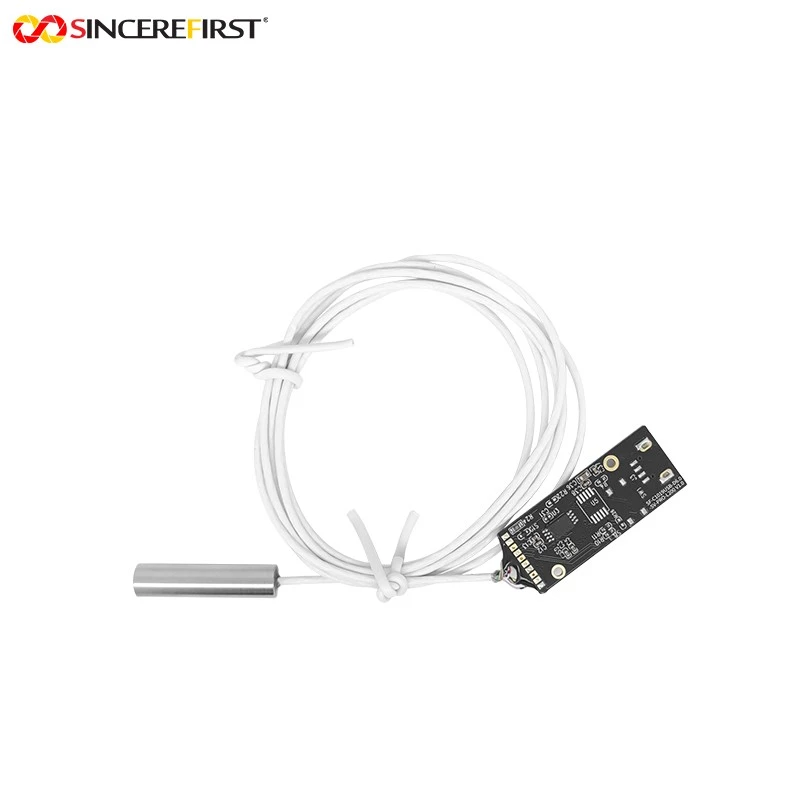

SF-C1019USB-D6.0-SV-PRO-L200 V1.0 (L25 D140) (10)

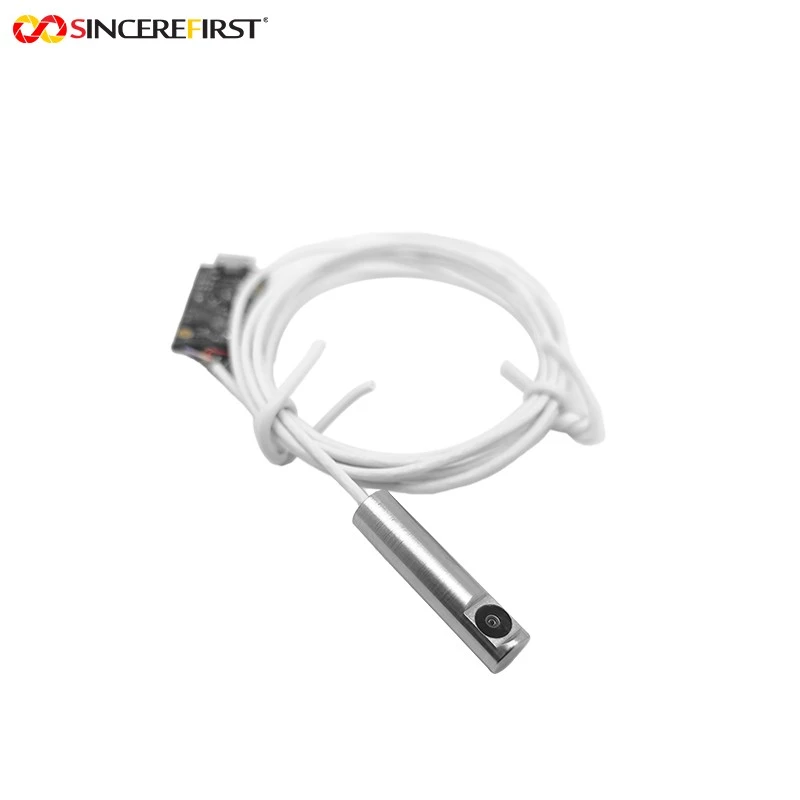

SF-C1019USB-D6.0-SV-PRO-L200 V1.0 (L25 D140) (11)

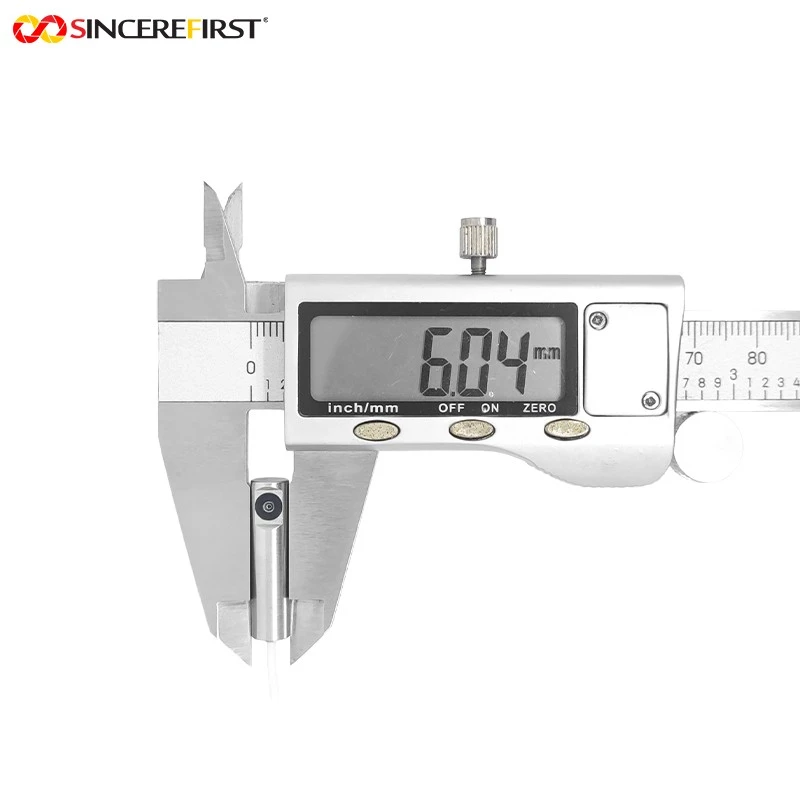

SF-C1019USB-D6.0-SV-PRO-L200 V1.0 (L25 D140) (12)
SF-C1019USB-D6.0-SV-PRO-L200 V1.0 (L25 D140) (13)

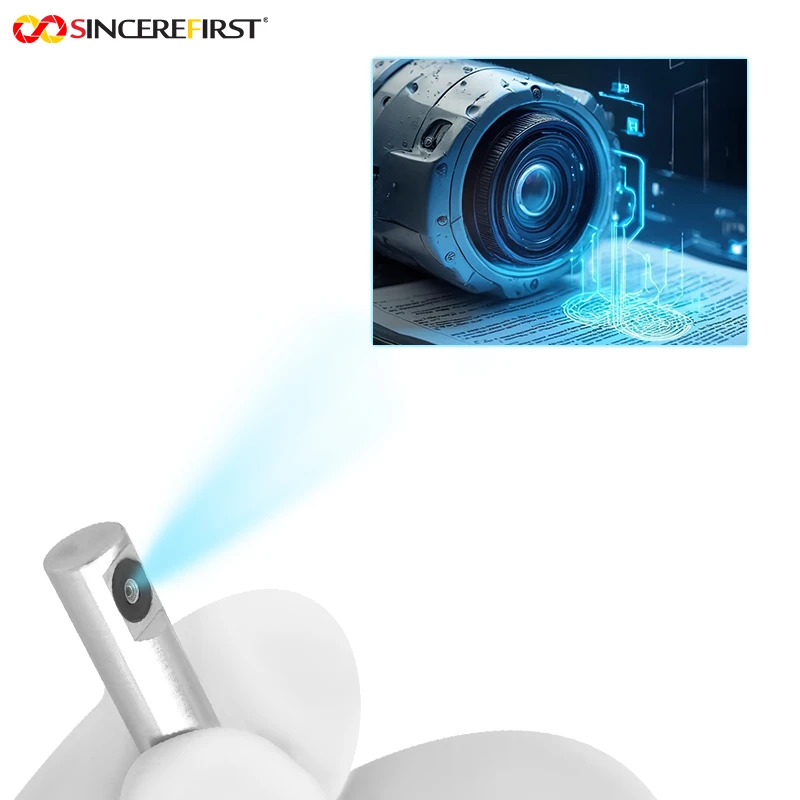

SF-C1019USB-D6.0-SV-PRO-L200 V1.0 (L25 D140) (1)

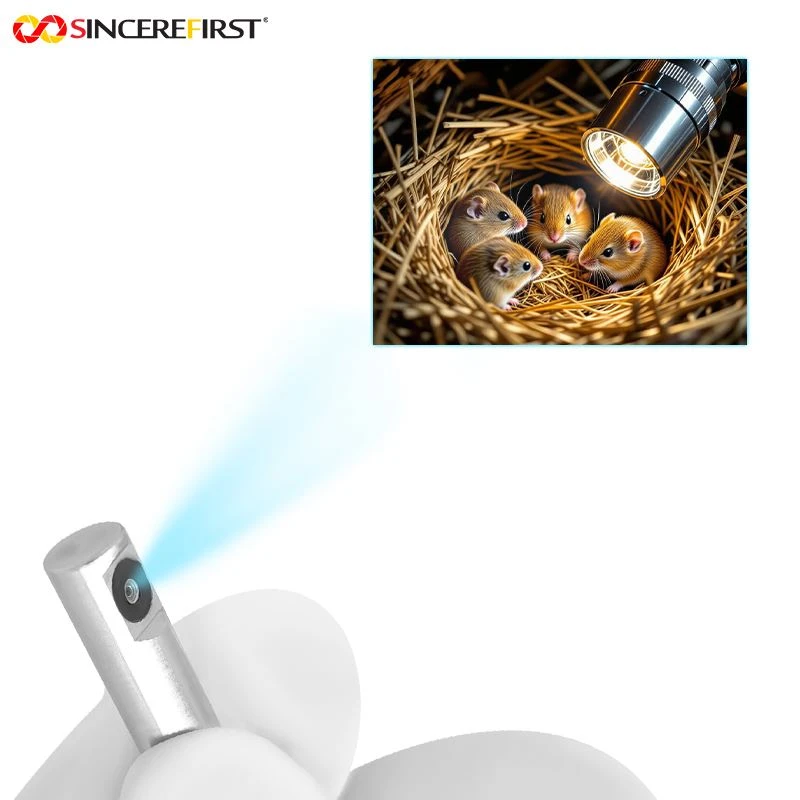

SF-C1019USB-D6.0-SV-PRO-L200 V1.0 (L25 D140) (2)

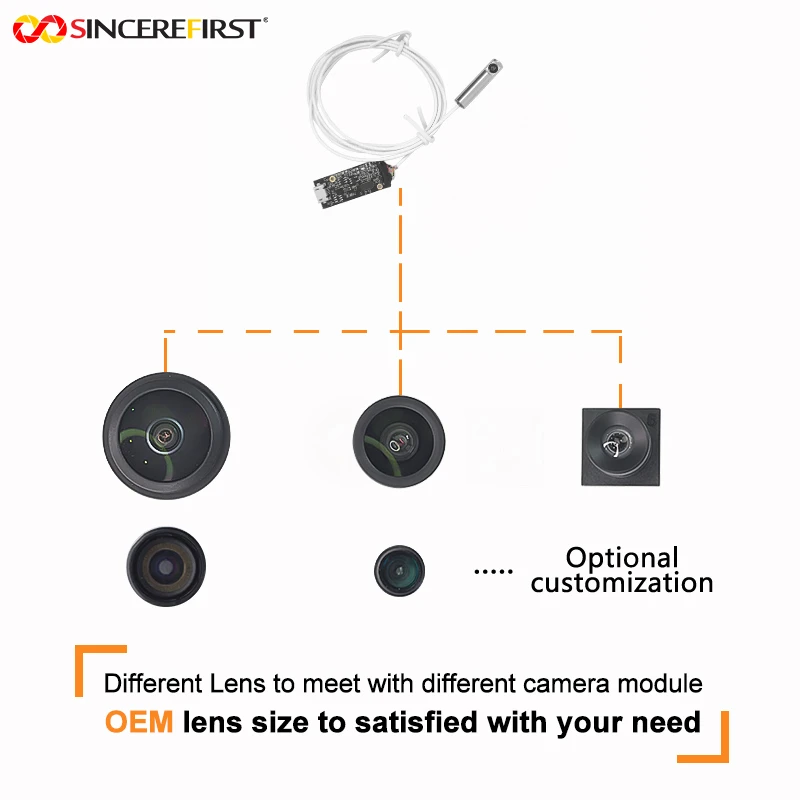

SF-C1019USB-D6.0-SV-PRO-L200 V1.0 (L25 D140) (4)

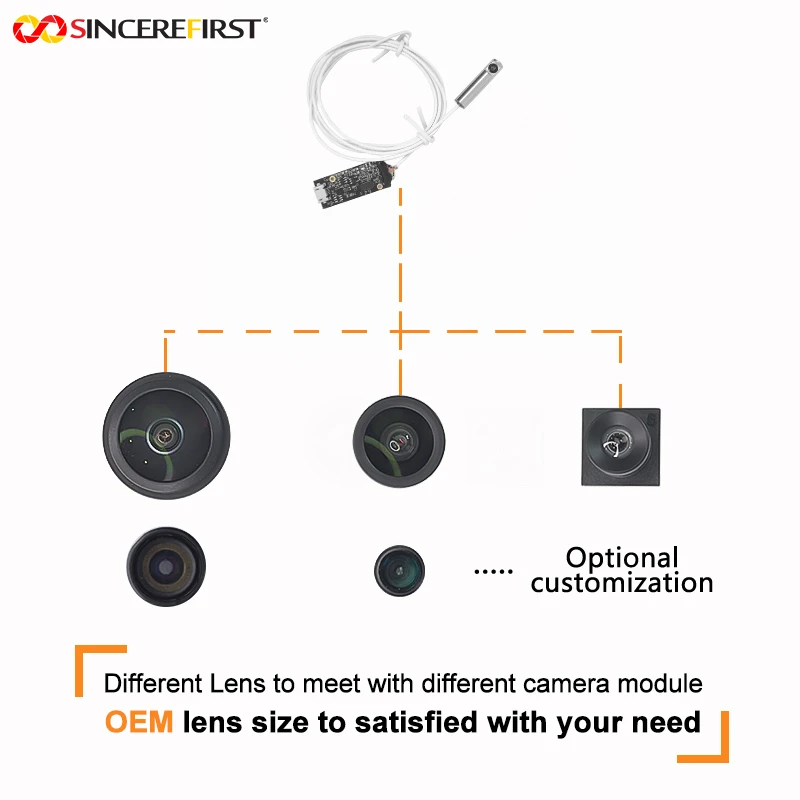

HD Waterproof OV9734 Image Sensor Side View USB Endoscope Camera Module
This is a high-definition waterproof side-view USB endoscope camera module with the OmniVision OV9734 image sensor. Its core is equipped with the OmniVision OV9734 CMOS color image sensor, featuring 1MP pixel resolution, support for 720 resolution, and a maximum smooth frame rate of 30FPS. The sensor size is 1/4-inch, with a pixel size of 1.75μm x 1.75μm, and it supports YUV and MJPEG output formats to adapt to different data processing requirements of medical devices. In terms of optical configuration, the module is equipped with an F4.0 aperture lens, boasting a wide field of view of 95° diagonal (D), 85° horizontal (H), and 43.5° vertical (V). Combined with a short focal length of 1.08mm and a depth of field ranging from 10 to 100mm, along with a side-view imaging design, it can clearly cover the sidewall area of body cavities at close range. With TV distortion < -10% and support for manual focus, it can accurately capture the fine structures required for medical observation.
Structurally, it adopts a Separated design and is connected to the DSP board via bonding wires, adapting to the flexible internal layout of medical devices. The lens is covered with a steel shell with a diameter of 6mm and a length of 25mm; its slim design can easily extend into narrow human body cavities. Moreover, it supports IP67 dust and water resistance-this protection level can directly withstand common scenarios in medical settings such as wiping disinfection with alcohol and splashing of body fluids, solving the core conflict between cleaning/disinfection and protection of medical equipment. Meanwhile, the lens is integrated with 4 0402 LED beads to provide supplementary lighting for observation in dark environments. It features a USB2.0 interface and supports the UVC protocol, enabling quick connection to medical industrial control devices. The entire module is manufactured using SMT process and AA (Active Alignment) manufacturing process, and has passed international tests and certifications including CE, FCC, RoHS, and REACH, meeting compliance requirements in the medical field.
• High-Definition Side-View Imaging: The combination of 1MP pixels, 720 resolution, and 30FPS frame rate ensures clear and smooth image details. The 1.08mm short focal length combined with side-view imaging can fully present the shape of sidewalls; TV distortion < -10% prevents image deformation, and manual focus can accurately lock the observation area, providing a reliable visual basis;
• Robust Miniaturized Structure: The 6mm-diameter steel shell can easily extend into narrow spaces, and the 25mm length balances insertion depth and operational flexibility. The Separated design with bonding wire connection combines mechanical strength and integration flexibility, meeting the dual requirements of medical devices for space and reliability;
• Plug-and-Play Integration: The USB2.0 interface plus UVC protocol support eliminates the need for dedicated drivers, enabling quick connection to medical computers, endoscope hosts, and other devices. This reduces the software development cost during medical equipment integration and adapts to the rapid deployment needs of scenarios such as emergency departments and outpatient clinics;
• Certified Quality Assurance: The SMT process and AA manufacturing process ensure consistent imaging performance of the module. International certifications including CE and FCC cover multiple dimensions such as electromagnetic compatibility and environmental protection, complying with medical device access standards in most regions around the world and reducing procurement risks for medical institutions.
Application of Endoscope Camera Module
• Auxiliary Observation for Gastroenterology Endoscopes: As an auxiliary module for endoscopes, side-view imaging can supplement the sidewall observation blind spots of forward-view endoscopes. IP67 protection prevents corrosion from gastric juice and digestive fluids, and the 10~100mm depth of field adapts to the observation of intestinal tracts with different diameters, providing supplementary vision for the diagnosis of conditions such as gastritis and ulcers;
• ENT Department Cavity Inspection: For narrow cavities such as ear canals and nasal cavities, the slim steel shell of the module can reduce irritation to mucous membranes. IP67 protection facilitates disinfection after inspection, and the 95° diagonal wide field of view can cover the cavity sidewall at one time, helping doctors quickly identify issues such as inflammation and foreign objects;
• Veterinary Clinical Cavity Detection: Suitable for inspection scenarios such as pet dentistry and digestive tracts. IP67 protection can meet the more complex cleaning needs in veterinary scenarios, and the short focal length combined with side-view design can clearly observe lesions in narrow cavities of pets, assisting veterinarians in precise treatment;
• Internal Maintenance of Medical Equipment: Used for the detection of internal pipelines of medical equipment such as endoscope hosts and dental treatment chairs. IP67 protection can withstand wiping with cleaning fluids during equipment maintenance; the combination of side-view imaging and slim steel shell can extend into narrow internal pipelines of equipment to check for faults such as blockages and wear, ensuring the normal operation of medical equipment.

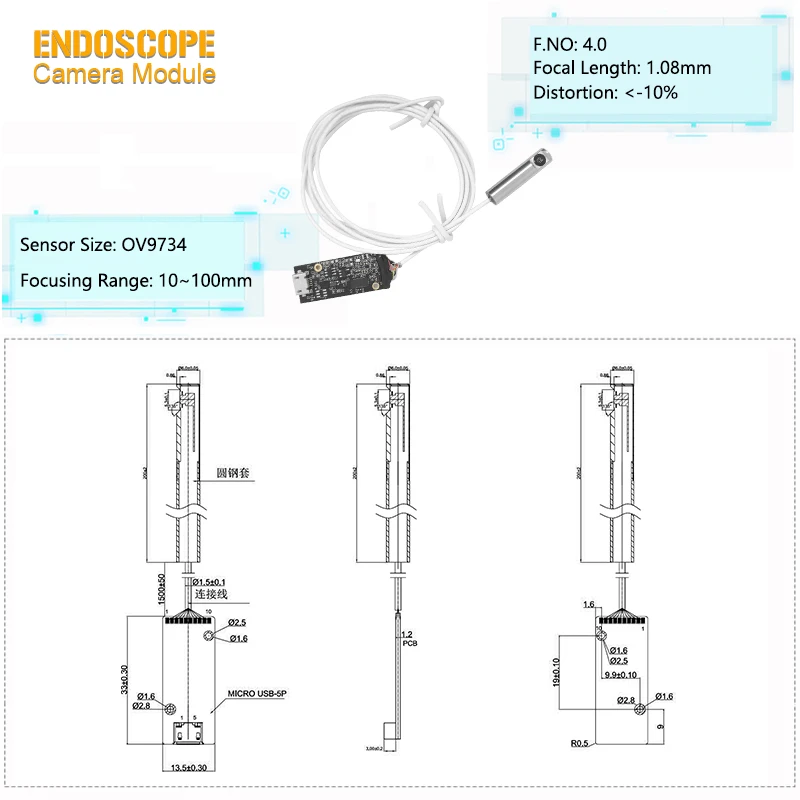

Product Details
|
Product Name |
Separated CMOS Endoscope Camera Module |
|
Sensor |
OmniVision OV9734 CMOS |
|
Resolution |
1280x720 |
|
Diameter |
6mm |
|
F.NO |
4.0 |
|
Max Frame Rate |
30FPS |
|
View Angle |
D95°,H85°,V43.5° |
|
Interface |
USB2.0, USB 5Pin |
|
Focusing Range |
10~100mm |
|
LED |
4pcs 0402 |
