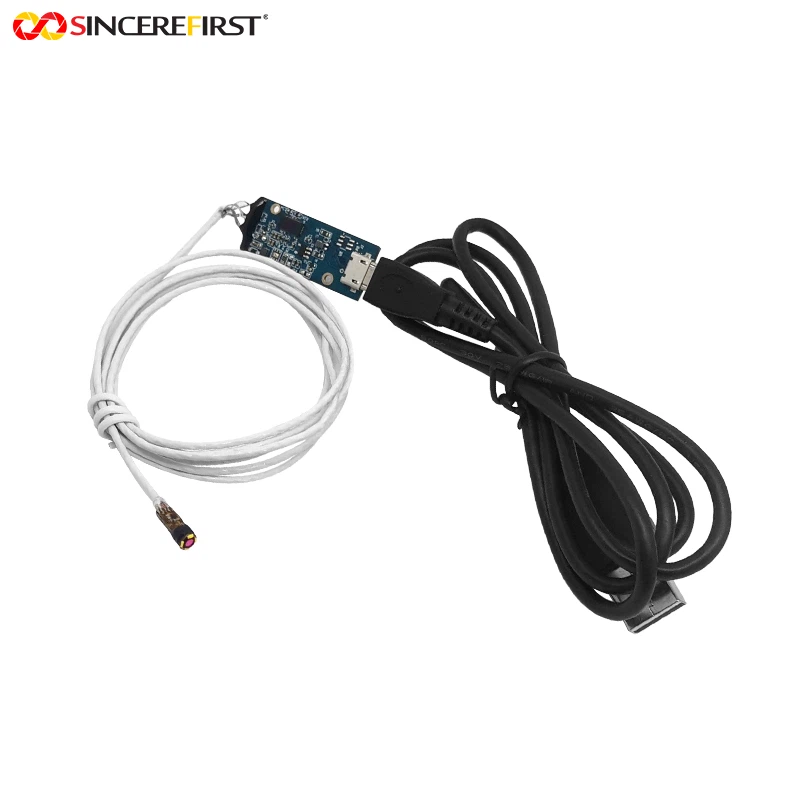

0.3MP GC030A VGA 3.6mm Diameter USB Endoscope Camera Module
Guangzhou Sincere Information Technology Ltd. is one of the most professional 0.3mp gc030a vga 3.6mm diameter usb endoscope camera module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.

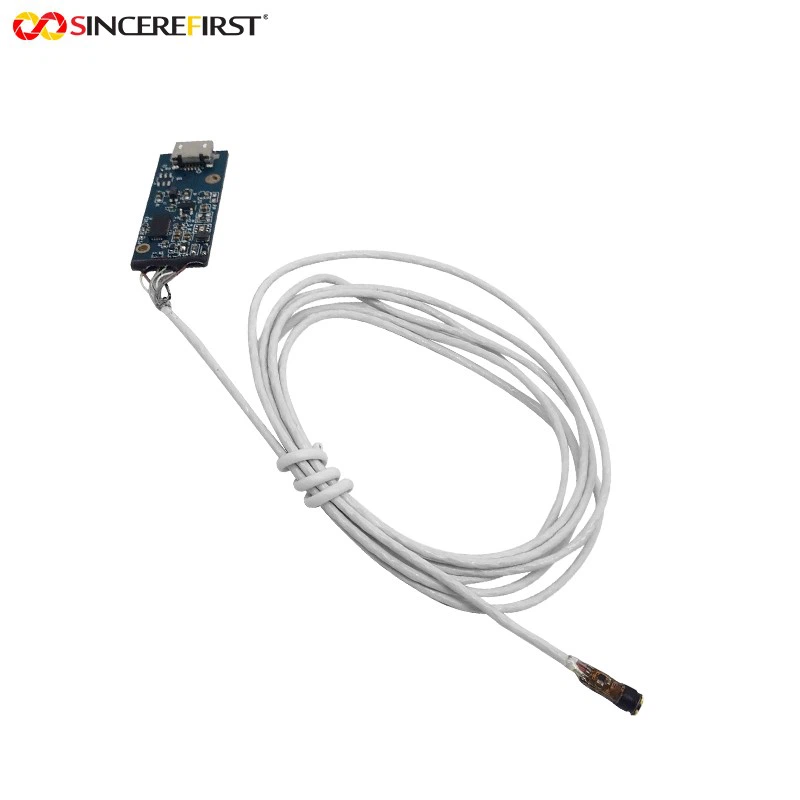

This is designed for compact endoscope and borescope products that need a small camera head, integrated illumination and flexible separated-module integration. Built with a GalaxyCore GC030A CMOS sensor, it supports VGA 640 x 480@30FPS output, MJPEG / YUV formats and USB2.0 connection. The 3.6mm Diameter Lens integrates 4 LEDs, while the separated lens structure is connected to the DSP board through soldered wires, making it suitable for compact inspection tools, small-hole visual checking and bare-module OEM integration.
Features

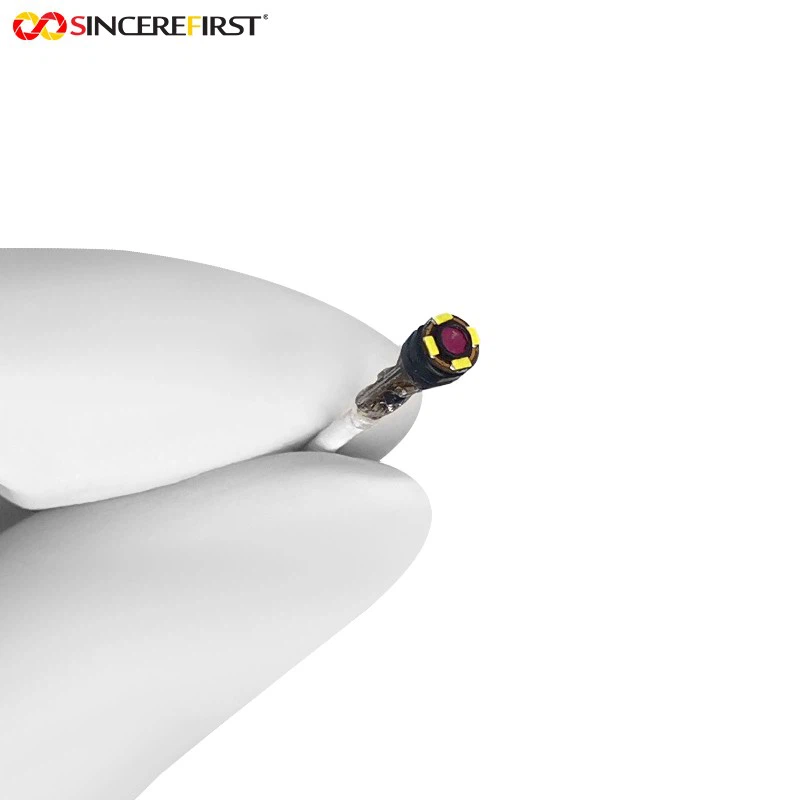

• 3.6mm Diameter Lens
Fits compact endoscope and borescope products that require a small front-end optical structure.

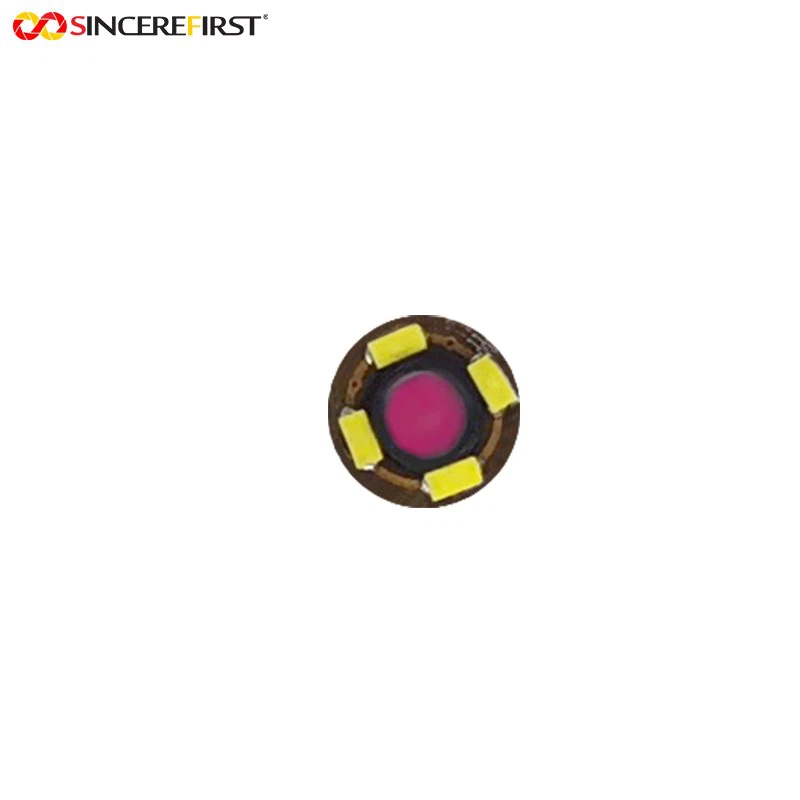

• Integrated 4-LED Illumination
Provides built-in close-range lighting for darker or enclosed inspection environments.
• GC030A VGA CMOS Sensor
Supports practical 0.3MP VGA imaging for compact inspection tools and simple visual checking.
• MJPEG and YUV Output
Supports common USB image output formats for host-side evaluation and device integration.

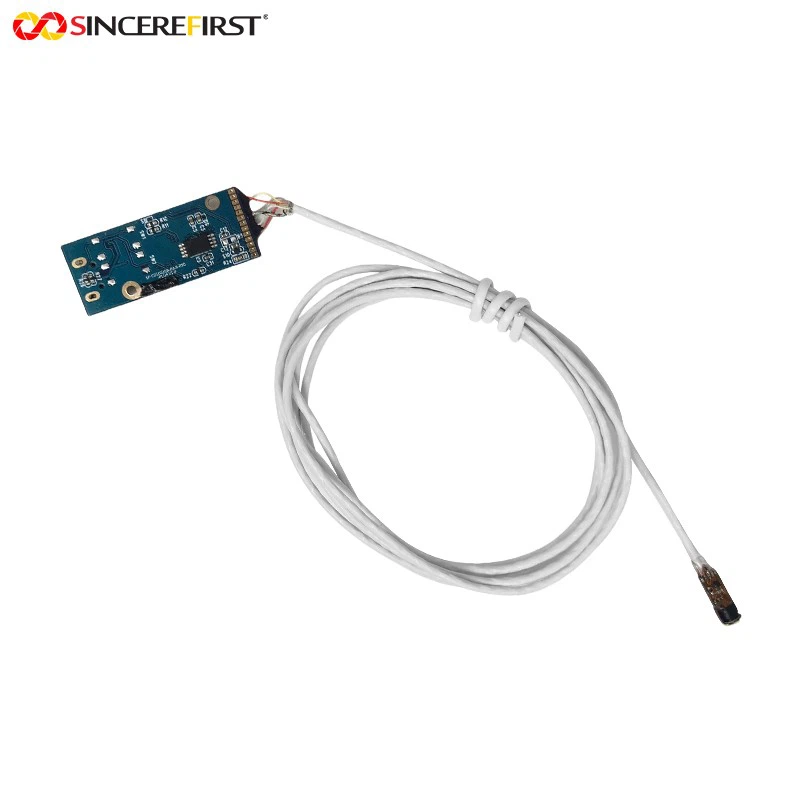

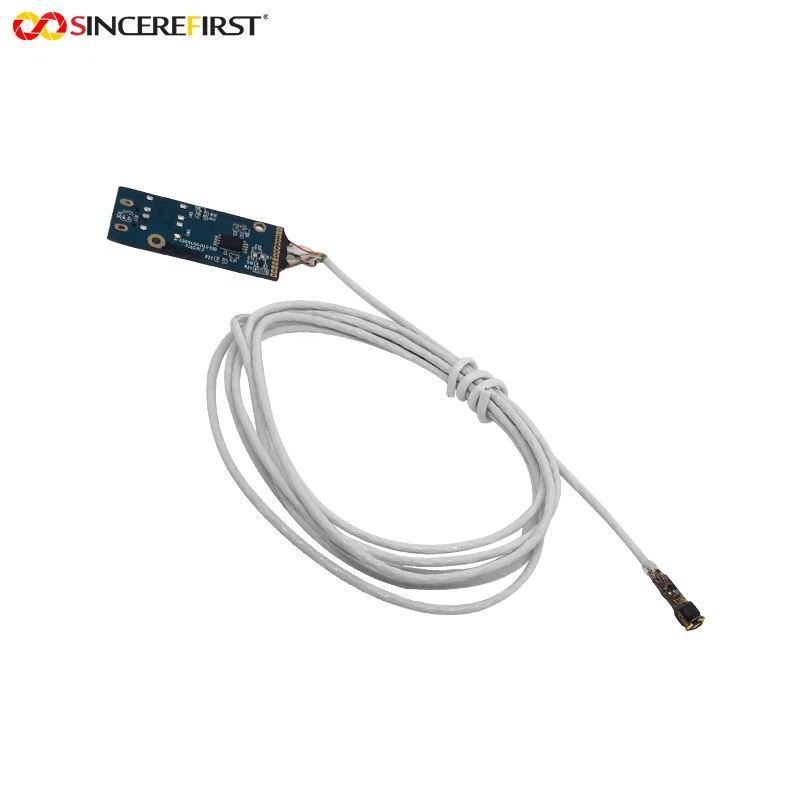

• Separated Bare Module Design
The lens head connects to the DSP board by soldered wires for flexible product layout.
• USB2.0 UVC Interface
Supports USB2.0 UVC output for practical integration into compatible host devices.
Application of Endoscope Camera Module
• Small-Hole Inspection Devices
Suitable for compact tools that need a 3.6mm lens head to observe narrow spaces.
• Industrial Borescope Tools
Works for basic borescope products requiring LED illumination and USB image output.
• Maintenance and Service Inspection
Can be used in service tools for close-range checking of enclosed or hard-to-see areas.
• OEM Visual Examination Devices
Suitable for product teams needing a bare endoscope module for custom device integration.
Product Details
|
Product Name |
VGA LED USB Endoscope Camera Module |
|
Sensor |
GalaxyCore GC030A CMOS Sensor |
|
Pixel |
0.3MP |
|
Resolution |
VGA, 640x480 |
|
Frame Rate |
30FPS |
|
Sensor Size |
1/10 inch |
|
Focal Length |
1.074mm |
|
F.NO |
3.58 |
|
View Angle |
D90° |
|
TV Distortion |
< -1% |
|
LED |
4pcs LED |
|

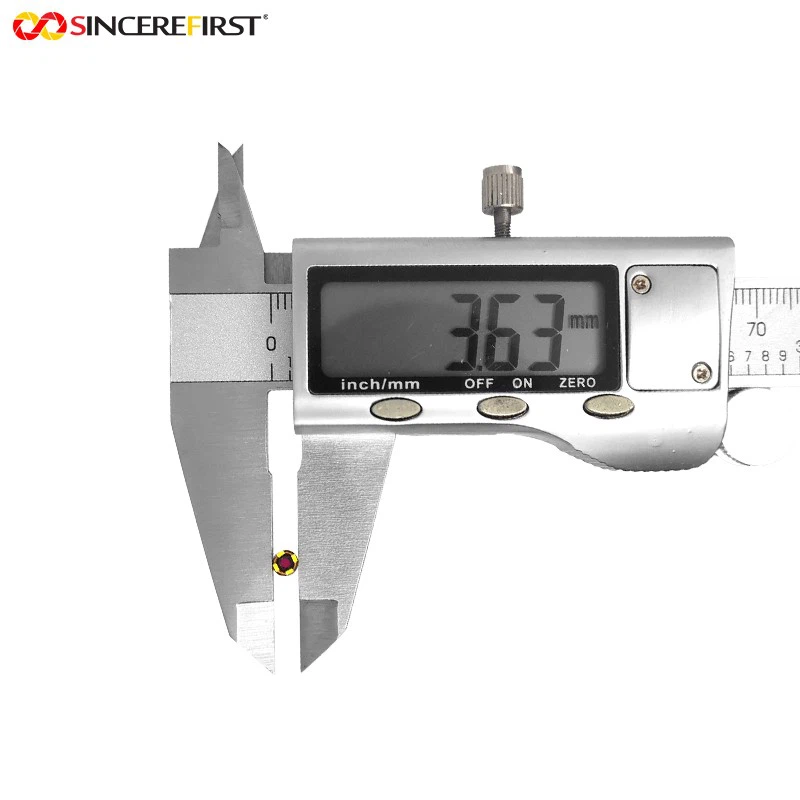

Diameter |
3.6mm |
|
Structure |
Separated bare module |
|
Output Format |
MJPEG / YUV |
|
Interface |
USB2.0 |
Customization Options
3.6mm Lens and Optical Fit
The 3.6mm Diameter Lens can be evaluated according to inspection opening, working distance and target coverage.
4-LED Illumination Configuration
LED lighting behavior can be matched to close-range visibility, inspection distance and enclosed-space conditions.
Separated Wire Routing Adaptation
Soldered wire path and separated-head placement can be discussed according to the final device layout.
Bare DSP Board Integration
DSP board positioning and mounting method can be checked against housing space and assembly requirements.
USB2.0 Output Matching
MJPEG / YUV output and USB2.0 UVC behavior can be evaluated according to the customer's host device.
FAQ
Q: What is this 3.6mm USB endoscope module designed for?
A: It is designed for compact borescope and inspection devices that need a small illuminated lens structure.
Q: How many LEDs are integrated?
A: The 3.6mm lens head integrates 4 LEDs for close-range illumination.
Q: Is this a separated endoscope camera module?

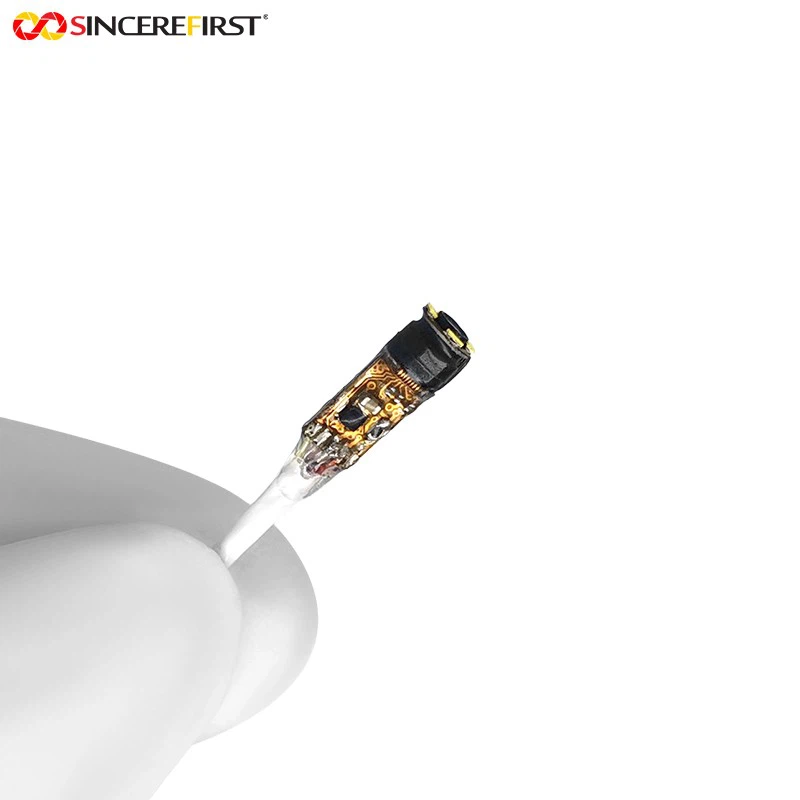

A: Yes. The lens is separated from the DSP board and connected through soldered wires.
Q: What resolution does it support?
A: It supports VGA 640 × 480 resolution at 30FPS.
Q: What output formats are supported?
A: It supports MJPEG and YUV output formats.
Q: Does it support USB2.0 UVC?
A: Yes. It supports USB2.0 UVC output for compatible host-side integration.
Q: Is it suitable for waterproof inspection tools?
A: Waterproof protection is not listed for this model, so it should be evaluated as a bare separated module unless otherwise confirmed.
Q: What details should I provide for customization evaluation?
A: Please provide lens diameter limit, inspection distance, wire routing space, lighting need, host device and housing layout.
