Guangzhou Sincere Information Technology Ltd. is one of the most professional 7.0mm diameter miniature wide angle 5mp gc5035 sensor endoscope camera module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.

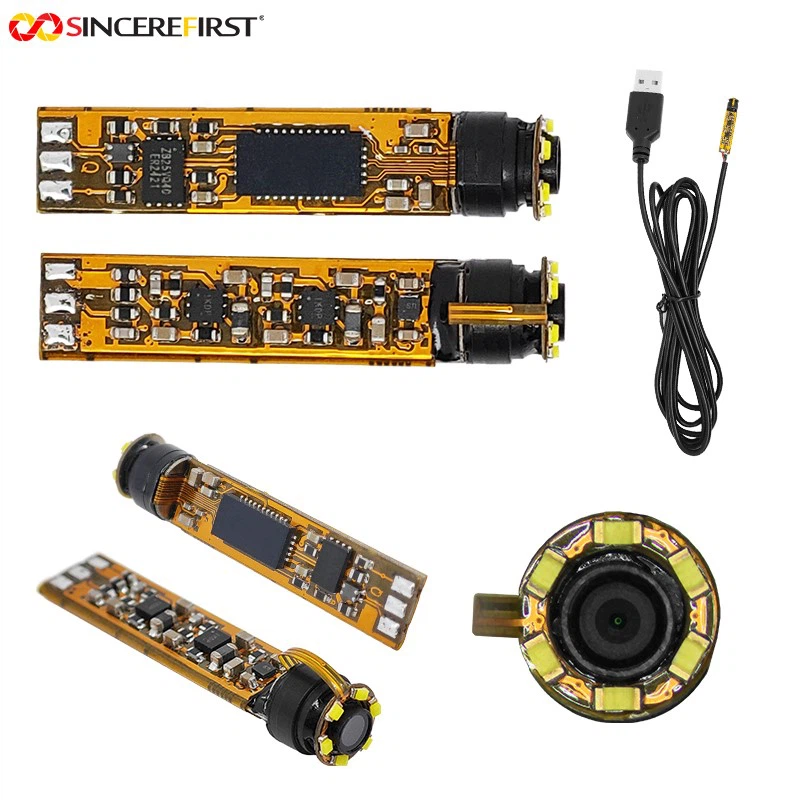

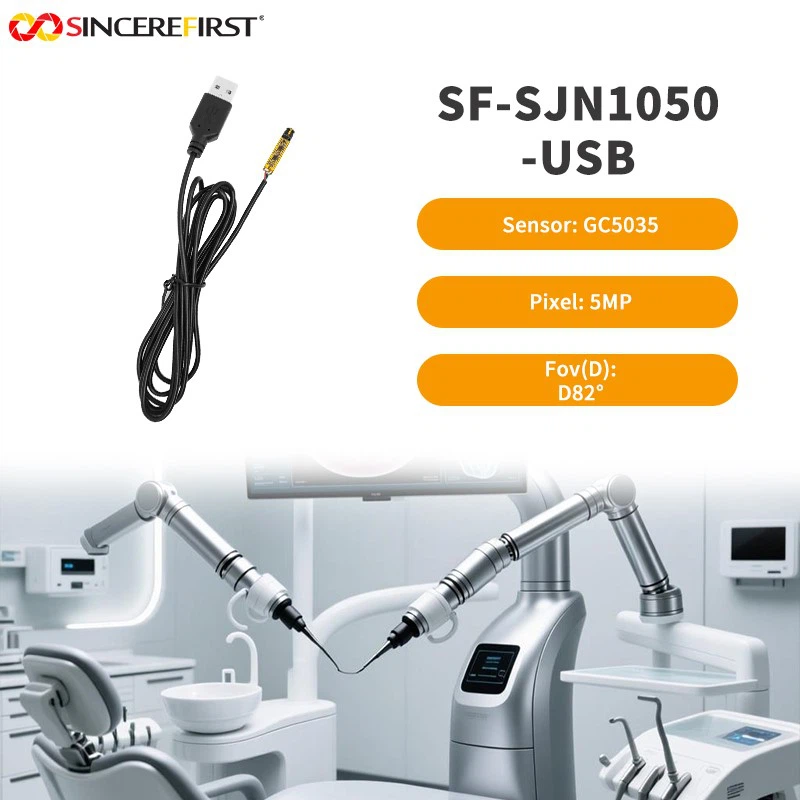

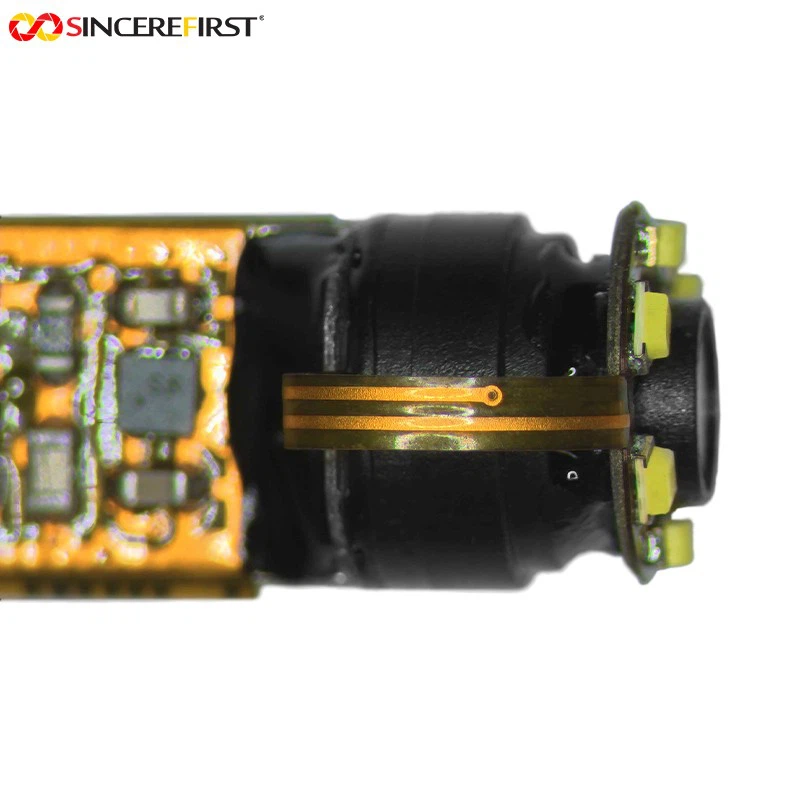

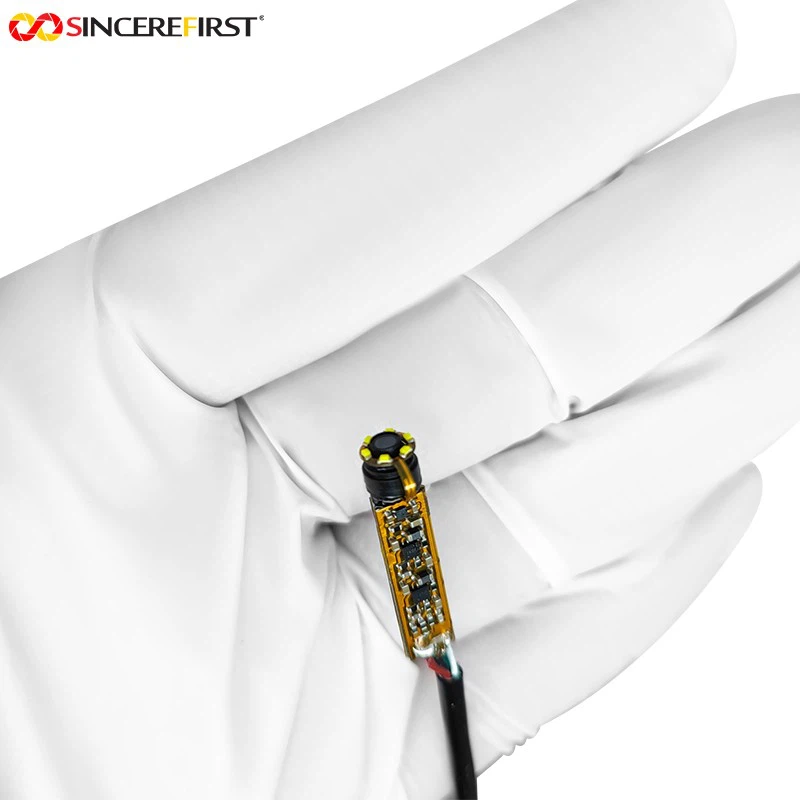

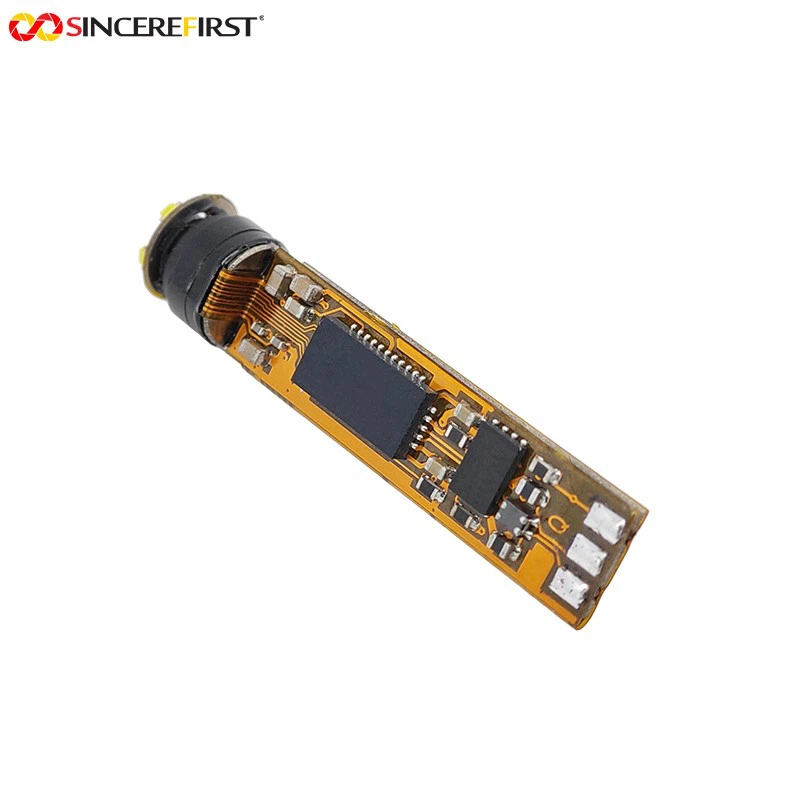

This 7.0mm Diameter Miniature Wide Angle 5MP GC5035 Sensor Endoscope Camera Module ,features the GC5035 sensor for 5-megapixel high-definition imaging. The module's outer diameter is strictly controlled at 7.0±0.1mm, employing an integrated design combining imaging and illumination. Equipped with an 82° field-of-view lens, its fixed-focus structure covers a depth of field from 30–80mm, enabling clear visualization of mid-to-close range observation targets. The module incorporates six white LED lights, each powered independently by a dedicated driver IC, ensuring stable operation in low-light or completely dark environments without requiring an external light source. The power supply system employs a multi-voltage domain independent solution: 1.2V for the digital core, 1.8V for digital output, 2.8V for the analog domain, and 3.3V for the independent LED illumination system. It also reserves universal electrical interfaces such as 5V, D+, and GND, ensuring compatibility with mainstream terminal device power architectures and significantly lowering the overall integration threshold. This compact module delivers sharp image quality and exceptional low-light performance, making it ideal for miniature endoscopic imaging applications such as industrial pipeline interior inspection, precision electronic component inspection, automotive maintenance diagnostics, medical auxiliary observation, and household pipe drain inspection.

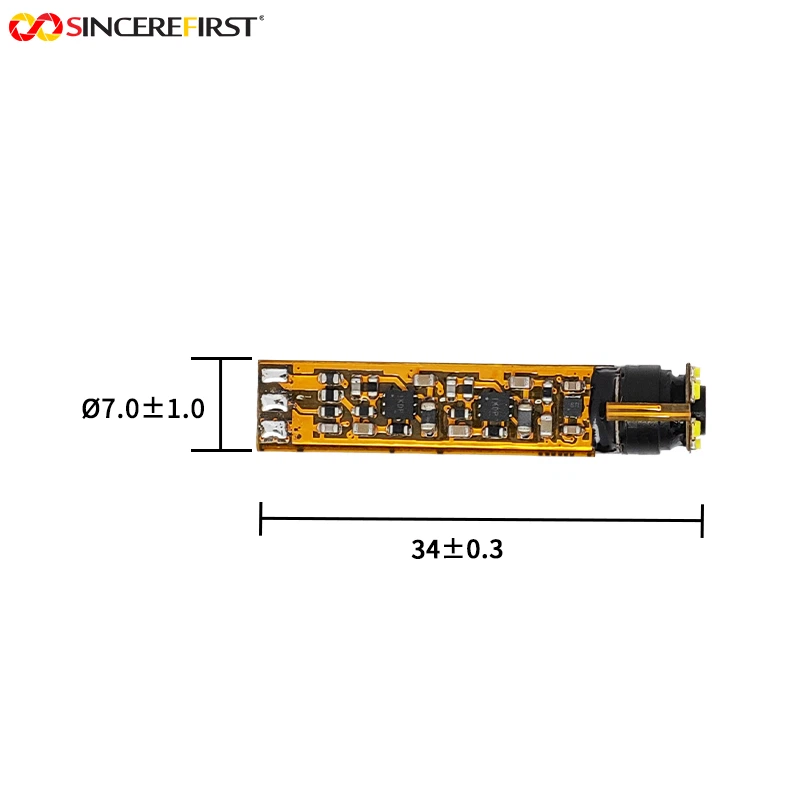

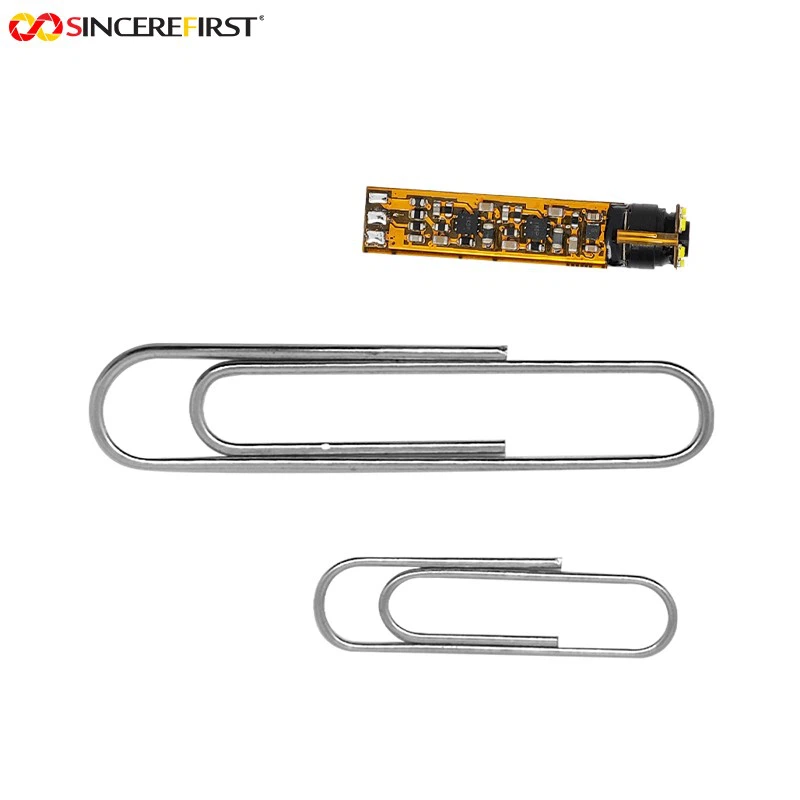

1. Ultra-compact structural design: The module's outer diameter is strictly controlled at 7.0±0.1mm, enabling visual inspection in extremely confined spaces such as micro-pipes and precision instrument gaps. It features a compact structure with high integration.

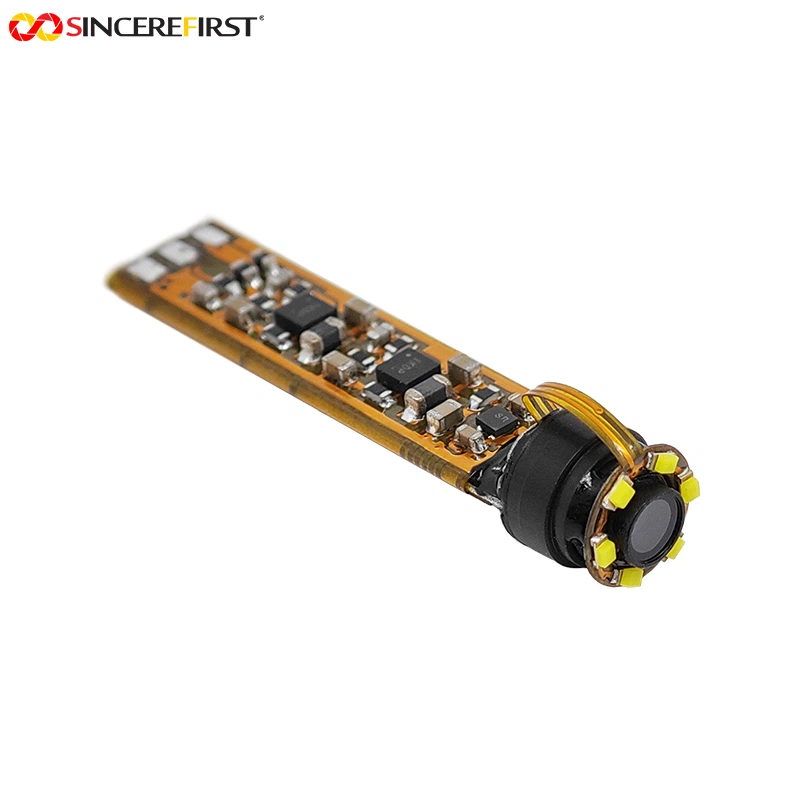

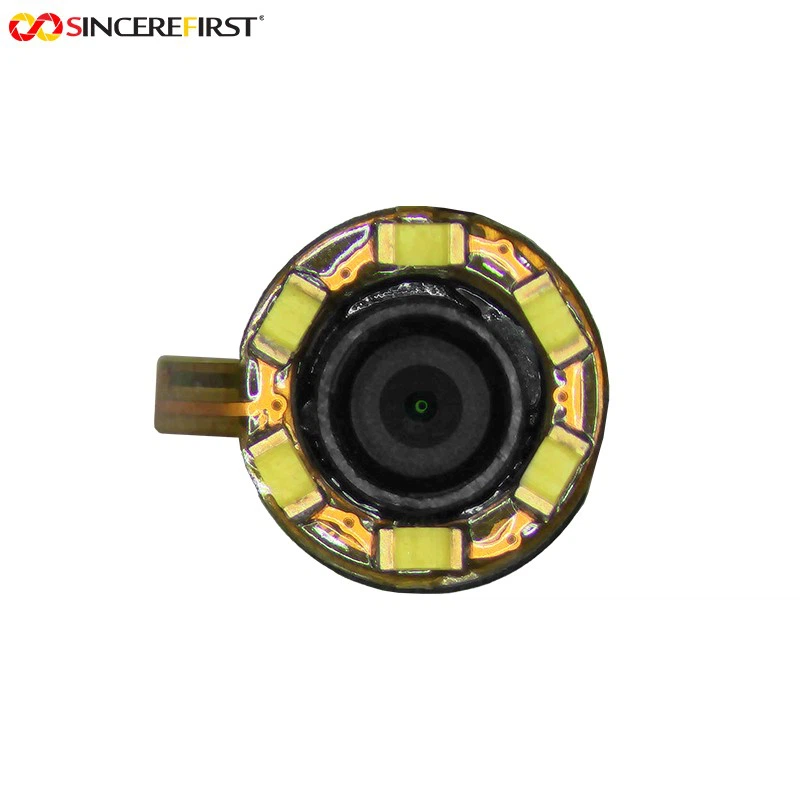

2. High-Definition Imaging and Low-Light Adaptability: Equipped with a GC5035 5-megapixel sensor, paired with 6 built-in white LEDs and dedicated driver ICs with independent power supply. It delivers clear images in 0 lux full-dark environments without requiring external lighting.
3. Wide Depth-of-Field Fixed-Focus Optical System: An 82° field-of-view lens with 30–80mm depth-of-field coverage eliminates the need for manual focusing, delivering sharp images of mid-to-close range targets and simplifying system control complexity.

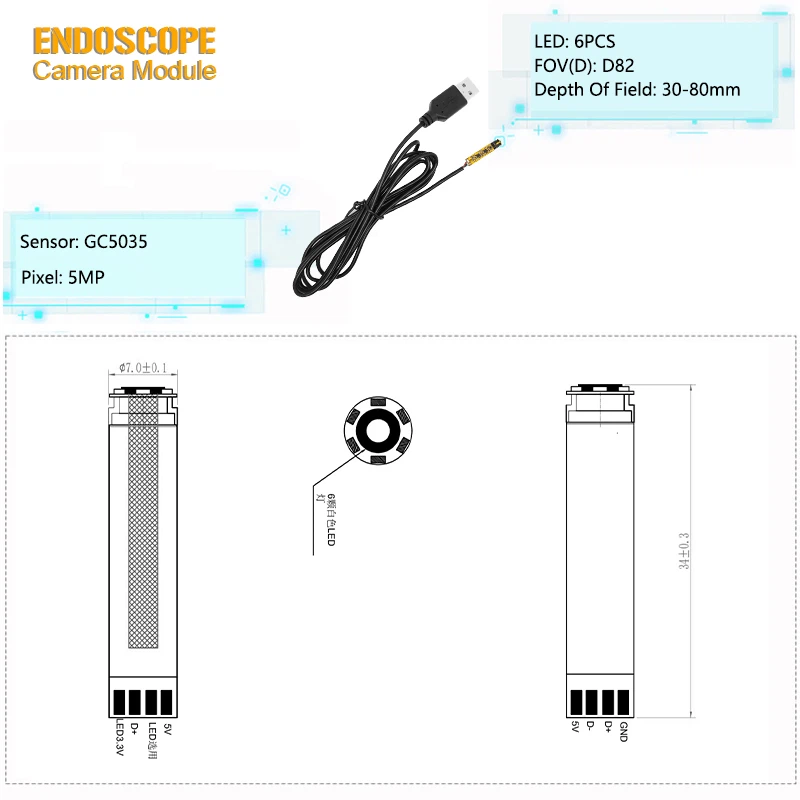

4. Multi-voltage domain compatible power architecture: Integrates independent 1.2V/1.8V/2.8V power supply channels to meet sensor digital, analog, and I/O domain requirements. The LED illumination system operates on a dedicated 3.3V supply while reserving universal 5V, D+, and GND interfaces. This design ensures compatibility with mainstream terminal platforms, significantly lowering overall system integration barriers.
Application of Endoscope Camera Module
Industrial Non-Destructive Testing
Ideal for inspecting corrosion on pipe inner walls, screening internal defects in mechanical components, and detecting burrs in castings. Its ultra-fine 7.0mm diameter allows access to narrow interfaces, while 5-megapixel resolution clearly reveals microscopic defects like cracks and porosity.
Electronics Manufacturing & Precision Assembly
Used for PCB solder quality sampling, foreign object detection in smartphone frame screw holes, and connector pin deformation observation. Fixed-focus depth of field covers 30-80mm working distance, suitable for automated inspection station deployment.
Automotive Repair and Manufacturing
Accesses enclosed cavities like engine blocks, transmission valve bodies, and turbocharger ducts to inspect carbon deposits, wear, and foreign object residues. The built-in illumination system prevents overexposure caused by metal reflections.
Medical and Civilian Auxiliary Observation
Integrated into devices like ear endoscopes, oral examination instruments, and household pipe cleaning tools. Its low-light imaging capability eliminates the need for additional lighting accessories, reducing the size and cost of end products.
Product Details
|
Product Name |
Endoscope Camera Module |
|
FOV |
82° |
|
Len Diameter |
7mm |
|
Sensor |
GC5035 |
|
Interface |
USB |
|
Output Format |
MJPG/YUY2 |
|
LED |
6pcs |
|
Depth of Field |
30-80mm |
|
Pixel |
5MP |
|
Certification |
CE, FCC, REACH, ISO |
SINCEREFIRST camera module manufacturing enterprise integrates design, development, manufacturing and sales. We can supply ready made 0.1mp to 200mp FPC & USB camera module and diameter 0.9mm~10mm endoscope camera module. Our products are widely used in various fields, such as AIoT equipment, smart home, smart medical, intSSelligent transportation, automatic driving, intelligent security, Intelligent warehousing, scanning, robot, UAV, medical endoscope, industrial endoscope, computer, intelligent terminals etc.
If you are looking for camera module or camera sensor manufacturers and suppliers, please feel free to contact us for camera module price and more detailed introduction. SINCEREFIRST is a leading high-tech company specializing in integrated optical device manufacturers and optical imaging system solution providers. There are different types of camera modules and camera sensors for sale, and they also support customization to meet all your needs and solve your problems.
