OmniVision OVA0B40 108MP MIPI Auto Focus Camera Module
Guangzhou Sincere Information Technology Ltd. is one of the most professional OmniVision OVA0B40 108MP MIPI Auto Focus Camera Module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.
Choosing a very high-resolution camera module should start with the actual imaging requirement rather than pixel count alone. Projects using the OVA0B40 also need to consider host processing capability, Auto Focus behavior, optical coverage, MIPI integration and the mechanical structure available inside the final device.

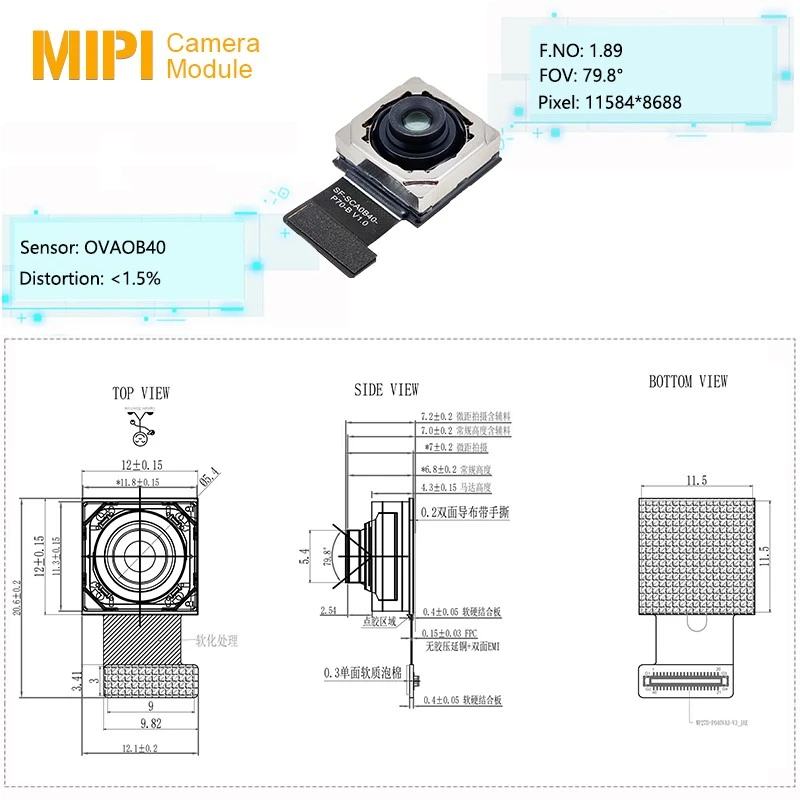

This module integrates the OVA0B40 into a complete 40Pin BTB MIPI camera configuration with VCM Auto Focus from 10 cm to Infinity. It provides 11584 × 8688 native resolution, supports 4K@30FPS video output, PDAF, HDR, 4-in-1 pixel operation and RAW output, and uses a D79.8° optical configuration with less than 1.5% TV distortion. Standard production uses SincereFirst's in-house Active Alignment process.
Features
• 11584 × 8688 Native Image Detail
The OVA0B40 provides very high native image resolution for projects where retained detail, later cropping or high-density visual information offers a real system-level benefit.
• VCM Auto Focus from 10 cm to Infinity
The VCM Auto Focus structure supports changing subject distances from 10 cm to Infinity, making the module more flexible than a preset Fixed Focus configuration.
• PDAF, HDR and 4-in-1 Pixel Support
The confirmed sensor configuration supports PDAF, HDR and 4-in-1 pixel operation, providing additional focusing and imaging flexibility.
• 40Pin BTB MIPI Integration
The standard module uses a 40Pin BTB MIPI interface. Host processor support, connector design and board routing should be confirmed as part of project integration.
• RAW Output for Image Processing
RAW output allows the host imaging pipeline to perform downstream ISP development and image tuning according to the application requirements.
• In-House Active Alignment Production
This standard OVA0B40 module is produced using SincereFirst's own Active Alignment equipment. AA is part of the camera module manufacturing process rather than a feature of the image sensor itself.
Application of MIPI Camera Module
• High-Detail Scanning and Archiving
The high native resolution can support document scanners, visual archiving systems and specialized capture equipment where fine detail needs to remain available for later viewing or processing.
• Automated Detail Inspection
The module can be evaluated for controlled inspection systems that benefit from high pixel density and Auto Focus when capturing small product or component details.
• Smart Recognition Terminals
High native resolution and variable-distance focusing can support recognition and imaging terminals where both full-scene capture and detailed image cropping may be required.
• High-Resolution OEM Imaging Systems
The module provides a high-pixel-count MIPI imaging route for specialized OEM equipment where the processor, storage bandwidth and mechanical design can support the higher imaging requirements.
Product Details
|
Product Name |
Custom High Resolution 108MP 40Pin MIPI Camera Module |
|
Sensor |
OmniVision OVA0B40 CMOS Sensor |
|
Pixel |
108MP |
|
Resolution |
9428x6944 |
|
Frame Rate |
4K@30FPS |
|
Sensor Size |
1/1.18 Inch |
|
Feature |
PDAF, HDR, 4-in-1 Pixel |
|
Output Format |
RAW |
|
Focusing Range |
10cm ~ Infinity |
|
EFL |
5.43mm |
|
F.NO |
1.89 |
|
FOV |
D79.8° |
|
Focus Type |
VCM Auto Focus |
|
TV Distortion |
＜1.5% |
|
Process |
Active Alignment (AA) Process - standard production |
|
Interface |
40Pin BTB MIPI Interface |
Customization Options
Lens and FOV Matching
The standard D79.8° optics can be reviewed when the target device requires another scene coverage or optical configuration.
FPC and Connector Adaptation
FPC routing, connector requirements and module layout can be discussed when the standard 40Pin configuration does not directly match the target board or enclosure.
MIPI Host Integration
The target processor, MIPI interface and image-processing capability can be reviewed before the module is finalized for a new OEM platform.
Auto Focus Configuration
VCM focus behavior can be evaluated against the actual working-distance range and imaging requirements of the final device.
AA for Related Camera Designs
This OVA0B40 module uses Active Alignment as standard production. AA can also be added to other suitable camera module designs when their optical requirements justify the additional manufacturing process.
FAQ
Q: When should I choose this OVA0B40 camera module instead of a 50MP or 64MP model?
A: Choose this configuration when very high native image detail provides a clear benefit to the final device and the host platform can support the corresponding image-data and processing requirements.
Q: Is this a complete OVA0B40 camera module?
A: Yes. This is a complete camera module integrating the OVA0B40 sensor with lens optics, VCM Auto Focus, FPC, connector and MIPI interface.
Q: What is the native resolution?
A: The confirmed native resolution is 11584 × 8688.
Q: What is the Auto Focus range?
A: The module uses VCM Auto Focus with a confirmed focusing range from 10 cm to Infinity.
Q: What MIPI interface does this camera module use?
A: The standard configuration uses a 40Pin BTB MIPI interface. Host compatibility and board routing should be checked before integration.
Q: Does this module provide 8K video?
A: No. The confirmed video output is 4K@30FPS. Its placement in SincereFirst's 8K Camera Module Series refers to native-resolution classification rather than an 8K video-output claim.
Q: Can I request a sample for testing?
A: Yes. A sample can be discussed for imaging, Auto Focus, optical coverage and host-integration evaluation before a production configuration is finalized.
Q: Can the FPC, connector, lens or module structure be customized?
A: Yes. FPC, connector, optics and related structural requirements can be discussed according to the electrical and mechanical design of the target device.
Do You Really Need 108MP for This Project?
Very high native resolution is valuable only when the final imaging system can make practical use of the additional image detail. If you are deciding between 108MP, 64MP or 50MP camera options, SincereFirst can help compare resolution, Auto Focus, MIPI integration and module structure before sample testing.
