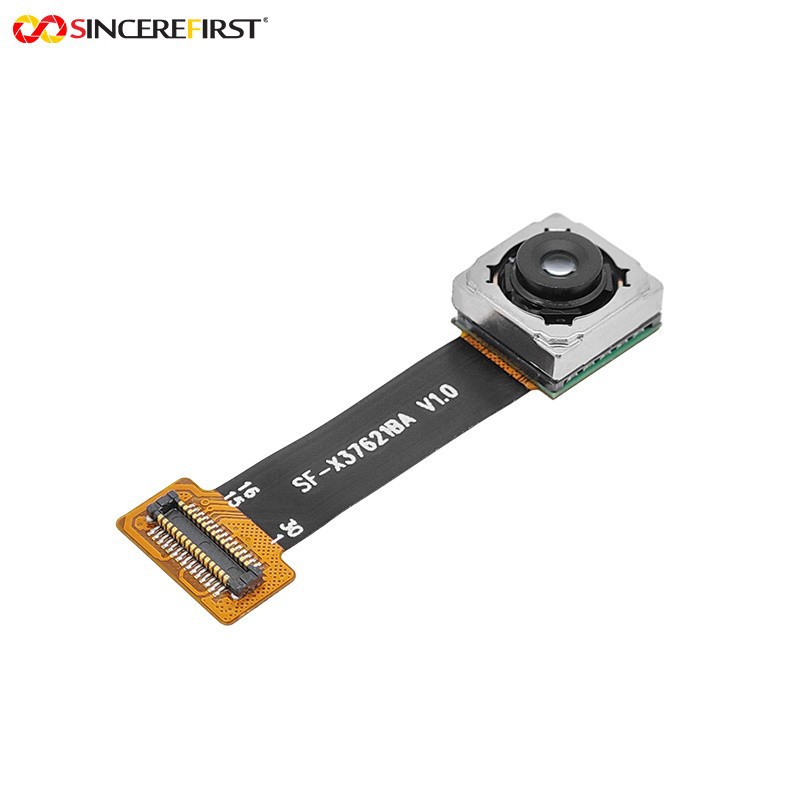

20MP UHD 4K Sony IMX376 CMOS Sensor Autofocus MIPI Camera Module

Guangzhou Sincere Information Technology Ltd. is one of the most professional 20mp uhd 4k sony imx376 cmos sensor autofocus mipi camera module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.



Introduction:

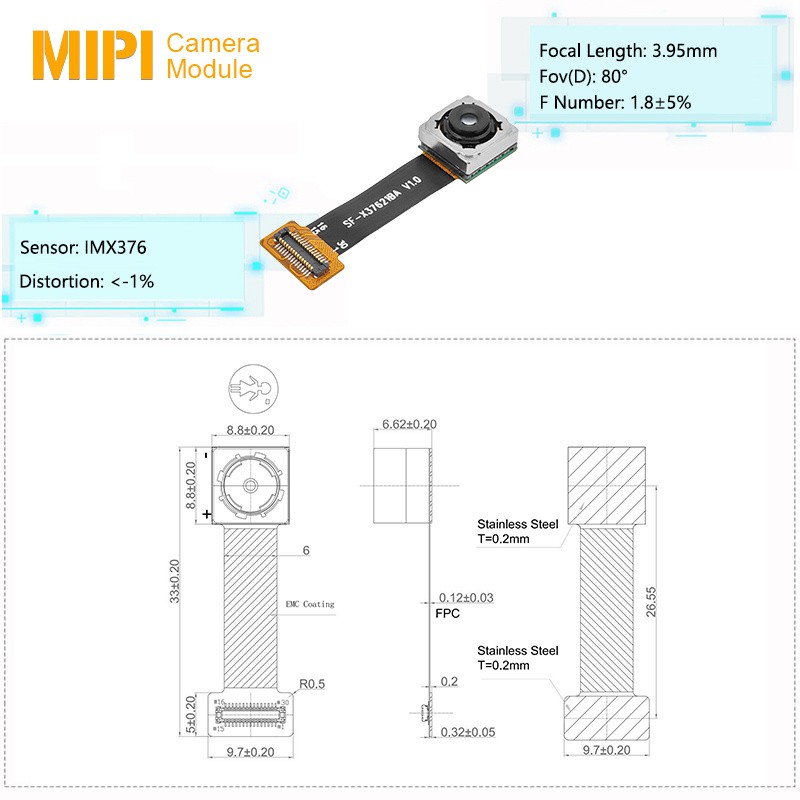

This is 20MP UHD 4K Sony IMX376 CMOS sensor autofocus MIPI camera module. Its core advantage lies in the combination of the 20MP high pixel and 4 - pixel binning technology brought by the Sony IMX376 image sensor. The former ensures that every detail of the picture is clearly displayed, while the latter significantly improves the light - sensing ability through pixel aggregation, enabling it to present pure and clear imaging effects even in low - light environments. The two complement each other, resulting in excellent image quality. Meanwhile, the module supports 4K@30fps high - definition video recording. The sensor size is 1/2.8 inch, and the pixel size is 1μm x 1μm. Combined with the HDR function, it can greatly enhance the dynamic range, making the details and layers in scenes with light and dark contrasts more abundant. In terms of shooting performance, it supports autofocus with a focusing range from 10cm to infinity. The 3.95mm focal length paired with the F1.8 large aperture can bring sufficient light intake. The diagonal field of view (DFOV) reaches 80°, and the distortion is controlled within < - 1%, ensuring a wide imaging field of view with minimal picture distortion. In terms of the interface, it adopts the MIPI interface. During the production process, SMT technology and AA manufacturing process are used, ensuring the high precision and stability of the module, thus providing high - quality imaging solutions for various intelligent devices.



Features

•Excellent Low-Light Image Quality: The 20MP high resolution presents extreme details of the image,and the 4-pixel binning technology enhances light-sensing capability. It can ensure pure and clear imaging even in low-light environments, together delivering excellent image quality.

•High Dynamic Video Recording: Supports 4K@30fps high-definition video recording, paired with HDR function to improve dynamic range, making the details and layers in scenes with light and dark contrasts more abundant.

•Highly Adaptable Optical Design: The autofocus range covers 10cm to infinity. The 3.95mm focal length and F1.8 large aperture bring sufficient light intake. With an 80° diagonal field of view and distortion < -1%, it meets diverse shooting needs and ensures realistic images.

•Stable Quality and High-Speed Transmission: Adopts MIPI interface for efficient and stable transmission. The SMT process and AA manufacturing process ensure high precision and stability of the module, providing reliable imaging solutions for intelligent devices.

•Smart Home Monitoring: With excellent low-light image quality, it can clearly capture movements at home even at night; the 80° wide angle of view can cover a large area, meeting the needs of full-scene home security monitoring.

•Mobile Device Shooting: The 20MP high resolution and 4K video recording capability are suitable for devices such as mobile phones and tablets, allowing users to easily take high-definition photos and videos. The HDR function improves the backlight shooting effect.

•Vehicle Imaging System: The autofocus and wide-angle characteristics can be used in driving recorders or reversing images, clearly recording road conditions and the surrounding environment. The good distortion control can accurately restore the scene.

•Industrial Inspection Field: The high-precision imaging and stable MIPI interface transmission are suitable for industrial equipment to inspect small parts, ensuring that details can be clearly identified in different light environments.

•Video Conference Equipment: The F1.8 large aperture and low-light performance make the faces of participants clear even in insufficient light during video conferences; the wide angle of view can accommodate multiple people in the shot, improving the meeting experience.​

SINCEREFIRST camera module manufacturing enterprise integrates design, development, manufacturing and sales. We can supply ready made 0.3mp to 108mp FPC & USB camera module and diameter 0.9mm~8.0mm endoscope camera module. Our products are widely used in various fields, such as AIoT equipment, smart home, smart medical, intelligent transportation, automatic driving, intelligent security, Intelligent warehousing, scanning, robot, UAV, medical endoscope, industrial endoscope, computer, intelligent terminals etc.

If you are looking for camera module or camera sensor manufacturers and suppliers, please feel free to contact us for camera module price and more detailed introduction. SINCEREFIRST is a leading high-tech company specializing in integrated optical device manufacturers and optical imaging system solution providers. There are different types of camera modules and camera sensors for sale, and they also support customization to meet all your needs and solve your problems.
