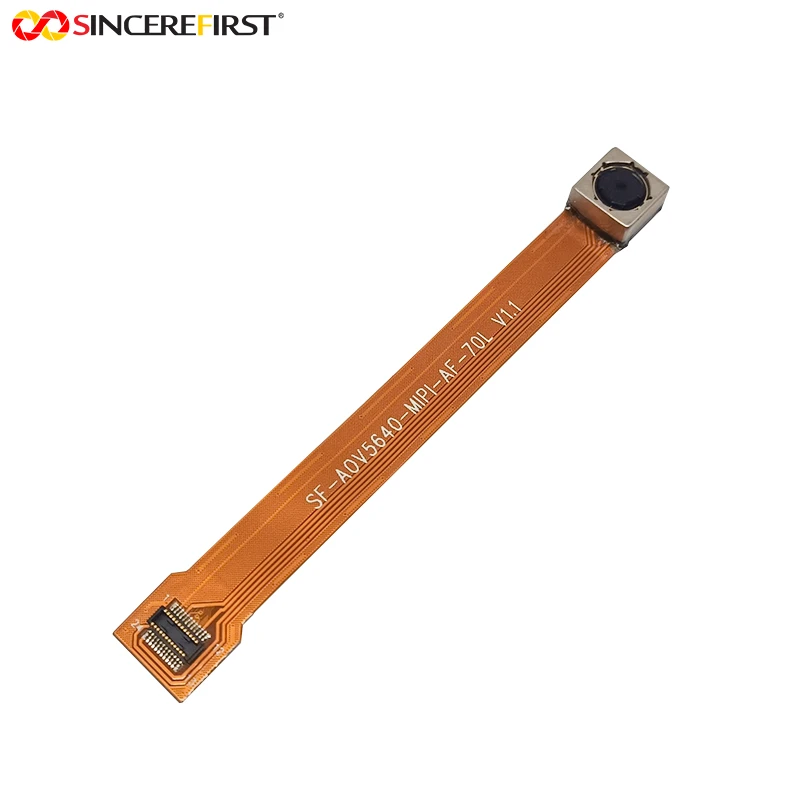

OV5640 5MP CMOS Autofocus MIPI Camera Module For Embedded Vision
Guangzhou Sincere Information Technology Ltd. is one of the most professional ov5640 5mp cmos autofocus mipi camera module for embedded vision manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.

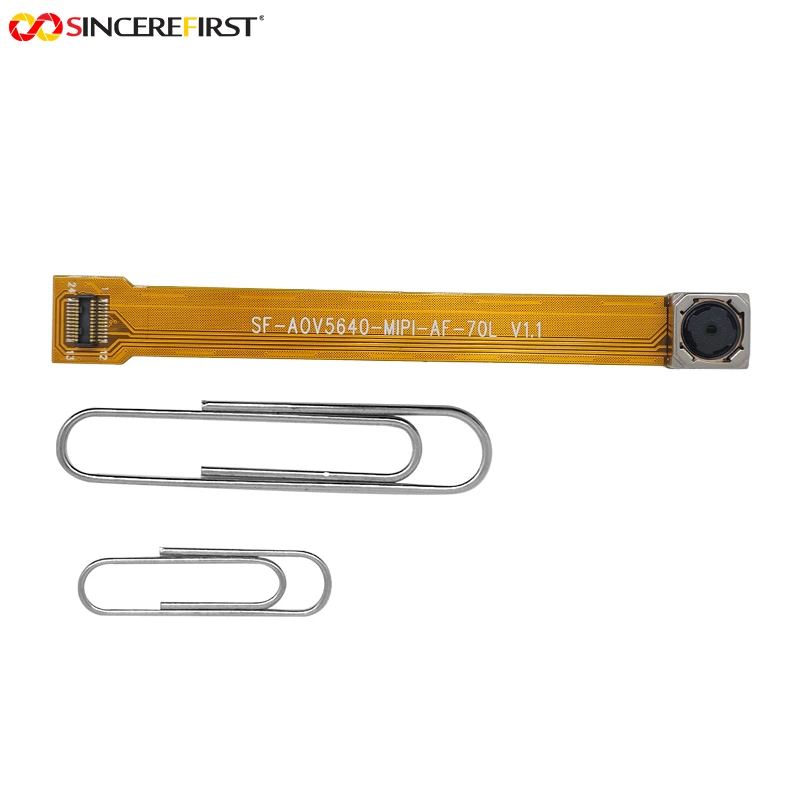

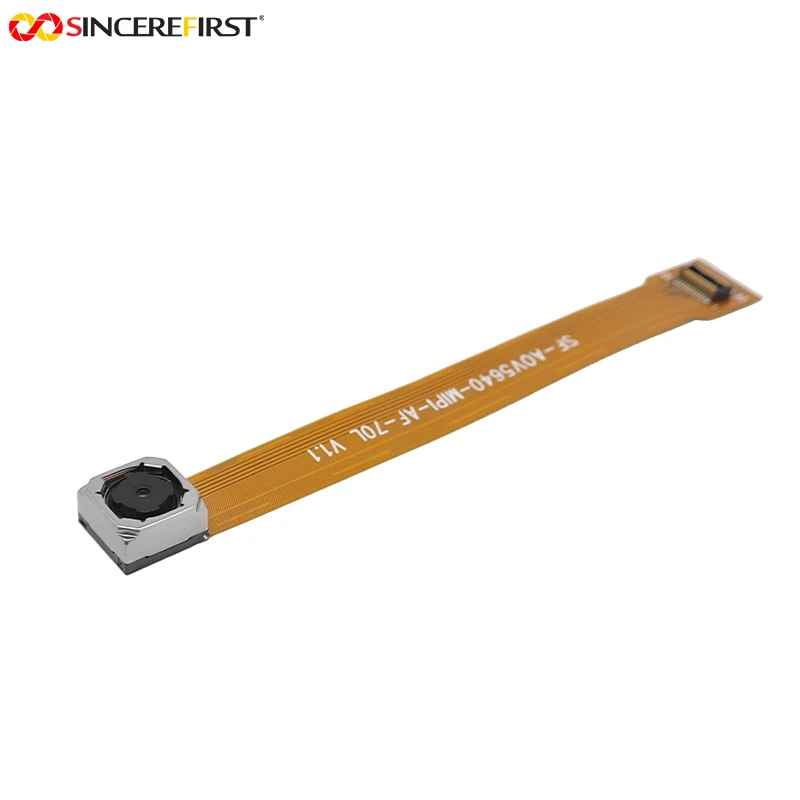

This 5MP VCM Auto Focus MIPI camera module uses the OmniVision OV5640 CMOS sensor to support 2592 × 1944 image capture. With YUV output and MIPI interface design, it is suitable for embedded host platforms that require compact camera integration, host-side image processing and stable visual input.
The module combines VCM Auto Focus, D67° lens angle, TV distortion below -1% and a 24-pin BTB connector. This makes it suitable for smart terminals, compact recognition equipment and OEM imaging products where focus control, connector layout and optical performance need to be evaluated together.
Features
• VCM Auto Focus for Variable Working Distance
The VCM Auto Focus structure helps the camera adjust focus when object distance changes, making it suitable for compact imaging products that cannot rely on a fixed working distance.
• OV5640 5MP Sensor for Detailed Image Capture
The OV5640 sensor supports 2592 × 1944 resolution, helping embedded products capture more image detail than basic VGA or 2MP camera modules.
• MIPI Interface for Embedded Host Integration
The MIPI interface supports direct integration with embedded platforms that process image signals on the host side.
• YUV Output for Image Processing Workflows
YUV output can simplify preview, image processing and host-side evaluation on supported embedded systems.

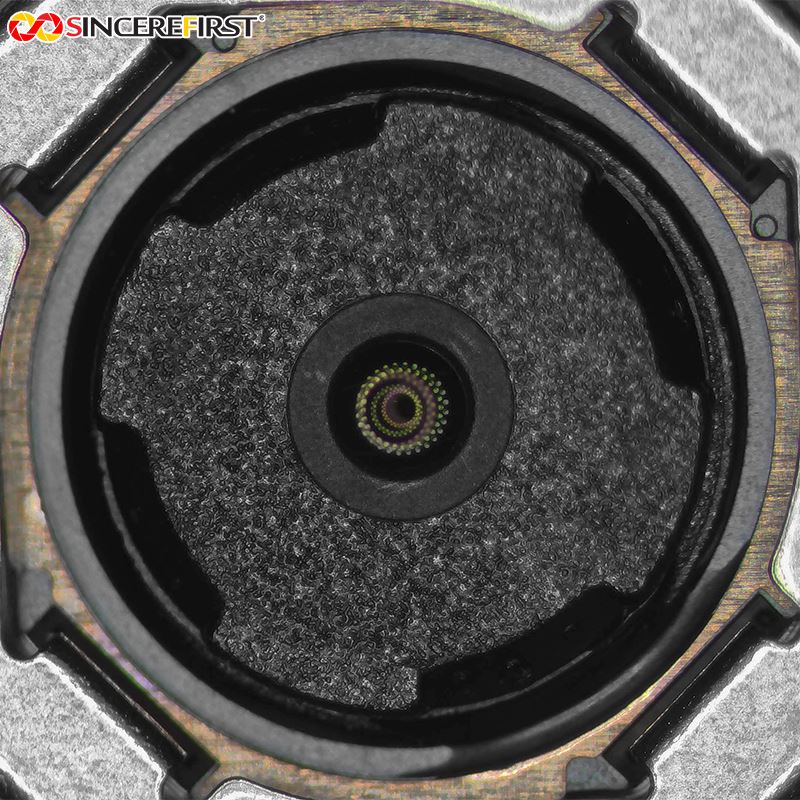

• D67° Lens Angle with Low Distortion
The D67° lens angle provides practical scene coverage, while TV distortion below -1% supports applications that need controlled image geometry.

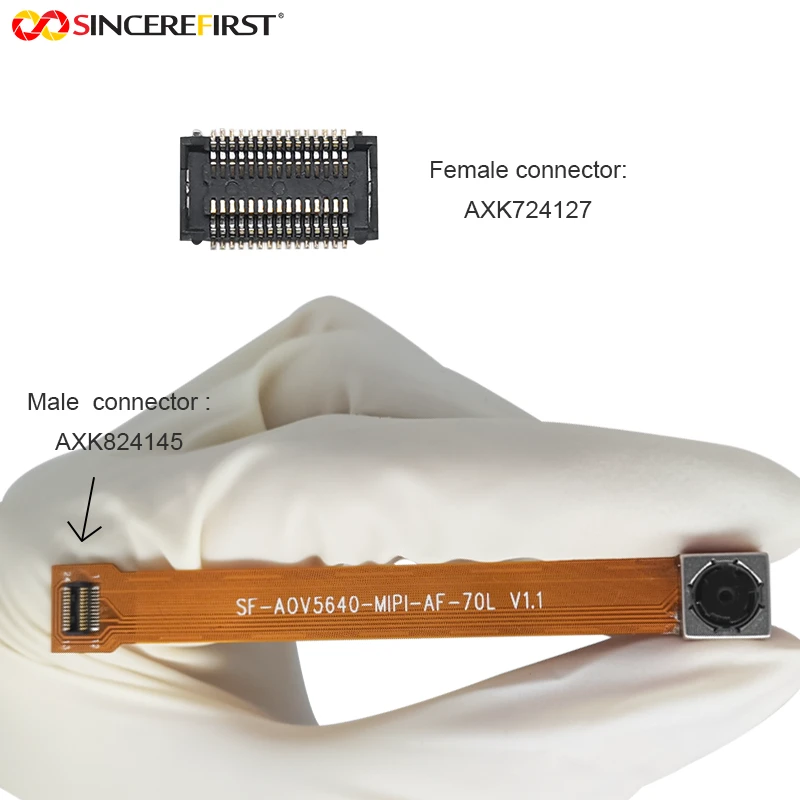

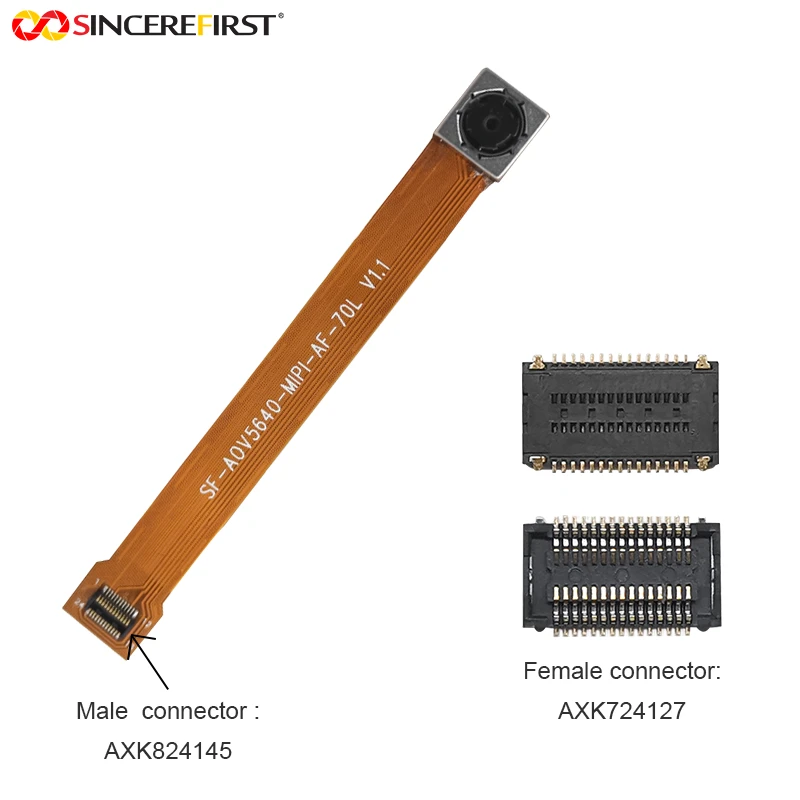

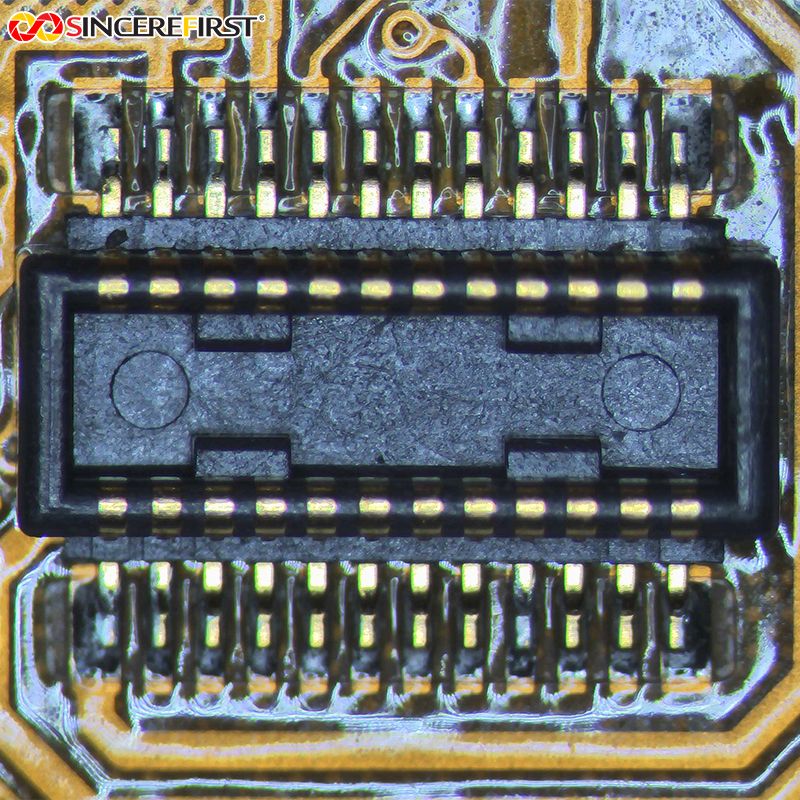

• 24-pin BTB Connector for Compact Assembly
The 24-pin BTB connector supports compact board-level integration where connector position and internal space are important.
Application of MIPI Camera Module
• Smart Embedded Imaging Products
Suitable for compact imaging products such as smart terminals, handheld scanners or small visual capture tools that require 5MP image detail and Auto Focus capability.
• Host-Side MIPI Vision Platforms
The MIPI interface and YUV output can support embedded development boards, prototype vision platforms and host-side image processing systems.
• Compact Recognition Terminals
The 5MP sensor and VCM Auto Focus lens can support recognition terminals, label capture tools or access-control imaging structures with changing object distance.
• OEM MIPI Camera Integration
Useful for OEM projects that need a compact MIPI camera module with 24-pin BTB connection, adjustable focus and custom FPC or connector evaluation.
Product Details
|
Product Name |
1080P Auto Focus MIPI Camera Module |
|
Sensor |
OmniVision OV5640 CMOS Sensor |
|
Pixel |
5MP |
|
Resolution |
2592x1944@30FPS |
|
Sensor Size |
1/4 Inch |
|
Output Format |
YUV |
|
EFL |
3.37mm |
|
Focusing Range |
10cm~Infinity |
|
F.NO |
2.8 |
|
FOV |
D67° |
|
Focus Type |
VCM Autofocus |
|
TV Distortion |
＜1% |
|
Interface |
24-pin BTB MIPI CSI |
Customization Options
Lens and FOV Evaluation
Lens angle, working distance and autofocus performance can be evaluated according to the target device structure and image capture requirements.

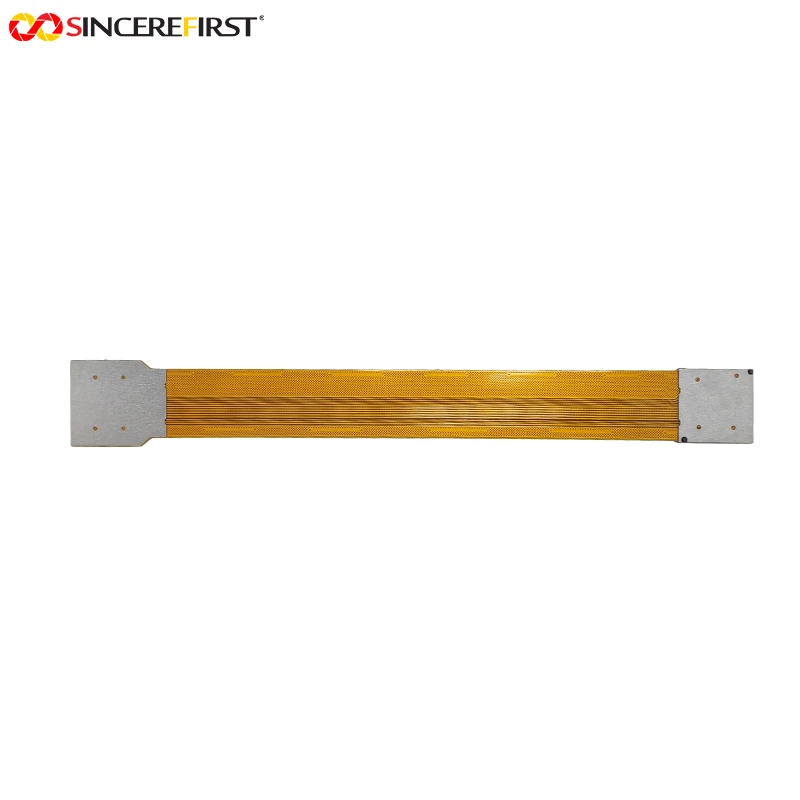

FPC and Connector Customization
FPC shape, FPC length and BTB connector direction can be adjusted according to the available internal space of the customer's product.
MIPI Interface Evaluation
MIPI lane configuration, pin definition and host-side driver requirements can be reviewed before sample testing.
Image Tuning Support
Image brightness, color, sharpness and focus behavior can be evaluated during platform integration and sample validation.
FAQ
Q: What sensor does this camera module use?
A: It uses the OmniVision OV5640 CMOS sensor with 5MP resolution.
Q: Does this module support autofocus?
A: Yes. It supports VCM autofocus for applications where the object distance may change.
Q: What interface does this module use?
A: It uses a MIPI interface with a 24-pin BTB connector.
Q: What output format does it support?
A: The module supports YUV output.
Q: What is the lens field of view?
A: The lens field of view is D79.8°.
Q: Can the FPC or connector be customized?
A: Yes. FPC shape, length, connector direction and pin definition can be evaluated according to project requirements.
Q: What information should I provide before requesting samples?
A: Please provide your host platform, MIPI configuration, FOV requirement, working distance, connector requirement, FPC layout and expected application.
Need a 5MP autofocus MIPI camera module for your embedded vision product?
Send SincereFirst your host platform, MIPI requirement, FOV target, working distance, connector type and FPC layout. Our team can help evaluate whether this OV5640 autofocus module fits your OEM device.
