Camera Module OV2640 2mp

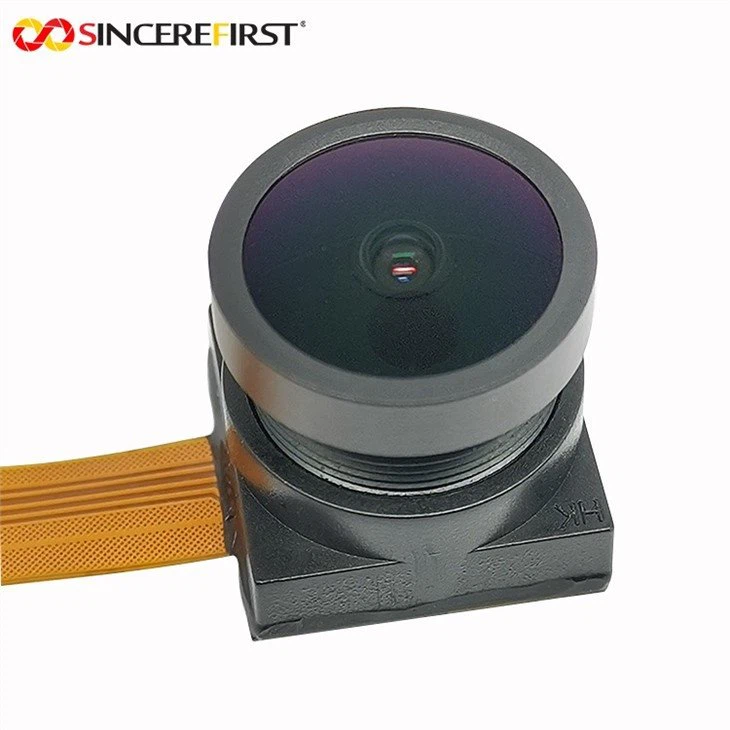

The Camera Module OV2640 2mp combines a 115° horizontal lens with a long FPC and 24-pin DVP connection. It suits ESP32 camera designs that need broad horizontal framing and flexibility in locating the camera head within the enclosure.
Send Inquiry
Product Introduction

Guangzhou Sincere Information Technology Ltd. is one of the most professional camera module ov2640 2mp manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.



Camera Module OV2640 2mp

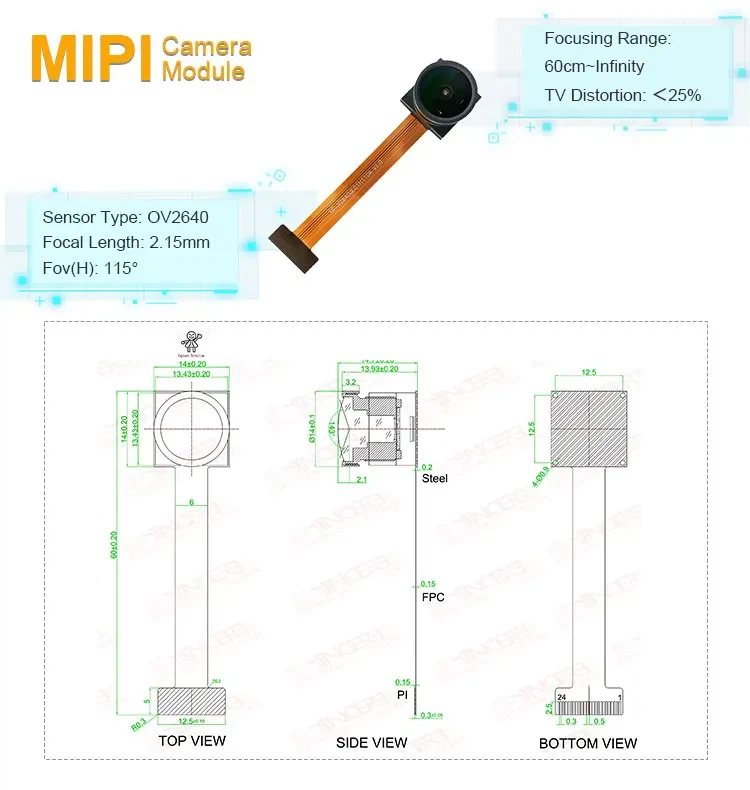

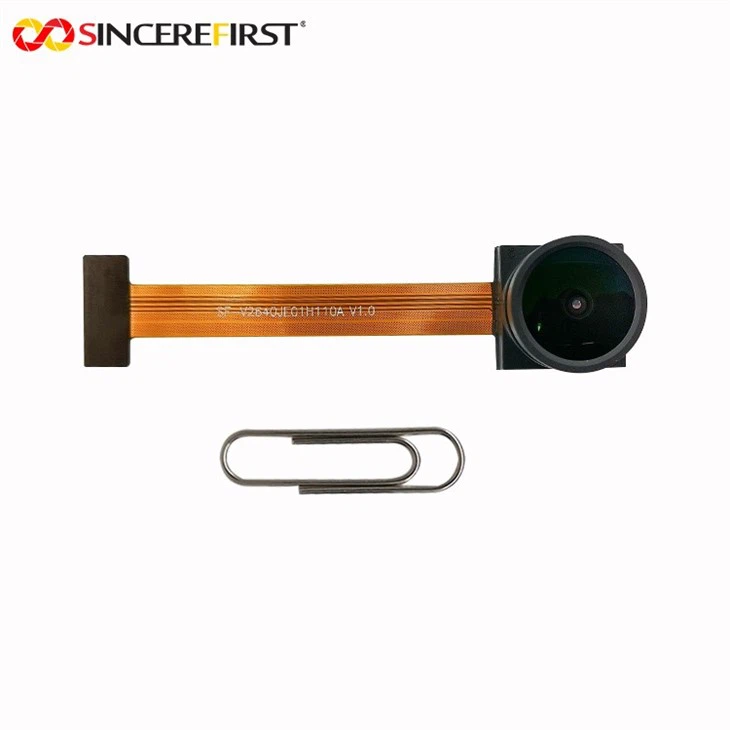

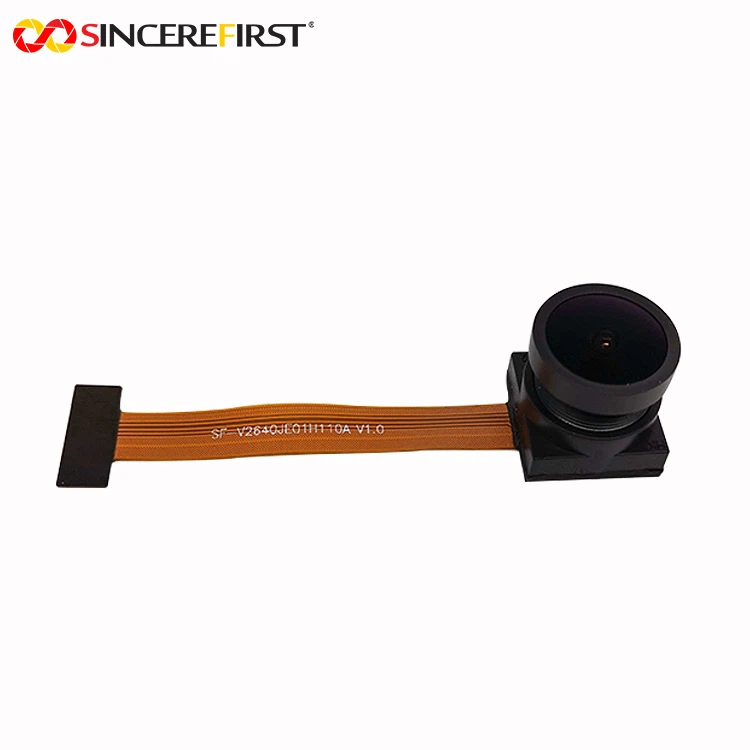

The Camera Module OV2640 2mp is a long-FPC camera configuration with 1600 × 1200 YUV output and a 115° horizontal field of view. It combines broad framing with a camera head that can be positioned separately from the main-board connection.







The FPC arrangement matters when the desired lens opening does not sit directly beside the host connector. It allows the optical position and main-board position to be considered together without requiring both to occupy the same small mounting area.

Camera Module OV2640 2mp

Product Details:

Product Name Camera Module OV2640 2mp

Sensor

OmniVision OV2640 CMOS Sensor

Pixel

2MP

Most Effective Pixels

1600x1200

Output Format

YUV output

Focusing Range

60cm~Infinity

Focal Length

2.15mm

F.NO

2.4

FOV(H)

115°

Interface

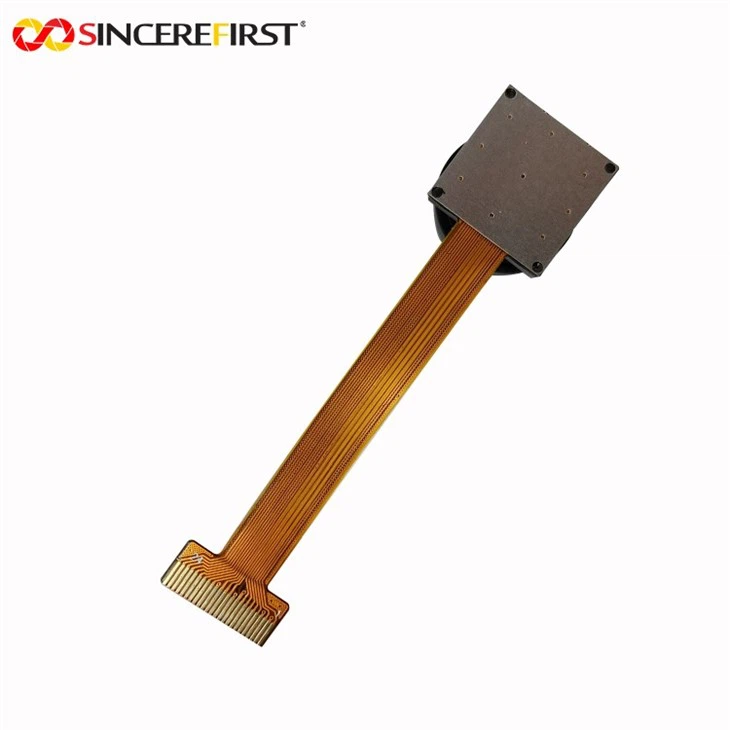

24-pin golden-finger DVP



At that chosen position, the 115° horizontal view includes a broad portion of the scene. This favors retaining surroundings around the main subject. A small target will occupy fewer pixels than it would in a tighter view at the same distance and output resolution.



The specified 60cm–Infinity range also distinguishes this configuration from close-focus OV2640 options. It supports selection around a subject area located farther from the lens.



For ESP32 integration, the module's 24-pin DVP assignment must match the selected host connection and camera configuration.
