OV5640 5MP ESP32 DVP Camera Module for Smart Security Imaging Recognition
Guangzhou Sincere Information Technology Ltd. is one of the most professional OV5640 5MP ESP32 DVP Camera Module for Smart Security Imaging Recognition manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.

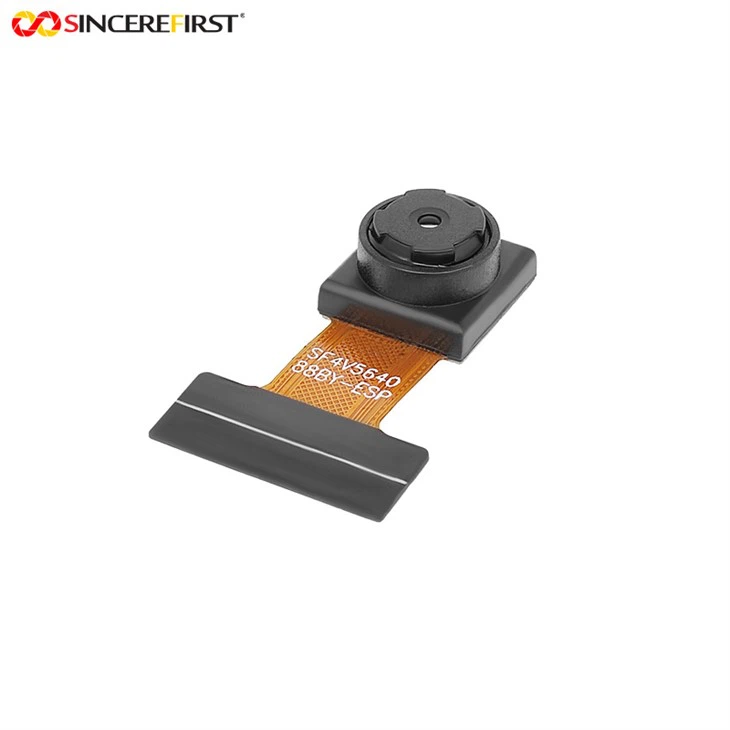

When an ESP32 project needs more image detail but does not require an ultra-wide lens or variable focusing, SF4V564088BY-ESP provides a balanced 5MP Fixed Focus option. Its standard D76.6° view keeps the scene more focused than the ultra-wide C2.0 model, while an optional wider lens gives additional coverage when the enclosure or application requires it.
The module uses an OV5640 CMOS sensor with 2592×1944 native resolution and supports 1080P@30FPS. The standard lens provides D76.6° × H67° × V56° coverage, a 3.0±5% mm focal length and 40 cm to Infinity depth of field through a 24Pin DVP interface for ESP32-compatible integration.
Features
• 5MP OV5640 Image Detail
The 2592×1944 sensor provides higher native resolution for smart-security, access and recognition devices that benefit from more image detail.

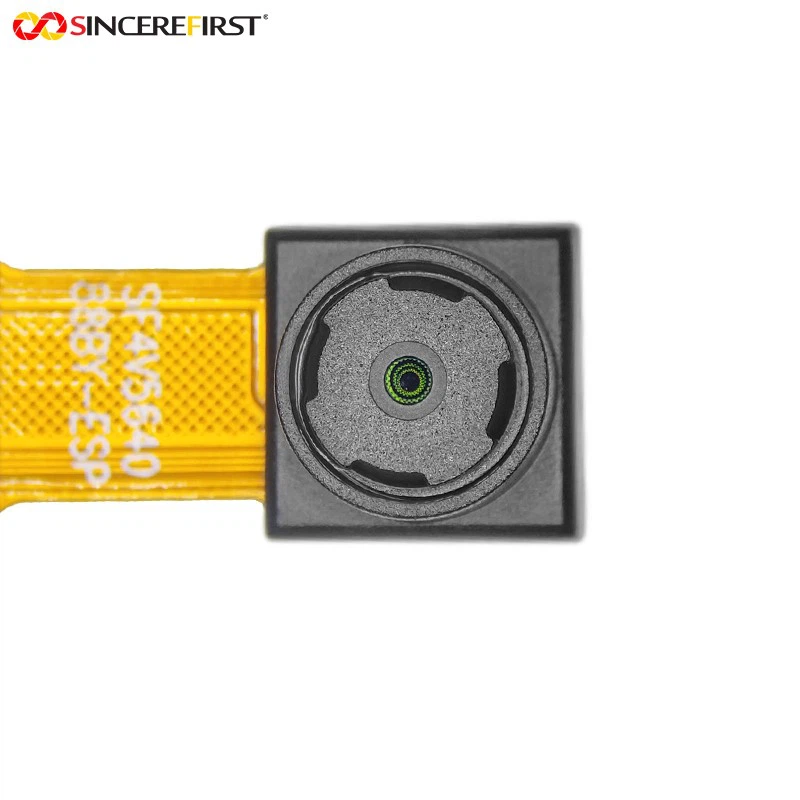

• Balanced D76.6° Standard View
The standard lens provides D76.6° × H67° × V56° coverage, offering a more focused scene than the ultra-wide OV5640 model.
• Optional Wider Lens Version
A D120° × V100° lens option can be selected when the project needs broader scene coverage.
• 40 cm to Infinity Depth of Field
The Fixed Focus lens supports general monitoring and recognition applications where subjects are positioned beyond close range.
• 1080P@30FPS Support
The module supports 1080P video at 30FPS.

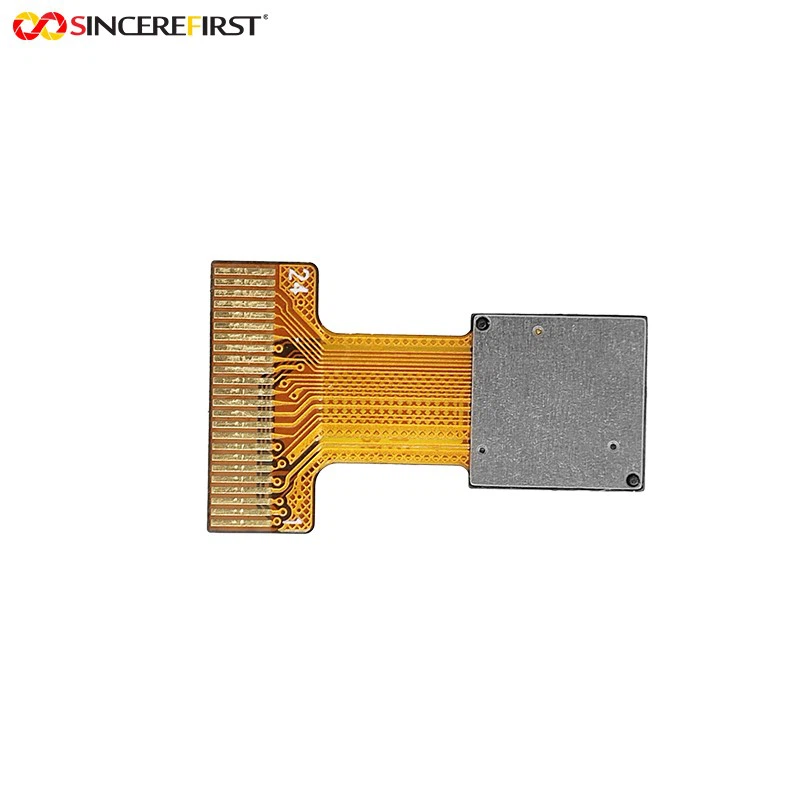

• 24Pin DVP for ESP32 Integration
The 24Pin DVP interface supports ESP32-compatible embedded camera designs.
Application of DVP Camera Module
• Smart Security Cameras
The 5MP sensor provides additional image detail for compact monitoring devices that use a standard rather than ultra-wide viewing angle.
• Smart Access Terminals
The D76.6° standard view and 5MP native resolution are suitable for access-control terminals that capture users within a defined area.
• IoT Recognition Devices
ESP32-based devices that perform visual recognition or image logging can use the 5MP sensor when more detail is required than the 2MP or 3MP options provide.
• Fixed Smart-Home Observation
The 40 cm-Infinity depth of field supports wall-mounted or fixed smart-home cameras that observe entrances, rooms or device surroundings.

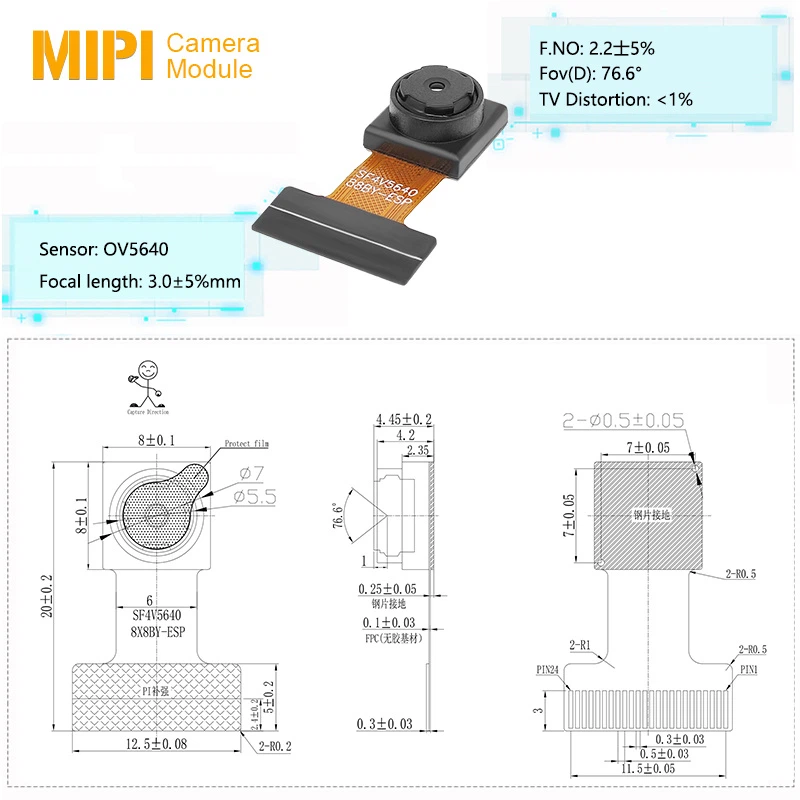

Product Details
|
Product Name |
5MP 30FPS ESP32 DVP Camera Module |
|
Sensor |
OmniVision OV5640 CMOS CMOS Sensor |
|
Pixel |
5MP |
|
Resolution |
2592x1944 |
|
Frame Rate |
1080P@30FPS |
|
Sensor Size |
1/4 Inch |
|
Focus Type |
Fixed Focus |
|
Focusing Range |
40 cm-Infinity |
|
EFL |
3.0mm ±5% |
|
F.NO |
2.2±5% |
|
FOV |
D76.6°*H67°*V56° |
|
TV Distortion |
＜1% |
|
Platform |
ESP32 Compatible |
|
Interface |
24-pin DVP |
Customization Options
Standard or Wider Lens Selection
The standard D76.6° lens or the wider D120° × V100° version can be selected according to the required observation area.
Working-Distance Evaluation
The Fixed Focus setup can be evaluated around the final installation and subject distance.
FPC and Mechanical Integration
FPC direction, connector arrangement and module position can be reviewed against the ESP32 host and enclosure.
Image-Detail and Host Planning
The 5MP native resolution should be considered together with host memory, processing and image-transfer requirements during integration.
FAQ
Q: When should I choose this OV5640 model instead of the ultra-wide C2.0 version?
A: Choose this model when you want 5MP detail with a more conventional D76.6° viewing angle. Choose the C2.0 model when maximum scene coverage is the priority.
Q: What is the native resolution?
A: The OV5640 sensor provides 2592×1944 resolution, or 5MP.
Q: What field of view does the standard lens provide?
A: The standard lens provides D76.6° × H67° × V56°.
Q: Is a wider lens available?
A: Yes. A D120° × V100° lens version is available for broader scene coverage.
Q: What is the depth of field?
A: The specified depth of field is 40 cm to Infinity.
Q: Does it support 1080P@30FPS?
A: Yes. The module supports 1080P@30FPS.
Q: Does it use Auto Focus?
A: No. This model uses a Fixed Focus lens. For VCM Auto Focus, select SF4V564085AFBY-ESP.
Choose the Right 5MP View for Your ESP32 Device
Looking for 5MP image detail but still deciding how much of the scene your camera needs to capture? SincereFirst can help you compare the standard D76.6° configuration with wider lens options. Talk with us about the right optical setup or request a sample for your project.
