Guangzhou Sincere Information Technology Ltd. is one of the most professional 8MP Sony IMX219 Sensor M12 Telephoto Lens Camera Module For Raspberry Pi manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.

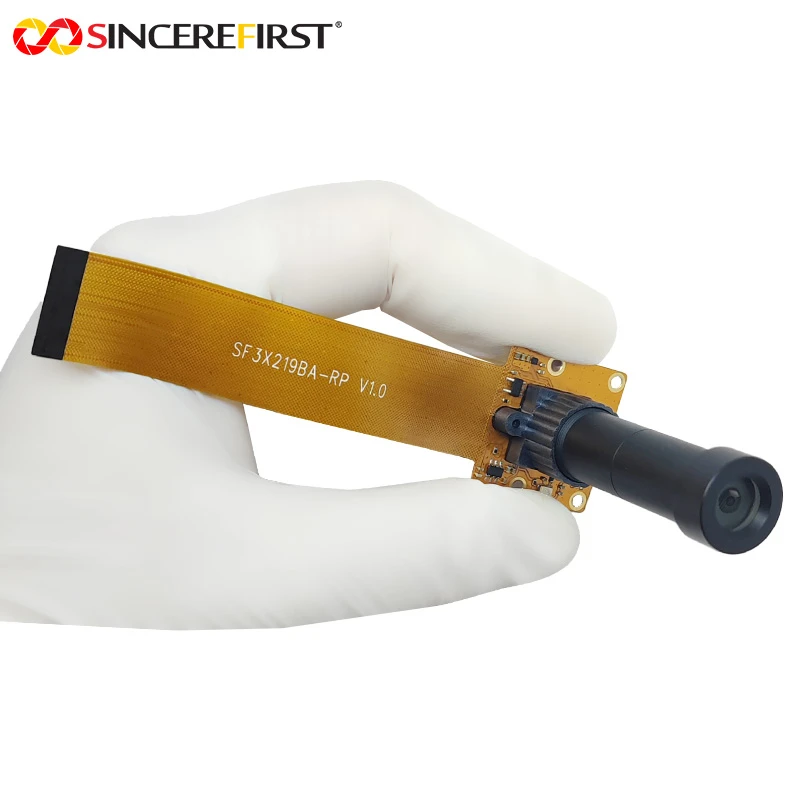

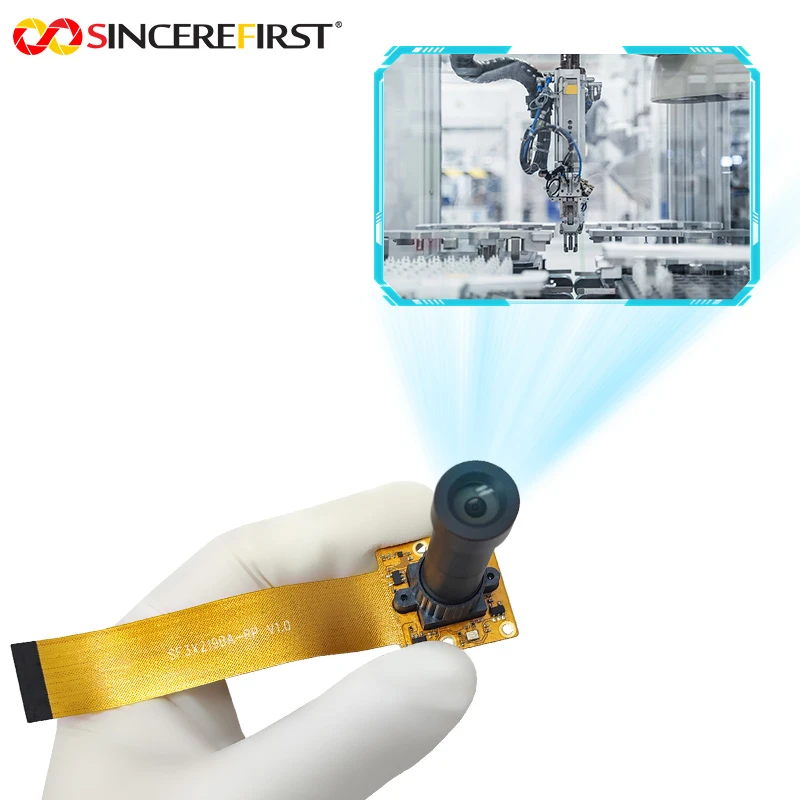

This model is an 8MP Raspberry Pi MIPI camera module designed for projects that need narrow field-of-view imaging and longer-distance observation. Built around the Sony IMX219 CMOS sensor, it supports 3296x2480 resolution, 10-bit RAW output and an M12 Fixed Focus Telephoto Lens with EFL46mm and D5.65° × H4.52° × V3.39° viewing angle. This version is suitable for distant target observation, optical inspection, fixed-position monitoring and embedded Raspberry Pi vision systems that need a telephoto lens instead of a standard wide-angle AF configuration.
Features:
• Sony IMX219 8MP CMOS Sensor
Uses the IMX219 platform commonly used in Raspberry Pi camera development for 8MP image capture.
• Fixed Focus Telephoto Lens
The M12 telephoto lens supports narrow-FOV observation for longer-distance or fixed-target applications.
• Extremely Narrow D5.65° FOV
Provides focused scene coverage where distant targets matter more than wide surrounding context.
• 10-Bit RAW Output
Supports RAW image output for embedded imaging projects that need more flexible image processing.
• MIPI Interface for Raspberry Pi Projects
Designed for Raspberry Pi MIPI camera integration in compact embedded vision systems.
• AF Version Available as Alternative
The AF version can be selected when wider FOV and variable-distance focusing are required.
Application of MIPI Camera Module
• Long-Distance Visual Observation
Suitable for projects that need narrow-FOV capture of distant or fixed-position targets.
• Raspberry Pi Telephoto Vision Projects
A practical option for Raspberry Pi systems requiring telephoto imaging rather than standard wide-angle capture.
• Optical Inspection and Target Monitoring
Can be evaluated for inspection tasks where the target is small or located farther from the camera.
• Fixed-Position Embedded Imaging
Works for devices with stable installation distance and narrow observation area requirements.
Product Details:
|
Product Name |
4K UHD M12 Lens Raspberry Pi MIPI Camera Module |
|
Sensor |
Sony IMX219 CMOS Sensor |
|
Pixel |
8MP |
|
Resolution |
3296x2480 |
|
Sensor Size |
1/4 Inch |
|
Output Format |
10-bit RAW |
|
EFL |
46mm |
|
Focus Range |
50cm ~ Infinity |
|
F.NO |
7.6 |
|
FOV |
D5.65°*H4.52°*H3.39° |
|
Focus Type |
Fixed Focus |
|
TV Distortion |
＜-1% |
|
Lens Type |
M12 Fixed Focus Telephoto Lens |
|
Interface |
MIPI CSI |
Customization Options
Telephoto Viewing Distance Matching
The telephoto lens configuration can be matched to target distance, object size and required observation area.
AF or Telephoto Version Selection
Customers can choose the AF version for wider FOV and variable focus, or the telephoto version for narrow-FOV capture.
MIPI FPC Integration Fit
FPC routing and connector placement can be evaluated according to the customer's Raspberry Pi device structure.
Host Platform Compatibility Evaluation
Raspberry Pi host-side behavior can be checked according to the target board, software environment and image workflow.
Mechanical Support for M12 Lens
Lens mounting, module placement and housing clearance can be assessed for the longer telephoto lens structure.
FAQ
Q: What is this IMX219 telephoto version designed for?
A: It is designed for Raspberry Pi MIPI projects that need narrow-FOV, longer-distance image capture.
Q: Does this version use autofocus?
A: No. This version uses a Fixed Focus Telephoto Lens.
Q: What is the lens angle?
A: The lens angle is D5.65° × H4.52° × V3.39°.
Q: What is the focal length of the telephoto lens?
A: The EFL is 46mm.
Q: Is there an AF version of this IMX219 module?
A: Yes. The AF version can be selected for wider FOV and variable-distance applications.
Q: Does it support RAW output?
A: Yes. It supports 10-bit RAW output.
Q: Is it suitable for wide-angle monitoring?
A: No. This version is better for narrow-FOV telephoto observation, not broad scene coverage.
Q: What should I provide before evaluation?
A: Please provide target distance, object size, required FOV, Raspberry Pi platform, housing space and mounting method.
