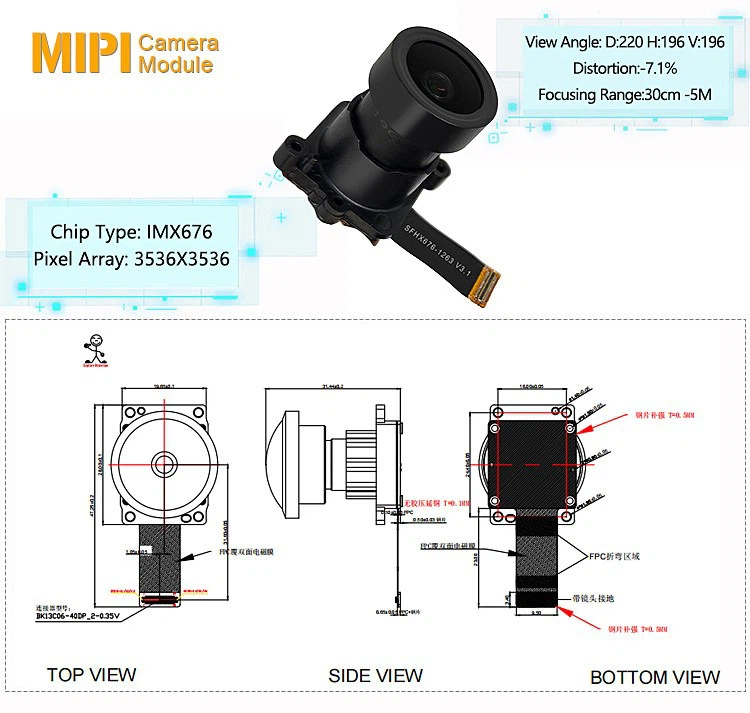

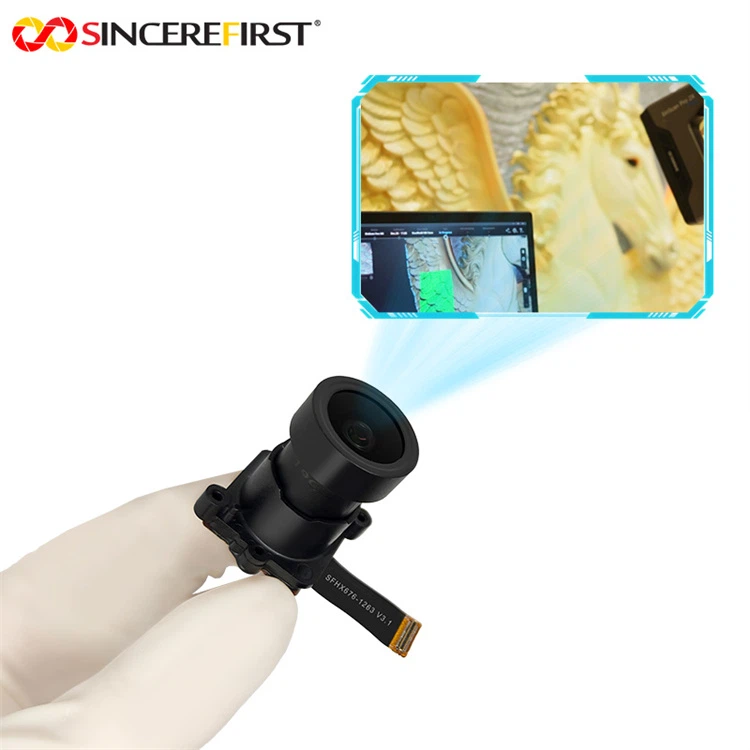

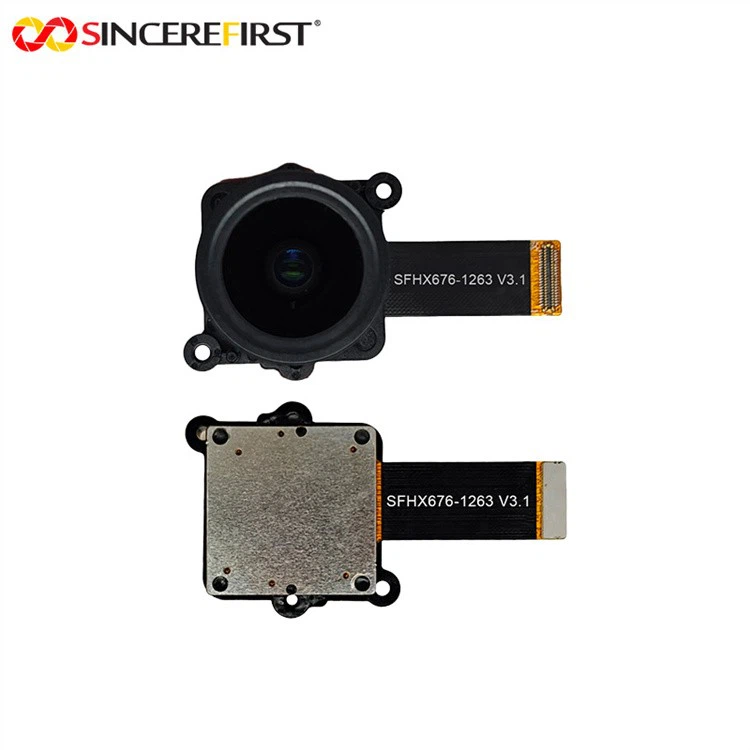

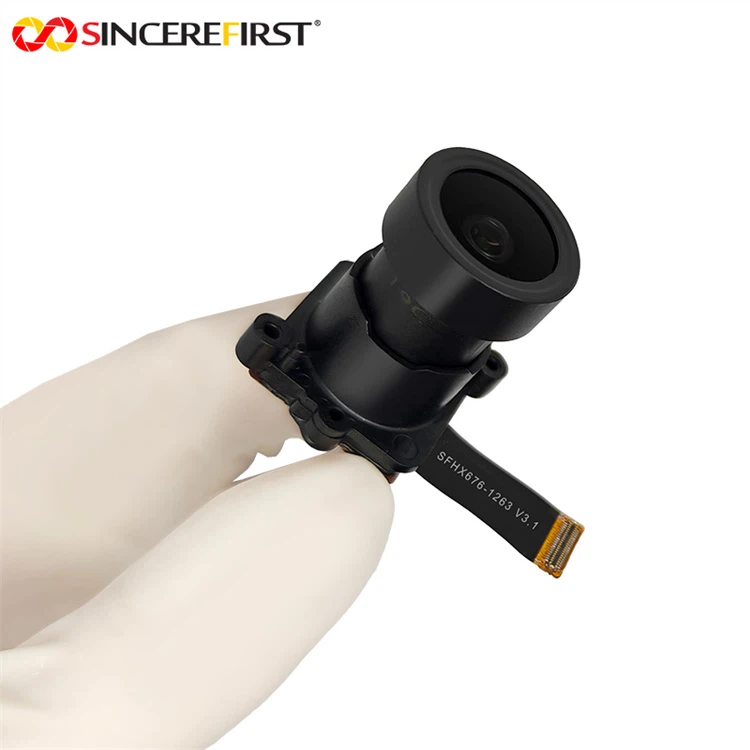

Sony IMX676 Industrial CMOS Camera Module

Guangzhou Sincere Information Technology Ltd. is one of the most professional sony imx676 industrial cmos camera module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.



Introduction:

The IMX676-AACR1-C is a diagonal 10.04 mm (Type 1/1.6) CMOS active pixel type solid-state image sensor with a square pixel array and 12.63 M effective pixels. This chip operates with analog 3.3V, digital 1.1V, and interface 1.8V triple power supply, and has low power consumption. High sensitivity, low dark current and no smear are achieved

through the adoption of R, G and B primary color mosaic filters. This chip features an electronic shutter with variable charge-integration time.

If you want to inquire about the industrial CMOS camera sensor price, please contact us.



•CMOS active pixel type dots

•Built-in timing adjustment circuit,H/V driver and serial communication circuit

•Input frequency:24 MHz/ 27 MHz / 37.125 MHz/ 72 MHz/ 74.25 MHz

•Number of recommended recording pixels:3536 (H) x 3536(V) approx.12.50M pixel

•Readout mode

All-pixel scan mode

Horizontal / Vertical2/2-line binning mode

Window cropping mode

Horizontal / Vertical direction - Normal / Inverted readout mode

•Readout rate

Maximum frame rate in

All-pixel scan mode: 12 bit: 30 frame/s,10 bit:60 frame/s

•Dual Speed Streaming(DSS) function

•High dynamic range(HDR) function

Digital overlap HDR

Clear HDR

•Synchronizing sensor's function

•Variable-speed shutter function (resolution 2H unit)

•Conversion gain switching (HCG Mode / LCG Mode)

•CDS /PGA function

0 dB to 30 dB: Analog Gain 30 dB (step pitch 0.3 dB)

30.3 dB to 72 dB: Analog Gain 30 dB + Digital Gain 0.3 dB to 42 dB (step pitch 0.3 dB)

•Supports I/O

CSI-2 serial data output (2-Lane /4-Lane /8-Lane /4-Lane x 2ch)

RAW10/ RAW12 output

•AR coating on cover glass(Both sides)

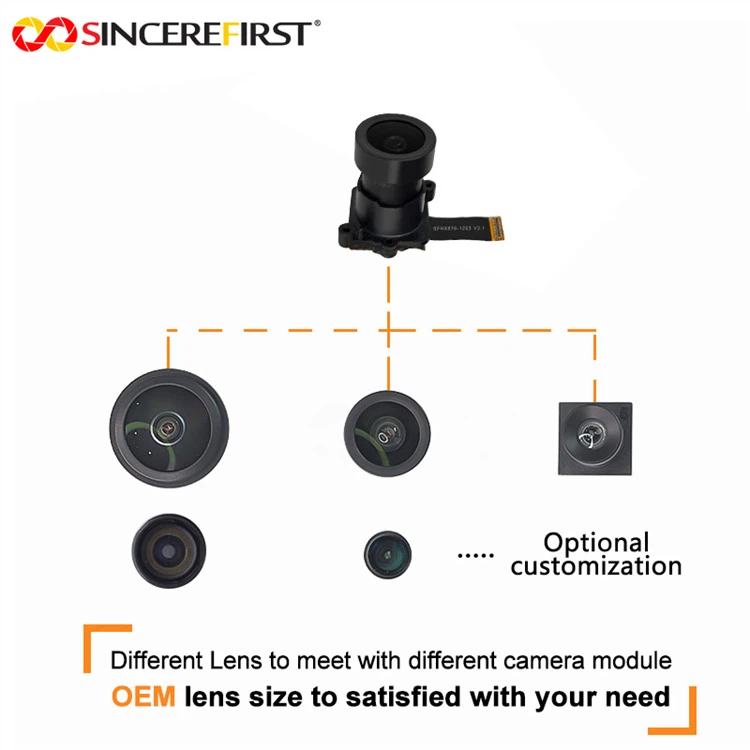

SINCEREFIRST camera module manufacturing enterprise integrates design, development, manufacturing and sales. We can supply ready made 0.3mp to 108mp FPC & USB camera module and diameter 0.9mm~8.0mm endoscope camera module. Our products are widely used in various fields, such as AIoT equipment, smart home, smart medical, intelligent transportation, automatic driving, intelligent security, Intelligent warehousing, scanning, robot, UAV, medical endoscope, industrial endoscope, computer, intelligent terminals etc.

If you are looking for camera module or camera sensor manufacturers and suppliers, please feel free to contact us for camera module price and more detailed introduction. SINCEREFIRST is a leading high-tech company specializing in integrated optical device manufacturers and optical imaging system solution providers. There are different types of camera modules and camera sensors for sale, and they also support customization to meet all your needs and solve your problems.
