Good Full Frame IMX577 12MP USB Camera Module

Guangzhou Sincere Information Technology Ltd. is one of the most professional good full frame imx577 12mp usb camera module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.



Introduction:

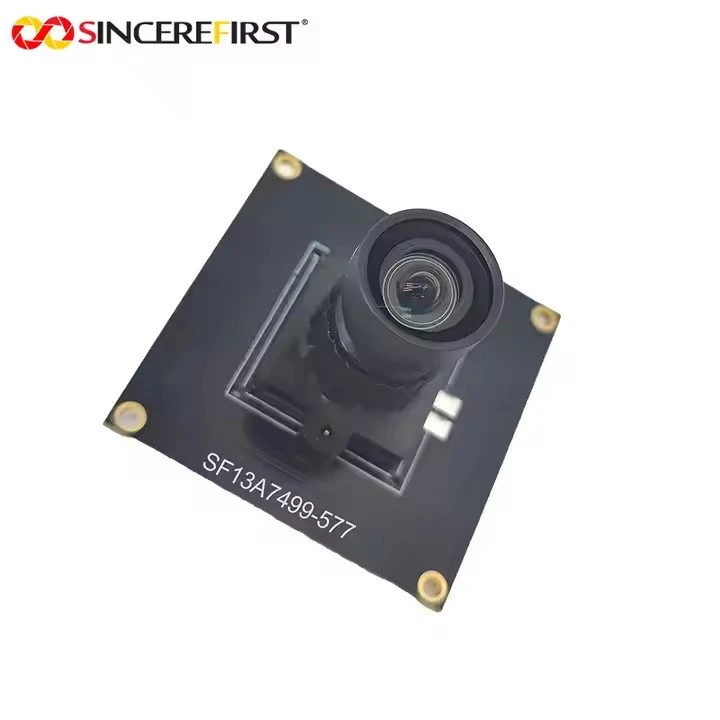

This is a 12MP good full frame Sony IMX577 chip camera Module. The camera module supported resolution is 3840*2160,Supports high speed USB3.0 interface, HDMI interface, RJ45interface with camera, Improved the efficiency of data backup and sharing. Equipment lens size 1/2.3'',Support Linux, Android, MAC-ios, Raspberry Pi, etc. UVC architecture ,compatible windows XP/7/8/10, This module except use for automated inspection, it also can using in Skin detector, image recognition, HD shooting, text recognition, etc.

If you want to consult more CMOS camera module, please contact us.



Features

• Back-illuminated and stacked CMOS image sensor Exmor RS
• Digital Overlap High Dynamic Range(DOL-HDR) mode with raw data output.
• High signal to noise ratio (SNR).
• Full resolution @60 frame/s(Normal),4K2K @60 frame/s(Normal), 1080p @240 frame/s

Full resolution @40 frame/s(12 bit Normal).

Full resolution @30 frame/s(DOL-HDR,2frame)

• Output video format of RAW12/10/8,COMP8.
• Power Save Mode with MIPI ULPS operation
• Pixel binning readout and V sub-sampling function.
• Independent flipping and mirroring.
• Input clock frequency 6 to 27 MHz
• CSI-2 serial data output (MIPI 2lane/4lane,Max.2.1 Gbps/lane,D-PHY spec. ver. 1.2 compliant)
• 2-wire serial communication.
• Two PLLs for independent clock generation for pixel control and data output interface.
• Ambient Light Sensor (ALS)
• Fast mode transition.(on the fly)
• Dual serisor synchronization operation (Multi camera compatible)
• 7 K bit of OTP ROM for users.
• Built-in femperature sensor
• 10-bit/12-bit A/D conversion on chip
• Horizontal Low Power analog Cropping
• Window Scanning mode
• 92-pin high-precision ceramic package

SINCEREFIRST camera module manufacturing enterprise integrates design, development, manufacturing and sales. We can supply ready made 0.3mp to 108mp FPC & USB camera module and diameter 0.9mm~8.0mm endoscope camera module. Our products are widely used in various fields, such as AIoT equipment, smart home, smart medical, intelligent transportation, automatic driving, intelligent security, Intelligent warehousing, scanning, robot, UAV, medical endoscope, industrial endoscope, computer, intelligent terminals etc.

If you are looking for camera module or camera sensor manufacturers and suppliers, please feel free to contact us for camera module price and more detailed introduction. SINCEREFIRST is a leading high-tech company specializing in integrated optical device manufacturers and optical imaging system solution providers. There are different types of camera modules and camera sensors for sale, and they also support customization to meet all your needs and solve your problems.
