Guangzhou Sincere Information Technology Ltd. is one of the most professional 4K IMX415 AF 10X Optical Zoom Camera Module with Multi-Interface Output and Shell manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.
This multi-interface zoom camera module is designed for projects that need flexible image output, optical zoom control, and a complete With Shell structure. It supports HDMI, RJ45, USB3.0 Type-C, and DC 5V power input, making it suitable for systems that need display output, network interface evaluation, or USB image capture.
The module uses a Sony IMX415 8MP sensor and supports 4K@20FPS and 1080P@30FPS. With Motorized 10X Optical Zoom, Auto Focus, 10X Digital Zoom, H.264 / H.265 output, SDK support, and optional microphone customization, it is suitable for OEM imaging projects that need more than a standard USB camera module.
Features
• Sony IMX415 8MP Sensor with STARVIS and HDR
The IMX415 platform supports 8MP resolution, STARVIS technology, and HDR for high-resolution imaging projects.
• Motorized 10X Optical Zoom with Auto Focus
The motorized zoom lens and Auto Focus function help adjust viewing range and maintain image clarity during zoom operation.
• Multiple Output Interfaces
HDMI, RJ45, USB3.0 Type-C, and DC 5V power input provide flexible system integration for display, network, and USB capture projects.
• H.264 / H.265 Output Format Support
The module supports YUY2, MJPG, H.264, and H.265 output formats for different bandwidth, storage, and software processing requirements.
• SDK and Development Interface Support
SDK and development interfaces can support projects using DirectShow, Halcon, OpenCV, LabView, and C++ image acquisition code.
• With Shell Structure
The 100mm x 55mm x 55mm With Shell structure is suitable for projects that need a complete protected camera assembly.
Application of USB Camera Module
• Multi-Interface Imaging Systems
This module is suitable for systems that require HDMI display output, RJ45 network interface evaluation, and USB3.0 Type-C image capture.
• Display-Oriented Zoom Cameras
The HDMI interface and Motorized 10X Optical Zoom lens can support applications that require zoomed image display and local visual output.
• Network-Connected Vision Devices
The RJ45 interface can support device designs that need network-related image output or system integration evaluation.
• SDK-Based Imaging Projects
The SDK and development interface support can help engineering teams evaluate image acquisition through DirectShow, Halcon, OpenCV, LabView, and C++.
• OEM Zoom Camera Products
The With Shell structure can support OEM products that need a complete multi-interface zoom camera assembly.

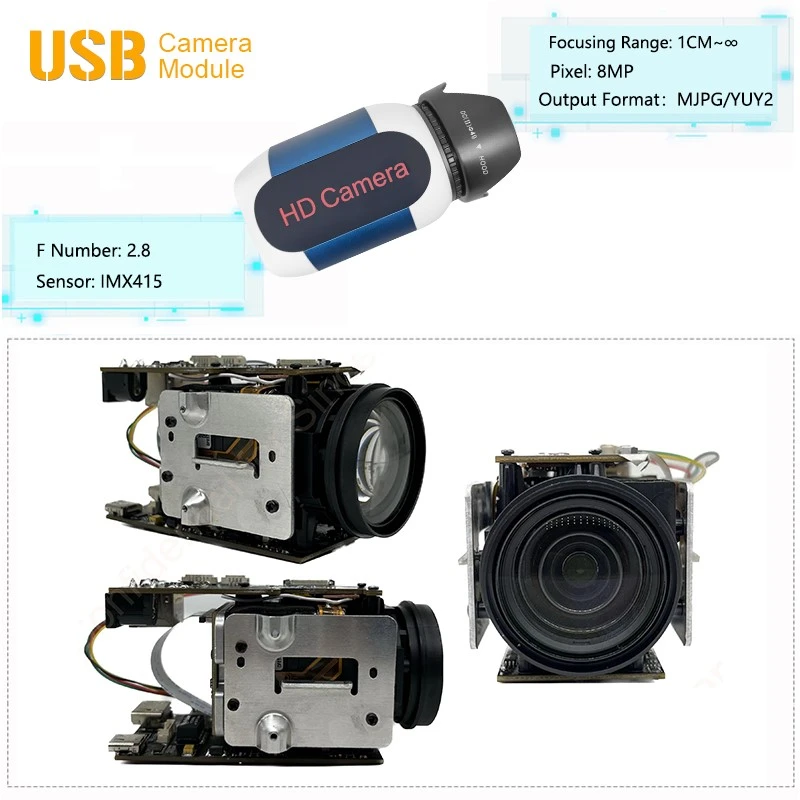

Product Details
|
Product Name |
4K HDMI USB RJ45 Optical Zoom Camera Module With Shell |
|
Image Sensor |
Sony IMX415 CMOS Sensor |
|
Pixel |
8MP, 3840x2160 |
|
Resolution |
4K@20FPS, 1080P@30FPS |
|
Sensor Size |
1/2.5 Inch |
|
Feature |
STARVIS, HDR |
|
FOV |
D75° |
|
Focus |
Auto Focus |
|
Output Formats |
YUY2 / MJPG / H.264 / H.265 |
|
Lens |
Motorized 10X Optical Zoom lens |
|
Digital Zoom |
10X Digital Zoom support |
|
Focusing Range |
1cm ~ Infinity |
|
Structure |
With Shell |
|
Module Size |
100mm x 55mm x 55mm |
|
Interface |
HDMI, RJ45, USB3.0 Type-C, DC 5V power interface |
Customization Options
Interface Path Evaluation
HDMI, RJ45, USB3.0 Type-C, and DC 5V power input can be evaluated according to system architecture and output path requirements.
Video Compression and Output Format
YUY2, MJPG, H.264, and H.265 output can be evaluated according to bandwidth, host software, and storage requirements.
Zoom and Focus Control
Motorized 10X Optical Zoom, Auto Focus, remote zoom, remote focus, and software zoom behavior can be checked during sample testing.
SDK and Software Integration
The development interface can be evaluated with DirectShow, Halcon, OpenCV, LabView, and C++ image acquisition workflows.
Microphone Customization
Integrated microphone customization can be discussed when the final device requires audio capture together with video output.
Shell Structure Evaluation
The 100mm x 55mm x 55mm With Shell structure should be checked against the final mounting position, connector direction, and system enclosure design.
FAQ
Q: Which interfaces does this model support?
A: This model supports HDMI, RJ45, USB3.0 Type-C, and DC 5V power input.
Q: Does this model support H.264 and H.265?
A: Yes. The output format options include YUY2, MJPG, H.264, and H.265.
Q: Does this model support SDK integration?
A: Yes. SDK support and development interfaces such as DirectShow, Halcon, OpenCV, LabView, and C++ image acquisition code can be evaluated.
Q: Does this model support microphone customization?
A: Yes. Integrated microphone customization can be evaluated according to the project requirements.
Q: What is the difference between With Shell and without Shell versions?
A: The With Shell version provides a complete protected structure, while the without Shell version keeps the same optical and electronic functions for device-level mechanical integration.
Need a 4K multi-interface zoom camera module with HDMI, RJ45, USB3.0 Type-C, and SDK support?
Send SincereFirst your interface requirement, video output format, zoom control method, Shell requirement, and software platform so our team can help evaluate the right configuration.
