Sony IMX274 4K USB2.0 Camera Module for AI Vision

Build a fixed imaging station around 3840 × 2160 MJPG video at 30fps. This Sony IMX274 8MP camera module combines Fixed Focus optics, USB2.0 UVC and a 38 × 38mm board for detailed views of documents, surfaces and object outlines.
Send Inquiry
Product Introduction

Guangzhou Sincere Information Technology Ltd. is one of the most professional Sony IMX274 4K USB2.0 Camera Module for AI Vision manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.





Introduction:

A fixed imaging station can use a continuous detailed view both to position the subject and to capture it. This SincereFirst camera module provides 4K MJPG at 30fps, allowing the host to display the image while an operator arranges a document or places an object within the capture area.



The Sony IMX274 CMOS sensor has a 1/2.5-inch optical format and 1.62μm pixels. Fixed Focus optics support a defined camera position, with lens parameters selected around the working distance and observed area. USB2.0 UVC delivers MJPG or YUY2: 4K MJPG runs at 30fps, while 4K YUY2 runs at 1fps. That distinction gives designers a clear basis for choosing continuous preview or a lower-rate uncompressed image workflow.

Features


SF8A583



• Continuously Updating 4K View

3840 × 2160 MJPG at 30fps provides a detailed live image for subject positioning, observation and capture.



• Fixed Focus for Repeatable Placement

A stable camera-to-subject arrangement allows the focus setting and lens coverage to be selected around the equipment's normal capture plane.



• Optical Coverage for the Complete Subject

Lens selection can accommodate a document surface or an elongated outline while keeping relevant edges inside the frame.



• Defined USB Output Choices

MJPG and YUY2 serve different update and processing priorities, with the rate selected together with the format.



• OEM Board Integration

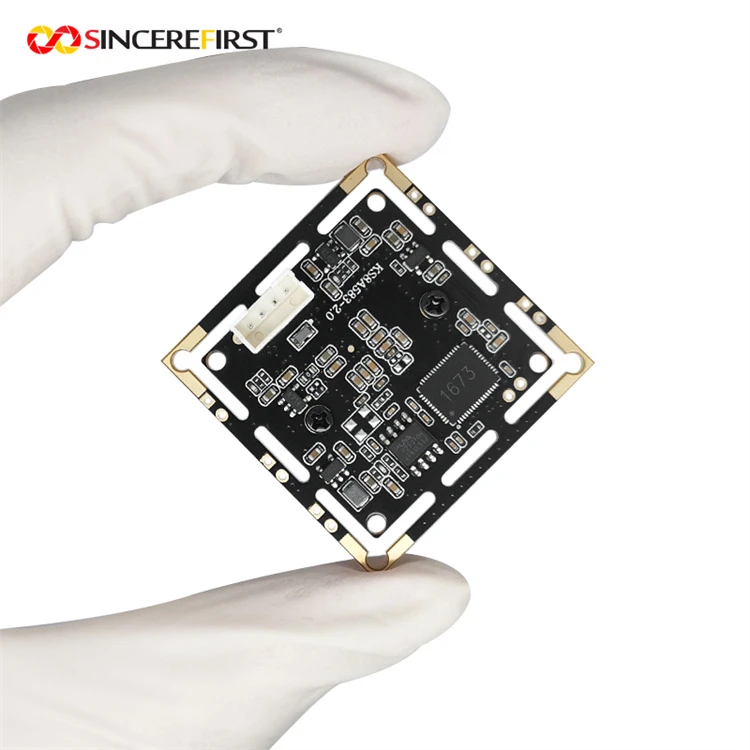

The 38 × 38mm board provides a camera module platform for custom equipment built around a compatible USB host.



Application of USB Camera Module



• Plantar-Foot Outline Imaging

Capture the visible underside or outline through an appropriately designed imaging arrangement. The lens must match the foot area and installation geometry; measurement and clinical interpretation belong to the complete system.



• Document Capture Stations

Provide a detailed live view of a document for positioning and capture. The camera supplies the image, while the host handles document detection, correction, storage or OCR as required by the application.



• Food-Portion Appearance Capture

Record food presented on a defined surface for visual review or host analysis. A fixed camera position and continuous 4K view support subject placement, with the lens selected to retain the detail needed within the portion area.

SF8A583
SF8A583
SF8A583
SF8A583
SF8A583
SF8A583
SF8A583



Product Details:




Product Name

IMX274 4K Fixed Focus USB Camera Module

Image Sensor

Sony IMX274 CMOS Sensor

Pixel

8MP

Resolution

3840x2160@30FPS

Sensor Size

1/2.5 Inch

Output Formats

MJPG / YUY2

Focus Type

Fixed Focus

Object Distance

1cm ~ Infinity

Interface

USB2.0

Module Size

38x38mm



Customization Options





Lens Coverage and Focus

Match the lens and focus setting to the observed surface, object length and working distance.



Filter Arrangement

Select filtering for the complete equipment's illumination.



Mechanical Layout

Review board layout, connector, cable length and mounting or Shell structure.



Host Acquisition

Applicable firmware, driver and USB-related SDK support can help integrate image capture.



Manufacturing and Supply

Coordinate the selected optical configuration with production, supply and applicable certification services.



product-1267-713









FAQ





Q: What if an elongated object fits diagonally but its edges look different near the frame boundary?

A: Framing alone does not establish geometric suitability. Perspective and lens distortion can influence edge positions. An outline-imaging system should evaluate its lens and any calibration across the complete capture area.

Q: Can the same image serve an operator preview and the stored capture?

A: Yes, a host application can use received frames for both purposes. It still needs to control when it stores a frame, how it encodes or retains it, and whether the subject is correctly positioned at that moment.



Configure 4K Capture Around a Defined Imaging Plane





SincereFirst provides camera module design and manufacturing for OEM imaging equipment. Define the surface area, installation geometry and intended use of the captured image to select optics and a USB capture configuration for your station.
