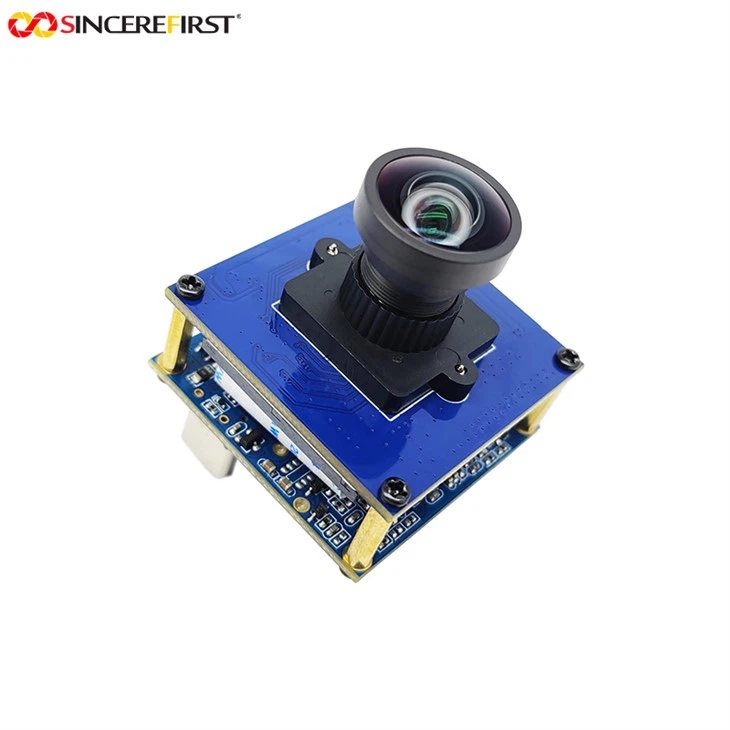

8MP IMX678 CMOS Sensor USB2.0 Type-C And HDMI Interface Camera Module
Guangzhou Sincere Information Technology Ltd. is one of the most professional 8mp imx678 cmos sensor usb2.0 type-c and hdmi interface camera module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.

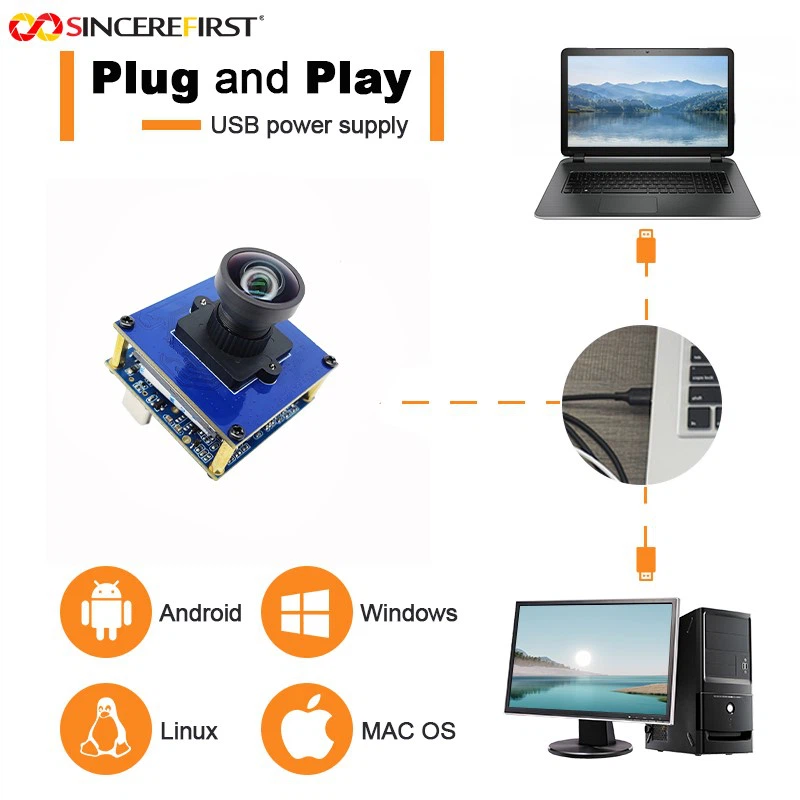

This 8MP IMX678 CMOS Sensor USB2.0 Type-C and HDMI Interface Camera Module, is a standardized high-performance imaging component tailored for high-precision imaging, industrial inspection and high-definition acquisition scenarios, built around the Sony IMX678 large-format sensor to deliver exceptional imaging quality. Its 1/1.8-inch large sensor with 2.0μm×2.0μm pixel size and 8-megapixel resolution supports up to 3840×2160 (4K) ultra-clear output, capturing complete and delicate image details to meet high-precision visual demands; the dual-interface architecture of USB3.0 Type-C and HDMI enables simultaneous high-speed data transmission and real-time display, while UVC driver-free compatibility across Windows, Linux, Android, MAC, Raspberry Pi and domestic systems greatly reduces cross-platform deployment difficulty. Supporting MJPG, YUY2 and H.264 three output formats, it maintains a maximum 30fps frame rate even at 4K resolution, perfectly balancing image quality, fluency and transmission efficiency; optically compatible with M12/C/CS interface lenses matching the 1/1.8-inch target surface, it covers a focusing range from 1cm to infinity to adapt to full-scene acquisition from macro to long-distance. Manufactured via SMT process and compliant with RoHS standards, it also offers SDK support for Halcon, OpenCV and LabView, and allows adjustment of more than ten parameters including brightness, contrast, white balance and exposure, making it a reliable imaging solution for industrial detection, machine vision, scientific research and high-definition acquisition.
1.8MP 4K Ultra-Clear Imaging：Adopts 1/1.8-inch Sony IMX678 sensor, supports 4K (3840×2160) resolution output, with complete image details to meet high-precision visual requirements.

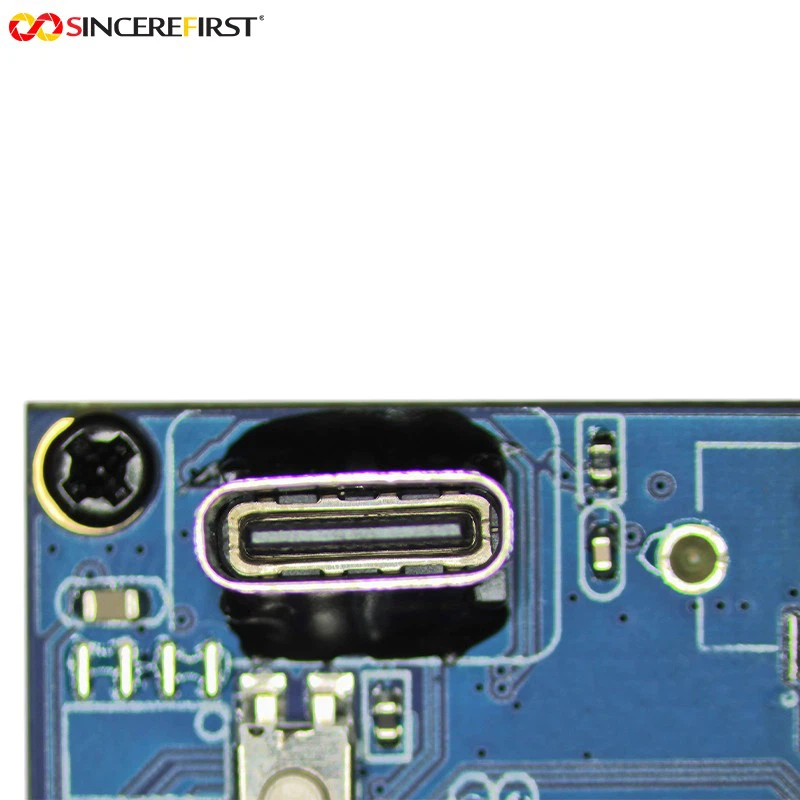

2.Dual-Interface High-Speed Transmission: Equipped with USB3.0 + HDMI dual interfaces; USB3.0 ensures high-speed data transmission, HDMI supports direct connection to displays for real-time display, with flexible application scenarios.
3.Wide-Temperature Stable Operation: Operating temperature ranges from -20℃ to 70℃, enabling continuous and stable operation in harsh industrial environments, suitable for outdoor and complex working conditions.
4.Multi-Format High-Frame Output: Supports MJPG/YUY2/H.264 three formats, up to 30fps at 4K resolution, balancing image quality, fluency and transmission efficiency.
Application of USB Camera Module
1.Industrial Visual Inspection: It can be used for high-precision dimensional measurement, defect detection and appearance recognition; it is applicable because its 4K ultra-clear imaging and high frame rate ensure inspection accuracy, and wide-temperature performance adapts to harsh industrial conditions.
2.High-Definition Image Acquisition: It can be used for document shooting, specimen shooting, product display and live broadcast photography; it is applicable due to its delicate image quality, true color reproduction and 4K high-definition output capability.
3.Machine Vision Systems: It can be used as the core imaging unit for AI recognition, visual positioning and automated equipment; it is applicable because its dual interfaces facilitate system integration and SDK support meets secondary development needs.
4.Medical/Experimental Imaging: It can be used for microscope imaging, teaching experiments and specimen observation; it is applicable thanks to its large-format sensor that delivers excellent low-illumination performance and detailed image display.
Product Details
|
Product Name |
USB3.0 Camera Module |
|
Sensor |
IMX678 CMOS |
|
Focusing Range |
1cm-infinity |
|
Sensor Size |
1/1.8inch |
|

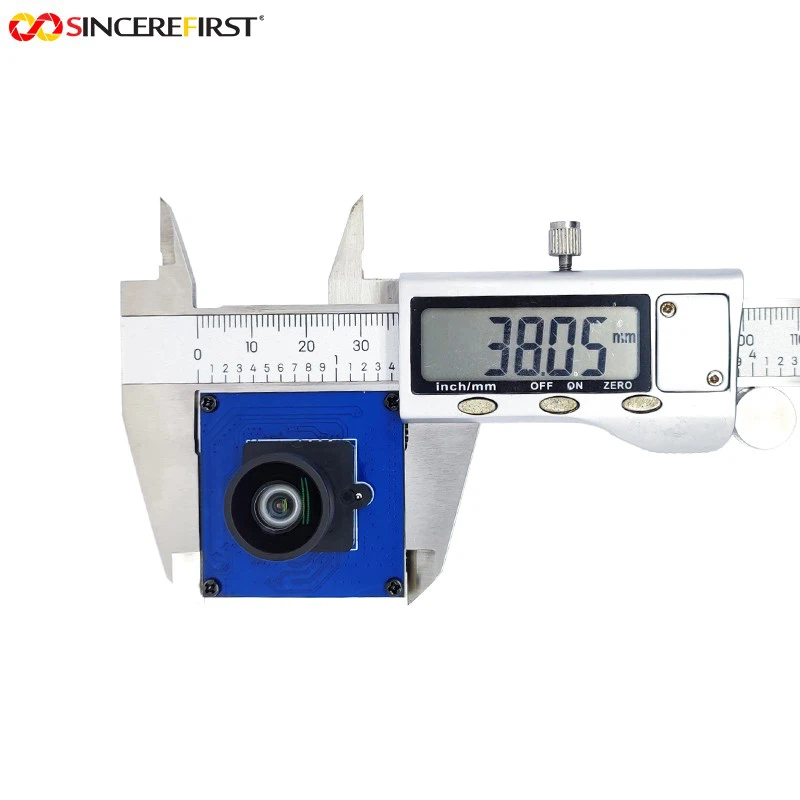

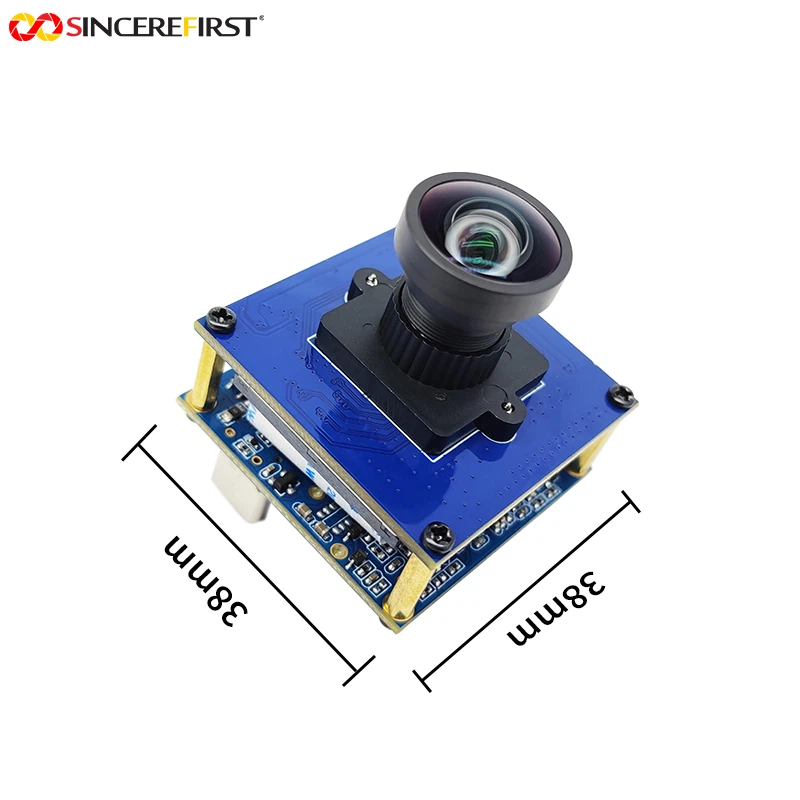

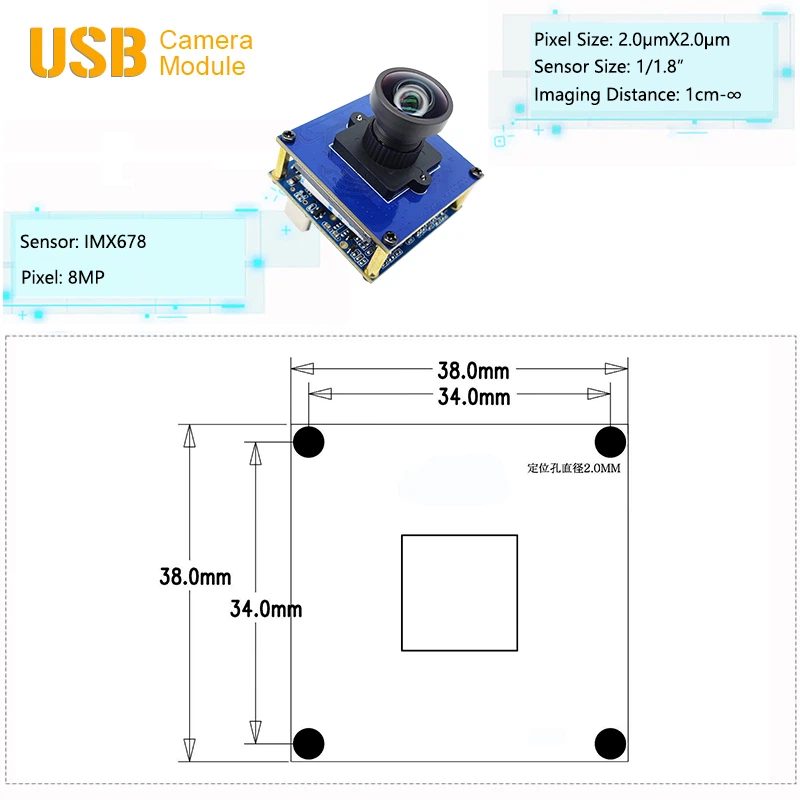

Module Size |
38*38mm |
|
Pixel |
8MP |
|
Frame Rate |
30FPS |
|
Resolution |
3840*2160 |
|
Output Format |
MJPG / YUY2 / H.264 |
|
Supported system |
Windows XP/7/8/10/11 , UVC Linux, Android, MAC-ios |
|
Production Process |
SMT |
|
Pixel Size |
2.0µm X 2.0µm |
|
Power |
5V |
|
Interface |
USB3.0 |
|
Support |
Rohs |
|
Certification |
CE, FCC, REACH, ISO |
