BF2013 0.3MP 4.5mm USB Endoscope Camera Module For Compact Inspection Tools
Guangzhou Sincere Information Technology Ltd. is one of the most professional bf2013 0.3mp 4.5mm usb endoscope camera module for compact inspection tools manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.

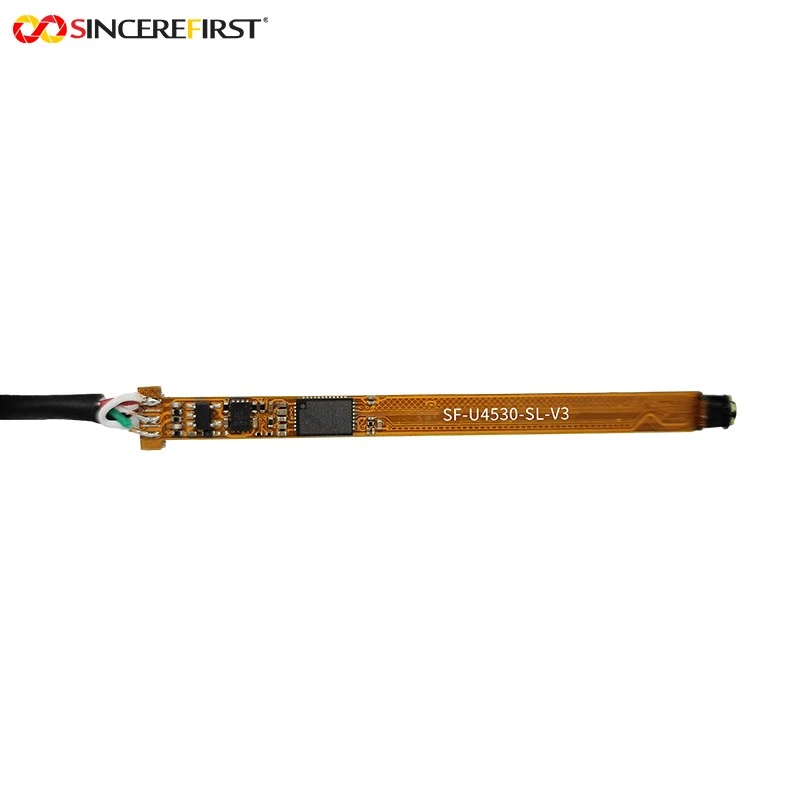

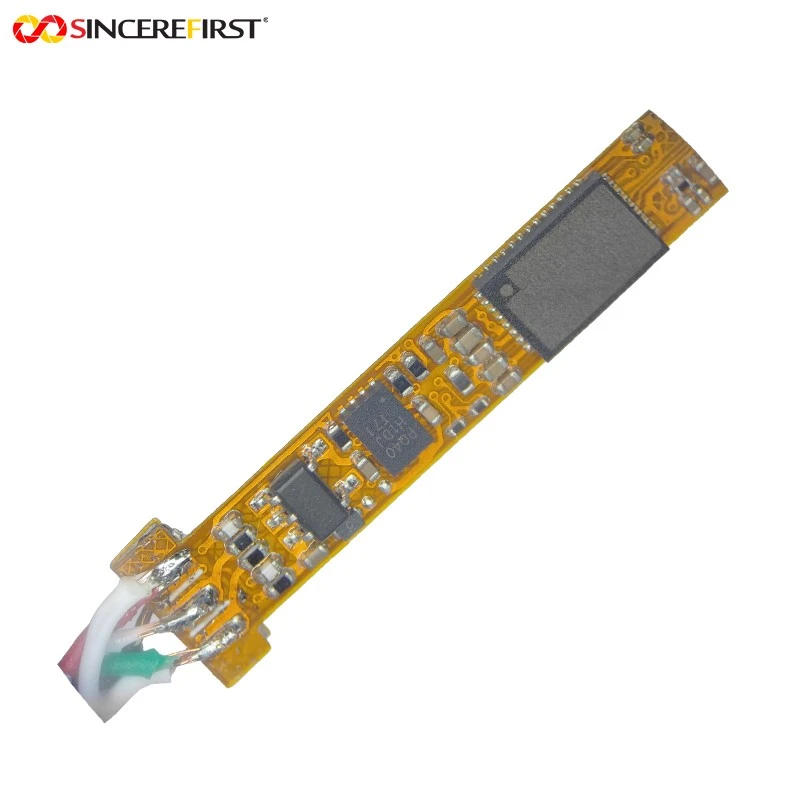

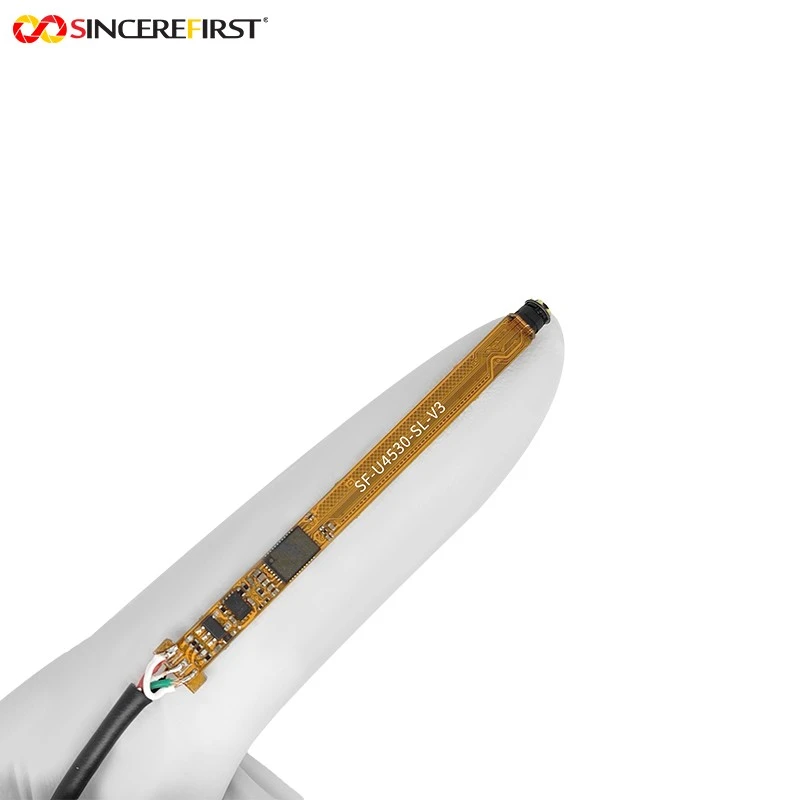

This compact USB endoscope camera module uses the BF2013 CMOS sensor to provide 0.3MP VGA image capture at 640 x 480 resolution and VGA@30FPS output. With USB2.0 output and an integrated lens structure, it is suitable for simple inspection devices that need a small camera head and real-time visual feedback.
The module uses a manual focus lens with 45° field of view, 15mm focal length and 6 LEDs around the lens. Its 4.5mm diameter makes it suitable for compact borescope tools, close-range visual checking devices and narrow-space inspection structures where a small camera head and local lighting are required.
Features

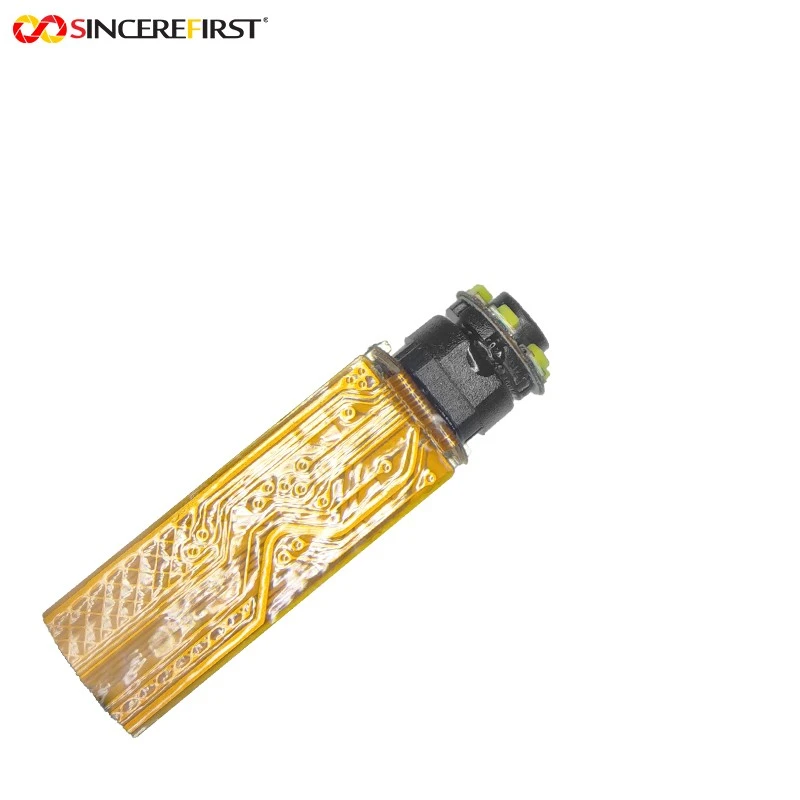

• 4.5mm Lens Head for Compact Inspection
The 4.5mm diameter lens head supports narrow-space inspection tools where the camera must fit into small openings.
• BF2013 VGA Sensor for Basic Visual Checking
The BF2013 sensor provides 640 × 480 VGA imaging, suitable for entry-level visual inspection and real-time observation tasks.

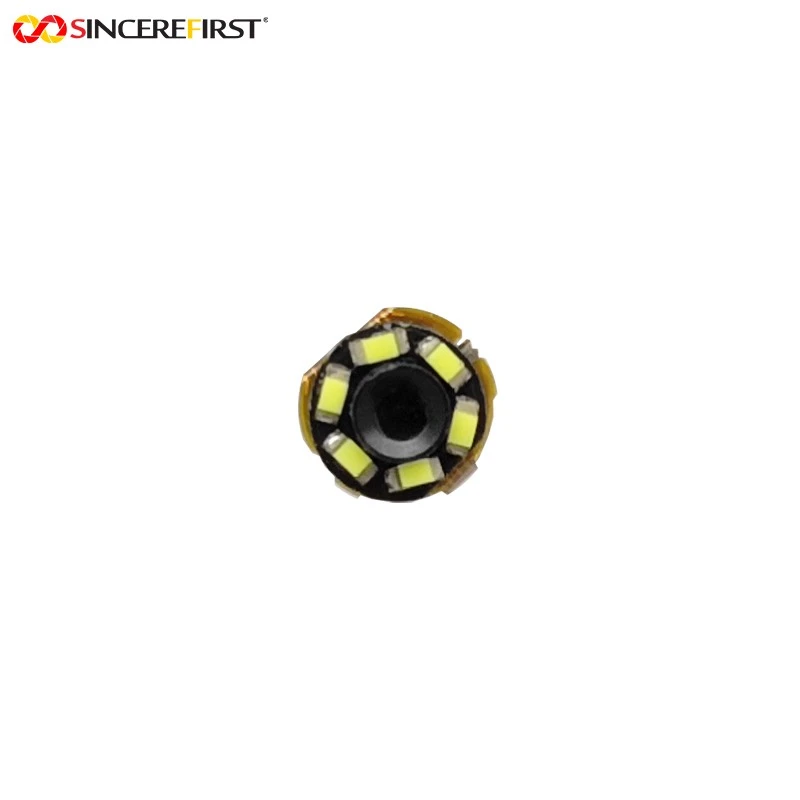

• 6 Integrated LEDs for Dark Environments
The 6-LED structure provides local illumination for enclosed or low-light inspection spaces.
• 45° Lens for Focused Viewing
The 45° field of view provides a narrower viewing angle for close-range checking where the target area is more focused.
• 15mm Focal Length for Close-Range Observation
The 15mm focal length supports compact inspection applications where the camera observes nearby objects or internal structures.

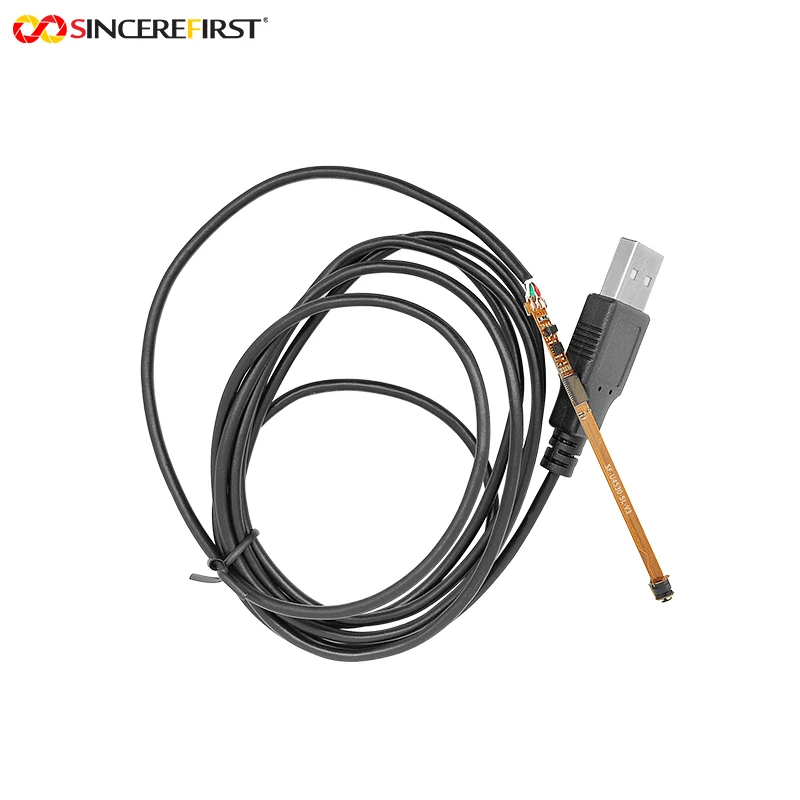

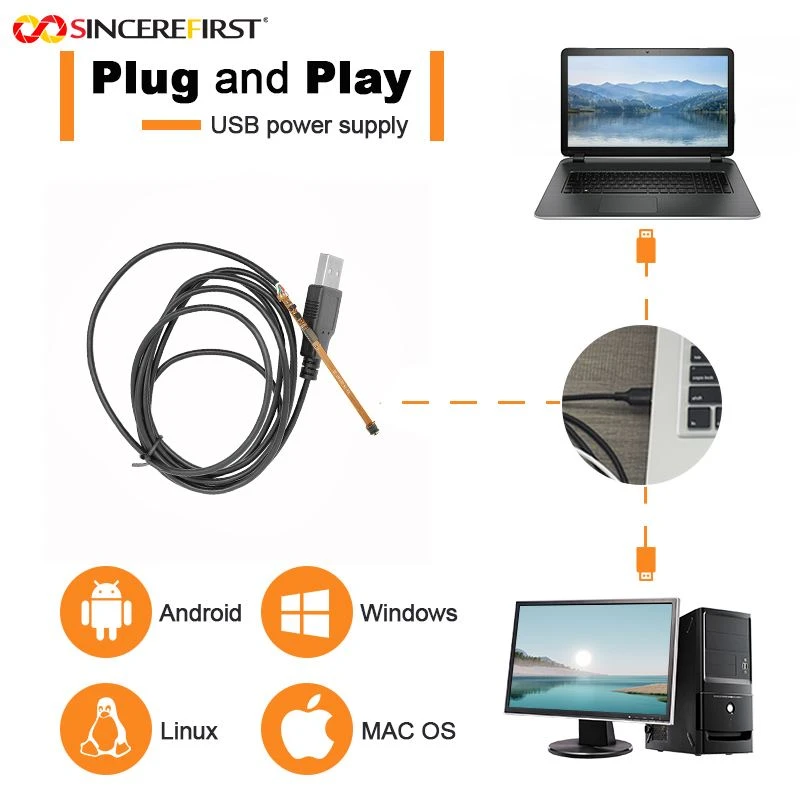

• USB2.0 Output for Simple Integration
USB2.0 output supports straightforward integration into inspection devices and visual checking tools.
Application of Endoscope Camera Module
• Compact Borescope Inspection Tools
Suitable for compact borescope tools used to check small cavities, internal structures or equipment gaps.
• Close-Range Visual Checking Devices
The 45° lens and 15mm focal length support close-range checking tools, such as small maintenance probes or embedded inspection fixtures.
• Narrow Opening Inspection Structures
The 4.5mm lens head can be used in inspection products that need to enter small openings, tubes or compact mechanical spaces.
• USB Visual Feedback Modules
The USB2.0 output makes it suitable for simple visual feedback devices, handheld inspection tools or entry-level imaging terminals.
Product Details
|
Product Name |
VGA Integrated USB Endoscope Camera Module |
|
Sensor |
BF2013 CMOS Sensor |
|
Pixel |
0.3MP |
|
Resolution |
640x480 |
|
Frame Rate |
VGA@30FPS |
|
Sensor Size |
1/10" |
|
EFL |
15mm |
|
FOV |
D45° |
|
LED |
6pcs LED |
|
Diameter |
4.5mm |
|
Structure |
Integrated Design |
|
Interface |
USB2.0 |
Customization Options
Lens Head and Mechanical Structure
Lens head length, diameter and structure can be evaluated according to the customer's inspection device design.
LED Lighting Evaluation
LED brightness and lighting angle can be reviewed for dark cavities, compact channels or close-range inspection targets.
Cable and Connector Customization
Cable length, connector type and wiring direction can be customized according to the final device structure.
Focus Distance and Field Coverage
The 45° lens and focal length can be evaluated according to the target viewing distance and inspection area.
FAQ
Q: What sensor does this camera module use?
A: It uses the BF2013 CMOS sensor with 0.3MP VGA resolution.
Q: What is the diameter of the camera head?
A: The lens head diameter is 4.5mm.
Q: Does this module include LED lighting?
A: Yes. The module includes 6 LEDs around the lens for local illumination.
Q: What is the field of view?
A: The lens field of view is 45°.
Q: What interface does this module use?
A: It uses USB2.0 output.
Q: Is this module suitable for high-resolution inspection?
A: This model is designed for basic VGA visual checking. For higher-resolution inspection, a 720P or higher camera module may be more suitable.
Q: What information should I provide before requesting a sample?
A: Please provide your inspection target, required diameter, working distance, cable length, connector requirement and lighting environment.
