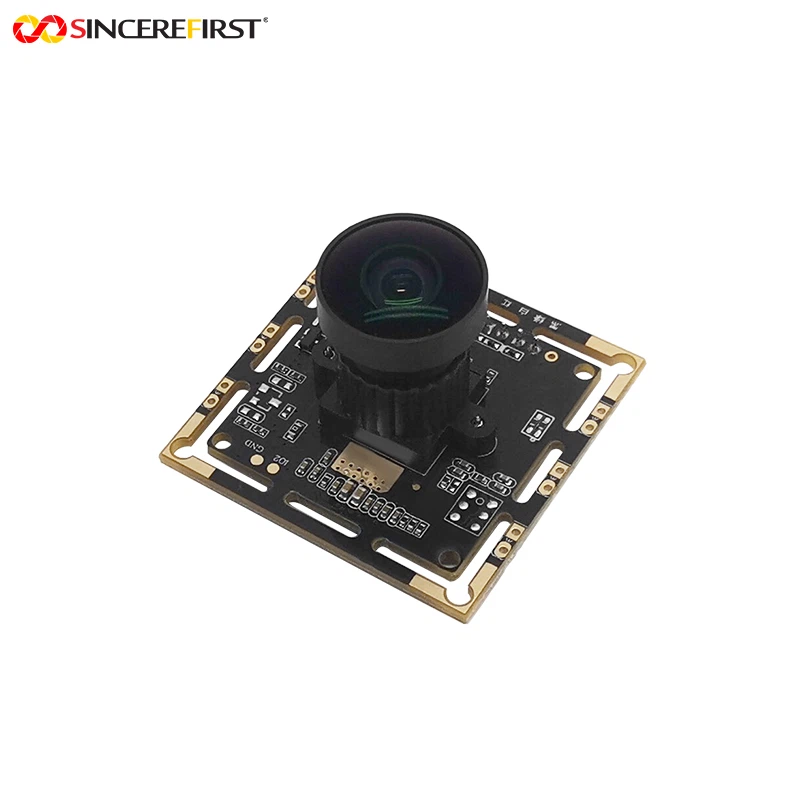

Global Shutter 2K 60FPS Color Sensor USB 2.0 Camera Module

This is a global shutter 2K 60FPS color sensor USB 2.0 camera module, a high-performance device focused on high-speed dynamic imaging needs, with core configurations fully adapted to professional scenarios. It is equipped with a high-sensitivity CMOS color image sensor, featuring a basic resolution of 5MP, and can output images at a maximum resolution of 2560×1440. It stably achieves a frame rate of 60FPS at this resolution, balancing clarity and smoothness. The sensor size is 1/2.5 inch, paired with a large pixel size of 2.2μm×2.2μm, which significantly increases light input and optimizes imaging effects in low-light environments.​
In terms of functions, its output formats include MJPG (compressed format) and YUY2 (lossless format), adapting to different data processing requirements. The focusing range extends from 1cm to infinity, combined with a manual focusing design, which can meet both close-up macro shooting and long-distance framing needs. Additionally, a key feature of the module is its support for global shutter and global exposure, effectively eliminating motion blur in dynamic images. It also has an external trigger function, which can synchronize with external devices to control shooting timing and achieve precise capture.​

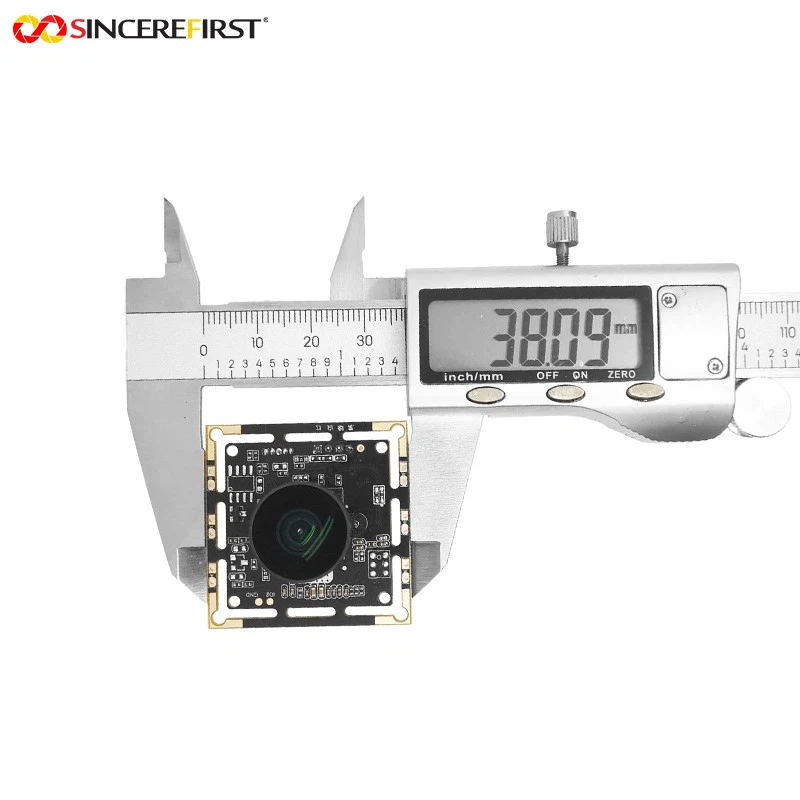

The module has a compact size of 38mm×38mm, making it easy to integrate. It uses USB 2.0 for data transmission and is compatible with the UVC protocol (plug-and-play, no additional drivers required for installation). Moreover, it is manufactured using SMT (ROHS) environmental protection technology and AA (Active Alignment) process, ensuring performance consistency and product reliability.

• Precise Control and Synchronization: The external trigger function allows precise control of the image capture moment through external signals (such as photoelectric sensors and PLCs), achieving high-speed synchronization with external devices. It is a key function for accurate measurement in automated inspection and scientific research.
• Flexible Adaptation to Needs: The focusing range covers 1cm to infinity, and the manual focusing design enables precise focus control, suitable for both close-up detail shooting and long-distance panoramic framing. It offers two output format options (MJPG and YUY2): the former saves USB transmission bandwidth, while the latter retains lossless image data, adapting to the processing capabilities and image quality requirements of different devices.
• High Integration and Reliability: With a compact size of 38mm×38mm, it can be easily embedded into devices with limited space. Compatible with the UVC protocol, it supports plug-and-play when connected to computers, embedded motherboards, and other devices, simplifying the installation process. Manufactured using SMT (ROHS) environmental protection technology and AA process, it ensures accurate alignment between the lens and the sensor, improving the performance consistency and service life of the product.
