High Speed Sony Starvis Cmos Stacked Sensor IMX662 Embedded USB Inspection Camera Module

Guangzhou Sincere Information Technology Ltd. is one of the most professional high speed sony starvis cmos stacked sensor imx662 embedded usb inspection camera module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.



Introduction:

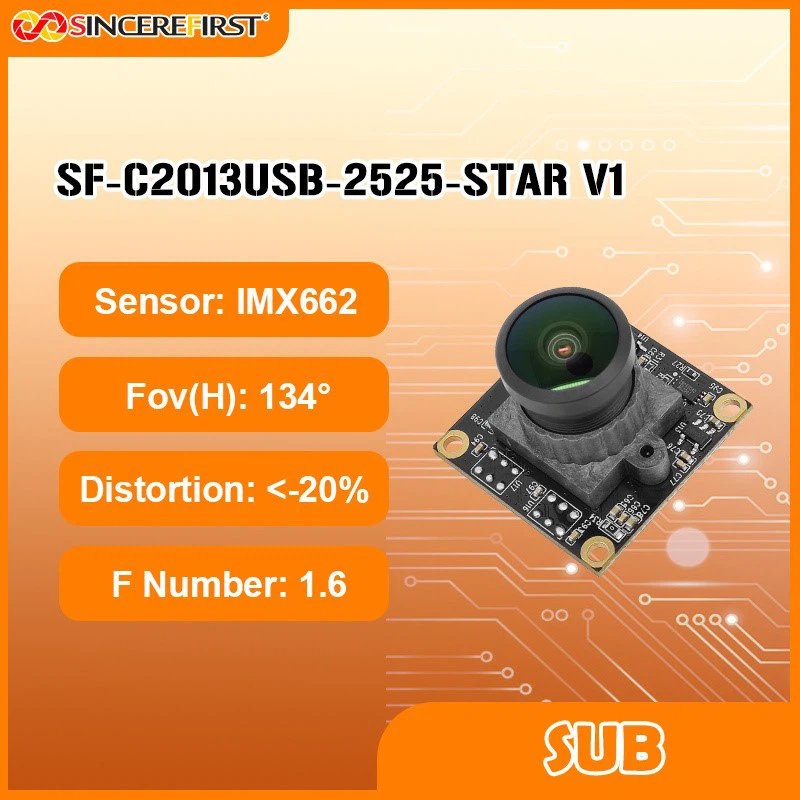

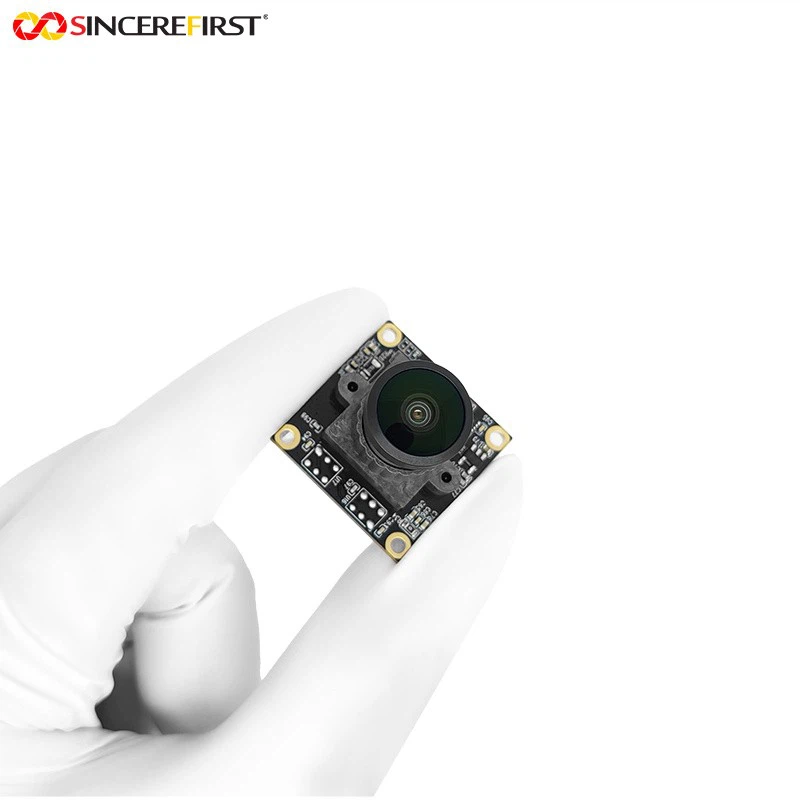

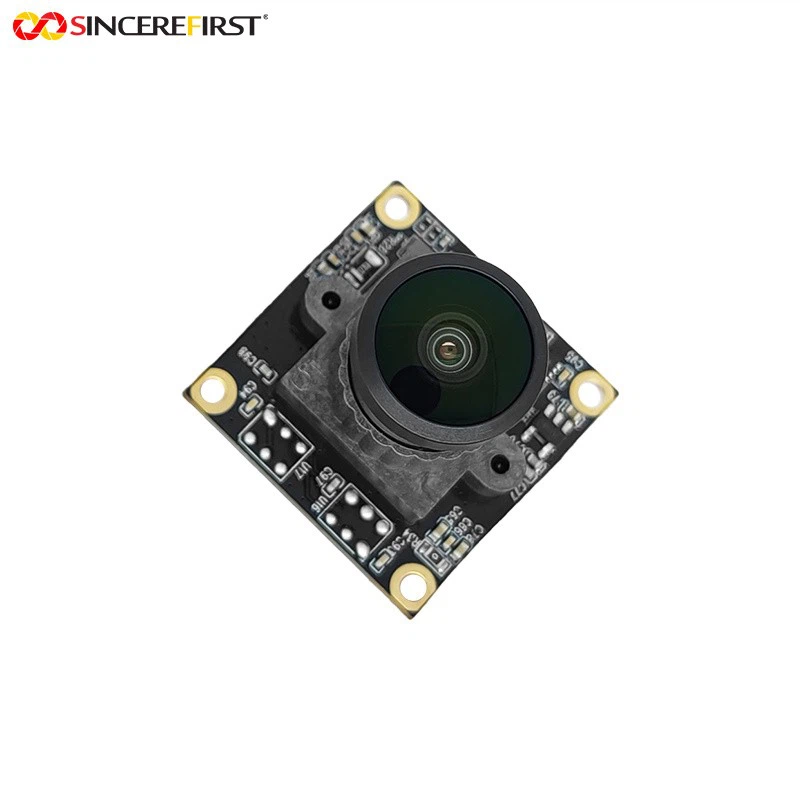

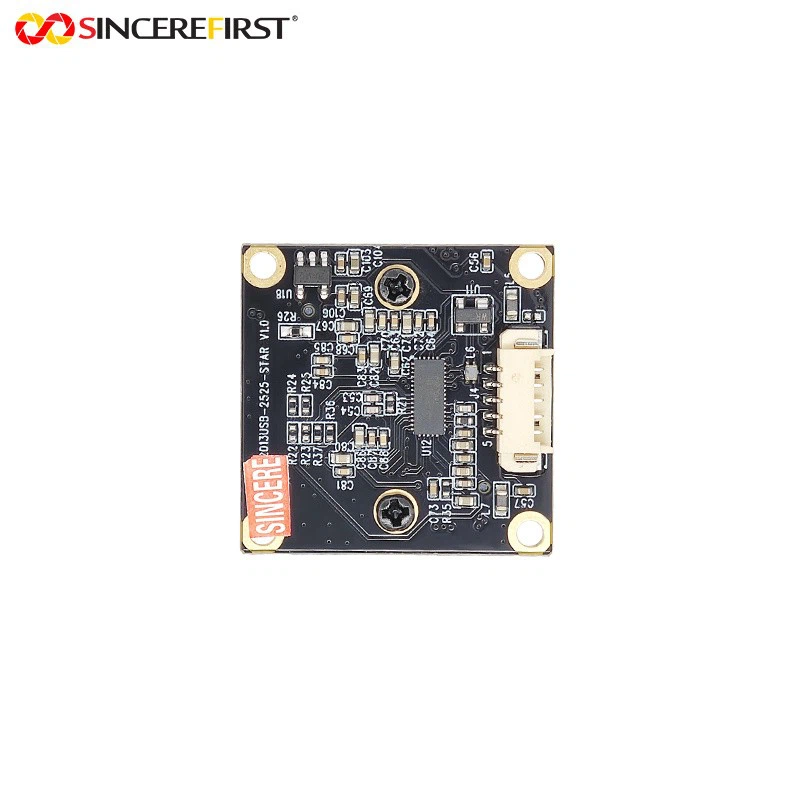

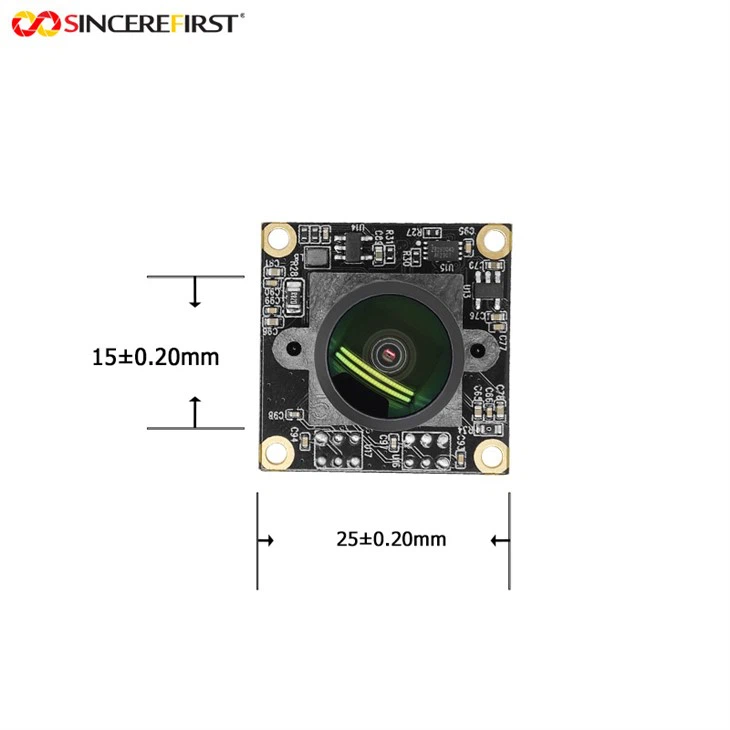

This high speed Sony Starvis CMOS stacked sensor IMX662 embedded USB inspection camera module, the optical format of Sony IMX662 sensor camera module is 1/2.8 inch, the pixel size is 2.9 x 2.9 µm, and the angle is 134°(H). The module has a USB2.0 UVC interface, and its resolution is 1080p Max 60fps.

SINCERE FIRST is a machine vision camera module company. If you have a camera module project, please feel free to contact us.



Features

•CMOS active pixel type dots

•Built-in timing adjustment circuit,H/V driver and serial communication circuit

•Input frequency: 24 MHz/ 27 MHz /37.125 MHz/ 72 MHz/74.25 MHz

•Number of recommended recording pixels:1920 (H) * 1080 (V) approx.2.07M pixel

•Readout mode

All-pixel scan mode

Horizontal / Vertical2/2-line binning mode

Window cropping mode

Horizontal / Vertical direction - Normal / Inverted readout mode

•Readout rate

Maximum frame rate in

All-pixel scan mode: 12 bit: 60 frame/s, 10 bit:90 frame/s

•High dynamic range(HDR) function

Digital overlap HDR

Clear HDR

•Synchronizing sensors function

•Variable-speed shutter function (resolution 1H unit)

•10-bit /12-bit A/D converter

•Conversion gain switching(HCG Mode/LCG Mode)

•CDS /PGA function

0 dB to 30 dB : Analog Gain 30 dB (step pitch 0.3 dB)

30.3 dB to 72 dB : Analog Gain 30 dB + Digital Gain 0.3 dB to 42 dB (step pitch 0.3 dB)

•Supports I/O

CSI-2serial data output (2 Lane / 4 Lane) RAW10/ RAW12 output

SINCEREFIRST camera module manufacturing enterprise integrates design, development, manufacturing and sales. We can supply ready made 0.3mp to 108mp FPC & USB camera module and diameter 0.9mm~8.0mm endoscope camera module. Our products are widely used in various fields, such as AIoT equipment, smart home, smart medical, intelligent transportation, automatic driving, intelligent security, Intelligent warehousing, scanning, robot, UAV, medical endoscope, industrial endoscope, computer, intelligent terminals etc.

If you are looking for camera module or camera sensor manufacturers and suppliers, please feel free to contact us for camera module price and more detailed introduction. SINCEREFIRST is a leading high-tech company specializing in integrated optical device manufacturers and optical imaging system solution providers. There are different types of camera modules and camera sensors for sale, and they also support customization to meet all your needs and solve your problems.
