IMX415 4K 60fps H264 USB3.0 Camera Module for Document Imaging AI Vision

Combine 4K image detail with 60fps video over USB3.0. This Sony IMX415 camera module supports MJPG and H.264 4K60 output for document imaging, product presentation, and equipment that needs detailed continuous video.
Send Inquiry
Product Introduction

Guangzhou Sincere Information Technology Ltd. is one of the most professional IMX415 4K 60fps H264 USB3.0 Camera Module for Document Imaging AI Vision manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.





Introduction

Detailed imaging equipment often needs more than a single high-resolution frame. This IMX415 camera module supports 3840×2160 at 60fps, recording both object detail and changes across a continuous video sequence.

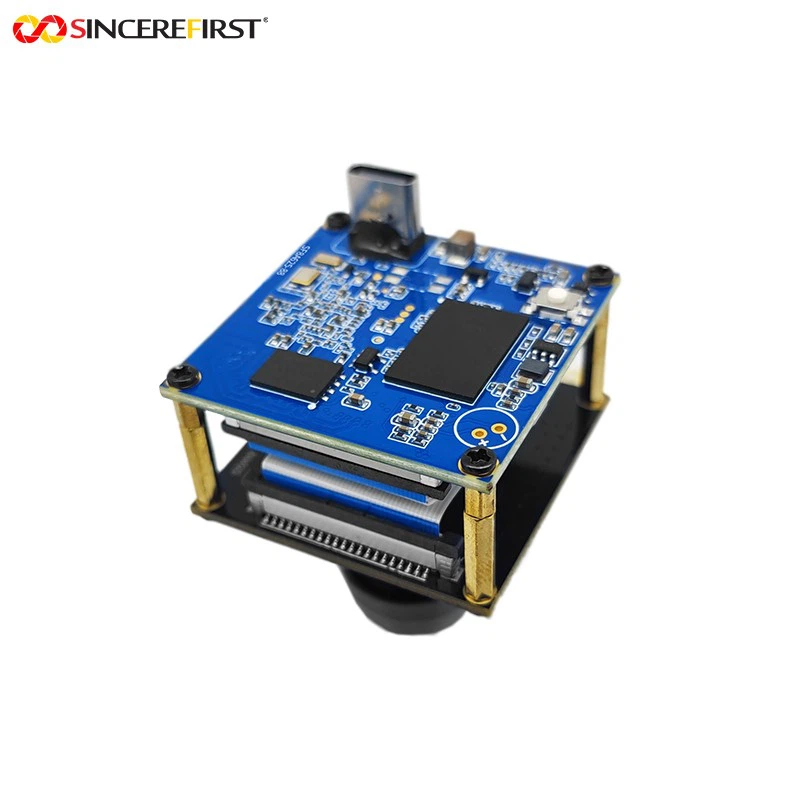

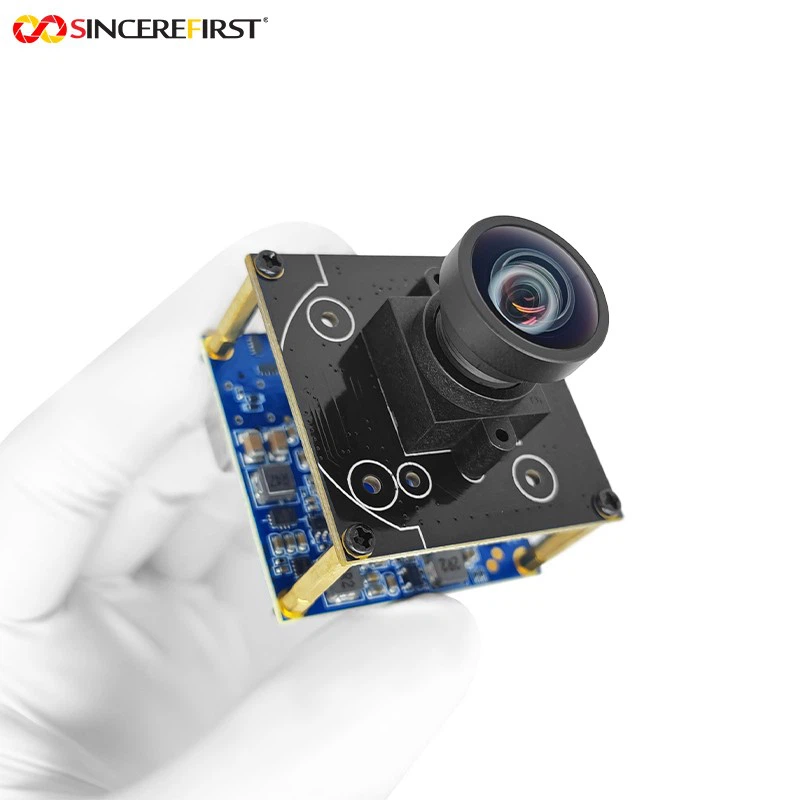

MJPG, YUY2, and H.264 provide different image handling options. The Fixed Focus configuration suits a defined observation setup, while the 38×38mm double-layer PCB provides a compact platform for integration into document and product imaging equipment.



Features

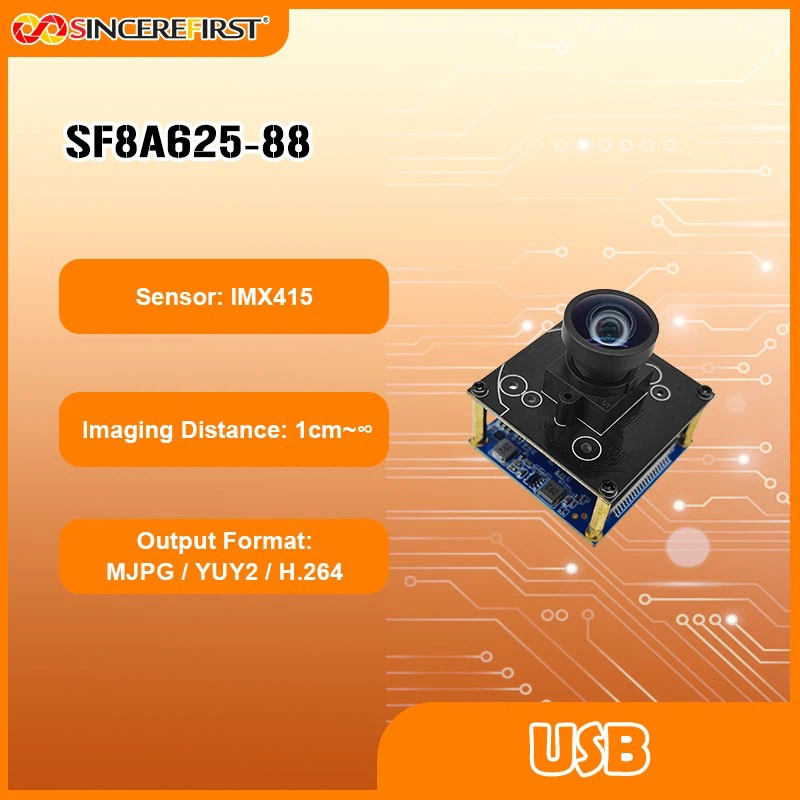

SF8A625-88



• 4K Detail at 60fps

The module captures high-resolution video at 60fps in MJPG and H.264. This supports equipment that needs to retain fine visual information during object movement or handling.



• Sony IMX415 Imaging

The 8MP sensor combines a 1/2.8-inch optical format with STARVIS technology and HDR support for the selected imaging configuration.



• Formats for Different Video Workflows

MJPG and H.264 support 4K60, while YUY2 provides a 4K24 mode. Full HD at 60fps is also available across the three listed formats.



• Fixed Focus for Repeatable Imaging Setups

A defined optical arrangement suits equipment where the subject is presented within an established working area, such as a document surface or product display station.



Application of USB Camera Module



• Document Imaging Equipment

Capture page content and text detail for the host document processing system. The high-resolution feed supports page observation and the selection of useful frames during document handling.



• Jewelry Photography and Video Equipment

Record surface details, settings, and the appearance of jewelry as it rotates on a display platform. 4K detail and 60fps video support close visual presentation, with lighting and lens selection matched to the pieces being photographed.



• 4K Video Conferencing Equipment

Capture participants, gestures, and room details for a conferencing host. The 4K60 feed provides detailed continuous video for equipment whose software supports that acquisition mode, with lens coverage selected around the meeting area.

SF8A625-88



product-800-800
product-800-800
product-800-800
product-800-800
product-800-800
product-800-800
product-800-800
product-800-800
product-800-800



Product Details





Product Name

4K 60fps USB3.0 Camera Module

Image Sensor

Sony IMX415 STARVIS CMOS Sensor

Pixel

8MP,3840x2160

Resolution

4K@60FPS, 1920x1080@60FPS

Sensor Size

1/2.9 Inch

Output Formats

MJPG, YUY2, H.264

Features

STARVIS; HDR

Focus Type

Fixed Focus

Focusing Range

1cm to infinity

Structure

Double-Layer Design

Interface

USB3.0

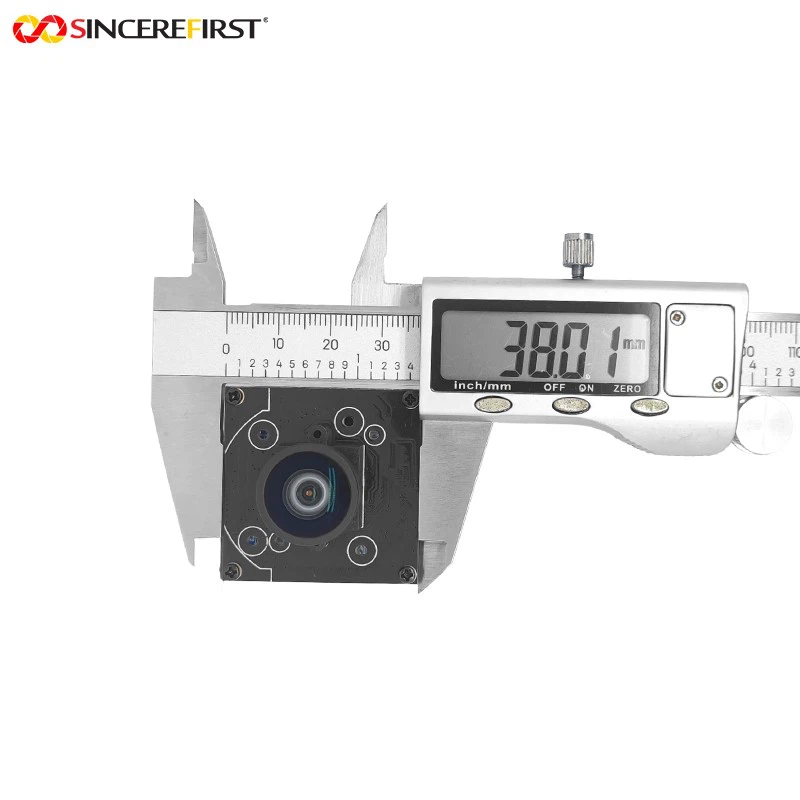

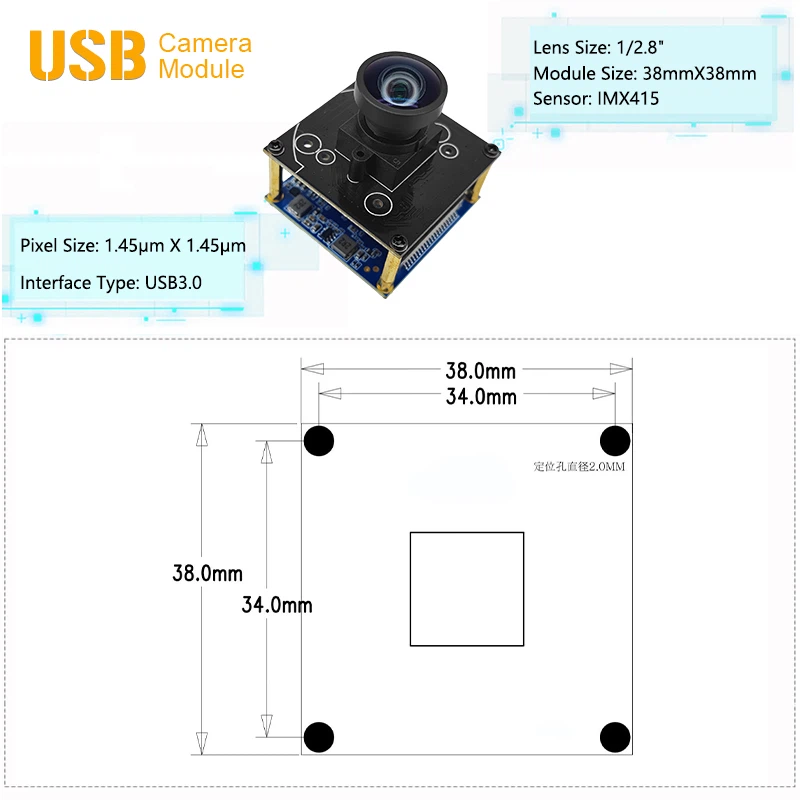

Module Size

38x38mm



Customization Options

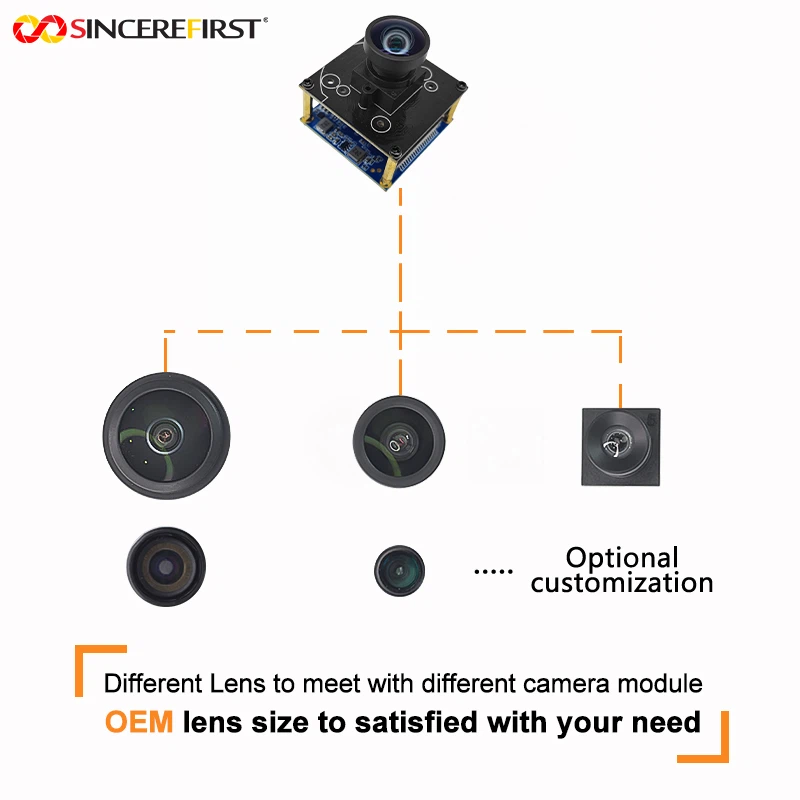

Optical Matching
Select lenses and working distances for document coverage or product detail presentation.



Equipment Assembly
Configure applicable Shell, mounting, PCB, connector, and cable requirements.



Video Integration
Use USB SDK and applicable Firmware or Driver support to match acquisition with the host's image or recording workflow.



Manufacturing Services
Coordinate the production configuration, certification needs, supply requirements, and warranty arrangements.



product-1264-711



FAQ





Q: What should be prioritized when imaging reflective jewelry?

A: Lighting direction, reflections, field of view, and working distance should be considered together. The 4K feed provides image detail, while the optical and lighting setup determines how that detail is presented on reflective surfaces.

Q: When is 60fps useful for document imaging?

A: It is useful when the equipment presents live page handling or selects images from a continuous video stream. For a stationary page, field of view, text detail, and focus at the document plane are more important than frame rate alone.

Q: How should I choose MJPG or H.264 for the host workflow?

A: MJPG can suit workflows that work with individual compressed images. H.264 is useful for continuous video recording and delivery. Choose according to the host software's decoding and image access requirements; both formats provide the listed 4K60 mode.



Bring Detailed Video into Your Imaging Equipment





SincereFirst can help match the camera module's optics, output format, and mechanical configuration to the documents or products your equipment needs to present.
