OV2740 Sensor 1080P 60fps USB Endoscope Camera Module with App-Controlled LEDs for Industrial Inspection

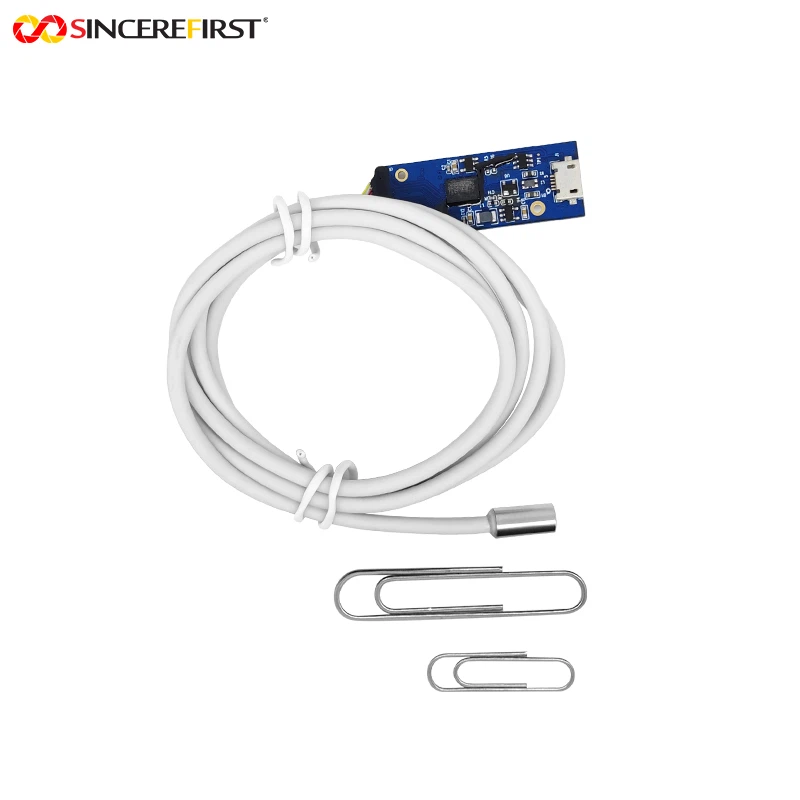

This is a 2MP 1080P OV2740 Sensor USB Endoscope Camera Module with LED dimmable function. Its core is equipped with OmniVision OV2740 CMOS image sensor, and relying on 6 integrated white LED lights and a 3-level brightness adjustment design, it can accurately adapt to different observation environments.
Send Inquiry
Product Introduction

Guangzhou Sincere Information Technology Ltd. is one of the most professional OV2740 Sensor 1080P 60fps USB Endoscope Camera Module with App-Controlled LEDs for Industrial Inspection manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.





Introduction

Inspecting an internal surface involves more than finding a clear viewpoint. Operators move the probe to locate an area, pause to examine its condition and adjust the lighting as the viewing distance or surface reflectivity changes. This module brings those needs together with Full HD video, a high frame rate and software-controlled illumination.



The wide-angle lens shows the observation target together with nearby structures, helping users understand where they are looking. Within the 8–80mm working range, the camera supports close-up examination of accessible tube interiors, combustion chamber surfaces and mechanical cavities. LED brightness can be adjusted through a compatible application while viewing the image.

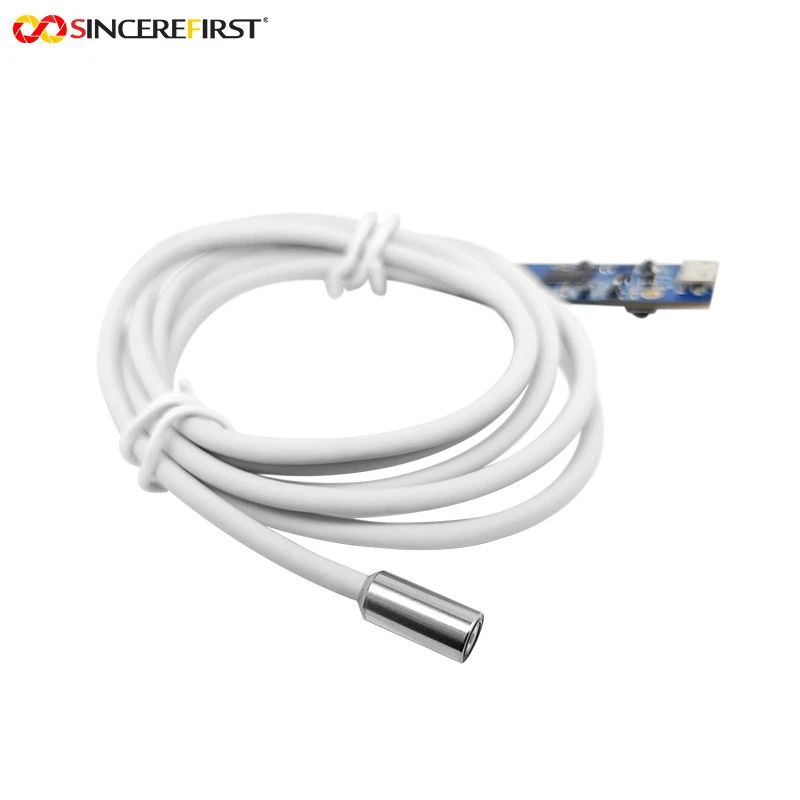

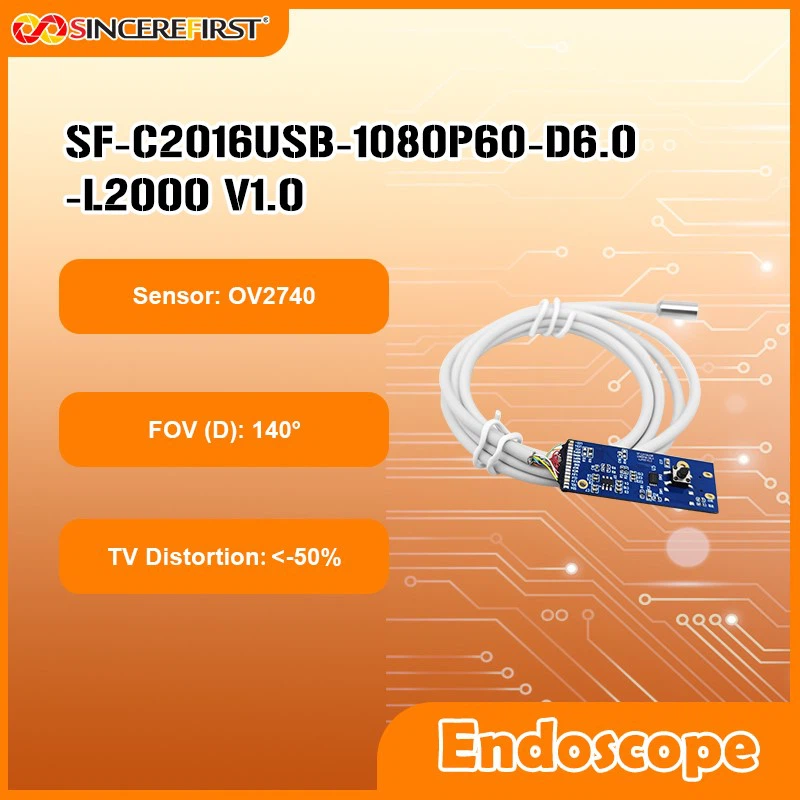

The protected camera head connects by wires to a separate DSP board, allowing equipment manufacturers to position the probe and processing electronics independently. USB 2.0 UVC output provides a connection to compatible viewing systems.



Features


product-800-800

• Full HD Detail with 60fps Live Video

The OV2740 CMOS sensor delivers 1920 × 1080 video at up to 60fps. Full HD resolution supports examination of visible surface features, while the higher frame rate provides more continuous viewing as the operator moves or repositions the probe.

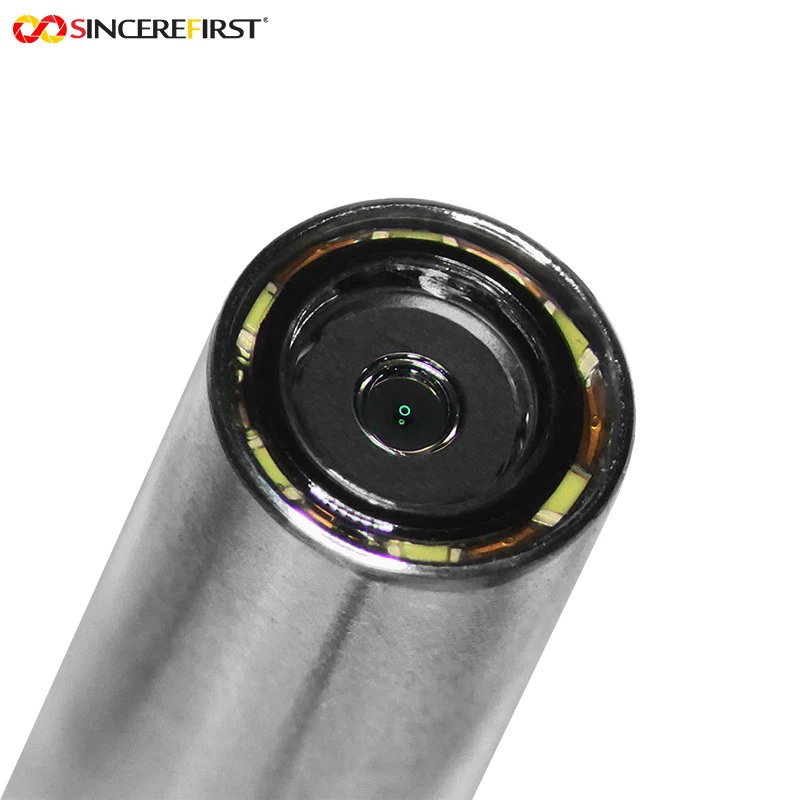

• 6 LEDs with App-Controlled Brightness

6 LEDs illuminate the area ahead of the camera. Through a compatible control application, users can adjust brightness while assessing the live image, adapting illumination as the probe approaches a reflective surface or moves toward a darker area.

• 140° Wide-Angle View for Close-Up Examination

The lens combines a 140° diagonal field of view with an 8–80mm working range. It captures the target and surrounding area together, helping operators relate a visible deposit, surface mark or assembly feature to its position within the cavity.

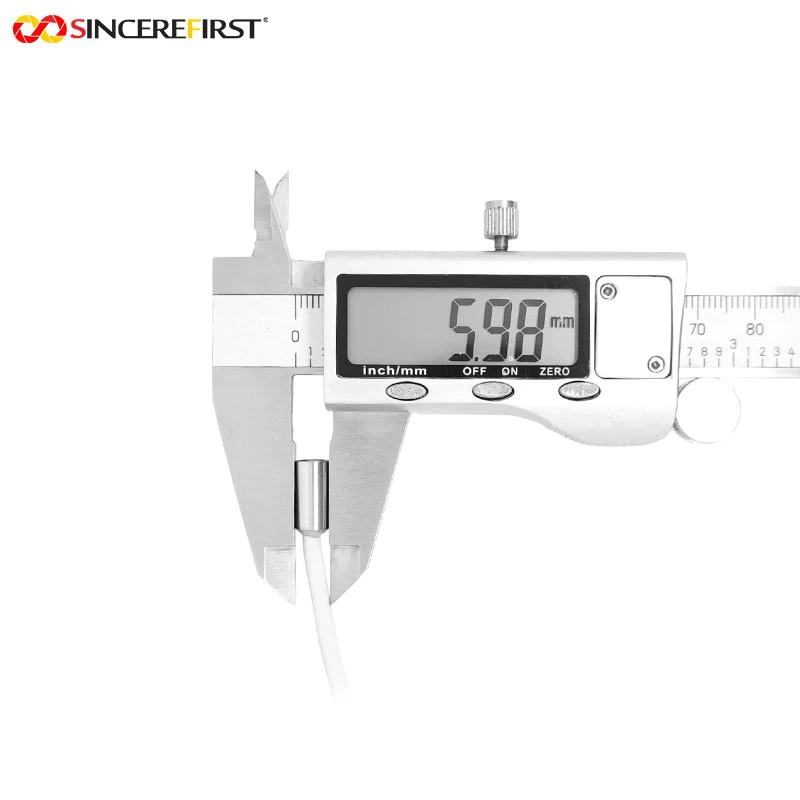

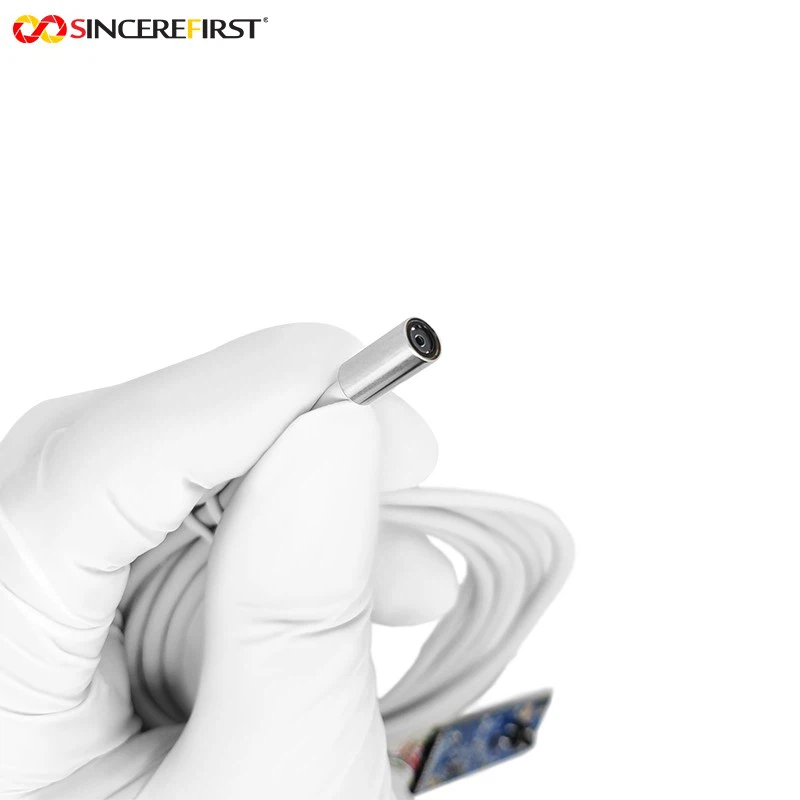

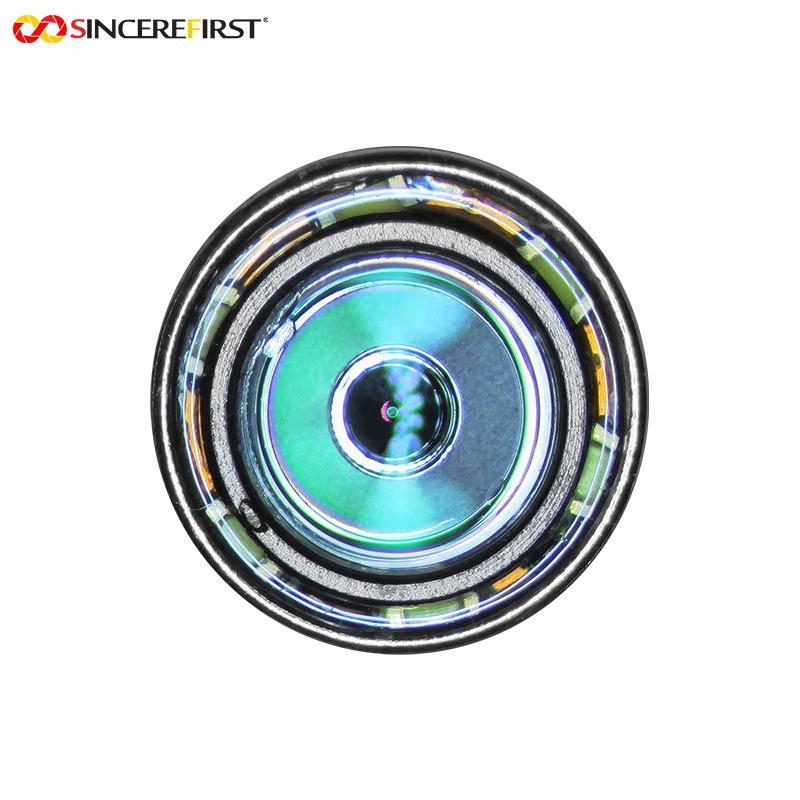

• 6.0mm Camera Head with Steel Shell and IP67 Protection

The camera head combines a 6.0mm diameter with Steel Shell and IP67 dust and water protection. This protected construction supports inspection equipment used around dusty or damp areas while maintaining a compact probe format.

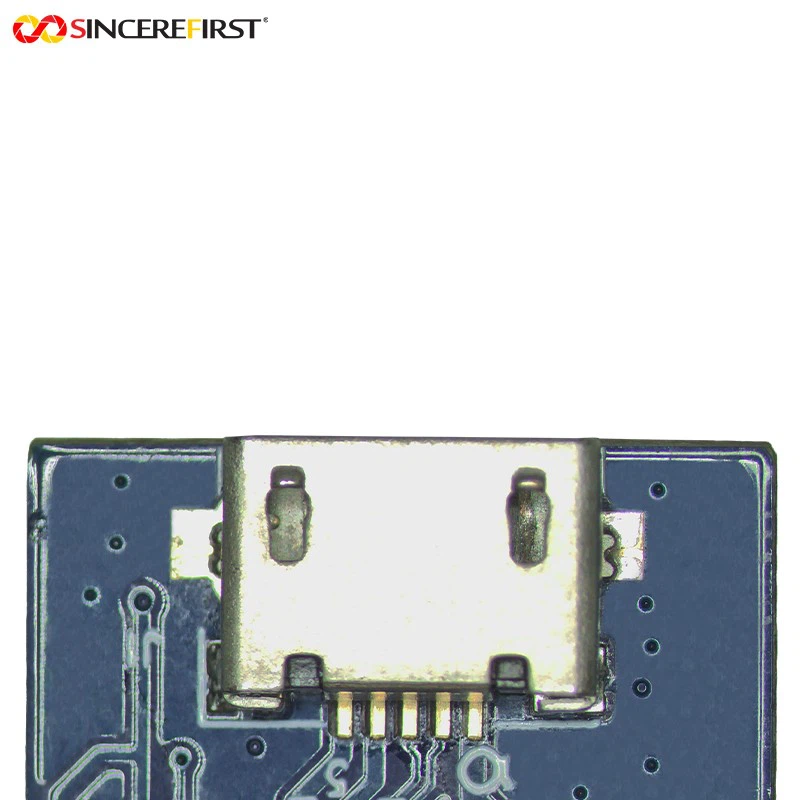

• Separated Design with USB 2.0 UVC Output

The camera head connects to a separate DSP board, giving manufacturers flexibility when arranging the probe, handle and processing electronics. USB 2.0 UVC output supports compatible camera hosts and viewing applications, with MJPEG and YUV output formats available.



Application of Endoscope Camera Module



• Heat Exchanger Tube Inspection

The module can serve as the imaging component in tools used to examine accessible tube interiors for visible deposits, corrosion signs and cleaning results. Close-up imaging helps present local surface conditions, while adjustable LED brightness accommodates changes between reflective metal and darker deposits.

• Combustion Chamber Surface Inspection

Inspection tools incorporating this module can provide views of accessible piston crowns, carbon deposits and surrounding chamber surfaces during maintenance. The wide-angle image shows the target in relation to nearby areas, while 60fps video helps operators follow the scene as they reposition the probe.

• Valve and Pump Body Inspection

Internal passages and cavities in valve or pump bodies may contain residual chips, debris or assembly features that are difficult to view from outside. The camera supports close-up visual checks of these accessible areas, with software-controlled lighting helping users adjust the image as they move between different surfaces.

product-800-800



product-800-800

product-800-800
product-800-800
product-800-800
product-800-800
product-800-800
product-800-800
product-800-800
product-800-800



Product Details





Product Name

OV2740 1080P 60fps Endoscope Camera Module

Sensor

OmniVision OV2740 CMOS Sensor

Pixel

2MP

Resolution

1920x1080

Frame Rate

1920x1080@60FPS

Sensor Size

1/6"

Output Format

MJPEG, YUV

Focus Type

Fixed Focus

FOV

D140°

F.NO

5.9

EFL

1.05mm

Working Distance

8-80mm

TV Distortion

<-50%

Lens Diameter

6.0mm

LED

6 LEDs

Brightness Control

App-Controlled LED Dimming

Protection

Steel Shell, Support IP67 Waterproof

Structure

Separated Design

Interface

USB2.0



Customization Options





Lens and Working-Distance Matching

The standard lens provides a 140° diagonal view and an 8–80mm working range. Alternative viewing-angle or working-distance requirements can be discussed to identify suitable optical configurations for the intended observation task.



Cable Length and Connection Arrangement

Cable length and connection requirements can be reviewed around the reach and layout of the finished inspection device. This helps coordinate the camera head, probe assembly and DSP board without treating one cable length as suitable for every product.

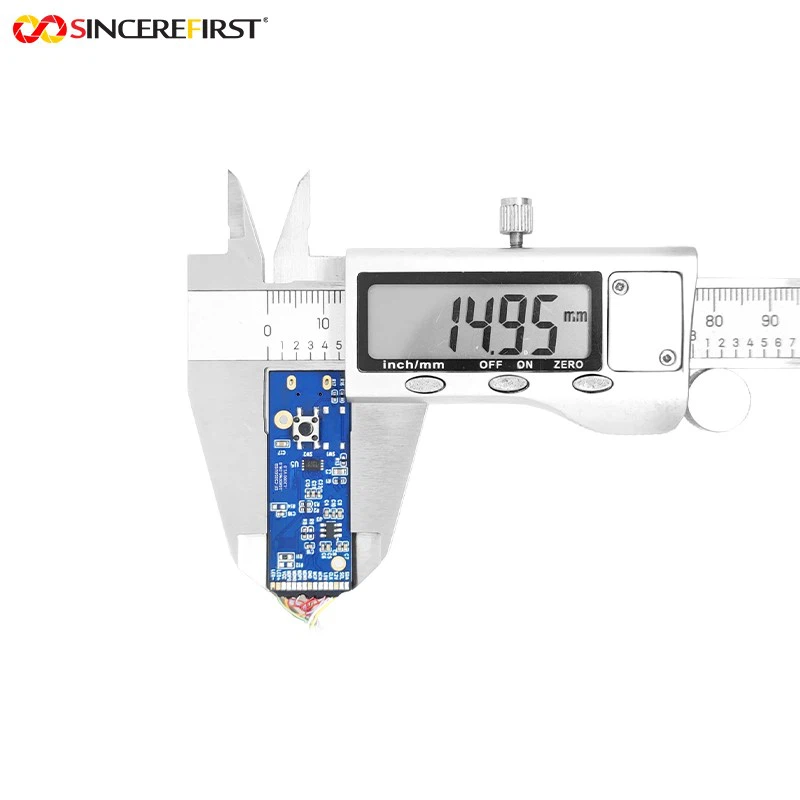

PCB Size and Layout Requirements

DSP board dimensions and layout requirements can be discussed for devices with limited internal space. The Separated Design allows the processing electronics to be considered alongside the handle or main unit rather than being confined to the camera head.



Shell and Probe Assembly Requirements

The standard camera head uses a 6.0mm Steel Shell. Requirements for fitting the head into a probe or the finished product's Shell can be reviewed to determine suitable mechanical arrangements.



Lighting-Control Matching

The standard configuration supports app-controlled LED dimming. Compatibility with the intended host and control application can be reviewed during configuration selection, helping match brightness adjustment to the way the finished device will be operated.



product-1264-711



FAQ





Q: Can Any UVC Camera Application Adjust the LED Brightness?

A: Not necessarily. Displaying UVC video and controlling LED brightness are separate functions. The selected application must support this module's lighting control. Confirm the compatible software arrangement when evaluating a sample.

Q: What Should I Check to View or Record at 1080P 60fps?

A: The host and application need to support the selected resolution, frame rate and video format. Recording also depends on the software and host performance. Evaluate both live viewing and recording in the intended setup before finalizing the device configuration.

Q: Is This Camera Suitable for Measuring Defect Dimensions?

A: The standard wide-angle configuration is intended for visual observation. It is not a calibrated measurement system, and image distortion affects apparent shape and size. Dimensional measurement requires a separately validated solution.

Q: Can the Complete Module Be Exposed to Water?

A: The IP67 rating applies to the camera head with Steel Shell. The separate DSP board, USB connection and finished device require their own appropriate protection.

Q: How Can I Evaluate Whether It Shows the Surface Detail I Need?

A: Test a sample with representative parts at the intended viewing distance. Check the visibility of the features you need to inspect, the effect of LED brightness adjustment and the viewing experience while moving the probe. This provides a more useful basis for selection than resolution alone.



Evaluate Full HD Imaging on Your Inspection Target




SincereFirst can help you review the optical configuration, cable arrangement and compatible software control for your inspection device. Arrange a sample to assess surface detail, live-video continuity and LED brightness adjustment using your actual parts before choosing the final configuration.
