Triple-Lens 720P CMOS Endoscope Camera Module For Selectable Two-View Inspection

Guangzhou Sincere Information Technology Ltd. is one of the most professional triple-lens 720p cmos endoscope camera module for selectable two-view inspection manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.



Introduction

The defining choice in this camera module is the pair of images an inspection instrument can show. One forward lens and two side lenses provide three observation directions, with simultaneous output available from any two cameras.



The 1MP CMOS imaging system provides 1280 × 720 images at 18fps. A 76° diagonal field of view and 5cm best-focus distance support close observation of nearby surfaces. The operator's task may use a forward-and-side pair for context or the two side views to compare adjacent areas.



The 7.9mm camera head integrates 6 front LEDs and 1 LED at each side lens. A Steel Shell and IP67 camera-head protection support bringing the imaging assembly into dusty or wet inspection locations, with USB2.0 connecting the module to the instrument.

• Select the Two Views That Need Comparison

Any 2 camera outputs can be displayed simultaneously. This lets the inspection workflow choose the relevant relationship between the area ahead and the surfaces around the head.



• 720P Image Capture for Close Observation

The CMOS imaging system provides 1280 × 720 images at 18fps. HD capture supports examining visible surface conditions and assembly details within the selected views.



• Illumination at All Three Camera Positions

6 white SMD LEDs light the forward area. Each of the two side lenses has 1 white LED, placing illumination beside the surface being observed.



• IP67 Camera Head with a Steel Shell

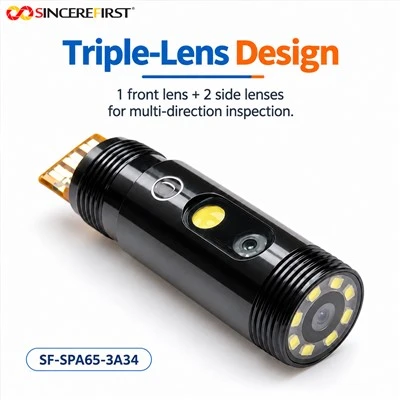

The protected 7.9mm integrated head brings the three lenses and their lighting into one assembly. IP67 protection applies to the camera head for dusty or wet observation locations.



• Defined Close-Focus Optics

The Fixed Focus lenses use a 5cm best-focus distance and D76° field of view. These provide a starting point for matching the head's position to the nearby inspection surfaces.

• Pipe and Channel Surface Comparison

Keep a forward and side image visible when a wall observation needs context from the route ahead. Select the two side views when the surrounding surfaces are the main comparison.



• Mechanical Assembly Inspection

Observe facing and side surfaces within a cavity to examine visible joints or assembly conditions. The available camera pairs let the instrument present the relevant two directions together.



• Close Cavity-Wall Examination

Use the side viewpoints to examine different areas around the camera head. Local LEDs support nearby surfaces, while the choice of camera pair follows the part of the cavity being inspected.

Observation optics

Select lens field of view and working distance around the forward and side inspection areas.

Lighting at each viewpoint

Match LED quantity, layout, brightness and dimming requirements to the surfaces seen by the three cameras.

Filter and illumination configuration

Select suitable filters and project illumination options, including IR LED or no-LED requirements where appropriate.

Shell and mounting

Adapt attachment details and mounting structure to the inspection instrument.

Cable and connection arrangement

Match cable routing, length and connectors to the equipment design.

Multi-view USB support

Provide SDK, firmware, driver and supported output configuration services around the selected host and viewing workflow.

Project services

Certification support, production supply coordination and warranty service support the agreed camera module configuration.

SincereFirst can help build the camera module configuration around the surfaces your instrument needs to compare. Optical selection, lighting, mechanical design and USB integration support connect the three-camera assembly to the finished inspection product.
