Name: China Low Cost 48MP Sony Sensor IMX582 Autofocus MIPI Camera Module Suppliers Factory - Sincere Information Technology
Brand: SincereFirst
SKU: 286412990

Send Inquiry

Download

Product Introduction

Introduction

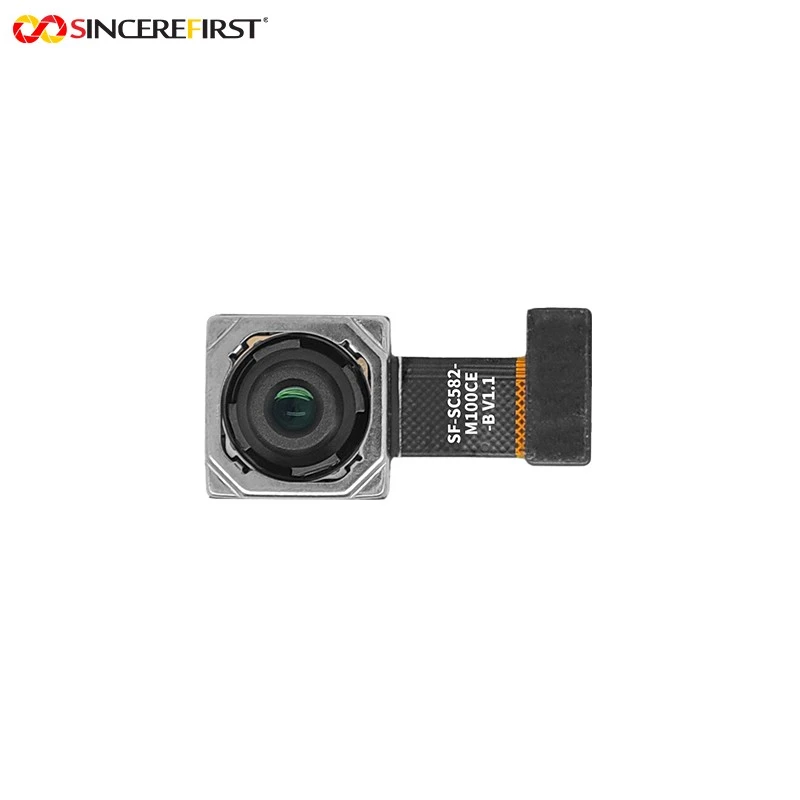

This low cost 48MP Sony sensor IMX582 autofocus MIPI camera module is developed based on the Sony IMX582 CMOS image sensor. Through strategic function optimization, it retains a flagship-level imaging foundation while achieving notable cost advantages, making it an ideal option for budget-sensitive applications that still demand high-definition image quality. Compared with the IMX586, it eliminates the need to bear the redundant R&D and manufacturing costs of high-end flagship sensors, while fully covering key performance parameters: 48MP ultra-high pixels paired with 8000x6000 resolution, supporting 4K@30FPS high-definition video output; the sensor size reaches 1/2 inch, with a pixel size of 0.8μm x 0.8μm, consistent with the core light-sensing specifications of the IMX586. It also features Quad Bayer 4-in-1 technology and HDR function, supports 10-bit RAW output format, and delivers color reproduction and dynamic range performance on par with its predecessor. Equipped with an autofocus system, a large aperture of F1.79±5%, a fixed focal length of 4.74mm, and a 79.4° field of view (FOV), it controls TV distortion within 1.5%, ensuring both imaging stability and picture precision. It adopts a high-speed MIPI CSI-2 transmission interface to guarantee data transmission efficiency, uses COB (Chip on Board) process and AA (Active Alignment) manufacturing process to improve production consistency, and has passed international certifications and inspections including CE, FCC, RoHS, and Reach, ensuring both quality and environmental standards are met.

Features

• Cost Optimization: It shares the 1/2-inch large sensor and 48MP pixel architecture of the IMX586, with no difference in light-sensing performance and daytime imaging quality. Through targeted reduction of edge functions such as ultra-high-speed video, it achieves significant cost reduction, making it suitable for design solutions with strict requirements for cost-effectiveness.
• Efficient Data Transmission: The integrated high-speed MIPI CSI-2 transmission interface is a mainstream standard for mobile devices and embedded systems. It offers high bandwidth, low power consumption, and strong anti-interference capabilities, which can meet the needs of stable and high-speed transmission of 4K images and high-frame-rate video data.
• High Yield & Reliability: The combination of COB process and AA manufacturing process aligns the lens and sensor with micrometer-level precision, ensuring high mass-production consistency and low rework rates. Coupled with a comprehensive international certification system, it shortens the customer's product integration cycle and reduces potential quality costs.
• Native Data Output: Supporting 10-bit RAW native output, it retains complete grayscale and color information. Despite being positioned as an economical solution, it still reserves data space for post-processing color grading and AI algorithm optimization in professional application scenarios, balancing cost and usability.

• Optical Performance: The F1.79 large aperture, combined with a 79.4° FOV and low-distortion design, covers common focal ranges from portraits to landscapes. The autofocus responds quickly, and it can meet multi-scenario shooting needs without additional investment, avoiding reliance on specially customized lenses.

Application of MIPI Camera Module

• Car DVRs: Its wide 79.4° FOV is sufficient to cover multiple lanes, and the low distortion (<1.5%) ensures true-to-life image reproduction. The high dynamic range feature can clearly record details in high-light-contrast moments such as tunnel entrances/exits and oncoming headlights at night.

• Civilian Security Surveillance: Suitable for scenarios requiring large-scale procurement such as home cameras, store monitoring, and community security. The wide FOV covers a larger monitoring range, low distortion ensures true image reproduction, cost advantages significantly reduce the total investment in batch deployment, and the HDR function solves the problem of strong light and backlighting in surveillance scenarios.

• Smart Terminals: The autofocus function can clearly capture facial details; the 4-in-1 technology and large aperture improve nighttime imaging effects. Its high cost-effectiveness meets the cost-control requirements for home scenarios, while international certifications ensure product compliance.

• Aerial Gimbals: The lightweight FPC structure and low-power design extend battery life; 4K video meets aerial photography needs; Quad Bayer technology improves image clarity on cloudy days or at dusk, providing a balance between image quality and cost for consumer drones.

• Portable Medical Imaging Devices: Applicable to equipment such as dermatoscopes and oral endoscopes. The 10-bit RAW output assists in lesion analysis, the 79.4° FOV covers the inspection area, and it meets the basic certification requirements for medical electronics, facilitating the popularization of imaging equipment in primary medical institutions.

Product Details

Product Name	HDR MIPI Camera Module
Pixel	48MP
Sensor	Sony IMX582 CMOS Sensor
Sensor Size	0.8μmx0.8μm
F.NO	1.79±5%
FOV	79.4°
Focus Type	Auto Focus
Focal Length	4.74mm
TV Distortion	＜1.5%
Output Format	10bit RAW

SINCEREFIRST camera module manufacturing enterprise integrates design, development, manufacturing and sales. We can supply ready made 0.1mp to 200mp FPC & USB camera module and diameter 0.9mm~10mm endoscope camera module. Our products are widely used in various fields, such as AIoT equipment, smart home, smart medical, intSSelligent transportation, automatic driving, intelligent security, Intelligent warehousing, scanning, robot, UAV, medical endoscope, industrial endoscope, computer, intelligent terminals etc.
If you are looking for camera module or camera sensor manufacturers and suppliers, please feel free to contact us for camera module price and more detailed introduction. SINCEREFIRST is a leading high-tech company specializing in integrated optical device manufacturers and optical imaging system solution providers. There are different types of camera modules and camera sensors for sale, and they also support customization to meet all your needs and solve your problems.
