OmniVision OV5640 CMOS 5MP VCM Auto Focus ESP32 Camera Module for Handheld Scanning and Smart Terminals
Guangzhou Sincere Information Technology Ltd. is one of the most professional OmniVision OV5640 CMOS 5MP VCM Auto Focus ESP32 Camera Module for Handheld Scanning and Smart Terminals manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.
Handheld scanners, smart terminals and portable imaging devices often move closer to or farther from the subject during use. SF4V564085AFBY-ESP addresses this variable-distance requirement with VCM Auto Focus, separating it from the Fixed Focus models in the same ESP32 series.
The module uses an OV5640 CMOS sensor with 2592×1944 native resolution and supports 1080P@30FPS. Its VCM focusing system covers 10 cm to Infinity with a D68.7° field of view, while the 24Pin DVP interface supports ESP32-compatible camera integration.
Features
• VCM Auto Focus for Changing Distances
The motorized lens can adjust focus across a 10 cm to Infinity range, making it better suited to variable working distances than the Fixed Focus models.
• 5MP OV5640 Image Detail
The 2592×1944 sensor supports higher-detail capture for scanning and smart-terminal imaging.
• D68.7° Controlled Field of View
The moderate field of view keeps the image more focused on the subject rather than maximizing surrounding scene coverage.
• 1080P@30FPS Support
The module supports 1080P video at 30FPS.
• 24Pin DVP ESP32 Integration
The module uses a 24Pin DVP interface for ESP32-compatible camera designs.
Application of DVP Camera Module
• Handheld Scanning
VCM Auto Focus helps portable scanners maintain focus as the user changes the distance between the camera and documents, labels or objects.
• Smart Recognition Terminals
The 5MP sensor and variable focusing range support terminals where users or objects are not always positioned at exactly the same distance.
• Portable Imaging Devices
Devices that move during use can benefit from Auto Focus when the subject distance changes across different tasks.
• ESP32 Vision Prototypes with Variable Working Distance
Developers evaluating Auto Focus behavior can use this model when Fixed Focus is too restrictive for the target imaging workflow.
Product Details
|
Product Name |
AF 1080P Image Sensor ESP32 DVP Camera Module |
|
Sensor |
OmniVision OV5640 CMOS CMOS Sensor |
|
Pixel |
5MP |
|
Resolution |
2592x1944 |
|
Frame Rate |
1080P@30FPS |
|
Sensor Size |
1/4 Inch |
|
Focus Type |
VCM Auto Focus |
|
Focusing Range |
10 cm-Infinity |
|
EFL |
0.95mm ±5% |
|
F.NO |
2.8±5% |
|
FOV |
D68.7° |
|
TV Distortion |
＜1.5% |
|
Platform |
ESP32 Compatible |
|
Interface |
24-pin DVP |
Customization Options
Focus-Control Evaluation
Auto Focus control should be evaluated together with the target ESP32 host, driver and application workflow.
Lens and Field-of-View Review
Optical coverage can be reviewed according to the scanning area and target subject size.

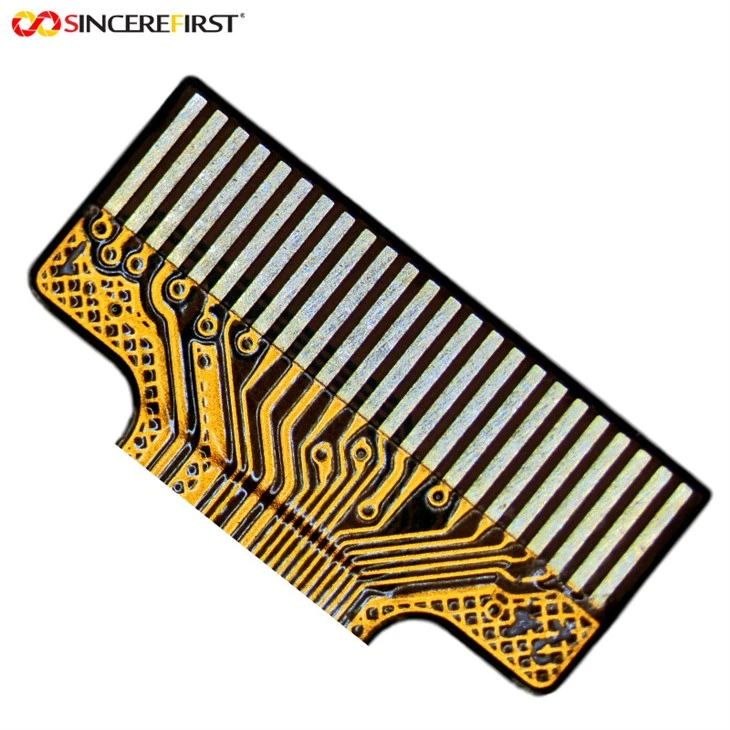

FPC and Connector Integration
FPC length, direction and electrical connection can be evaluated around the mainboard and enclosure.
Working-Distance Validation
Sample testing across the actual 10 cm-Infinity usage range is recommended to confirm focus behavior in the final device.
FAQ
Q: When should I choose the Auto Focus OV5640 model?
A: Choose it when the subject distance changes during use and a Fixed Focus lens would not reliably keep the target sharp.
Q: What focusing range does it support?
A: The VCM Auto Focus system supports a 10 cm to Infinity focusing range.
Q: What is the native resolution?
A: The module provides 5MP 2592×1944 native resolution.
Q: What is the field of view?
A: The lens provides a D68.7° diagonal field of view.
Q: Does it support 1080P@30FPS?
A: Yes. The module supports 1080P@30FPS.
Q: What interface does it use?
A: It uses a 24Pin DVP interface for ESP32-compatible integration.
Q: Is Auto Focus control guaranteed on every ESP32 board?
A: No universal guarantee should be assumed. The target ESP32 board, driver and focus-control workflow should be validated during integration.
Need Auto Focus for Changing Working Distances?
If your device needs to capture subjects at different distances, SincereFirst can help assess whether VCM Auto Focus is the better choice than a Fixed Focus camera. Talk with us about your imaging setup or request a sample for focus testing in your device.
