20MP Sony Stacked CMOS IMX376 Sensor MIPI FPC Camera Module



Introduction:

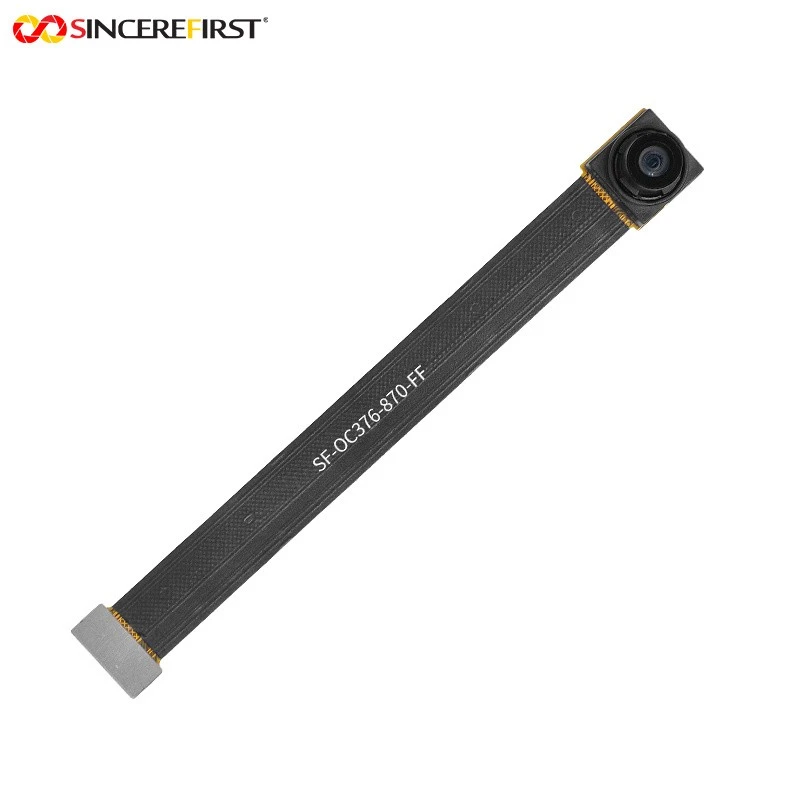

This is a 20MP Sony stacked CMOS IMX376 sensor MIPI FPC camera module, equipped with the IMX376 night vision CMOS image sensor developed based on Sony's Exmor RS CMOS technology architecture. The sensor measures 1/2.8 inch, features 20MP resolution with 5184×3888 high resolution, and achieves a pixel size of 1μm×1μm, supporting 4-pixel binning technology to significantly enhance imaging performance in low-light environments. The module adopts a strip-type FPC (Flexible Printed Circuit) structure, combined with a 117.3° ultra-wide field of view, enabling exceptional compatibility and layout flexibility within compact spaces. It features an MIPI CSI-2 interface for efficient data transmission, with a focal length of 2.35mm, aperture of F2.0±5%, TV distortion controlled at <9.6%, and a focus range covering 20cm to 0.6M (AT0.6M). The product is precisely manufactured through SMT process and AA (Active Alignment) process, ensuring high reliability and stability. It has passed multiple authoritative certifications including RoHS, CE, FCC, and REACH, and its low-power characteristics make it ideal for various mobile devices and embedded scenarios.



Features

•Advantages of Wide-Angle and Structural Compatibility: The 117.3° ultra-wide-angle optical design, paired with the strip-type FPC physical structure, is particularly suitable for terminals with strict thickness limitations, achieving a dual advantage of maximized field of view and mechanical compatibility.

• Stacked CMOS Technology Empowerment: Sony Exmor RS architecture balances 20MP high resolution, low power consumption, and superior image quality. It supports high-speed serial interfaces and 4-pixel binning, automatically merging 1μm pixels into 2μm super-pixels in low-light environments, increasing sensitivity by 4x.

• Precision Manufacturing & Quality Assurance: Adopting fully automated SMT mounting and AA active alignment processes, ensuring micron-level optical axis alignment precision between the lens and sensor, with optical distortion controlled under 9.6% and TV distortion <-1%, delivering excellent edge-to-edge image consistency.

• Global Certifications for Fast Market Entry: Compliant with EU RoHS, CE, US FCC, and REACH regulations, satisfying major market environmental and safety requirements, reducing customer certification cycles and accelerating commercialization.

• Flexible Integration Deployment: Strip-type FPC supports 180° bending to navigate around internal structural components, adapting to non-standard layouts; also compatible with mainstream platforms such as Qualcomm, MediaTek, and Rockchip for short driver debugging cycles.

• Smart Glasses: Such as AR assist glasses, leveraging the wide field of view and flexible mounting characteristics to achieve smooth scene capture and real-time video transmission.
• Body-Worn Law Enforcement Recorders: Relying on high-definition, low-noise, and low-power advantages to ensure clear recording during law enforcement operations, meeting the demands of extended working hours.
• Animal Tracking Cameras: Providing stable and clear image output, adapting to complex outdoor environments, accurately recording animal activity trails.
• Vending Machines: Such as snack and beverage vending machines, using the wide field of view to monitor the surrounding area of the machine, assisting in user behavior recognition and security monitoring.
• Portable Monitoring Devices: With the compatibility of strip-type FPC, it can be embedded into compact monitoring terminals to achieve comprehensive monitoring coverage.
