HM0360 VGA CMOS Sensor Camera Module
Guangzhou Sincere Information Technology Ltd. is one of the most professional hm0360 vga cmos sensor camera module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.
The camera module uses the Himax HM0360 sensor, which is an ultralow-power, Back Side Illuminated (BSI) CMOS Image Sensor.
It achieves superior low-light performance while consuming only 140µA in QVGA 2FPS and approximately 7mA in VGA 60 FPS readout mode.
The sensor features an advanced 3.6µ deep diode pixel and proprietary readout design.
It provides excellent performance for energy-efficient smart vision applications, such as object-specific classification, tracking, and identification
Features:
•Ultra Low Power, high sensitivity, low noise VGA sensor.
•Operates 7mA VGA 60 FPS down to 50µA in monitor mode.
•Automatic wake and sleep operation with programmable event interrupt to wake host processor.
•On-chip high precision oscillator, auto exposure/gain, ambient light sensor and zone detection.
•Metered exposure provides well-exposed first frame and after extended sleep (blanking) period.
•External frame synch and stereo camera support.
•Flexible binning, subsampling and region of interest.
•Embedded line provides metadata frame, AE statistics, zone trigger and other interrupt event information.
•On-chip high precision oscillator and LDO.
•1-lane MIPI CSI2 and 8-bit parallel/serial data format that supports 1-bit, 4-bit and 8-bit protocol.
•I2C 2-wrie serial interface supporting burst operation for fast register access.
•< 13 mm2 CSP sensor package option.
•High CRA for low profile module design.
Application of Camera Module:
•Tracking
•Identification
•Monitoring

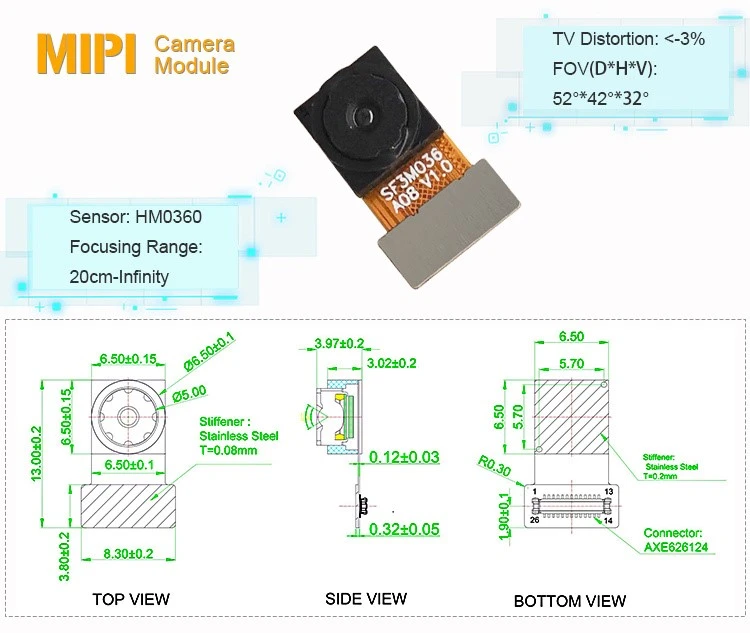

Product Details:
|
Chip Type |
HM0360 |
|
Focusing Range |
20cm~Infinity |
|
Lens Elements |
2P+IR 650nm |
|
Lens Size |
1/6inch |
|
View Angle |
D52°*H42°*V32° |
|
TV Distortion |
＜-3% |
|
EFL |
2.85mm |
|
DVDD |
1.2±0.1V |
|
AVDD |
2.8±0.1V |
|
DOVDD |
1.8±0.1V |
SINCEREFIRST camera module manufacturing enterprise integrates design, development, manufacturing and sales. We can supply ready made 0.3mp to 108mp FPC & USB camera module and diameter 0.9mm~8.0mm endoscope camera module. Our products are widely used in various fields, such as AIoT equipment, smart home, smart medical, intelligent transportation, automatic driving, intelligent security, Intelligent warehousing, scanning, robot, UAV, medical endoscope, industrial endoscope, computer, intelligent terminals etc.
If you are looking for camera module or camera sensor manufacturers and suppliers, please feel free to contact us for camera module price and more detailed introduction. SINCEREFIRST is a leading high-tech company specializing in integrated optical device manufacturers and optical imaging system solution providers. There are different types of camera modules and camera sensors for sale, and they also support customization to meet all your needs and solve your problems.
