13MP AR1335 CMOS Sensor Mipi 4K Camera Module

Guangzhou Sincere Information Technology Ltd. is one of the most professional 13mp ar1335 cmos sensor mipi 4k camera module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.



Introduction:

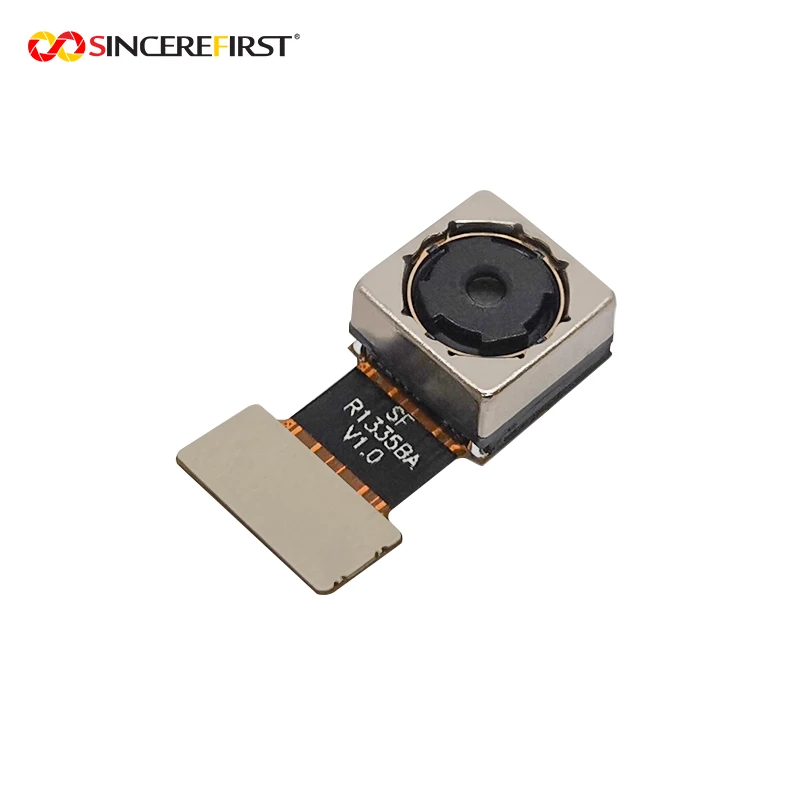

This is a 13MP AR1335 CMOS sensor Mipi 4K camera module, 1/3.2 inch CMOS active pixel digital mipi camera module with a pixel array of 4208H x 3120V. This camera module uses breakthrough 1.1m pixel technology to provide excellent low-light image quality through leading sensitivity, quantum efficiency and linear full well. This makes the image quality comparable to digital cameras. With a sensor architecture focused on low power consumption and a high chief ray angle (CRA) for low Z heights, the AR1335 camera is ideal for smartphone and other mobile device applications. It integrates sophisticated on-chip camera functions such as windowing, mirroring, column and row skipping modes, and snapshot mode. It is programmable through a simple two-wire serial interface. The camera module can generate full-resolution images at up to 30 frames per second (fps) and supports advanced video modes including 4K 30fps, 1080P 60fps, and 720P 120fps.



Features

•13 Mp CMOS sensor with advanced 1.1 μm pixel BSI technology

•Data interfaces: two-, three-, and four-lane serial mobile industry processor interface (MIPI)

•Bit-depth compression available forMIPI Interface: 10-8 and 10-6 to enable lower bandwidth receivers for full frame rate applications

•3D synchronization controls to enable stereo video capture

•6.8 kbits one-time programmable memory (OTPM) for storing shading correction coefficients and module information

•Programmable controls: gain, horizontal and vertical blanking, auto black level offset correction, frame size/rate, exposure, left-right and top-bottom image reversal, window size, and panning

•Two on-die phase-locked loop (PLL) oscillators for super low noise performance On-chip temperature sensor Bayer pattern horizontal down-size scaler

•Simple two-wire fast-mode+ serial interface

•Low dark current

•Interlaced multi-exposure readout enabling High Dynamic Range(HDR) still and video applications

•On-chip lens shading correction

•Support for external mechanical shutter

•Support for external LED or Xenon Flash

•Extended Flash duration up to start of frame readout

SINCEREFIRST camera module manufacturing enterprise integrates design, development, manufacturing and sales. We can supply ready made 0.3mp to 108mp FPC & USB camera module and diameter 0.9mm~8.0mm endoscope camera module. Our products are widely used in various fields, such as AIoT equipment, smart home, smart medical, intelligent transportation, automatic driving, intelligent security, Intelligent warehousing, scanning, robot, UAV, medical endoscope, industrial endoscope, computer, intelligent terminals etc.

If you are looking for camera module or camera sensor manufacturers and suppliers, please feel free to contact us for camera module price and more detailed introduction. SINCEREFIRST is a leading high-tech company specializing in integrated optical device manufacturers and optical imaging system solution providers. There are different types of camera modules and camera sensors for sale, and they also support customization to meet all your needs and solve your problems.
