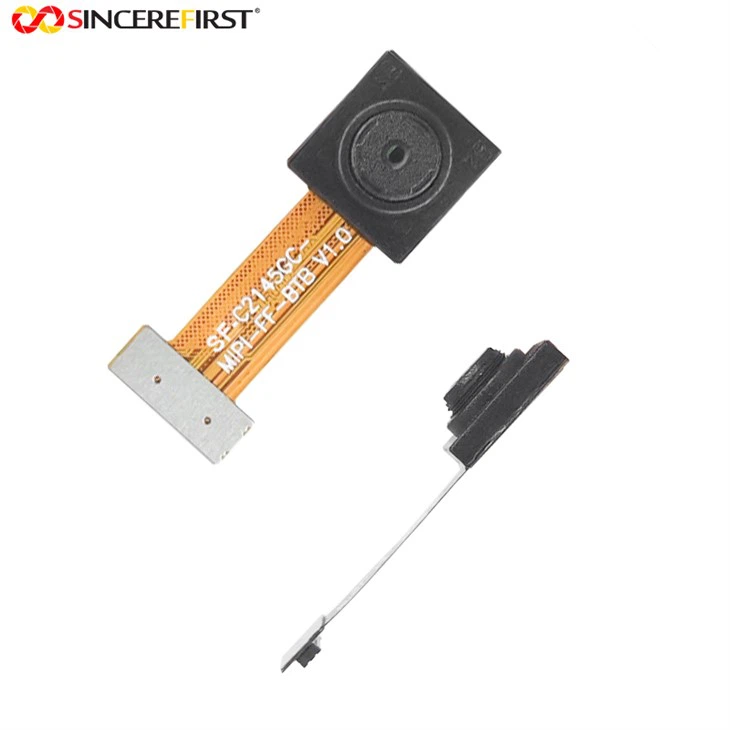

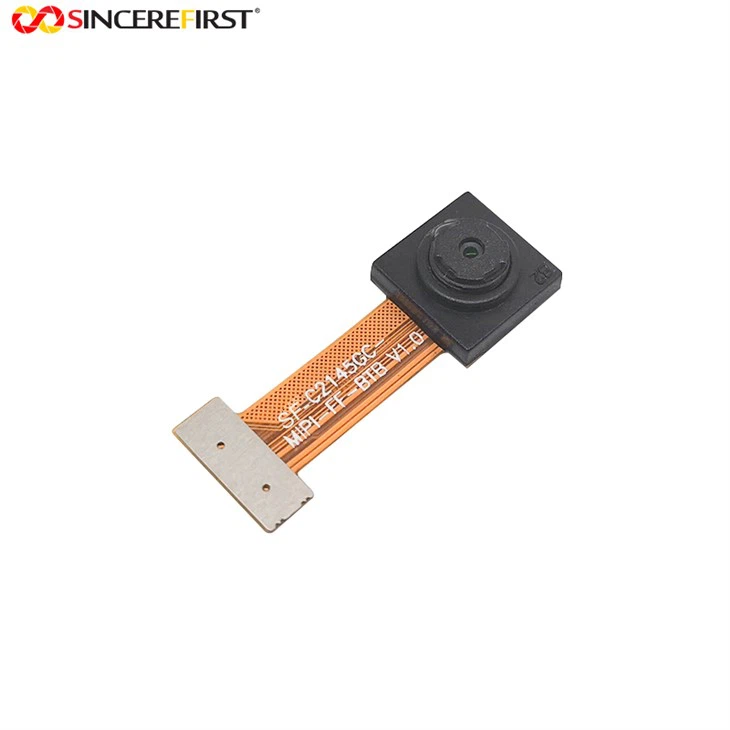

GC2145 MIPI Camera Module
Guangzhou Sincere Information Technology Ltd. is one of the most professional gc2145 mipi camera module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.
GC2145 camera module is a high quaity 2 Mega CMOS image sensor, for machine vision camera applications and digital camera products .GC2145 incorporates a 1616V x 1232H active pixel array, on-chip 10-bit ADC, and image signal processor. According to different light condi ions, The on-chip ISP provides avery smooth AE(Auto Exposure) and accurate AWB(Auto WhiteBalance) control.Besides, interpolation, de-noise, and color correction, gamma correction are supported, which can revert the real scene better. The sensor also provides various data formats, such as Bayer RGB, RGB 565,YCbCr4:2:2.All sensor parameters and features are controlled through a standard 2-wire serial interface. Inte mal master clock can be generated by on-chip Phase Lock Loop(PLL) oscillator.
Features:
•Standard optical format of 1/5 inch
•Various output formats: YCbCr4:2:2, RGB565, Raw Bayer
•Power supply requirement : AVDD: 2.7~3.0V, DVDD: 1.7~1.9V, IOVDD: 1.7~3.0V
•PLL support
•Windowing support
•MIPI interface support: Single lane/Double lane(CSI-2 V1.0/PHY-1.0)
•Horizontal /Vertical mirror
•Image processing module
•Package: CSP/COB/wafer
Application of Camera Module:
•Toys
•Digital Still Cameras And Camcorders
•Video Telephony And Conferencing Equipment
•Security Systems
•Industrial
•Environmental Systems
Product Details:
|
Chip Type |
GC2145 |
|
Focusing Range |
45cm |
|
Focal Length |
2.66mm |
|
F Number |
2.8 |
|
Fov(D) |
71° |
|
TV Distortion |
＜-1% |
|
Connector |
AXE630124 |
|
Output Format |
RAW 10 bit or YUV 422 |
|
Differental Signal Impendence |
100±10 ohms |
|
Focus Type |
Fixed Focus |
SINCEREFIRST camera module manufacturing enterprise integrates design, development, manufacturing and sales. We can supply ready made 0.3mp to 108mp FPC & USB camera module and diameter 0.9mm~8.0mm endoscope camera module. Our products are widely used in various fields, such as AIoT equipment, smart home, smart medical, intelligent transportation, automatic driving, intelligent security, Intelligent warehousing, scanning, robot, UAV, medical endoscope, industrial endoscope, computer, intelligent terminals etc.
If you are looking for camera module or camera sensor manufacturers and suppliers, please feel free to contact us for camera module price and more detailed introduction. SINCEREFIRST is a leading high-tech company specializing in integrated optical device manufacturers and optical imaging system solution providers. There are different types of camera modules and camera sensors for sale, and they also support customization to meet all your needs and solve your problems.
