4K Night Vision OmniVision OV08D10 Image Sensor MIPI AI Camera Module

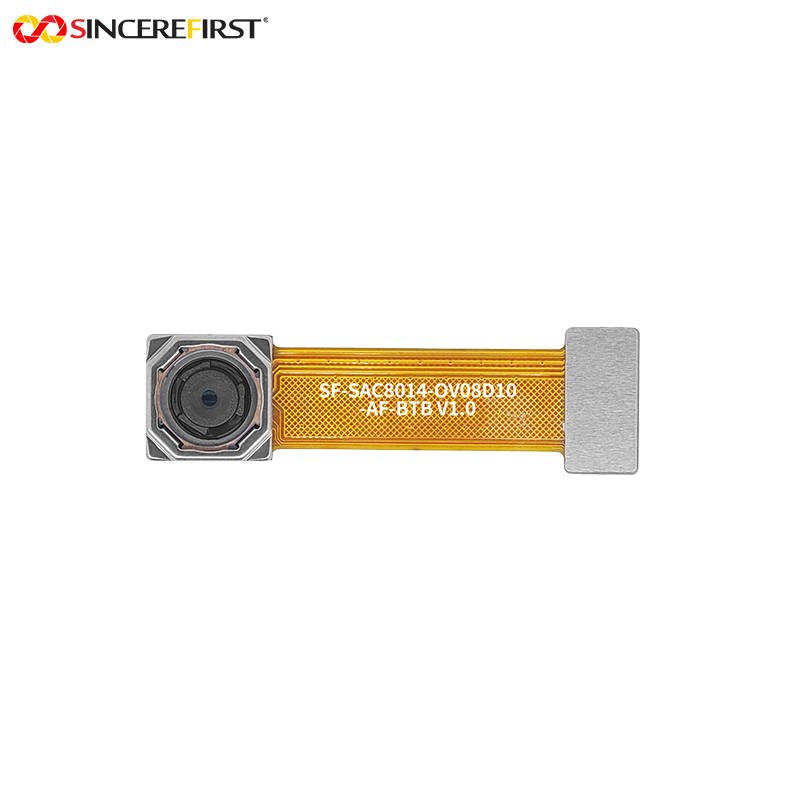

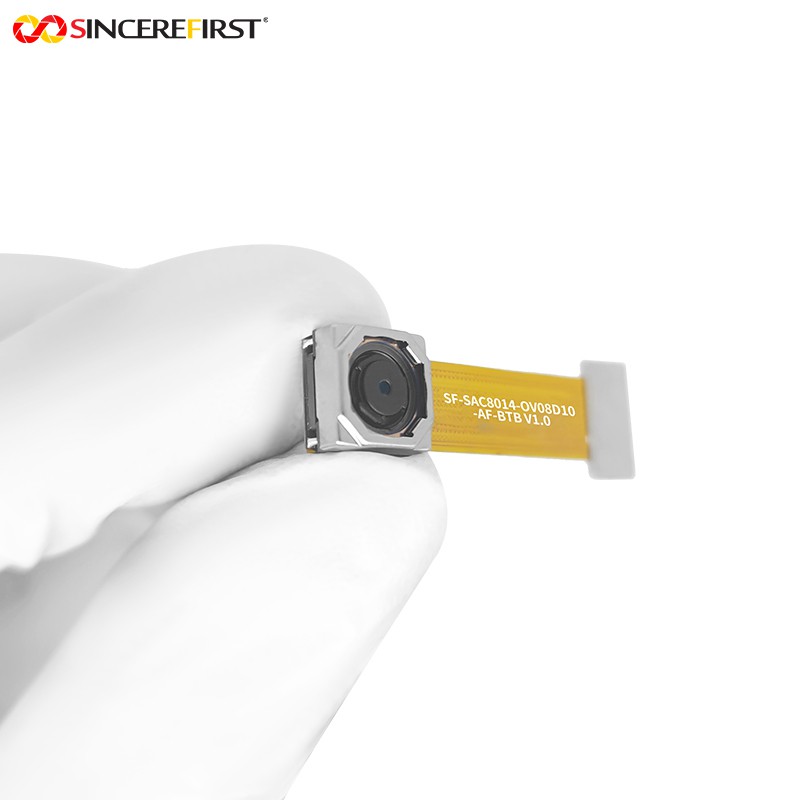

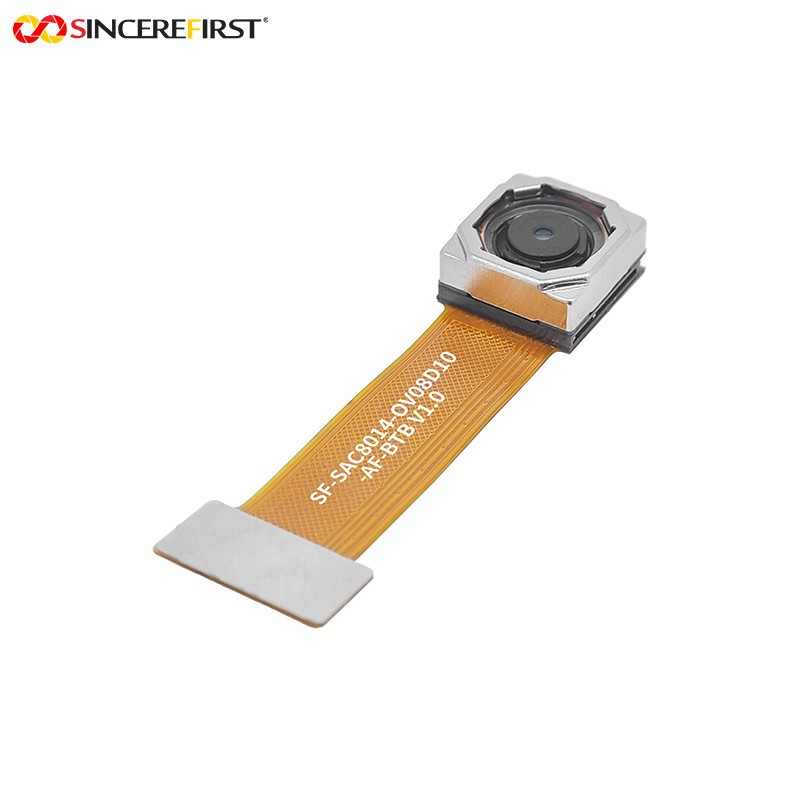

This is a 4K Night Vision OmniVision OV08D10 Image Sensor MIPI AI Camera Module, equipped with the OmniVision OV08D10 CMOS sensor. Its outstanding feature lies in the perfect combination of ultra-low distortion (TV distortion < -0.8%) and 4K high-definition image quality. While capturing 3840×2160 ultra-high-definition images, it ensures accurate geometric restoration, making it a high-performance optical product that balances image precision and scenario adaptability.​
The module has 8MP effective pixels and can stably output 4K@30FPS ultra-high-definition images. Combined with the 1/4-inch sensor size and 1.12μm×1.12μm pixel design, it achieves high pixel density within a limited target surface. Meanwhile, through PureCel® pixel isolation technology and hardware-level HDR function, it significantly improves the image purity and light-dark detail restoration capability in low-light environments. Its output format supports 10bit RAW, reserving sufficient space for post-color processing.​

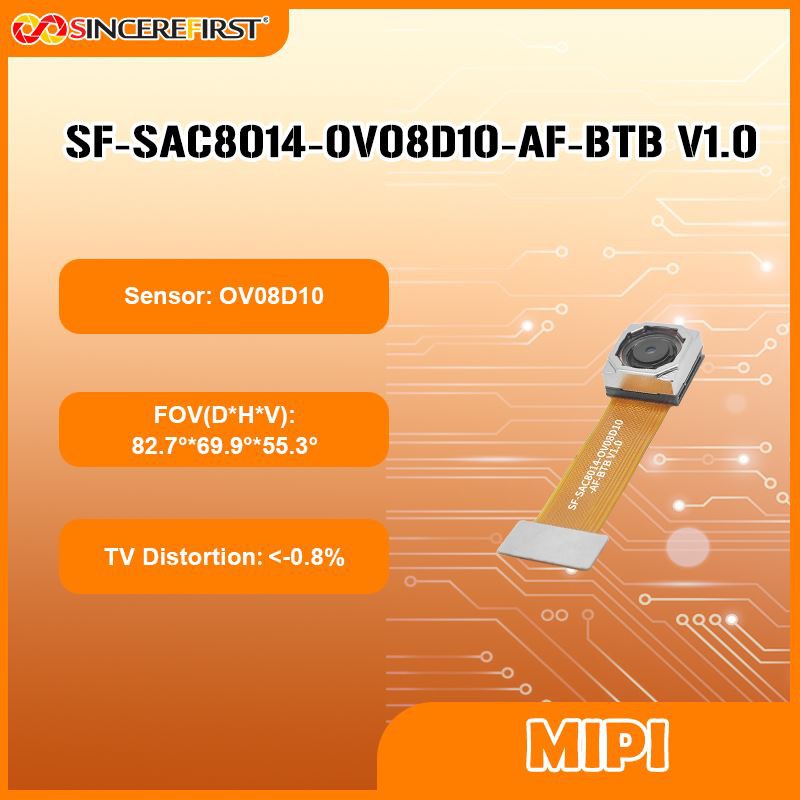

In terms of optical configuration, the module adopts an F2.4±5% aperture and a 2.57mm focal length lens, with a depth of field ranging from 10cm to Infinity. It can not only meet the needs of close-range focusing but also adapt to long-distance shooting scenarios; the field of view adopts a large field-of-view design of D82.7°×H69.9°×V55.3°. The module supports auto-focus technology to quickly lock onto the shooting subject, and uses the MIPI CSI-2 high-speed interface to ensure efficient and stable transmission of 4K image data.​
In terms of production process, the module adopts COB technology and AA (Active Alignment) process, ensuring product consistency and structural compactness. It has also passed multiple international testing certifications such as CE, FCC, RoHS, and Reach.
