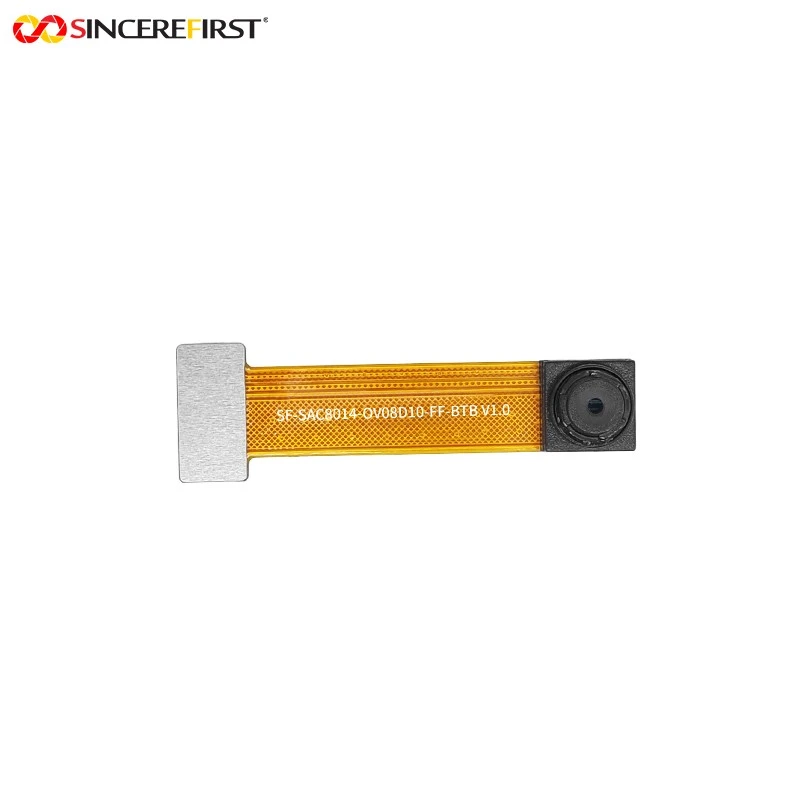

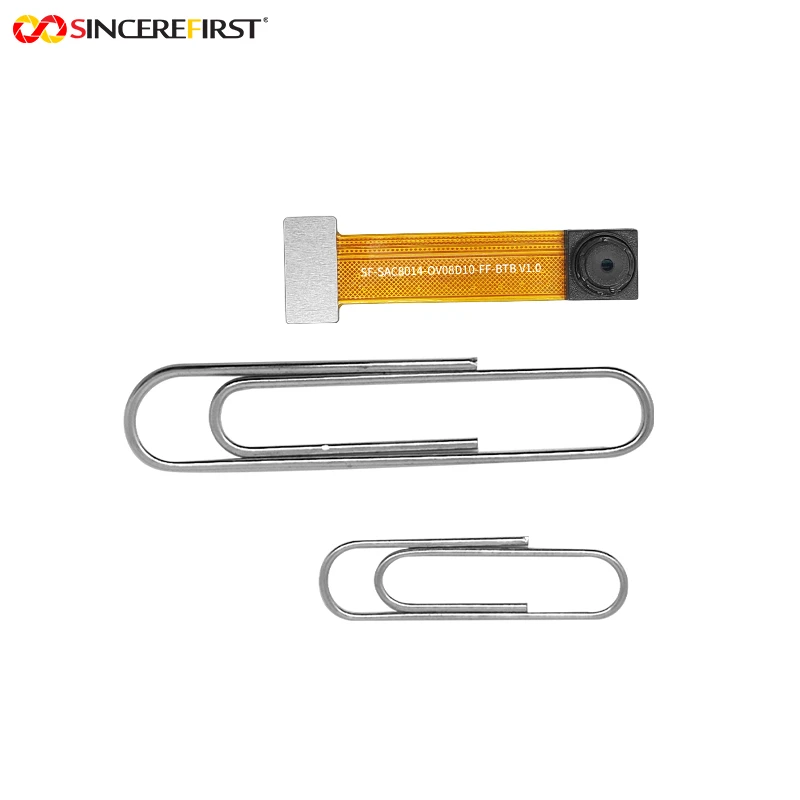

Best Embedded Vision 4K 8MP OV08D10 Sensor MIPI CSI Camera Module

This embedded vision camera module, featuring high integration, exceptional stability, and superior imaging performance tailored for embedded systems, serves as an optimal solution for embedded vision development. At its core is the OmniVision OV08D10 CMOS color image sensor, which offers 8MP resolution and reliably outputs high-definition 4K@30FPS video, meeting the essential demands of embedded vision for high-resolution, high-frame-rate image capture. With a compact 1/4-inch sensor size and 1.12µm×1.12µm pixel dimensions, the module achieves a space-efficient design while leveraging supported HDR functionality and PureCel® technology to effectively enhance image quality and dynamic range in low-light environments. Coupled with 10-bit RAW output, it provides richer color information and detailed data for embedded vision algorithm processing.

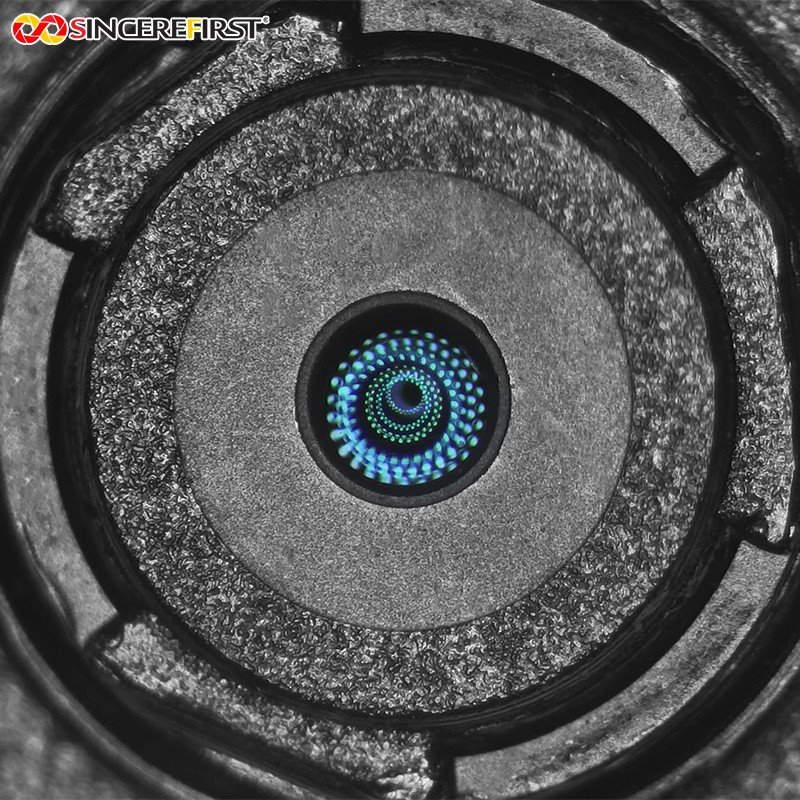

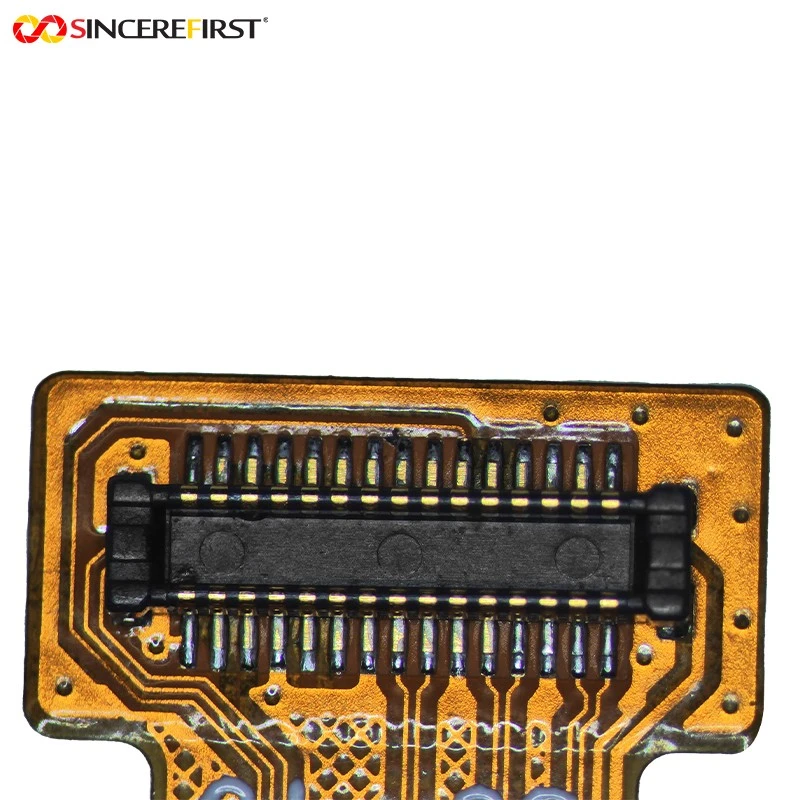

In terms of optical specifications, the module is equipped with an F2.4±5% aperture and a 2.57mm focal length, covering a depth of field from 65cm to infinity. It offers a wide field of view of D82.7°×H69.9°×V55.3°, enabling comprehensive capture of broad scenes, while TV distortion is kept below -0.8% to ensure imaging accuracy. For operation and interface design, it adopts a manual focus mode to accommodate precise focusing needs in various embedded development scenarios. The integrated MIPI CSI-2 high-speed interface supports rapid image data transmission, aligning with the real-time processing requirements of embedded systems. Manufacturing employs COB technology and AA (Active Alignment) processes, balancing structural compactness with assembly precision. The product has passed multiple international certifications, including CE, FCC, RoHS, and Reach, ensuring compliance and reliability in diverse embedded application environments.
