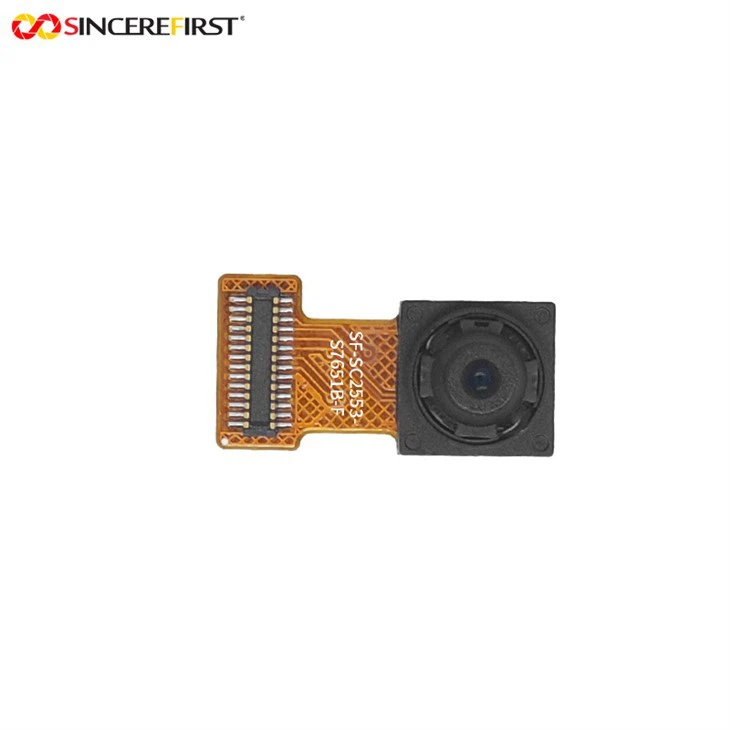

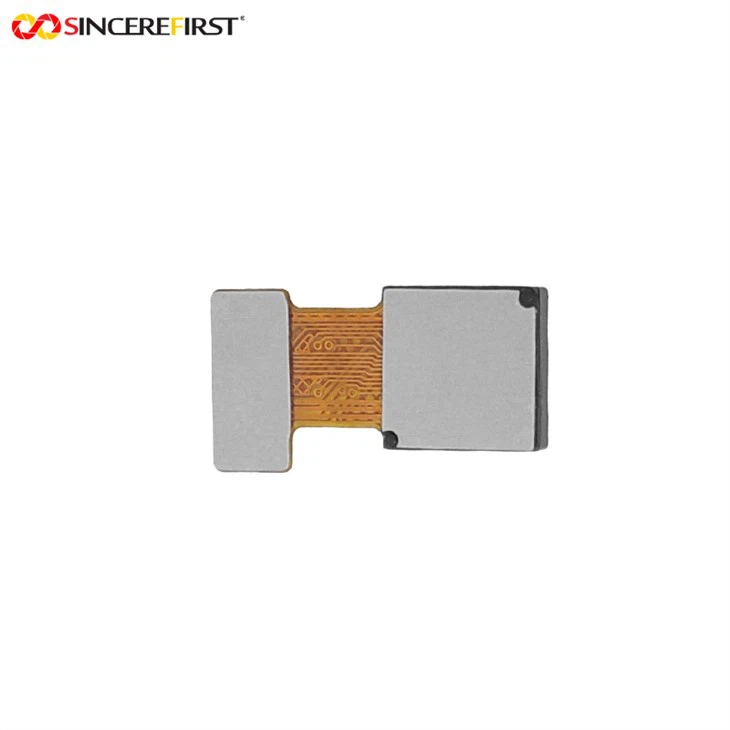

New High-Performance 5MP CMOS BF2553 Color Image Sensor Mini MIPI Camera Module

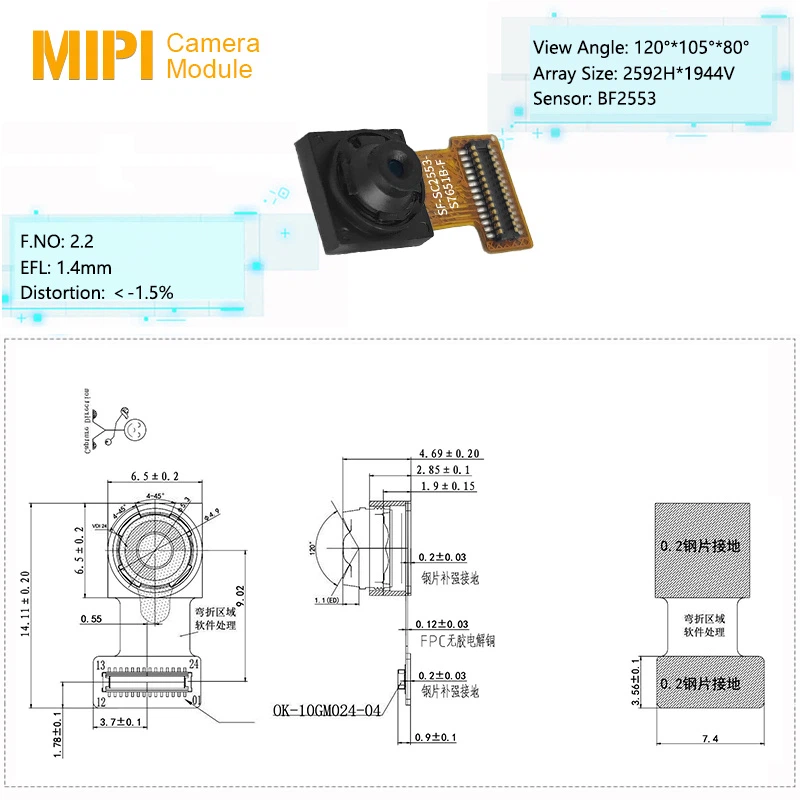

This is new high-performance 5MP CMOS BF2553 color image sensor mini MIPI camera module, featuring a 1/5-inch sensor size and a 1.12μm pixel process. It supports 5MP (2592x1944) high-pixel output and 1920x1080P high-definition video shooting. Its 1.4mm focal length lens, combined with an F2.2 large aperture design, features an ultra-wide-angle lens with view of DFOV120° (HFOV105° / VFOV80°), and achieves an ultra-low distortion performance of less than -1.5% through a 3P+IR optical structure, ensuring the clarity of the image edges. Data is transmitted through the MIPI interface and COB packaging technology is adopted. The maximum imaging circle diameter reaches 3.90mm, featuring both high image quality and compact design. It is suitable for scenarios such as smart home and security monitoring that have strict requirements for wide-angle shooting and miniaturization.

The BF2553 CMOS image sensor-based mini MIPI camera module delivers exceptional imaging performance with a compact 1/5-inch sensor size and 1.12μm pixel technology, enhancing light sensitivity and detail capture. It supports high-resolution 5MP (2592x1944) still images and 1920x1080P HD video output for sharp, detailed visuals across diverse conditions. Featuring a 1.4mm focal length lens paired with an F2.2 large aperture, it offers an ultra-wide DFOV of 120° (HFOV 105°/VFOV 80°), while its 3P+IR optical structure minimizes distortion to under -1.5% for crisp edge clarity. Key hardware innovations include COB packaging for an ultra-compact 3.90mm imaging circle and MIPI interface for efficient data transfer. Ideal for space-constrained scenarios like smart home security or robotic vacuum cleaners, its design ensures reliability in applications such as drone obstacle avoidance and automotive vision systems.

• Robotic Vacuum Cleaner: The HFOV105° horizontal field of view enhances coverage in corners, while the 1.12μm pixel process improves the accuracy of floor texture recognition in low-light environments.

• Drone Obstacle Avoidance: With a volume of only 1/5 inch, it reduces flight load. The ultra-wide-angle coverage detects low-altitude obstacles during takeoff and landing. High-speed MIPI transmission is compatible with real-time flight control response.

• Automotive Vision System: The ultra-wide-angle lens is suitable for wheel blind-spot cameras. A 1.4mm focal length clearly displays the details of curbs at a close distance of 30cm. Low distortion characteristics ensure precise overlay of the reverse trajectory line.

• IPanoramic Access Control System: Edge distortion control of less than -1.5% combined with an ultra-wide-angle lens fully covers the visitor's face and package area in a narrow doorway, avoiding the facial stretching distortion caused by traditional wide-angle lenses. The 3.9mm imaging circle and COB packaging enable covert installation, compatible with smart door lock and peephole designs.
