Wide Angle 48MP Sony IMX586 CMOS Industrial MIPI Camera Module
Guangzhou Sincere Information Technology Ltd. is one of the most professional wide angle 48mp sony imx586 cmos industrial mipi camera module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.

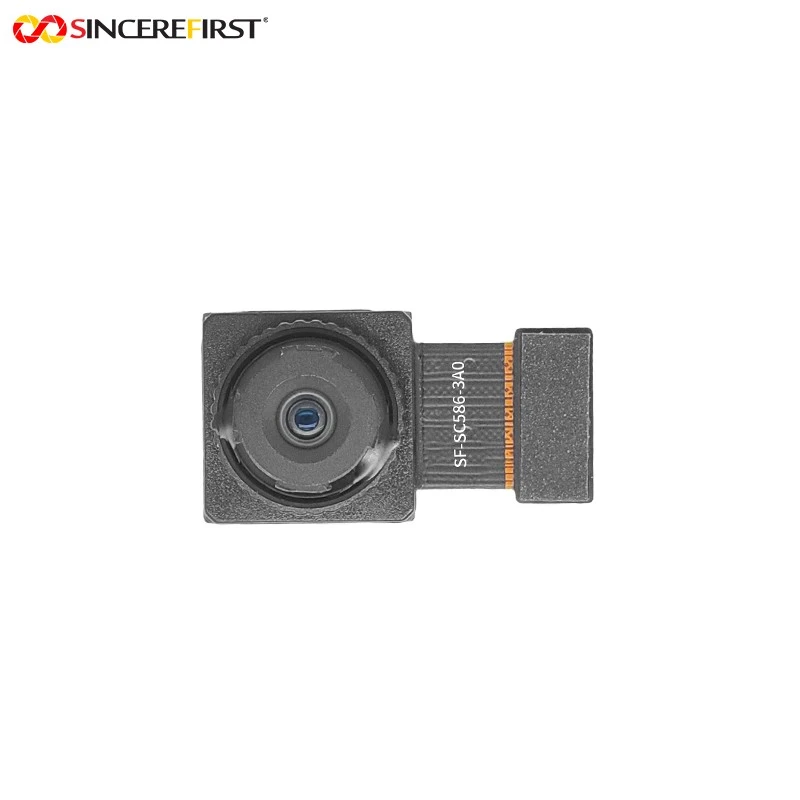

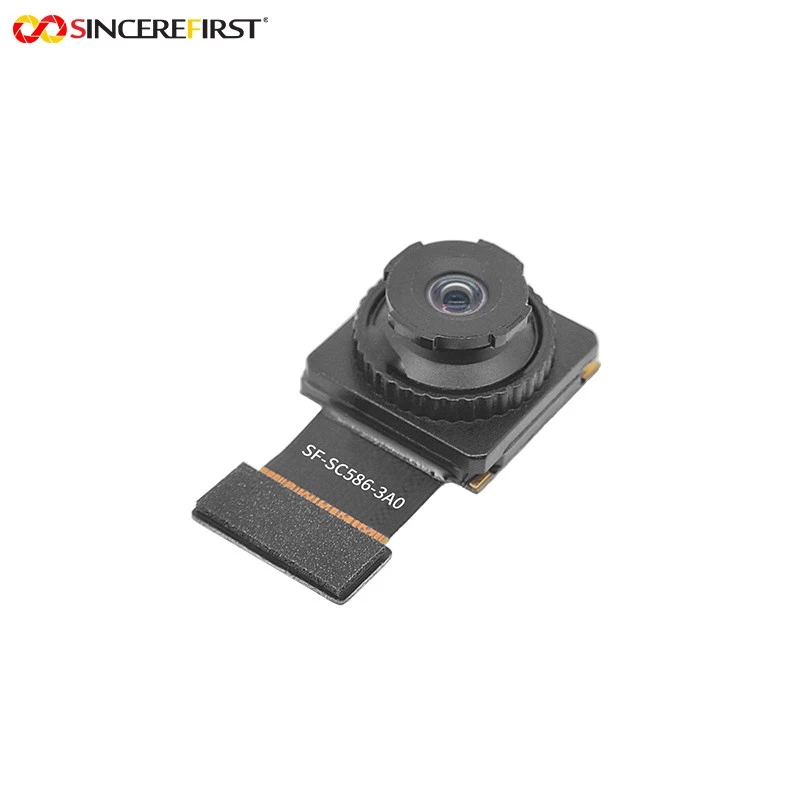

This is wide-angle 48MP Sony IMX586 CMOS industrial MIPI camera module, focusing on high-definition imaging and wide-area capture. At its core, it is equipped with the Sony IMX586 color image sensor, boasting 48MP high-pixel resolution and capable of stably outputting 4K@30FPS high-definition videos. The sensor size is 1/2 inch, with a single-pixel specification of 0.8μm x 0.8μm. It also supports Quad Bayer 4-pixel binning technology, which can merge pixels into 1.6μm large pixels to enhance light-sensing capability. In terms of functions, it integrates HDR and PDAF, enabling it to cope with complex light environments and meet fast focusing needs.

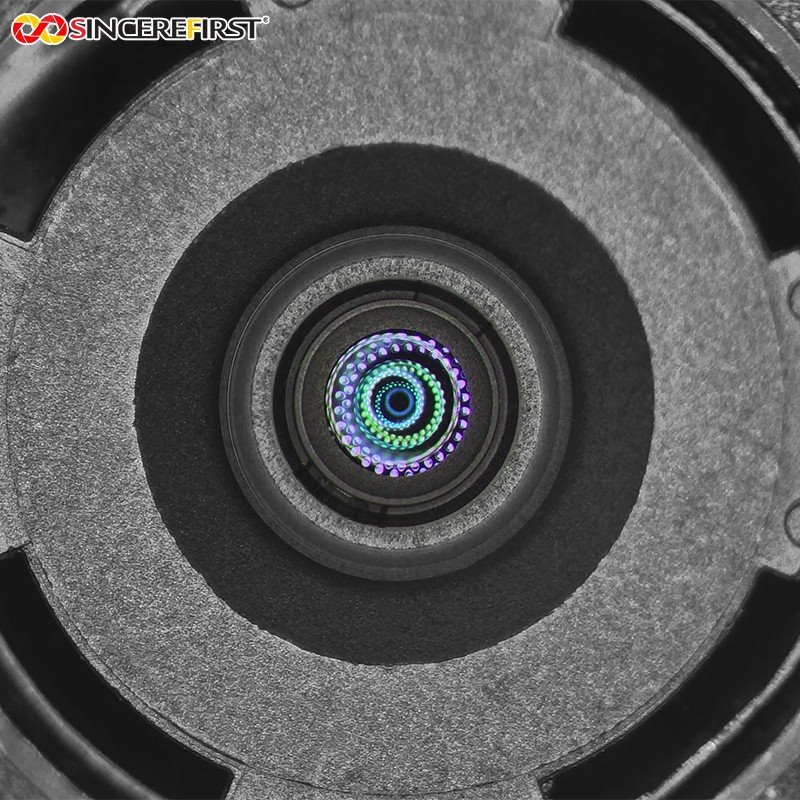

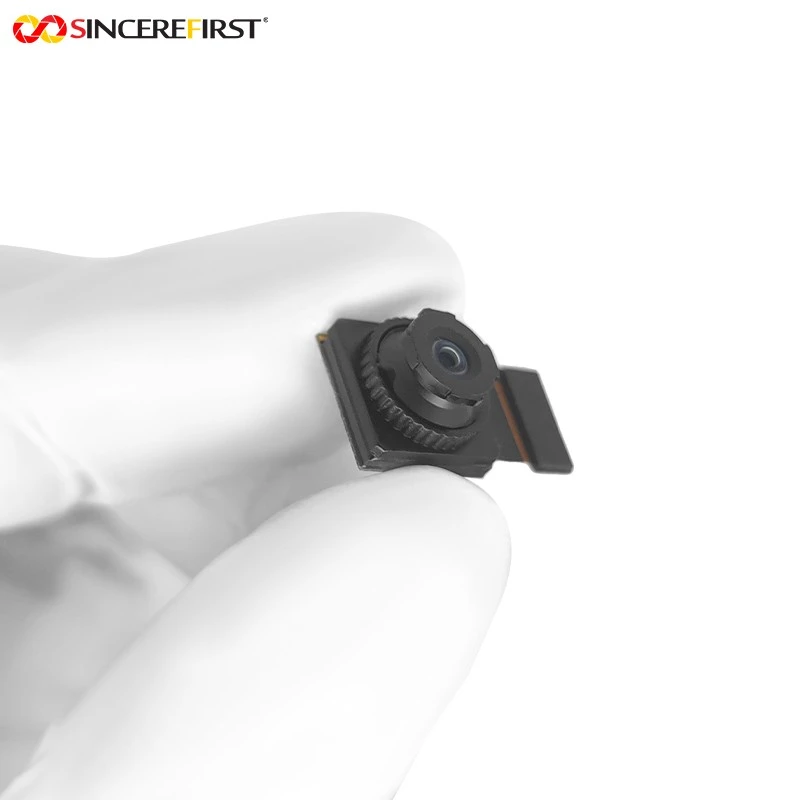

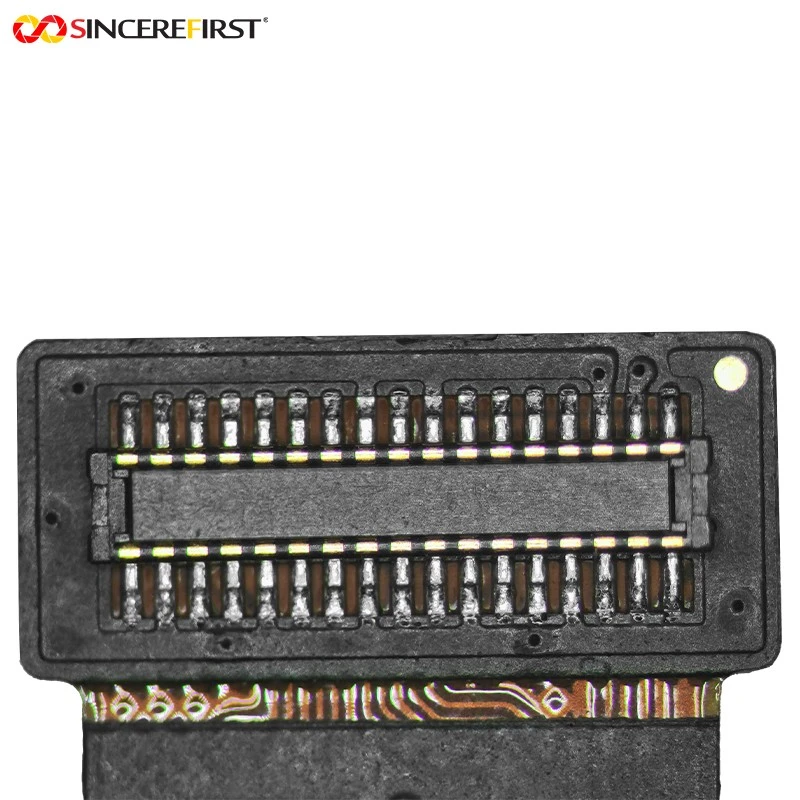

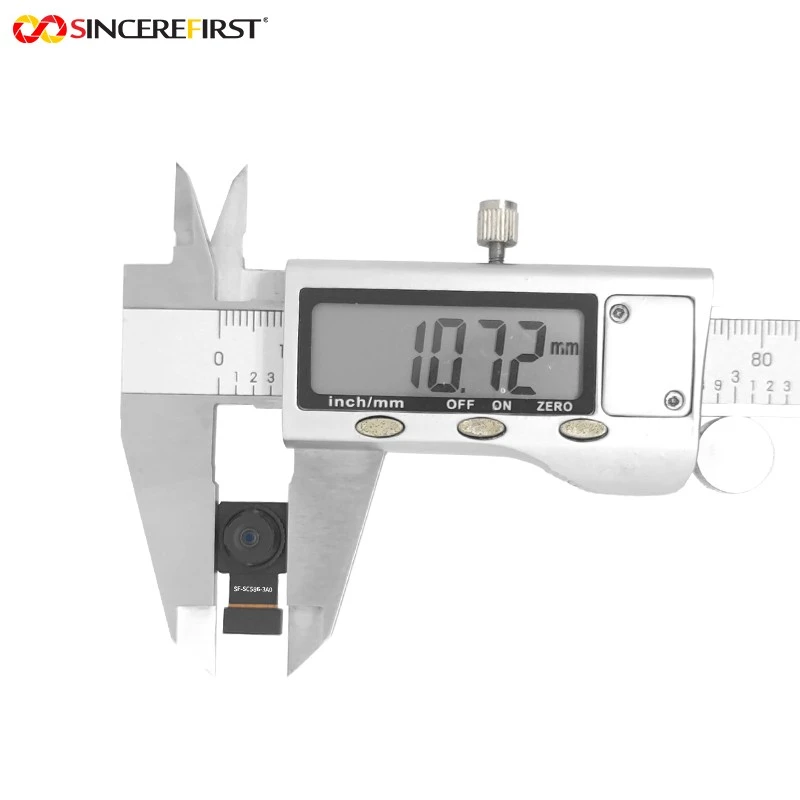

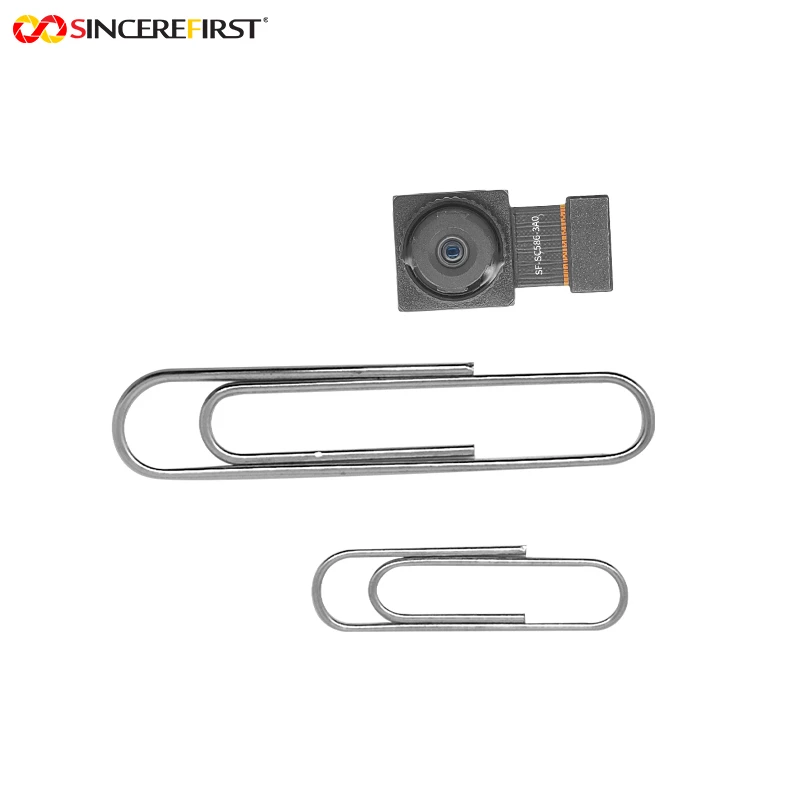

The lens adopts a 6-element (6P) optical structure design and integrates a 650nm infrared filter to reduce infrared interference and improve imaging quality. With an Effective Focal Length (EFL) of 3.574mm and an aperture of F2.8±5%, it offers an ultra-wide field of view (FOV) of D120°, H96°, and V73.8°, while controlling distortion to a reasonable range of -14.2%. The focusing method is manual, and data transmission is achieved via the MIPI CSI-2 high-speed interface, enabling delay-free real-time transmission of high-definition images. The module size is only 10.8mm x 10.8mm. In the production process, it integrates SMT (ROHS) process, COB technology, and Active Alignment (AA) process, complying with EU environmental regulations while balancing high integration and imaging accuracy.
• HD Night Imaging Details: The 48MP native pixels can output 8000×6000 resolution images, accurately reproducing fine features. Combined with Quad Bayer 4-pixel binning technology to significantly increase light input, and paired with an F2.8 aperture, it greatly reduces image noise in low-light environments such as nights and indoor spaces, achieving both high resolution and clear imaging.
• Full-Scene HD Imaging: The 6P optical lens structure reduces optical interference such as glare and ghosting compared to ordinary 4P/5P lenses, improving image sharpness and color reproduction. The HDR function handles high-contrast scenes, preserving image details and balancing image colors; paired with PDAF, it enhances focusing response speed, enabling fast locking of moving targets.
• Stable and Reliable Quality: The SMT (ROHS) process ensures compliance with EU regulations; the COB technology reduces module size and improves integration; and the AA process enhances the calibration accuracy between the lens and the sensor. This not only guarantees product quality but also ensures performance consistency across different production batches.
Application of MIPI Camera Module
• Automotive Vision Systems: The 120° wide FOV covers multiple lanes, and the high pixels capture road details. Combined with PDAF's fast focusing ability, it can accurately identify suddenly appearing pedestrians or vehicles, providing reliable visual input for Advanced Driver Assistance Systems (ADAS).
• AI Industrial Vision: The combination of high resolution and wide FOV allows covering large inspection areas in a single shot while clearly presenting fine defects of products. Paired with advanced AI algorithm recognition, it greatly improves inspection efficiency and accuracy, making it suitable for surface quality inspection of electronic products, textiles, etc.
• Outdoor Cameras: The 120° wide FOV reproduces an immersive visual experience, meeting users' needs for "recording large scenes"; the 4K@30FPS video output is suitable for sports enthusiasts to record activities such as skiing and cycling; the high stability of the SMT process enables it to cope with complex outdoor environments such as vibration, temperature, and humidity changes.
Product Details
|
Product Name |
IMX586 CSI Mini Camera Module |
|
Pixel |
48MP |
|
Sensor |
IMX586 |
|
Sensor Size |
0.8μm |
|
F.NO |
2.8±5% |
|
FOV |
D120°H96°V73.8° |
|
Interface |
MIPI CSI-2 |
|
TV Distortion |
-14.2% |
|
Features |
Fixed Focus |
|
Sensor Size |
1/2 Inch |
