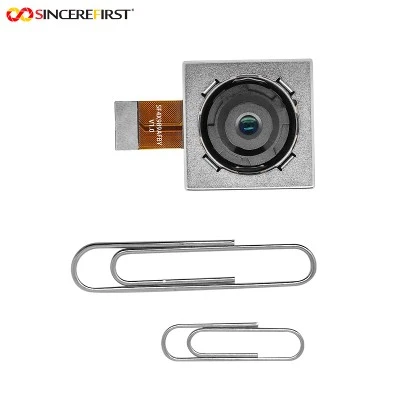

Close-Range Imaging Starts With Magnification
Microscopy and macro inspection are different from general camera applications. The goal is not to capture a wide scene, but to make a small target large, sharp and readable enough for the system to use.
For this reason, camera module selection should start with object-side field of view, working distance, magnification and the smallest feature that must be resolved. Megapixels are only meaningful after these conditions are defined.
Define the Object-Side FOV First
If the device needs to inspect a 10 mm-wide sample, define that 10 mm capture area first. The lens and sensor can then be selected so the sample fills the frame at the intended working distance.
This makes resolution decisions more practical. Instead of asking whether 8MP or 12MP is better, calculate how many pixels will cover the feature of interest after the target is framed correctly. A wider FOV may capture more area, but it also gives fewer pixels to each millimeter of the sample.
Working Distance Is Also a Mechanical Constraint
In close-range imaging, working distance affects more than focus. A lens placed very close to the target may leave little room for lighting, tools, probes or sample handling. A longer working distance creates more space, but it may require a larger optical system or reduce achievable magnification.
For industrial inspection or compact microscope products, the correct working distance often comes from the fixture, enclosure and lighting design, not only from the lens catalog.

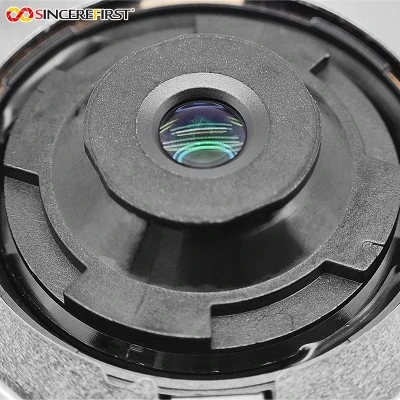

Match the Sensor, Lens and Focus Setup
A high-pixel sensor is useful only when the lens can deliver enough detail at the required magnification. If the optical image is soft, extra pixels may not add usable information. If the lens is sharp but the sensor has too few pixels across the target feature, fine details may still be missed.
Focus stability also matters. Check center and edge sharpness, depth of field, focus repeatability and mounting tolerance. In high-magnification systems, small mechanical shifts can become visible in the final image.
Illumination Decides What Becomes Visible
Lighting is not just an accessory in microscopy and macro inspection. Bright-field, dark-field, ring lighting, backlighting and directional side lighting can reveal different surface structures.
Scratches, solder joints, engraved marks, biological samples and transparent materials may each require a different illumination strategy. In some cases, changing the lighting angle can reveal a defect without changing the camera module at all.
Because close-range systems often have shallow depth of field, the lighting design must fit around the lens without disturbing the required working distance.
Choose the Interface Based on the System Architecture
USB is often practical for PC-connected digital microscopes because it simplifies image capture and software development. MIPI may be more suitable for compact embedded analyzers where the processor, display and camera are integrated inside one device.
The interface should follow the host platform, latency requirement, available space and development path. It should not be selected only by the optical magnification target.
Validate the Complete Optical Stack
Sample testing should use the real target or a representative specimen, not only a generic image chart. Evaluate sharpness, depth of field, illumination uniformity, thermal drift and focus repeatability under the actual working distance.
When discussing a microscope or macro inspection camera module with a supplier, provide the target feature size, object-side FOV, working distance, frame rate, illumination concept, host interface and available mechanical space. These details lead to a much better recommendation than asking for a general "microscope camera."
Example: Solder-Joint Inspection
A solder joint may look acceptable under diffuse top lighting, but cracks, lifted edges or surface defects may become clearer under directional side lighting.
In this type of close-range inspection, the camera still needs enough resolution and focus stability. However, the lighting setup often determines whether the defect is visible in the first place.
This is why optical design and lighting design should be tested together.
Focus Stacking Can Help Static Samples
When the sample is stationary and the depth of field is too shallow, focus stacking can combine images captured at different focus positions. This can extend the apparent sharp area without reducing the aperture too much.
However, it also adds capture time and requires repeatable focus control. It may work well for static microscopy tasks, but it is not suitable for moving targets or fast inspection lines.
FAQ
Does more megapixels always improve microscope detail?
No. More pixels only help when the lens, magnification, focus and illumination can support the required detail. Optical resolution may become the real limit.
Why is depth of field often shallow in close-range imaging?
Higher magnification reduces the range of distances that appear sharp. The system may need to balance brightness, resolution and depth of field.
Is USB preferred for digital microscopes?
USB is common for PC-connected digital microscopes because integration is straightforward. Embedded microscope products may choose MIPI or another interface depending on the processor, space and system design.
What information should be provided before requesting a microscope camera module?
Provide the target size, smallest feature to inspect, working distance, desired FOV, lighting method, frame rate, interface and available mechanical space.
