High-Definition Wide-Angle Visual Module: Empowering Telemedicine Carts for Life-Like Consultations.
Within modern healthcare systems, telemedicine carts have emerged as critical mobile terminals that break geographical barriers, optimize resource allocation, and enhance clinical collaboration efficiency. Beyond fundamental audio-visual communication functions, these carts shoulder complex missions including high-quality remote rounds, multidisciplinary consultations, patient family communication, and clinical teaching. The core challenge lies in how the front-end visual system can authentically, clearly, and distortion-free present the patient and bedside environment on the remote specialist's screen, ensuring diagnostic decisions are based on precise visual information. Our large-sensor wide-angle camera module, specifically developed for high-definition imaging applications, precisely meets the dual demands of clinical visualization and high-fidelity communication for telemedicine carts. Featuring high resolution, low-distortion wide-angle coverage, outstanding low-light performance, and a compact medical-grade design, it serves as the visual core for building next-generation immersive remote diagnosis and treatment platforms.
I. High Resolution & Large-Format Sensor: Meeting Dual Demands for Clinical Detail Observation and HD Communication
During remote consultations, specialists must not only assess the patient's overall condition but often examine localized signs such as skin rashes, wound healing progress, pupil reactions, or subtle facial expressions. This requires camera resolution and detail rendering capabilities approaching professional medical imaging standards, while also ensuring smooth HD video call performance.
This module employs a high-performance 1/2.0-inch large-format image sensor with an effective pixel count of up to 4608 (H) x 2592 (V). This ultra-high resolution delivers exceptionally rich detail. When the cart camera is aimed at a patient, remote specialists can clearly discern skin texture, minute hemorrhages, or suture integrity at surgical incisions, providing invaluable diagnostic evidence. Simultaneously, this high resolution provides ample headroom for digital zoom, enabling close-up examination of specific areas without compromising image quality. This achieves "one lens for multiple purposes," facilitating both panoramic communication and detailed inspection, significantly enhancing the depth and flexibility of remote diagnostics.
II. Low-Distortion Wide-Angle Lens and Intelligent Image Optimization: Ensuring Multi-Person Coverage and True Color Reproduction
Telemedicine consultations often involve multiple participants-including bedside medical staff, patients, and family members-within a single frame. Rounds may require capturing the patient's bed and surrounding equipment. This demands a camera with a sufficiently wide and accurate field of view to prevent severe distortion of peripheral subjects and objects. Additionally, complex lighting conditions in medical environments require the camera to intelligently adapt and faithfully reproduce tissue colors.
This module features a meticulously calibrated wide-angle lens that delivers an expansive field of view while minimizing optical distortion to an exceptionally low level (<-11.6%). This ensures that individuals at the edges of the frame maintain normal proportions and shapes during multi-person video conferences or environmental captures, eliminating "fish-eye" distortion for natural and comfortable visual communication. The module incorporates a powerful image signal processor supporting auto exposure, auto white balance, and wide dynamic range processing. Whether in unevenly lit hospital bedsides, backlit window areas, or environments with only indoor lighting, it automatically optimizes images. This ensures accurate and clear reproduction of patient skin tones, wound colors, and medical device markings, preventing misdiagnoses caused by color casts or overexposure/underexposure.
III. Superior Low-Light Sensitivity and Compact Design: Adapting to Diverse Medical Environments and Enabling Portable Integration
Medical carts operate across varied lighting conditions in wards, emergency rooms, ICUs, and beyond. During nighttime or dimly lit ward rounds, the use of strong flashes that could disturb patients is prohibited, demanding cameras with exceptional low-light imaging capabilities. Simultaneously, the compact cart structure imposes strict constraints on module size.

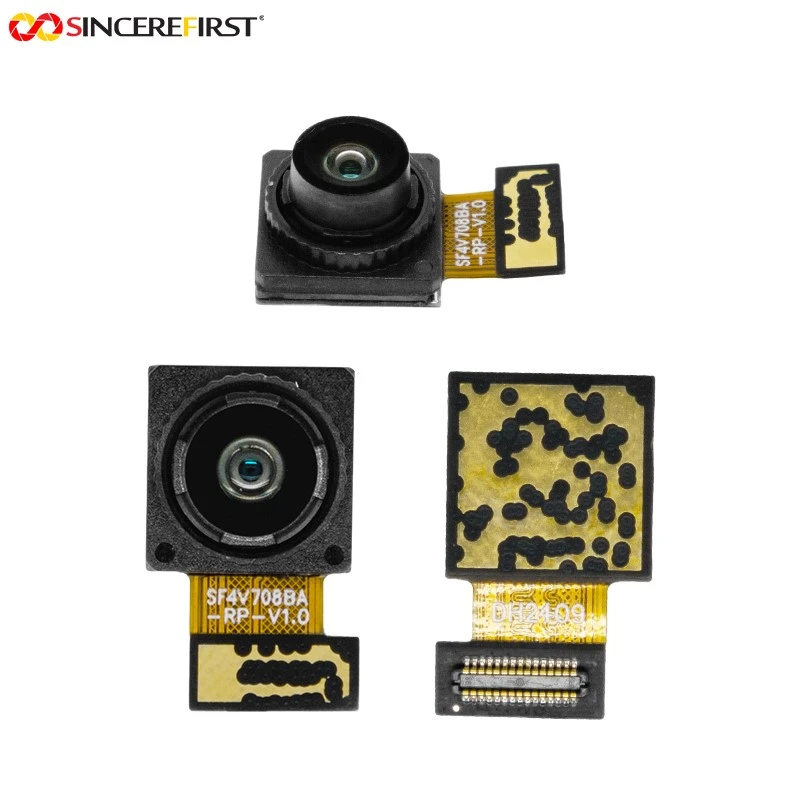

This module employs advanced back-illuminated pixel technology, delivering outstanding low-light sensitivity. It produces clear images with low noise and rich detail under standard indoor lighting or even darker conditions, ensuring uncompromised quality during night rounds or consultations in dim environments. Physically, the module features a highly compact structure, utilizing a precision 30-pin board-to-board connector for stable connection while maintaining a slim, lightweight profile. This design allows seamless integration above medical cart displays or within retractable cloud platforms without excessive space consumption, maintaining both aesthetics and professionalism while fully meeting medical equipment requirements for integration and reliability.
IV. Stable High-Speed Transmission and Medical Scenario Adaptability: Ensuring Fluid and Reliable Real-Time Interaction
Telemedicine demands real-time, synchronized audio-visual communication without lag. Any delay or interruption severely compromises communication effectiveness and the diagnostic experience. Additionally, the equipment must possess excellent electromagnetic compatibility to avoid interfering with surrounding medical instruments.
This module utilizes the MIPI CSI-2 high-speed serial interface, offering high data transmission bandwidth and strong anti-interference capabilities. It reliably delivers high-definition video streams to the cart's built-in control system, ensuring the fluidity and real-time nature of video conferences. Its design meets the stringent stability requirements of medical environments, adapting to complex electromagnetic conditions within hospitals for sustained continuous operation. This enables clinicians to engage in natural, lag-free face-to-face communication with patients and families. It even allows clear video guidance for bedside nurses performing simple physical examinations, elevating the presence and practicality of telemedicine to unprecedented levels.
In summary:
This high-resolution wide-angle camera module delivers professional-grade visual perception and communication capabilities for telemedicine carts. It achieves this through: - High resolution supporting detailed clinical examination - Low-distortion wide-angle lens enabling natural multi-person interaction - Superior low-light performance for round-the-clock operation - Compact, stable design meeting medical-grade integration standards Its profound capabilities enable telemedicine to transcend the image quality and functional limitations of traditional video calls, evolving into a comprehensive visual platform that supports precise visual diagnosis, efficient multidisciplinary collaboration, immersive doctor-patient communication, and clinical teaching. This significantly enhances the accessibility and efficiency of high-quality healthcare services, serving as a crucial technological foundation for advancing smart hospitals and tiered healthcare systems.
