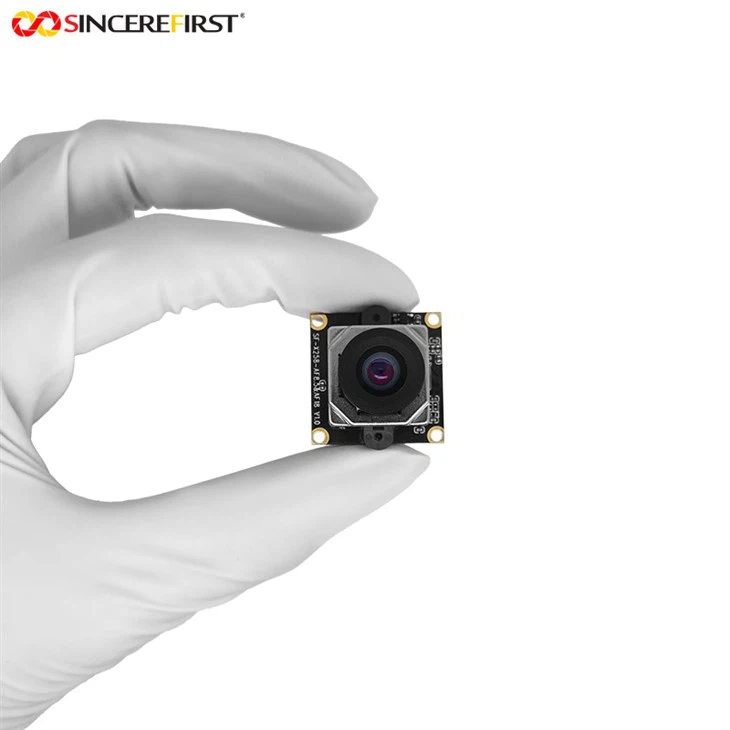

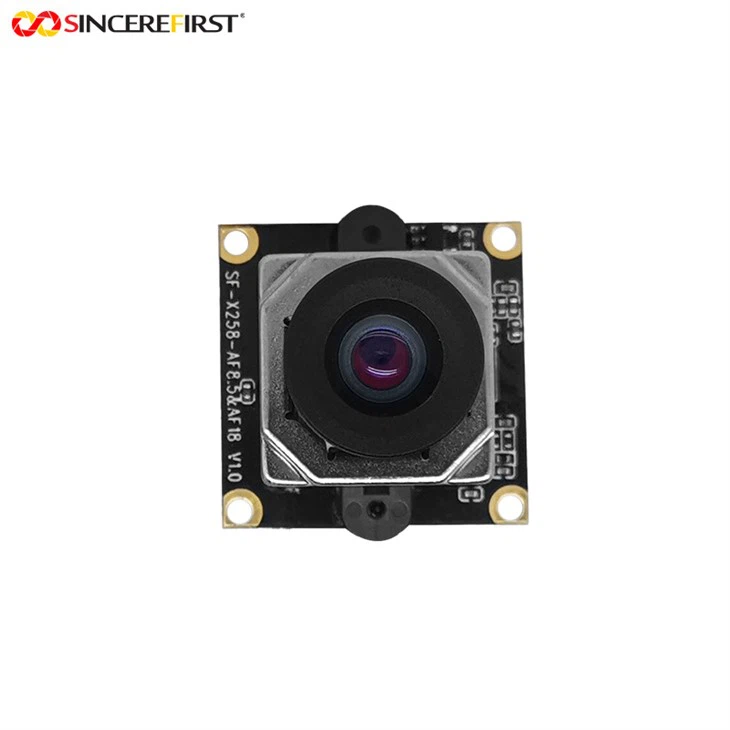

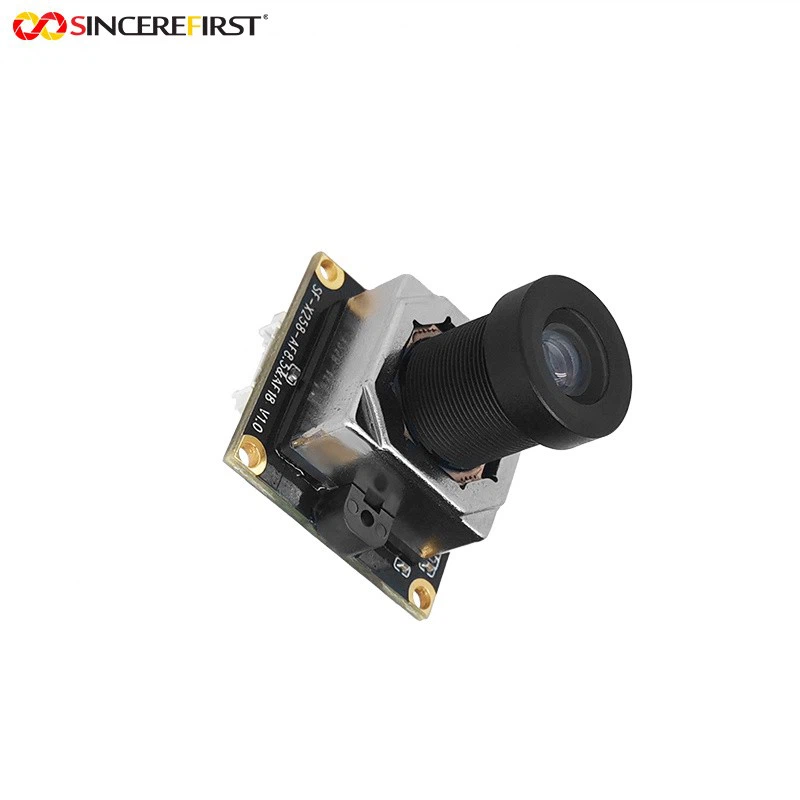

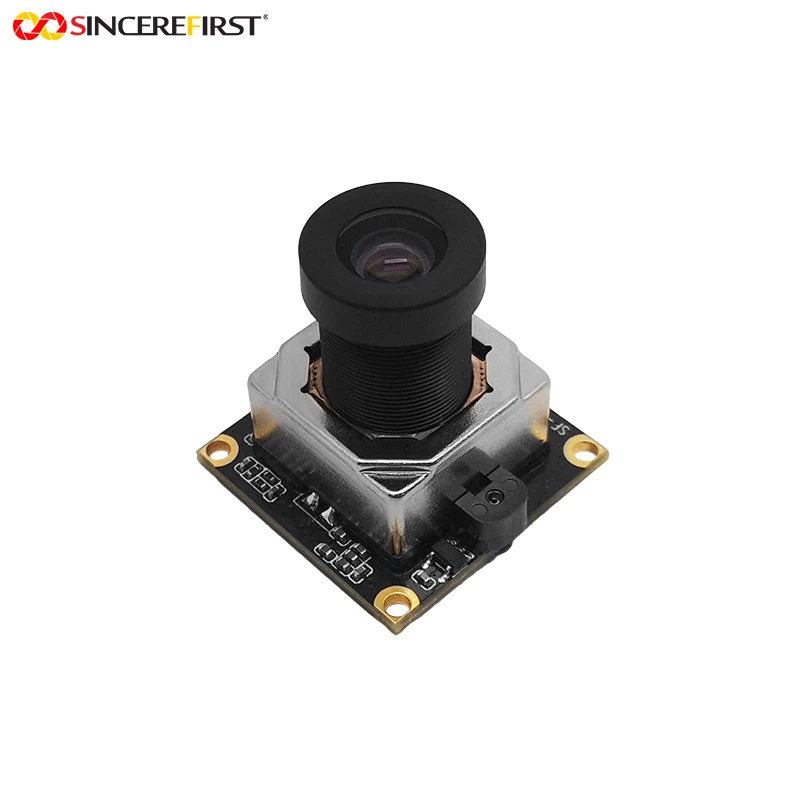

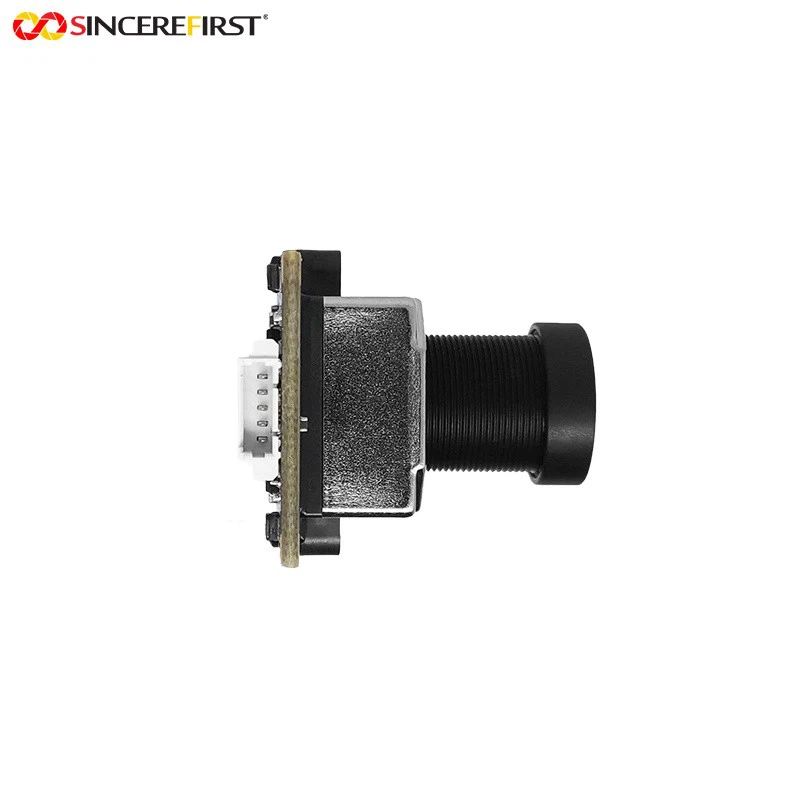

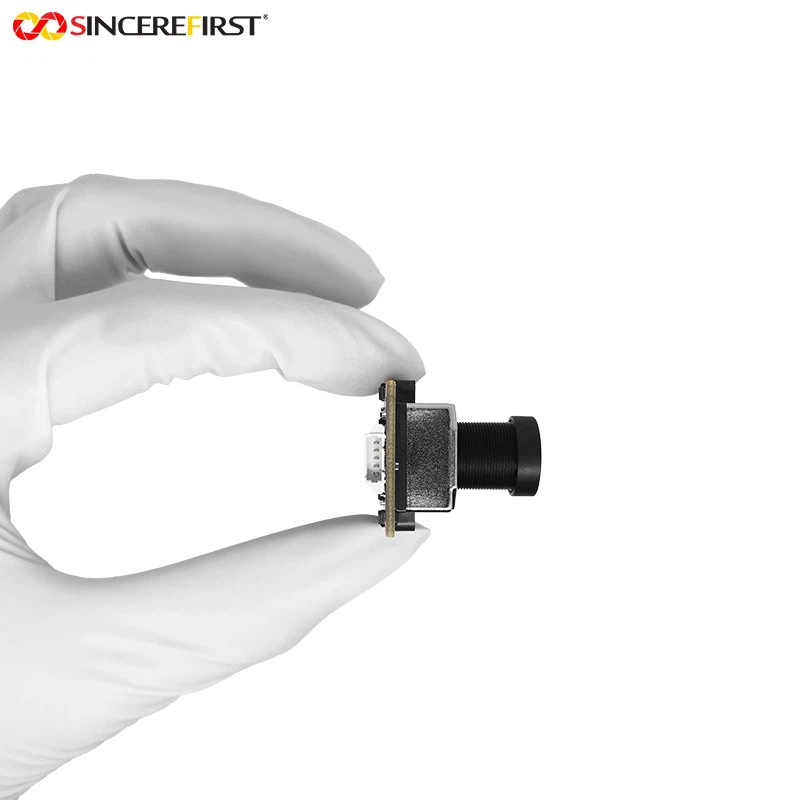

13MP IMX258 Autofocus Stabilization USB Camera Module



Introduction:

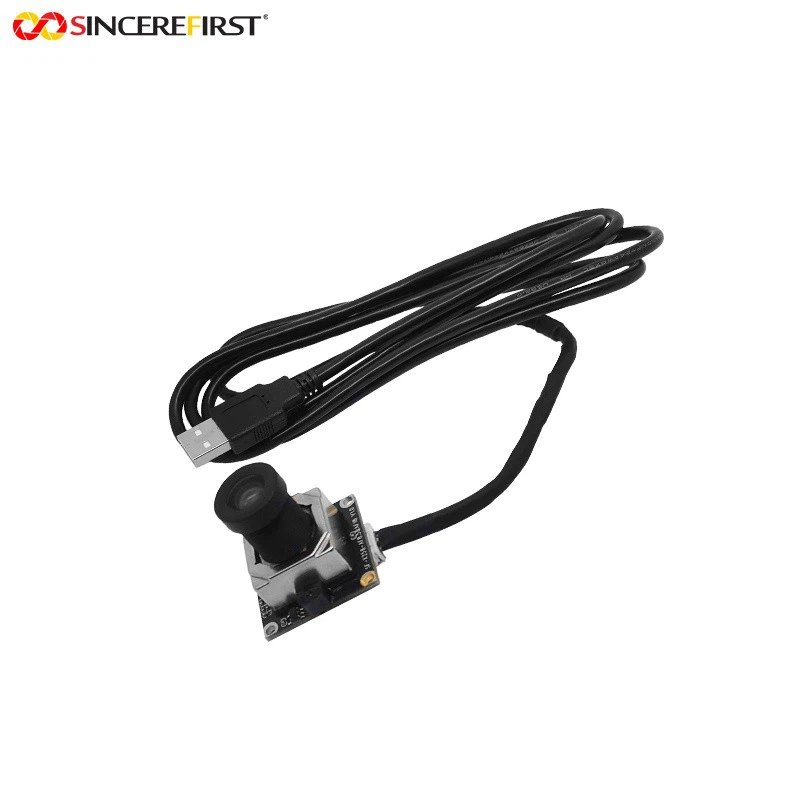

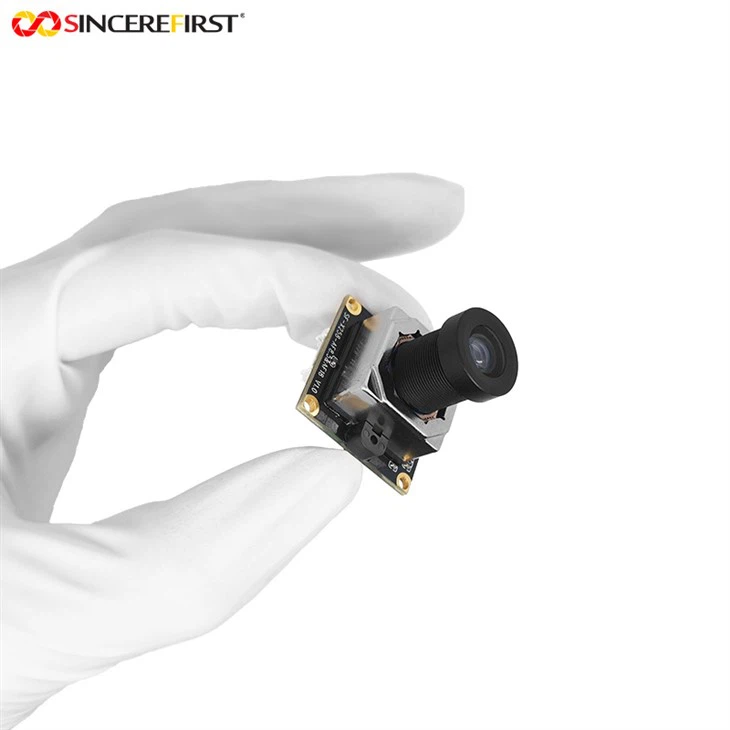

This is a 13MP 4K Exmor RS IMX258 Autofocus Stabilized USB Camera Module, an optical solution specifically optimized for high-speed dynamic scenes. It features a Sony Exmor RS back-illuminated image sensor with a 1/3.06-inch sensor size and an effective pixel count of 13 million, achieving a maximum resolution of 4224×3192 pixels. Leveraging the excellent light-gathering capability and high-speed signal processing performance of Exmor RS technology, combined with a precise autofocus (AF) system, it enables continuous sharp focus on moving targets. This significantly improves the success rate of image capture and tracking stability in mobile environments, making it widely suitable for robotic vision, drone payloads, and smart mobile devices. The module uses a USB 2.0 interface, supports UVC output format for plug-and-play operation without requiring additional driver installation, greatly simplifying the setup process.

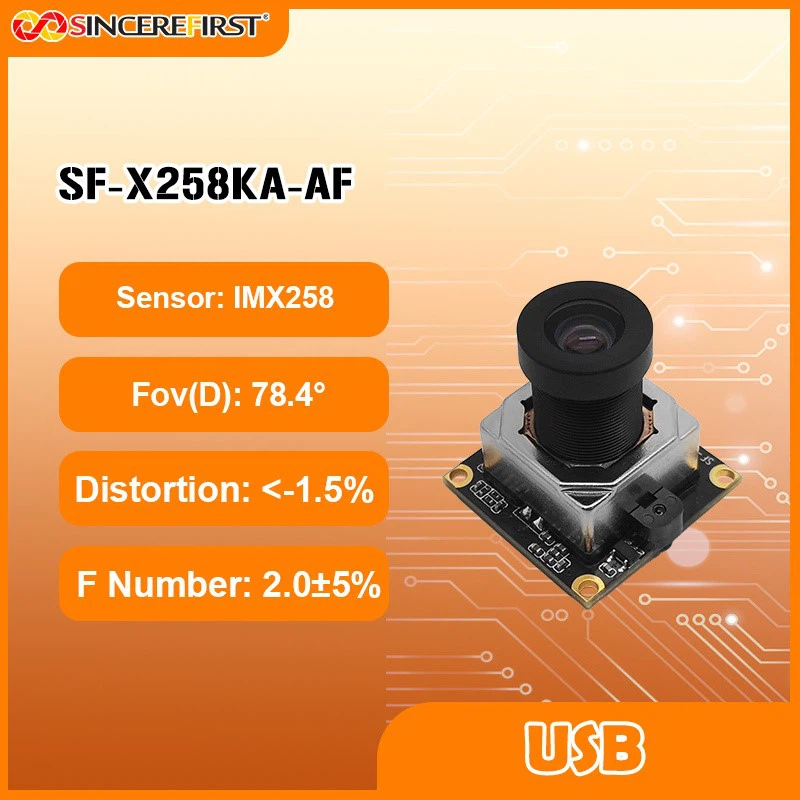

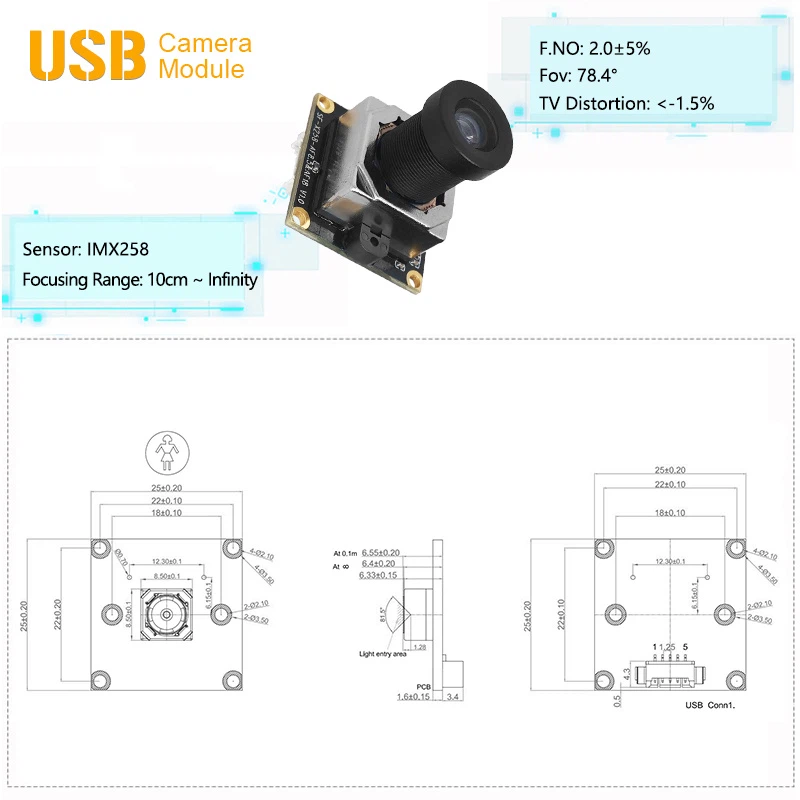

The module has a focal length of 3.57mm, an aperture of F2.0±5%, and a wide field of view of 78.4°. It controls TV distortion to < -1.5%, effectively ensuring high image fidelity. Its focus range covers from 10cm to infinity, meeting both close-range needs like document scanning and long-distance scene capture. Furthermore, the module supports multiple resolution and frame rate combinations, including 4K (4192×3104, 20 fps), 4K (3840×2160, 25 fps), and 1080P (1920×1080, 30 fps). It is fully compatible with the three major operating systems: Windows, Linux, and MacOS, facilitating integration with various terminal devices.



Features

1. 4K UHD Image Quality: The combination of 13MP resolution and Sony Exmor RS back-illuminated sensor significantly enhances light-gathering capacity, reduces noise in low-light environments, and delivers superior image clarity and color accuracy.
2. Enhanced Motion Tracking: The high-speed autofocus (AF) system responds rapidly, quickly locking onto targets within the 10cm-to-infinity range. Combined with Exmor RS technology's high-speed signal processing capabilities, it enables stable tracking of moving objects and effectively avoids motion blur.
3. Excellent Optical Design: The 78.4° wide field of view covers a broader shooting range, making it ideal for large-area capture in surveillance and conference venues. TV distortion is controlled at ＜-1.5%, ensuring captured images are distortion-free and guaranteeing the accuracy of image data for industrial inspection and measurement applications.

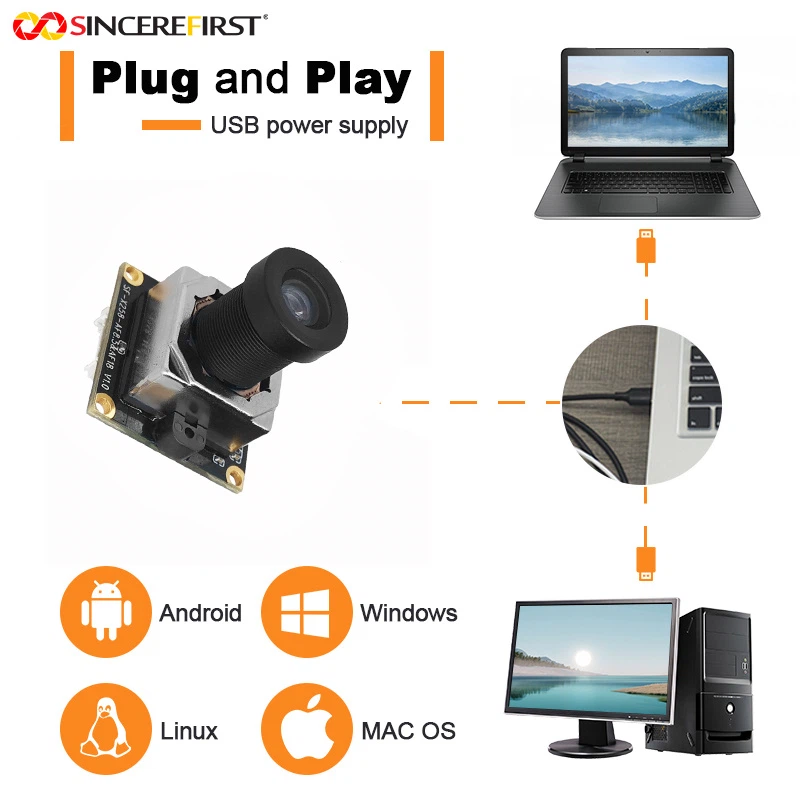

4. Plug-and-Play: Utilizing USB 2.0 interface and UVC standard output, the device is ready to use upon connection. Fully compatible with Windows, Linux, and MacOS operating systems, it seamlessly integrates with computers, embedded devices, industrial control hosts, and other terminals, offering exceptional versatility.
5. Multi-Scene Compatibility: The F2.0 large aperture enhances light-gathering capability, improving imaging performance in dim environments such as underground parking lots and workshops. The optimized 3.57mm focal length balances close-up and long-distance shooting needs, ensuring stable, high-quality output across various lighting conditions and scenarios.

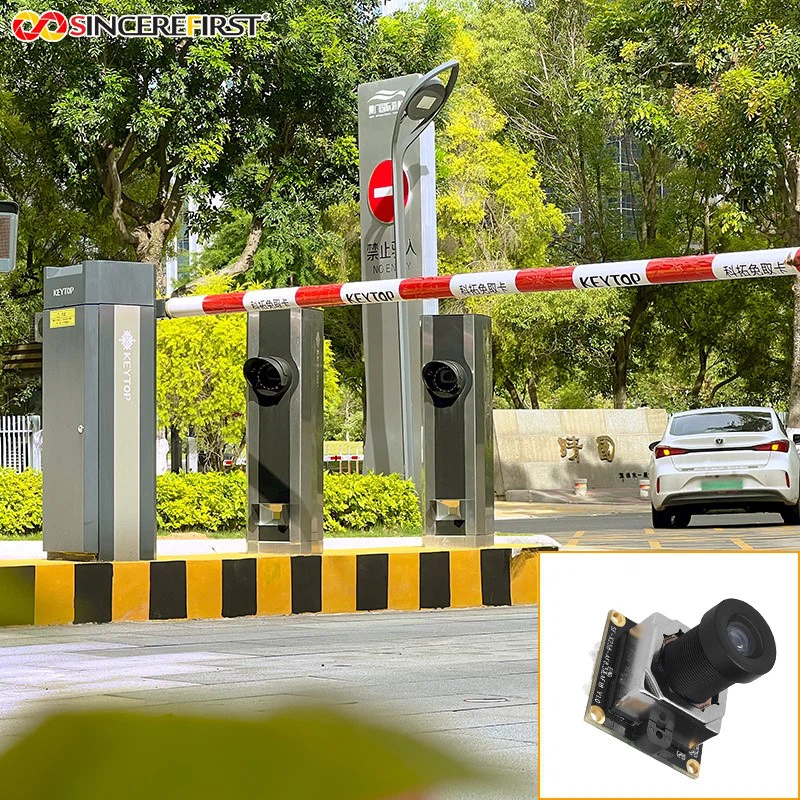

• Intelligent Surveillance Cameras: Captures high-definition details in surveillance scenes, assisting security systems in accurately identifying people and objects.
• Logistics Sorting Cameras: Installed on sorting machines or robotic arm vision terminals, it tracks package barcodes and feature points in real time at 60fps mode, with autofocus adapting to the reading distance for different package sizes, improving sorting accuracy and efficiency beyond 99.5%.
• HD Video Conferencing Terminals: Provides 4K clear images and a wide field of view, enhancing the presence and communication efficiency of remote meetings.
• Intelligent Robot Vision Modules: Fast autofocus and cross-platform compatibility provide clear visual support for robot navigation, target recognition, and obstacle avoidance.
• Embedded HD Imaging Devices: Adapts to smart terminals such as self-service kiosks and facial recognition all-in-one machines, providing reliable imaging solutions for identity verification and information collection.
