2MP Sony IMX662 STARVIS 2 Starlight USB2.0 IRS Camera Module
Guangzhou Sincere Information Technology Ltd. is one of the most professional 2mp sony imx662 starvis 2 starlight usb2.0 irs camera module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.

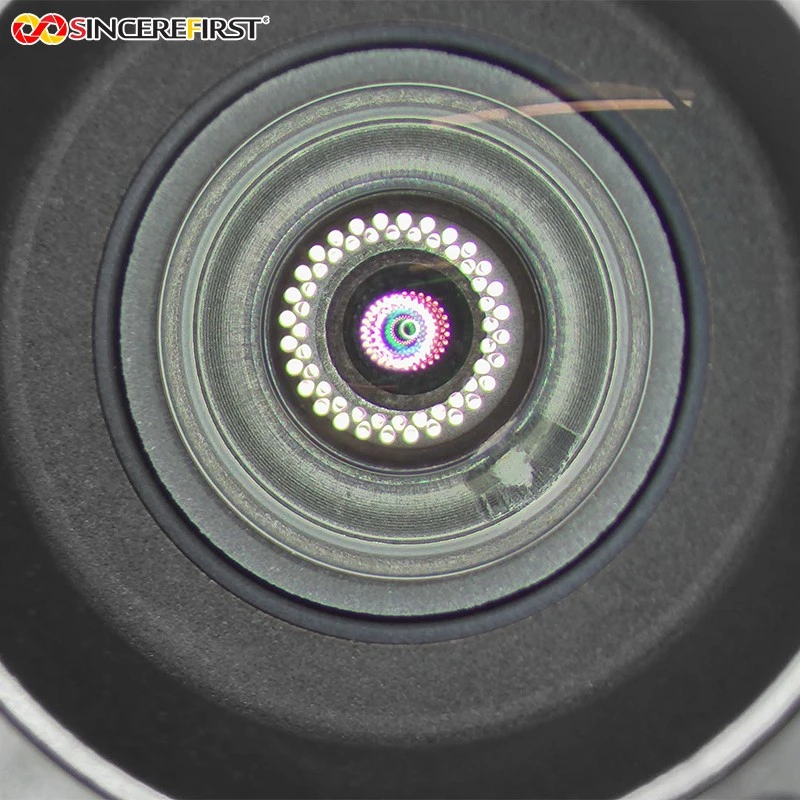

This model is designed for embedded USB vision projects that need stronger low-light imaging, wide-angle capture and smooth 1080P video output. Built around the Sony IMX662 CMOS sensor, it supports 1920 x 1080 resolution, 1080P@60FPS output, 2.9μm × 2.9μm pixels, STARVIS 2 technology, single-frame HDR and NIR-enhanced imaging. With an H134° wide-angle lens, F1.6 aperture and optional IR CUT switch and external IR LED light board support, this module is suitable for smart monitoring, low-light recognition and industrial visual devices.
Features
• Sony IMX662 STARVIS 2 Sensor
Uses a 2MP Sony IMX662 CMOS sensor for stronger low-light and NIR-related imaging performance.
• 1080P 60FPS Video Output
Supports 1920 x 1080@60FPS for smoother real-time monitoring, inspection and embedded video capture.
• Single-Frame HDR Support
Improves scene handling where bright and dark areas need to be captured in one image.
• NIR-Enhanced Imaging
Suitable for projects that require better near-infrared response in low-light or night-vision environments.
• H134° Wide-Angle Lens
Provides broad horizontal coverage for monitoring devices and wide-scene embedded vision products.
• Optional IR CUT and IR LED Matching
IR CUT switch and external IR LED light board can be selected for day-night imaging requirements.
Application of USB Camera Module
• Smart Home and Security Monitoring
Suitable for devices requiring wide-angle coverage, low-light performance and smooth 1080P video output.
• Industrial Visual Inspection
Can be evaluated for inspection equipment that needs clear imaging under mixed or weak lighting.
• Embedded Night-Vision Devices
Useful for products requiring NIR-enhanced imaging with optional IR CUT and IR illumination support.
• Wide-Angle Recognition Terminals
Works for terminals that need wider visual coverage and stable USB-based image output.
Product Details
|
Product Name |
Night Vision NIR USB Camera Module |
|
Image Sensor |
Sony IMX662 CMOS sensor |
|
Pixel |
2MP |
|
Pixel Size |
2.9μm x 2.9μm |
|
Resolution |
1920x1080@60FPS |
|
Sensor Size |
1/2.8 Inch |
|
Imaging Technology |
STARVIS 2, Single-Frame HDR, NIR Enhancement |
|
Focus Type |
Fixed Focus |
|
FOV |
H134° |
|
F.NO |
1.8 |
|
Output Format |
YUV / MJPEG |
|
Protocol |
UVC |
|
Interface |
USB2.0 |
|
Module Size |
32mm*32mm |
Customization Options
IR CUT and IR Illumination Configuration
IR CUT switch and external IR LED light board can be selected for day-night or NIR-related applications.
Low-Light Scene Optimization
Image behavior can be evaluated according to weak-light, backlight or mixed-light working conditions.
Wide-Angle Lens Matching
The H134° optical direction can be matched to monitoring distance, target coverage and enclosure opening.
32mm x 32mm Structure Adaptation
The board structure can be checked against product housing, mounting position and internal assembly space.
USB2.0 UVC Host Compatibility Evaluation
USB output and UVC behavior can be evaluated according to the host platform and software workflow.
FAQ
Q: What is the main advantage of this IMX662 USB camera module?
A: Its main advantage is low-light 1080P imaging with STARVIS 2, HDR and NIR-enhanced performance.
Q: Does it support 1080P at 60FPS?
A: Yes. It supports 1920 × 1080@60FPS video output.
Q: Is this module suitable for night-vision applications?
A: Yes. It supports NIR-enhanced imaging and can be matched with IR CUT and external IR LED options.
Q: What is the lens angle of this module?
A: The lens provides an H134° wide-angle viewing direction.
Q: Does it use USB2.0?
A: Yes. It uses a USB2.0 interface and supports UVC protocol.
Q: Can the IR CUT switch be selected?
A: Yes. IR CUT switch can be selected according to day-night imaging requirements.
Q: Can an external IR LED board be used?
A: Yes. External IR LED light board matching can be discussed for low-light and NIR-related projects.
Q: What should I provide before evaluation?
A: Please provide application, lighting condition, required FOV, host system, structure limits and day-night imaging needs.
