Hey there! As a supplier of the Imx291 USB sensor, I often get asked about the modulation transfer function (MTF) of this little wonder. So, I thought I'd sit down and break it all down for you in this blog post.
First things first, let's talk about what MTF actually is. In simple terms, the modulation transfer function is a measure of how well an imaging system can transfer contrast from the object being imaged to the image itself. It's a way to quantify the sharpness and clarity of an image. Think of it as a way to figure out how accurately an image sensor can reproduce the details of what it's looking at.
The MTF is usually represented as a graph, with the spatial frequency on the x - axis and the modulation (contrast) on the y - axis. Spatial frequency is basically a measure of how many lines or cycles per millimeter there are in the object being imaged. The higher the spatial frequency, the finer the details. And modulation is the ratio of the contrast in the image to the contrast in the object.
Now, let's dive into the MTF of the Imx291 USB sensor. The Imx291 is a high - performance image sensor that's known for its excellent image quality. When it comes to the MTF, this sensor really shines. It has a high MTF value at low spatial frequencies, which means it can reproduce large - scale details very well. You'll get sharp and clear images of big objects or large areas of your scene.
As the spatial frequency increases, the MTF value of the Imx291 decreases gradually. This is normal behavior for any image sensor. But the Imx291 still maintains a relatively high MTF at medium spatial frequencies, allowing it to capture medium - sized details with good contrast.
At high spatial frequencies, the MTF drops off more significantly. This is because no sensor can perfectly reproduce extremely fine details. But even at these high frequencies, the Imx291 does a decent job compared to some other sensors on the market. It can still pick up some fine details, although the contrast might be a bit lower.
One of the factors that affect the MTF of the Imx291 is the lens that's used with it. A good quality lens can help to maintain a higher MTF across a wider range of spatial frequencies. So, if you want to get the best out of the Imx291 in terms of MTF, make sure you pair it with a high - quality lens.
Another important aspect is the sensor's pixel size. The Imx291 has a certain pixel size, and this can influence how it captures details at different spatial frequencies. Smaller pixels can potentially capture higher spatial frequencies, but they also have some limitations in terms of noise and light sensitivity.
Now, let's compare the Imx291 with some other sensors in our product line. We also offer the Fixed Focus Omnivision Ov9713 CMOS Image Sensor USB Interface UVC Camera Module. The Ov9713 has its own unique MTF characteristics. It might be better suited for applications where you don't need extremely high - resolution details. Its MTF curve is different from that of the Imx291, and it can be a great choice for some specific use cases, like simple surveillance or basic imaging tasks.
The 4K Industrial Vision IR Filter AR2020 CMOS USB Camera Module is another option. This module is designed for industrial applications. Its MTF is optimized for capturing details in industrial settings, where there might be a lot of medium - sized objects and fine patterns. It can handle different lighting conditions well and has a good MTF across a range of spatial frequencies relevant to industrial vision.

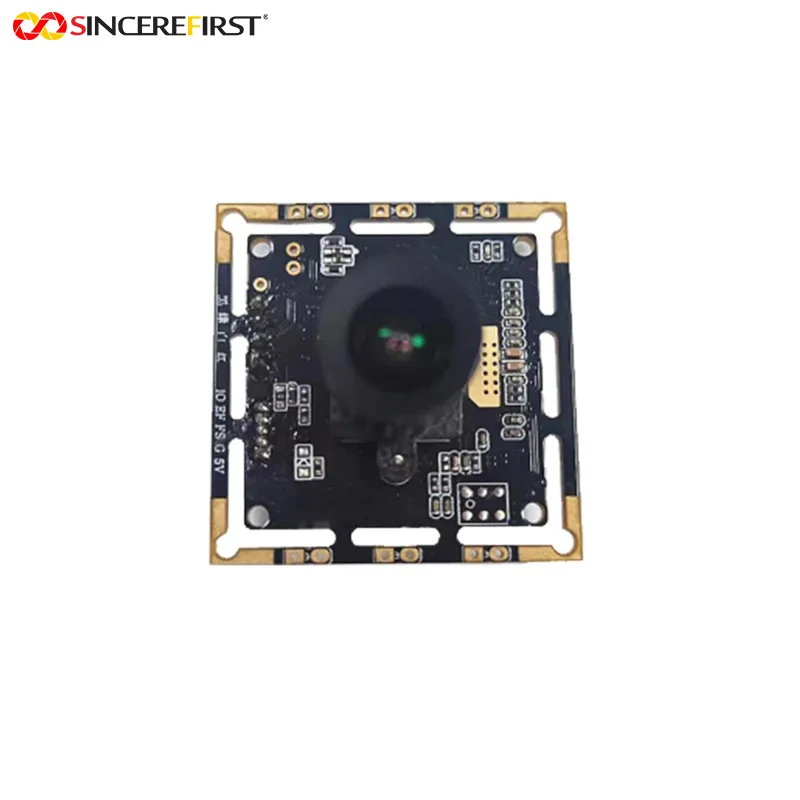

And then there's the 8mp External Trigger Webcam Android Waterproof Inspection USB2.0 Camera Module. This camera module is great for inspection tasks. Its MTF is tuned to pick up details that are important for inspection, like small defects or irregularities. It has a relatively high MTF at the spatial frequencies that are most relevant for these kinds of applications.
So, depending on your specific needs, you can choose the right sensor or camera module. If you need high - resolution, sharp images with good contrast across a wide range of details, the Imx291 is a top choice. But if your application has more specific requirements, like simple surveillance or industrial inspection, the other modules we offer might be more suitable.
If you're in the market for an image sensor or camera module and want to learn more about the MTF and how it applies to your project, don't hesitate to reach out. We're here to help you make the right decision for your imaging needs. Whether you're a hobbyist working on a small project or a professional in an industrial setting, we can provide you with the right product and support.
In conclusion, understanding the modulation transfer function of the Imx291 USB sensor is crucial for getting the best possible image quality. It gives you an insight into how well the sensor can capture details at different scales. And by comparing it with other sensors in our product line, you can find the perfect fit for your application. So, get in touch with us today to start discussing your imaging requirements.
