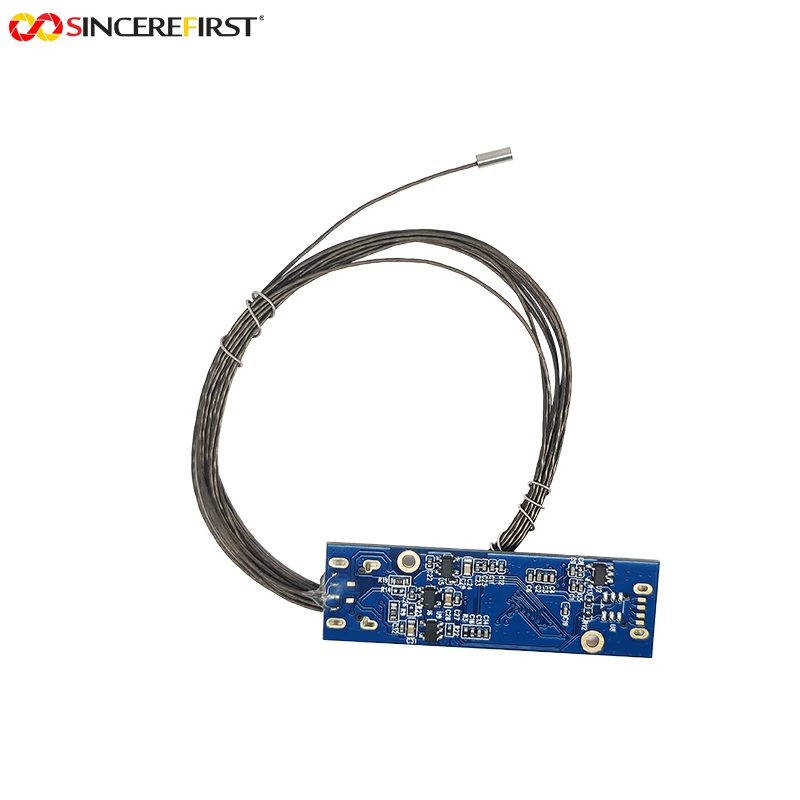

SF-C16USB-D2.0 D120 (3)

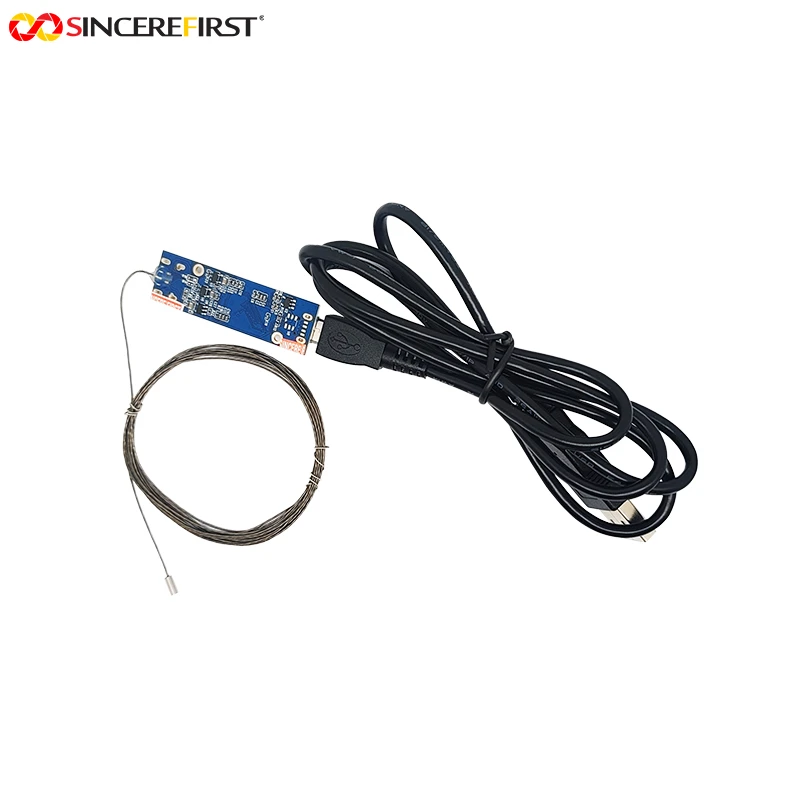

SF-C16USB-D2.0 D120 (4)
SF-C16USB-D2.0 D120 (5)

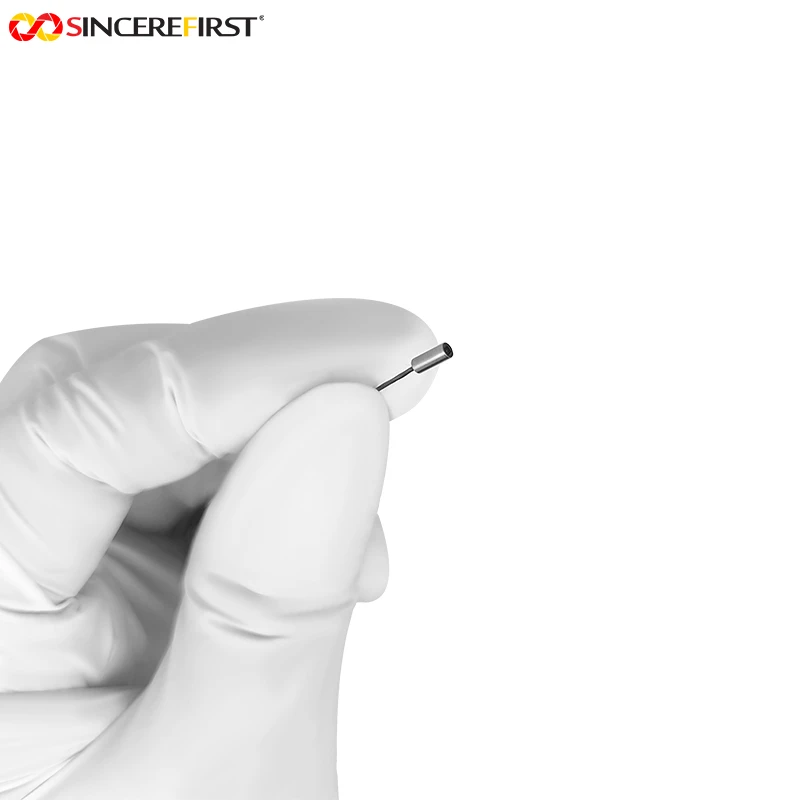

SF-C16USB-D2.0 D120 (6)

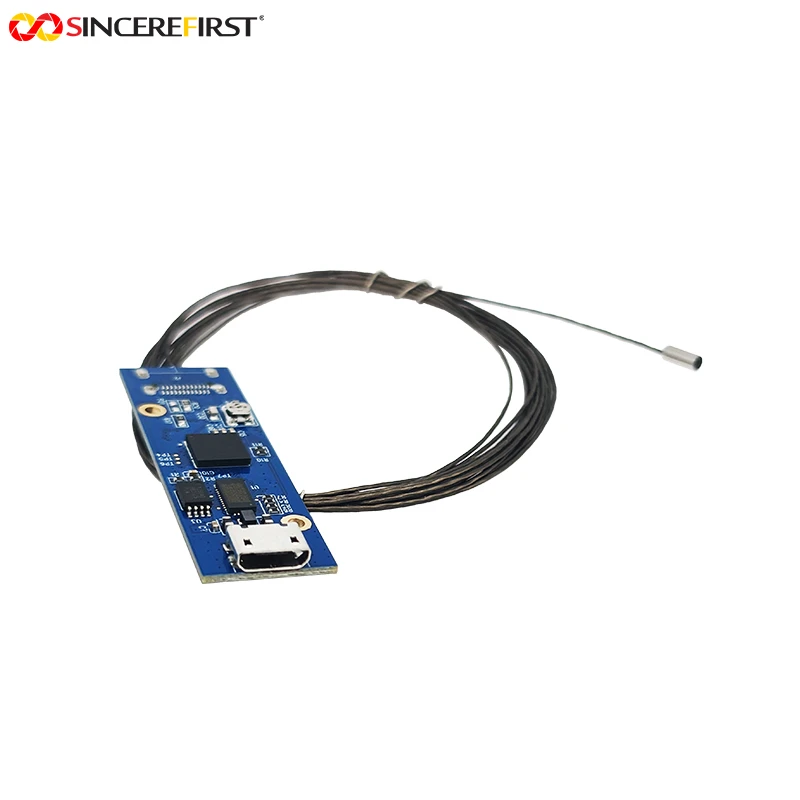

SF-C16USB-D2.0 D120 (7)

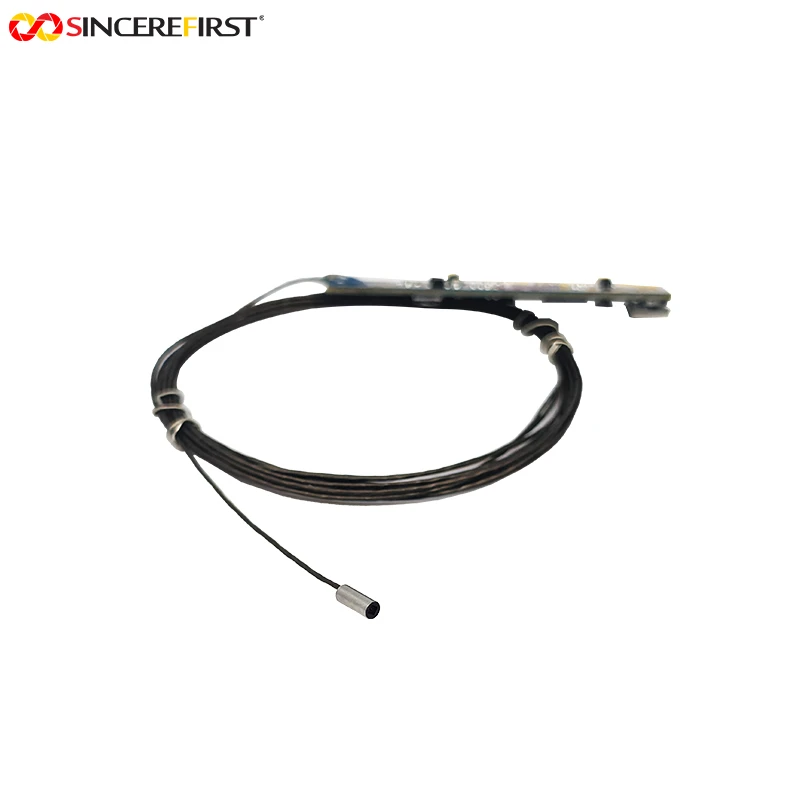

SF-C16USB-D2.0 D120 (8)

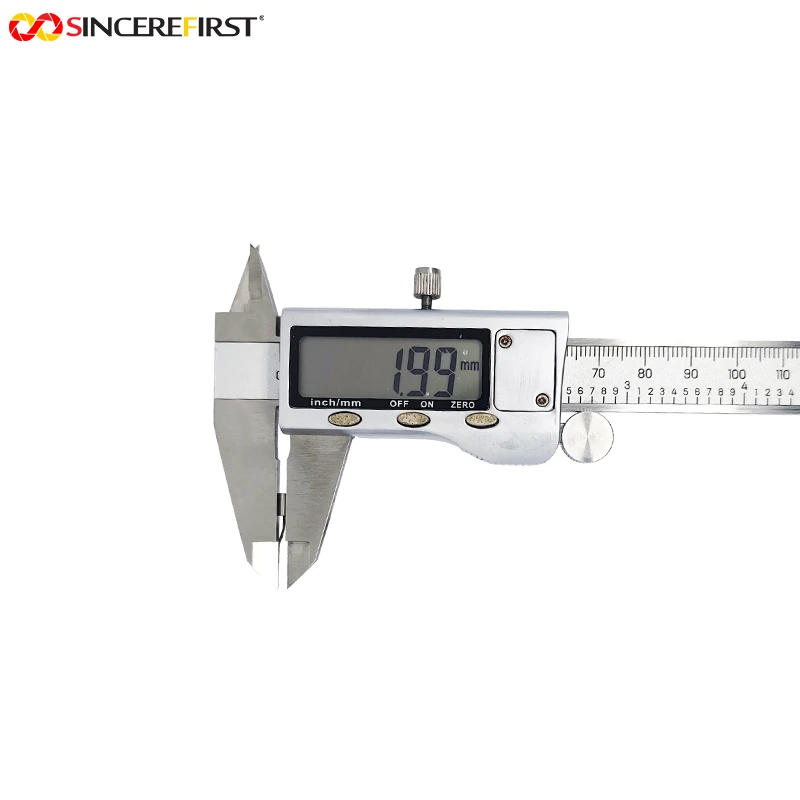

SF-C16USB-D2.0 D120 (9)

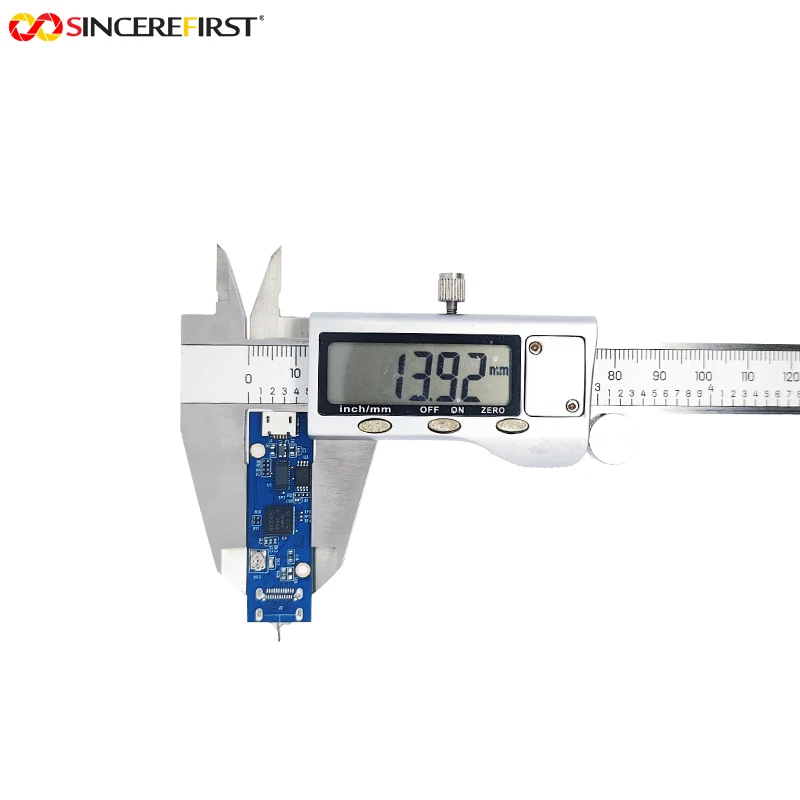

SF-C16USB-D2.0 D120 (10)

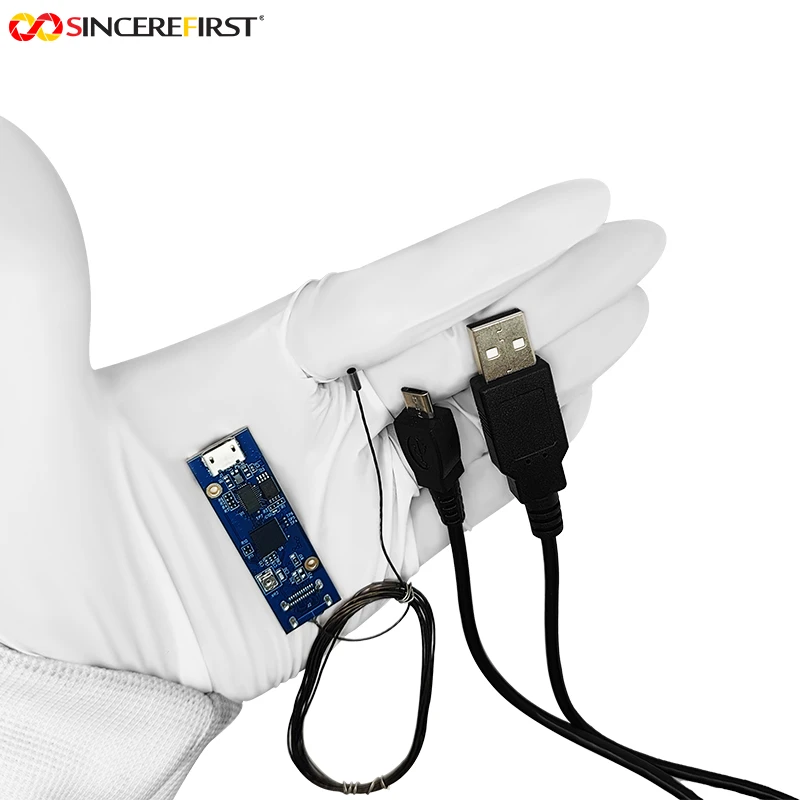

SF-C16USB-D2.0 D120 (11)
SF-C16USB-D2.0 D120 (12)
SF-C16USB-D2.0 D120 (13)
USB 2.0 OVM6946 Sensor 2mm Mini Endoscope Camera Module
Guangzhou Sincere Information Technology Ltd. is one of the most professional usb 2.0 ovm6946 sensor 2mm mini endoscope camera module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.
This OVM6946 2.0mm Diameter Lens USB Endoscope Camera Module is designed for compact endoscope and close-range inspection products that require a very small front-end lens structure with USB output. Built with an OmniVision OVM6946 CMOS sensor, this 0.16MP USB endoscope camera module supports 400 × 400 resolution, 400 × 400@30FPS, 1.75μm × 1.75μm pixel size, MJPEG / YUV output and USB2.0 UVC connection. The 2.0mm Diameter Lens integrates Steel Shell and 4 LEDs, supports IP67 dustproof and waterproof protection, and uses a separated design where the lens unit connects to the DSP board through soldered wires / cable routing.
• 2.0mm Diameter Lens Structure
Fits ultra-compact endoscope and inspection products requiring a very small front-end optical structure.
• OVM6946 0.16MP CMOS Sensor
Supports compact 400 x 400 imaging for small-diameter endoscope and close-range visual checking applications.
• Integrated Steel Shell and 4 LEDs
Combines protected lens structure with built-in illumination for darker or enclosed inspection spaces.
• IP67 Dustproof and Waterproof
Supports medical, oral and industrial inspection products requiring protected small-diameter front-end use.
• Separated Soldered-Wire Design
The lens unit connects to the DSP board through soldered wires or cable routing for flexible device layout.
• USB2.0 UVC Output
Supports USB2.0 UVC output with MJPEG and YUV formats for compatible host-side integration.
Application of Endoscope Camera Module
• Medical Endoscope Devices
Suitable for compact medical endoscope products requiring small-diameter imaging and built-in illumination.
• Oral Inspection Tools
Can be evaluated for oral visual checking devices where a 2.0mm lens structure is required.
• Industrial Small-Hole Inspection
Works for borescope and small-hole inspection tools used in narrow or enclosed spaces.
• Embedded Close-Range Visual Devices
Suitable for OEM products requiring a separated lens structure and USB2.0 image output.
Product Details
|
Product Name |
Micro IP67 USB Endoscope Camera Module |
|
Sensor |
OmniVision OVM6946 CMOS Sensor |
|
Pixel |
0.16MP |
|
Resolution |
400x400 |
|
Frame Rate |
400x400@30FPS |
|
Sensor Size |
1/18" |
|
Output Format |
MJPEG / YUV |
|
EFL |
0.418mm |
|
FOV |
D120°*H87.5° |
|
LED |
4pcs LED |
|

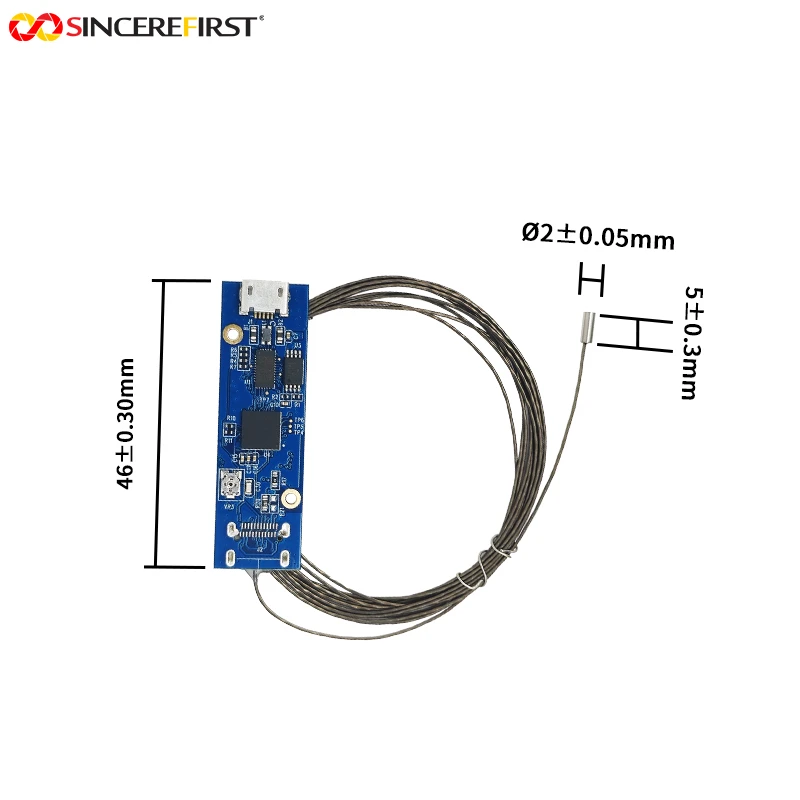

Diameter |
2.0mm integrated Steel Shell |
|
Structure |
Separated design |
|
Protection |
IP67 dustproof and waterproof |
|
Interface |
USB2.0 |

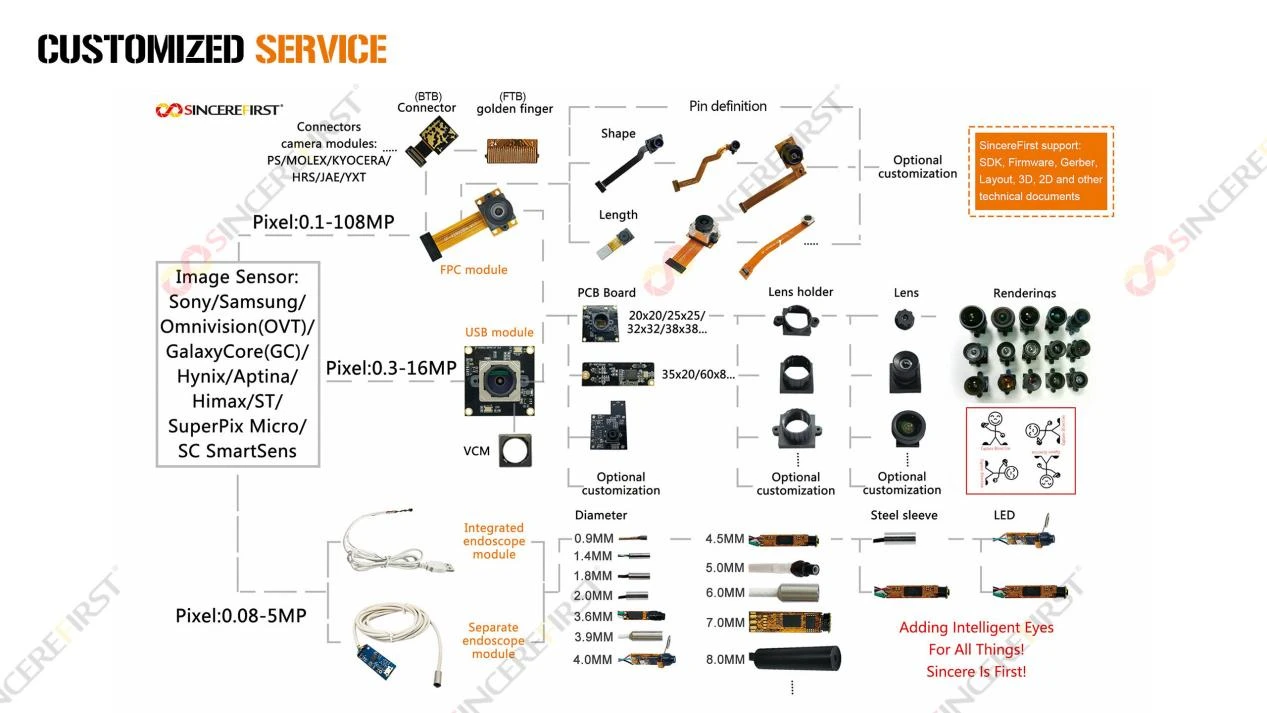

Customization Options
2.0mm Lens Structure Matching
The 2.0mm Diameter Lens structure can be matched to insertion space, working distance and inspection target size.
4-LED Illumination Configuration
The integrated lighting behavior can be configured according to close-range visibility and enclosed-space inspection needs.
Separated Wire Routing Adaptation
Soldered-wire routing and lens-to-DSP placement can be adapted according to the final device layout.
Steel Shell and IP67 Assembly Fit
The protected front-end assembly can be evaluated according to waterproof, dustproof and housing requirements.
USB2.0 Host Integration Support
USB2.0 UVC behavior can be checked according to host device, software workflow and output format requirements.
FAQ
Q: What is SF-C16USB-D2.0 designed for?
A: It is designed for compact endoscope and inspection products requiring a 2.0mm Diameter Lens.
Q: What sensor does this module use?
A: It uses an OmniVision OVM6946 CMOS sensor.
Q: What resolution does it support?
A: It supports 400 × 400 resolution at 30FPS.
Q: Does this module include LEDs?
A: Yes. The 2.0mm Diameter Lens integrates 4 LEDs for close-range illumination.
Q: Does it support IP67 protection?
A: Yes. It supports IP67 dustproof and waterproof protection.
Q: Is this a separated endoscope camera module?
A: Yes. The lens unit connects to the DSP board through soldered wires or cable routing.
Q: Can it be used for medical or oral inspection devices?
A: Yes. It can be evaluated for medical endoscope, oral inspection and compact visual checking products.
Q: What information should I provide for customization evaluation?
A: Please provide lens diameter limit, working distance, illumination need, wire routing space, waterproof requirement and host device.
