Wide Range Sensor OV6946 Endoscope Camera Module With Light

Guangzhou Sincere Information Technology Ltd. is one of the most professional wide range sensor ov6946 endoscope camera module with light manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.



Introduction:

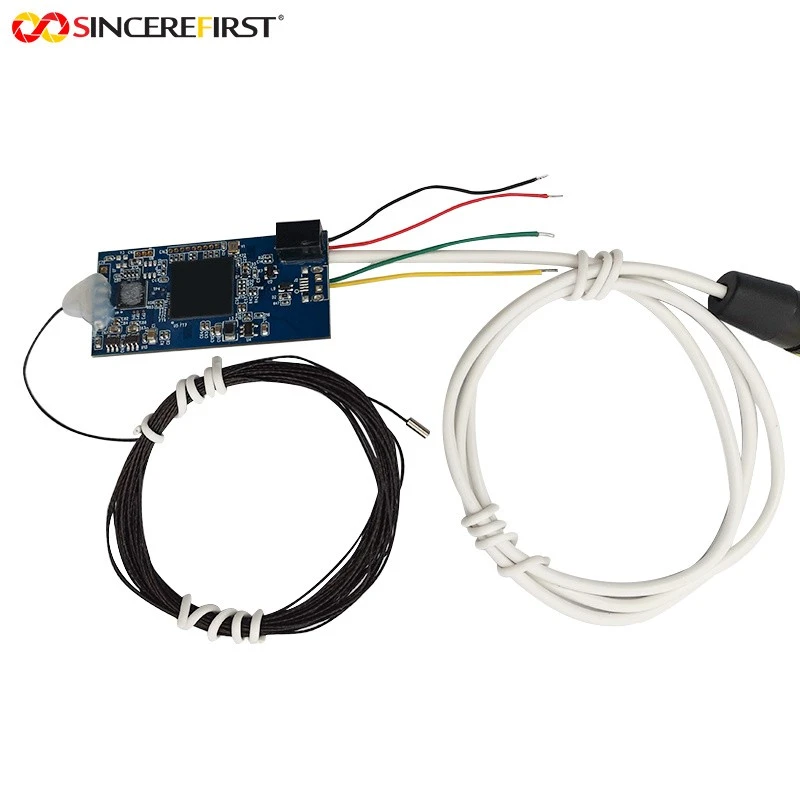

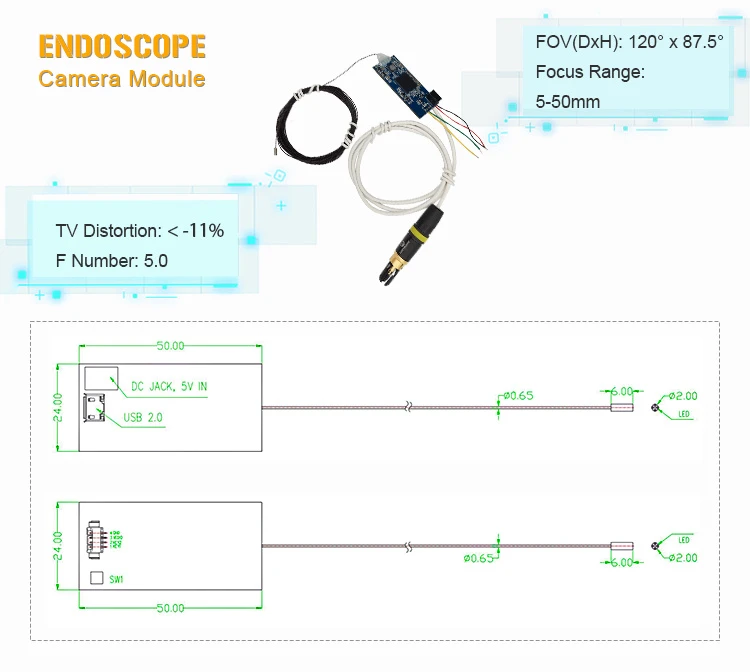

This Endoscope Camera Module, featuring the sensor OV6946 , it have a 120°x87.5° Field of View (FOV) and a focus range from 5mm to 50mm, The high-resolution 400x400 pixel sensor ensures accurate and detailed imaging, The Endoscope Camera with light is equipped with an F number of 5.0, which enhances light sensitivity, allowing it to perform effectively in low-light conditions while minimizing less than -11% in video output. Compact and versatile, the Endoscope Camera has a diameter of just 1.5mm without the LED light, and 2.0mm with it, enabling it to fit into narrow spaces. The optional 2-meter long cable offers flexibility in setup, and the main board, measuring 50mm x 24mm, makes integration into various devices straightforward. This Wide Range Camera Module is suitable for both medical endoscopic uses and industrial inspections, providing the flexibility needed for a wide range of scenarios that demand high-quality imaging in confined spaces. it provides clear visuals that are essential for a variety of applications.



Features

·OV6946 Sensor: Provides high quality images with a resolution of 400x400 pixels.

·The Field of view Angle (FOV) is 120°x87.5°, and the focal length ranges from 5mm to 50mm for a wide viewing Angle.

·With LED light source, large aperture, enhanced imaging clarity in low light environment, video less than -11%.

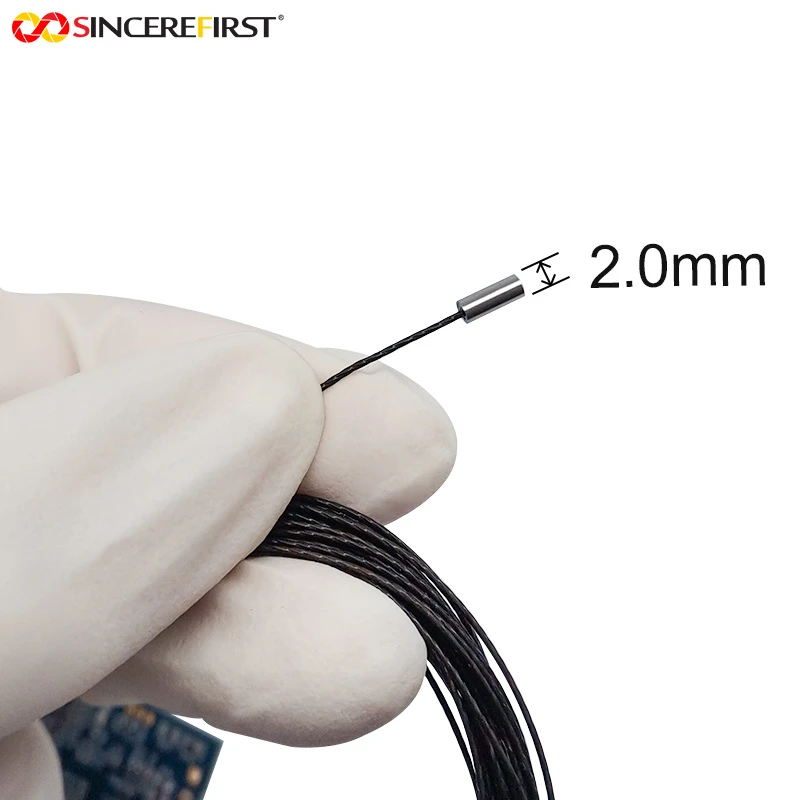

·Camera module is available in 1.5mm (without LED light source) or 2.0mm (with LED light source) versions

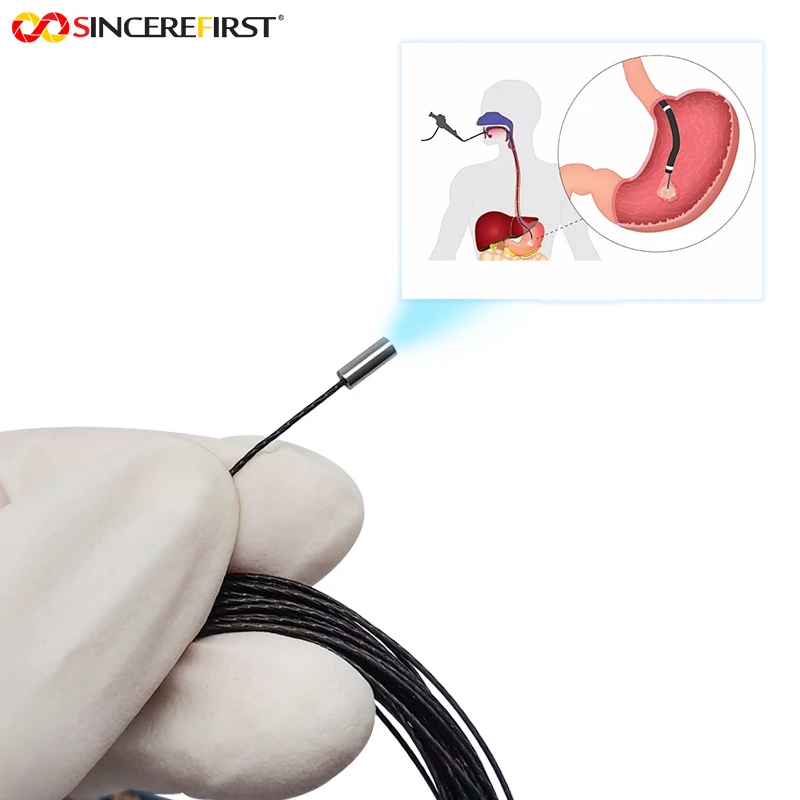

·Medical endoscope: medical image acquisition in small Spaces.

·Industrial inspection: high-precision inspection in pipelines or automobiles.

·Document recognition: Can be used for tasks that require accurate imaging, such as document scanning.

·Fine detection task: Scenes shot in low light environment.

SINCEREFIRST camera module manufacturing enterprise integrates design, development, manufacturing and sales. We can supply ready made 0.3mp to 108mp FPC & USB camera module and diameter 0.9mm~8.0mm endoscope camera module. Our products are widely used in various fields, such as AIoT equipment, smart home, smart medical, intelligent transportation, automatic driving, intelligent security, Intelligent warehousing, scanning, robot, UAV, medical endoscope, industrial endoscope, computer, intelligent terminals etc.

If you are looking for best camera module or camera sensor manufacturers and suppliers, please feel free to contact us for camera module price and more detailed introduction. SINCEREFIRST is a leading high-tech company specializing in integrated optical device manufacturers and optical imaging system solution providers. There are different types of camera modules and camera sensors for sale, and they also support customization to meet all your needs and solve your problems.
