24MP UHD Sony IMX576 PDAF Night Vision Embedded MIPI Camera Module
Guangzhou Sincere Information Technology Ltd. is one of the most professional 24mp uhd sony imx576 pdaf night vision embedded mipi camera module manufacturers and suppliers in China. Welcome to wholesale discount products for sale here from our factory. Customized orders are welcome.
This is a compact 24MP FPC camera module designed for OEM devices that need higher image detail, VCM autofocus, and irregular FPC integration in a compact embedded layout. Built around the Sony IMX576 CMOS sensor, it supports 5760x4312 resolution, HDR and PDAF capability, and TV distortion below 1%. It is a strong fit for smart wearables, smart glasses, handheld terminals, and other embedded products that need a higher-resolution upgrade path within a compact high-resolution camera family.
Features
Sony IMX576 24MP Sensor
Uses the Sony IMX576 sensor with 5760x4312 resolution for products that need higher image detail in compact embedded systems.
HDR and PDAF Support
Supports HDR and PDAF for products that need stronger image capability in more demanding or dynamic use conditions.
VCM Auto Focus Support
Uses VCM autofocus to support clearer image capture across different object distances in compact OEM devices.
Higher-Resolution Upgrade Direction
Compared with the 20MP variants in this family, this module provides a clearer upgrade path when image detail is the main priority.
Low TV Distortion Below 1%
The current optical direction keeps TV distortion below 1%, helping maintain cleaner image geometry in higher-resolution imaging use.
Irregular FPC Structure
The irregular FPC design helps the module fit more easily into products with tighter routing and installation constraints.
Application of MIPI Camera Module
Smart Glasses and AR Devices
This module is suitable for smart glasses and AR-related products that need higher-resolution image capture in a compact FPC direction.
Smart Gloves and Wearable Vision Devices
Its compact structure and higher-detail imaging direction make it suitable for smart glove and wearable camera applications.
Handheld Scanners and Smart Terminals
The 24MP direction is also a strong fit for handheld terminals, scanners, and embedded devices that benefit from more image detail.
Biometric and Embedded Vision Devices
HDR, PDAF, and autofocus support make it suitable for more demanding embedded vision or biometric terminal projects.
Product Details
|
Product Name |
24MP HDR PDAF MIPI Camera Module |
|
Sensor |
Sony IMX576 CMOS Sensor |
|
Sensor Size |
1/2.78 Inch |
|
Pixel |
24MP |
|
Resolution |
5760x4312 |
|
EFL |
3.95mm |
|
Focusing Distance |
＞10cm |
|
F.NO |
1.8 |
|
FOV |
D78.1° |
|
Focus Type |
Auto Focus |
|
TV Distortion |
＜1% |
|
Features |
HDR, PDAF |
|
Structure |
Irregular FPC design |
|
Interface |
MIPI CSI |

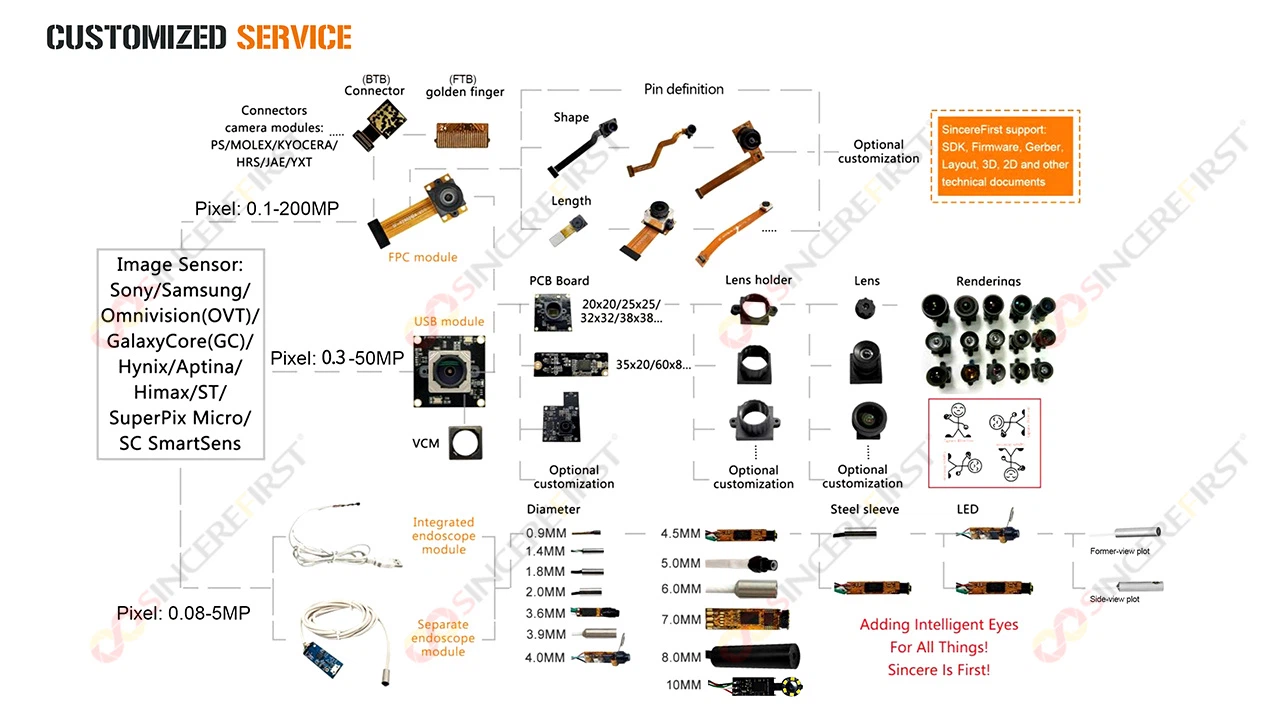

Customization Options
Lens Type, FOV, and Optical Structure
Lens type, viewing angle, and optical structure can be reviewed according to the final application requirement.
FPC Layout and Module Form Adjustment
The irregular FPC layout can be evaluated according to the internal structure and routing requirement of the final device.
Interface and Additional Port Review
Interface direction and additional communication requirements such as UART can also be reviewed at project level.
Focus and Imaging Direction Review
Autofocus behavior and project-level optical tuning can be reviewed according to the final use scenario.
Testing Support for Non-USB Projects
As a non-USB module direction, this product can be reviewed together with compatible testing support where needed.
FAQ
Q: What is SF-SC576-F29-B designed for?
A: It is designed for compact OEM devices that need 24MP image detail, autofocus support, and irregular FPC integration.
Q: What is the main difference between this model and the 20MP variants?
A: The main difference is image detail. SF-SC576-F29-B is the 24MP direction in this compact high-resolution FPC family.
Q: Does this module support autofocus?
A: Yes. It supports VCM autofocus.
Q: Does it support HDR and PDAF?
A: Yes. This model supports both HDR and PDAF.
Q: Is this module suitable for wearables or smart terminals?
A: Yes. Its compact FPC structure and higher-resolution direction make it suitable for smart wearables, smart glasses, handheld terminals, and embedded vision devices.
Q: Can the FPC layout be customized?
A: Yes. FPC direction, optical structure, and project-level integration can all be reviewed according to the final design.
